Hilti PD 20 User manual
PD 20
Operating instructions
*334057*
334057
23
Product identification
The type designation and serial number can be
found on a name plate attached to the rear of
the product. Make a note of this information in
the operating instructions and always refer to it
when addressing any enquiries to our agents or
service department.
Type: P 20 Serial no.:
Symbols
Information to help the operator use
the product in a technically correct
and efficient manner.
Caution
Operating risk or misuse which may
lead to only minor personal injuries,
but to serious material, property or
environmental damage.
Warning
Operating risk or misuse which may
lead to serious personal injury or
death.
Operating instructions Contents
PD 20 laser range meter
In addition to the instructions for use,
this manual also contains important
safety information (see “Safety
precautions” section).
Please read these instructions
carefully before using the product.
The symbols used in these operating
instructions have the following meanings:
1. Product information ............................. 5
Description of functions .................................. 5
Display and control panel ............................... 7
Symbols displayed ............................... 7
Button functions .................................... 8
Instructions at a glance .................................. 9
Technical data ............................................... 11
Items supplied .............................................. 13
2. Safety information .............................. 14
Please read this now! ................................... 1
Purpose ........................................................ 1
Intended uses ..................................... 14
Examples of misuse ........................... 14
Operating limits ............................................ 15
Division of responsibilities ............................ 15
Operating risks ............................................. 16
Disposal ....................................................... 20
Laser classification ....................................... 21
Information plate .......................................... 22
Electromagnetic compatibility (EMC) ........... 2
3. Operation ............................................. 25
Inserting the batteries ........................... 25
Menu selection and setting ................... 26
Menu overview ................................... 26
rEF menu / reference point ................. 26
CONST menu / constants .................. 27
Light menu / display illumination ........ 27
dELAY menu / self-timer ..................... 27
bEEP menu / beep sound .................. 28
Unit menu / measurement units ......... 28
4. Wor ing with the PD 20 ...................... 29
Measuring distances .................................... 29
Measuring using the spike .................. 30
Continuous measurement (tracking) .. 31
Measuring using the self-timer ........... 32
Measuring with the aid of a target object
33
continued
45
Contents 1. Product information
1. Product information
Description of functions
continued
The Hilti P 20 is a laser range meter. It makes
use of a laser beam to measures distances
within the 0.3 m - 100m range with great
precision and without physical contact.

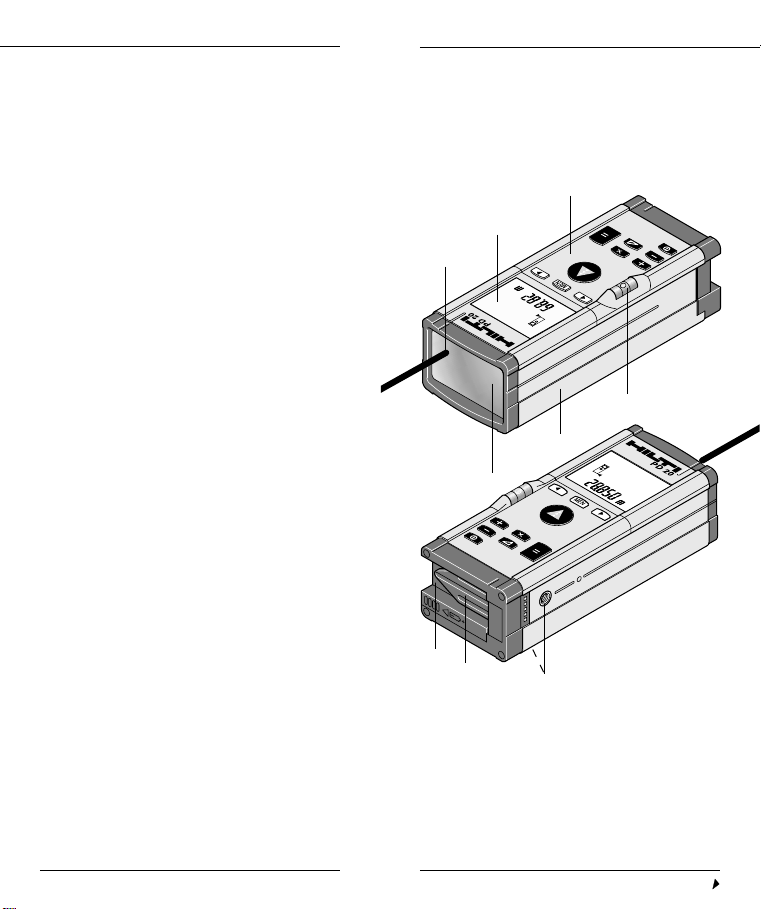

1Laser exit aperture
2isplay
3Control panel
4Receiving lens
5Plastic casing
6Bubble level
7Battery compartment
8Spike (folding)
9Two tripod mounting threads
Taking measurements from various
surfaces .............................................. 34
Using the calculation functions .................... 35
Adding / subtracting (distances) ......... 35
Multiplication (areas / volumes) .......... 36
Calculating with Pythagoras ............... 38
Calculating using a constant value ..... 40
5. Care, transportation and storage ...... 41
Cleaning and drying ..................................... 1
Storage ........................................................ 1
Transportation .............................................. 1
6. Symbols displayed ............................. 42
7. Measuring equipment inspection ..... 43
8. Accessories ........................................ 44
Batteries .......................................................
Target plates ................................................
Laser sighting glasses .................................
9. FCC statement (applicable in US) ..... 45
10. EC declaration of conformity ............ 46
11. Warranty .............................................. 47
. Working with the PD 20, continued
7
89
5
3
2
6
4
1
67
1. Product information
Symbols displayed
Display and control panel
continued
Front edge of the tool
Tripod thread axis
Rear edge of the tool
(standard setting)
End of the spike (e.g. for taking
measurements from the corner of a
room)
Features
- Compact and functional design
- Simple, self-explanatory menu selection and
menu settings
- One-man, hand-held operation for speed of
use
- Large display (can be illuminated)
- Memory function for constants
- Built-in calculator functions
- Pythagoras button for rapid calculation of
building heights
- Switches off automatically
- The last three measured values remain in
memory
- Built-in bubble level
- Tripod mounting threads

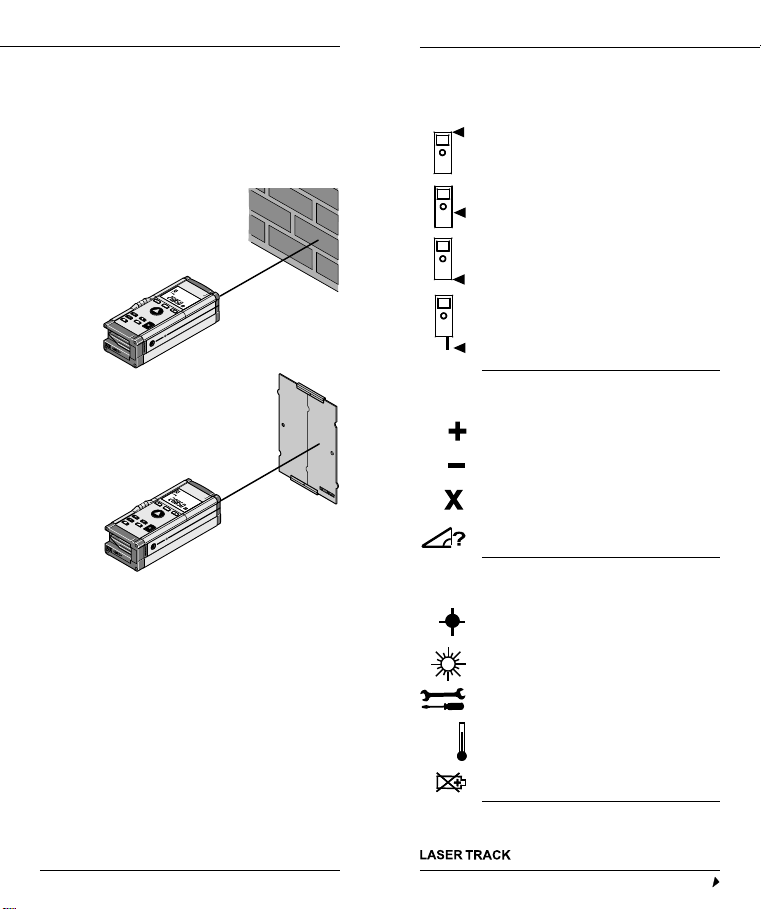

Description of functions, continued
Distances between
30 and 100
- Use the brown target plate.
Distances between
0.3 and 30
- Target the object directly.
- Use the white target plate.
The point from which the measurement is taken
is clearly identified by the red spot. The range of
the tool depends on the reflectance and surface
finish at the point where the measurement is
taken. The reference point on the tool can be
selected for different types of measurements.
Reference points on the tool
Mathe atical functions
Addition
Subtraction
Multiplication
Pythagoras
Error essages
Signal received is too weak or too
powerful.
Ambient light too bright
Contact a Hilti service department.
Operating temperature range of the
tool is exceeded
Batteries almost discharged
Tracking (continuous easure ent ode)
activated
1. Product information
89
1. Product information
Button functions
Display and control panel, continued
Recall last measured values (max. 3)
Scroll through active menu
Menu select / exit (rEF/CONSt/Light/
dELAY/bEEP/UNIT).
Recall last measured values (max. 3)
Scroll through active menu
Measure distance or start tracking
Addition
Subtraction
Multiplication
Pythagoras (calculates length of
opposite side of right-angled triangle)
Start calculation or reset display
Switch tool on / off
isplay
Select menu
Measure
Calculate
Switch on / off
1. Product information
Instructions at a glance
continued
2.326 m
2x
LASER
- - - - -
10 11
1. Product information
Technical data
Measuring range
0.3 to over 100 m*
Typical measuring range without
target plate
rywall panel, white 60 m
Concrete, dry 50 m
Brick, dry 50 m
*Maximum range depends on
reflectance of the target surface and
on the brightness of ambient light. If
difficulty is experienced (no measure-
ment possible), the Hilti PA411 target
plate should be used.
Measuring ti e
0.5 to approx. 4 sec. in individual
measurement mode
0.16 to approx. 1 sec. in continuous
measurement mode (tracking)
Accuracy
± 3 mm individual measurement @ 23° C
(± 0.1
"
individual measurement @ 73° F)
± 5 mm @ 0°C ... + 50°C
(± 0.2" @ + 32°F ... + 122°F)
± 7 mm @ - 10°C ... + 50°C
(± 0.3" @ 14°F ... 122°F)
Bea dia eter
< 6 mm @ 10 m (< 0.2" @ 30 ft)
< 30 mm @ 50 m (< 1.2" @ 150 ft)
< 60 mm @ 100 m (< 2.4" @ 300 ft)
Operating odes
• Individual measurement
• Continuous measurement
• Pre-set distance
• Calculation
Operating status indicator
Liquid crystal display indicating
individual operating modes and
operating status
Laser Visible, 620 - 690 Nm, laser class 2
(IEC825-1), class II (F A21 CFR)
Power output: <1 mW
Power supply (3 V DC)
Battery type: AA (LR6, AM3,
round cell R6)
Standard: 2 alkaline primary cells
Optional: NiCd rechargeable
continued
1. Product information
Instructions at a glance, continued
0.3 - 30 : 30 - 100 :
rEF
CONSt 0.000 ...
999.999 m
Light OFF / ON / Auto
dELAY 0/2/5/10/20 s
bEEP Auto/ON/OFF
UNIT m / in / ft in
m
ft in
s
h!
a
m
ft in
m
ft in m
ft in
m/m2/m3
ft in
sq.ft /in
12 13
1. Product information
Items supplied
No. Qty. Designation
11 P 20 laser range meter
21 Operating instructions
32 Batteries, type AA
41 Carrying case
12
3
4
1. Product information
Technical data, continued
Battery life at 25° C [+ 77° F]
No. of measurements with a duration
of five seconds
Alkaline: 4000
NiCd: 2000
Battery condition
A warning is displayed when battery
voltage is low.
Operating te perature
- 10°C ... + 50°C (14°F ... 122 °F)
Storage te perature
- 30°C ... + 70°C (- 22°F ... 158°F)
Protection class
ust and splash-proof
IP 54 as per IEC 529 standard
Mounting points
1/4'’ Whitworth internal thread
One on the side and one underneath
(Standard camera tripod thread)
Weight 380 g (without batteries)
Di ensions
165 x 67 x 47 mm
(6.5'’ x 2.6'’ x 1.8'’)
Illustration showing
di ensions [ ]
PD20
14 15
2. Safety information
WARNING
Misuse may lead to injury, malfunction
and damage to property. The owner
must inform the user of the operating
risks associated with the equipment
and the corresponding safety
precautions. The P 20 laser range
meter may be operated only when the
user has received prior instruction.
Operating limits
See “Technical data” section.
Environ ent
The product is suitable for use in atmospheres
permanently habitable by humans. It must not
be used in corrosive or explosive environments.
Exposure to rain for short periods during use is
permissible.
Division of responsibilities
Responsibility of the anufacturer of
the original equip ent, Hilti Corporation,
FL 9494 Schaan (subsequently referred to
as “Hilti”)
Hilti is responsible for supplying a technically
safe product in faultless condition, including
operating instructions and original accessories.
The responsibility of other anufacturers
supplying accessories
The manufacturers of accessories (not supplied
by Hilti) for the Hilti P 20 are responsible for
the development, implementation and
communication of safety strategies for their
products and the interaction of the latter with the
Hilti product.
Intended use, continued
continued
2. Safety information
2. Safety information
Please read this now!
This information is intended to enable owners
and users of the Hilti P 20 to identify any
operating risks in good time, i.e. to eliminate any
such risks in advance where possible.
The owner of the tool must ensure that these
instructions are understood and followed by all
users.
Purpose
Intended uses
The Hilti P 20 is intended for the following
range of applications:
• Measuring distances
• Calculating areas, volumes and remote
heights (side of right-angled triangle)
• Addition and subtraction of distances
Examples of misuse
• Use of the product without prior instruction
• Use of the product outside its operating limits
• Rendering safety devices ineffective or
removing notices and warning signs
• Opening the product unless expressly
permitted in certain cases (e.g. to replace the
batteries)
• Making conversions or modifications to the
product
• The use of accessories from other
manufacturers not explicitly approved by Hilti
• The use of a product known to have been
stolen
• eliberately dangerous or careless behaviour
on scaffolding, when climbing ladders or
when taking measurements in the vicinity of
operating machinery or the exposed parts of
machines or other equipment
• Aiming the product directly at the sun
• eliberately dazzling other persons
continued
16 17
2. Safety information
CAUTION
Take care to avoid incorrect
measurements caused by using a
defective product or a product which
has been dropped or subjected to any
other inadmissible stresses or
changes.
Preventative easures
Carry out measurements periodically to check
the accuracy of the product, particularly after it
has been exposed to excessive stresses and
before and after important measuring tasks.
WARNING
Failure to adequately cordon off the
area in which you are measuring may
lead to dangerous situations in road
traffic, on building sites or in industrial
plants, etc.
Preventative easures
Always ensure that the area in which you are
carrying out measuring work is properly
cordoned off. Observe the statutory accident
prevention regulations and road traffic
regulations of the applicable country.
CAUTION
Taking measurements from surfaces
with low reflectance surrounded by
areas with high reflectance may lead
to measurement errors.
Preventative easures
Take measurements from the brown side of the
Hilti target plate at distances above 40 m.
CAUTION
Rapidly changing conditions such as
large changes in distance while in
tracking mode or rapidly moving
target objects may lead to
measurement errors.
Operating risks, continued
continued
2. Safety information
Responsibility of the owner
WARNING
The owner is responsible for the
correct use of the equipment, the use
of the equipment by his employees,
their instruction and the operating
safety of the equipment.
The owner has the following obligations:
• To ensure that he has understood the safety
information on the product and the
information contained in the operating
instructions.
• To be aware of the locally applicable
industrial accident prevention regulations.
• To notify Hilti immediately of any safety-
related defects or deficiencies in the
equipment.
Operating ris s
WARNING
Use of the product without instruction
or with incomplete instruction may
lead to errors by the operator or
misuse and thus to accidents resulting
in serious personal injury, pecuniary
damage or damage to property and
the environment.
Preventative easures
All users must observe the safety information
issued by the manufacturer and the owner’s
instructions.
CAUTION
Care must be taken to avoid incorrect
measurements.
Preventative easures
Keep the receiving lens clean. It should be
cleaned at regular intervals. See section 5,
“Cleaning and drying”.
Division of responsibilities, continued
continued
18 19
2. Safety information
CAUTION
If the equipment is not used for
lengthy periods, there is a risk of it
being damaged by leaking batteries.
Preventative easures
Remove the batteries if you do not intend to use
the equipment for some time.
CAUTION
At regular intervals or before
measuring, check that the folding
spike functions correctly.
The symbol illustrated is shown in the
display.
Operating risks, continued
continued
2. Safety information
Preventative easures
– Take individual measurements
– Set up the tool in a fixed position (tripod)
CAUTION
Objects moving through the path of
the laser beam while measuring may
lead to incorrect measurements.
Preventative easures
Take care to ensure that no objects move
through the path of the laser beam.
CAUTION
Inadmissible mechanical influences
during the shipping or disposal of
charged batteries may lead to a risk of
fire.
Preventative easures
Remove the batteries from the tool before
shipping and dispose of them only when fully
discharged (operate the tool in tracking mode
until the batteries are discharged).
CAUTION
Opening the product without
authorisation will not only invalidate
the warranty, it may also cause
malfunctions and measuring errors.
Preventative easures
o not open the product! Only the battery
compartment cover should be opened when
replacing the batteries.
Operating risks, continued
continued
Table of contents
Other Hilti Measuring Instrument manuals
Hilti
Hilti PM 30-MG User manual
Hilti
Hilti PM 40-MG User manual
Hilti
Hilti PR 3-HVSG User manual
Hilti
Hilti PMA 31-G User manual
Hilti
Hilti PR 30-HVS User manual
Hilti
Hilti PS 200 S User manual
Hilti
Hilti PR 30-HVS A12 User manual
Hilti
Hilti PRA 30 User manual
Hilti
Hilti PR 2-HS User manual
Hilti
Hilti PD 5 User manual
