Harbor Breeze 40105 User manual

1Lowes.com/harborbreeze

Serial Number _________________________ Purchase Date _________________________

ATTACH YOUR RECEIPT HERE

EB13356

ITEM #0464470

WAKEFIELD CEILING FAN

MODEL #40105

Español p. 23

Questions, problems, missing parts? Before returning to your retailer, call our customer

service department at 1-800-643-0067, 8 a.m. - 6 p.m., EST, Monday - Thursday, 8 a.m. - 5 p.m.,

EST, Friday.

Harbor Breeze® is a registered trademark

2Lowes.com/harborbreeze

TABLE OF CONTENTS

Package Contents .................................................................3

Hardware Contents ................................................................4

Safety Information .................................................................5

Preparation ......................................................................6

Assembly Instructions ..............................................................7

Operating Instructions .............................................................17

Care and Maintenance ............................................................18

Troubleshooting..................................................................18

Limited Lifetime Warranty ..........................................................21

Replacement Parts List ............................................................22

3Lowes.com/harborbreeze

PACKAGE CONTENTS

M P Q S U V





PART DESCRIPTION QUANTITY

A Mounting Bracket 1

B Canopy (preassembled to Mounting Bracket (A)) 1

C Canopy Cover (preassembled to Canopy (B)) 1

D Downrod 1

E Yoke Cover 1

F Motor Housing 1

G Switch Housing 1

H Light Kit 1

I Blade 5

JBlade Arm 5

K Glass Bowl 1

L Finial Cap 1

M Finial 1

N Remote Control 1

O Hanger Ball (preassembled to Downrod (D)) 1

P 25-watt Bulb 3

Q 40-watt Bulb 3

R Fitter Plate (preassembled to Motor Housing (F)) 1

S Coupling (preassembled to Motor Housing (F)) 1

T Flywheel (preassembled to Motor Housing (F)) 1

U Battery 1

V Wall Bracket Assembly 1

4Lowes.com/harborbreeze

HARDWARE CONTENTS

Wire Connector

Qty. 3 + 1 extra

Blade Screw

Qty. 15 +

1 extra

Blade Washer

Qty. 15 +

1 extra

Motor Screw

Qty. 10 +

1 extra

Downrod Pin

Qty. 1

(preassembled

to Downrod

(D))

Downrod Clip

Qty. 1

(preassembled to

Downrod (D))

Motor Housing

Set Screw

Qty. 2

(preassembled

to Coupling

(S))

Flat Washer

Qty. 1

Rubber

Washer

Qty. 1

Hex Nut

Qty. 1

Mounting

Bracket Screw

Qty. 4

(preassembled

to Mounting

Bracket (A))

Switch Housing

Plate Screw

Qty. 3

(preassembled to

Fitter Plate (R))

Switch Housing

Screw

Qty. 3

(preassembled

to Switch

Housing (G))

AA BB CC DD EE FF

II JJ KK LL

5Lowes.com/harborbreeze

SAFETY INFORMATION

Please read and understand this entire manual before attempting to assemble, operate, or install the

product.

• Before you begin installing the fan, disconnect the power by removing fuses or turning off the

circuit breakers.

• Make sure that all electrical connections comply with local codes, ordinances, the National

ElectricalCodeandANSI/NFPA70-199.Hireaqualiedelectricianorconsultado-it-yourself

wiring handbook if you are unfamiliar with installing electrical wiring.

• Make sure the installation site you choose allows a minimum clearance of 7 ft. from the blades to

theoorandatleast30in.fromtheendofthebladestoanyobstruction.

• The net weight of this fan is: 24.73 lbs.

DANGER: When using an existing outlet box, make sure the outlet box is securely attached to

the building structure and can support the full weight of the fan. Failure to do this can result in serious

injury or death. The stability of the outlet box is essential in minimizing wobble and noise in the fan

after installation is complete.

WARNING: To avoid personal injury, the use of gloves may be necessary while handling fan

parts with sharp edges.

WARNING: Using a full-range dimmer switch to control fan speed will cause a loud humming

noisefromthefan.Toreducetheriskofreorelectricshock,doNOTuseafull-rangedimmerswitch

to control the fan speed.

WARNING: Toreducetheriskofre,electricshock,orpersonalinjury,mountthefantoan

outlet box marked “ACCEPTABLE FOR FAN SUPPORT” and use the mounting screws provided with

theoutletbox.Mostoutletboxescommonlyusedforthesupportoflightingxturesarenotacceptable

forfansupportandmayneedtobereplaced.Consultaqualiedelectricianifindoubt.Securethe

outlet box directly to the building structure. The outlet box and its support must be able to support the

moving weight of the fan (at least 35 lbs.). Do NOT use a plastic outlet box.

WARNING: Toreducetheriskofre,electricalshock,orpersonalinjury,wireconnectors

provided with this fan are designed to accept only one 12-gauge house wire and two lead wires from

the fan. If your house wire is larger than 12 gauges or there is more than one house wire to connect

to the two fan lead wires, consult an electrician for the proper size wire connectors to use.

WARNING: Toreducetheriskofreorelectricshock,donotusethefanwithanysolid-state

speed-control device or control the fan speed with a full-range dimmer switch.

WARNING: Toreducetheriskofre,electricshock,orpersonalinjury,donotbendtheblade

arms when installing them, balancing the blades, or cleaning the fan. Do not insert objects between

the rotating fan blades.

WARNING: To reduce the risk of personal injury, use only parts provided with this fan. The use

of parts OTHER than those provided with this fan will void the warranty.

6Lowes.com/harborbreeze

SAFETY INFORMATION

CAUTION: Read all instructions and safety information before installing your new fan. Review the

accompanying assembly diagrams.

CAUTION: Be sure the outlet box is properly grounded or that a ground (green or bare) wire is present.

CAUTION: Carefully check all screws, bolts, and nuts on the fan motor assembly to ensure that they

are secured.

CAUTION: This equipment has been tested and found to comply with the limits for a Class B digital

device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable

protection against harmful interference in a residential installation. This equipment generates,

uses and can radiate radio frequency energy and, if not installed and used in accordance with the

instructions, may cause harmful interference to radio communications.

PREPARATION

Before beginning the assembly of this product, ensure all parts are present. Compare all parts with

the package contents list and hardware contents list. If any part is missing or damaged, do not

attempt to assemble the product.

After opening the top of the carton, remove the mounting hardware package from the foam inserts,

then remove the motor from the packaging and place it on a soft surface, such as a carpet, to avoid

damagetothenish.

Estimated Assembly Time: 120 minutes

Tools Required for Assembly (not included): Electrical Tape, Phillips Screwdriver, Pliers, Safety

Glasses, Step Ladder, and Wire Strippers

Helpful Tools (not included): AC Tester Light, Tape Measure, Wiring Handbook and Wire Cutters

7Lowes.com/harborbreeze

ASSEMBLY INSTRUCTIONS

1. Turn off the circuit breakers and the wall switch to the

fan supply line leads.

DANGER: Failure to disconnect the power

supply prior to installation may result in serious injury

or death.

2. Determine the mounting method.

Helpful Hint: Downrod mounting is best suited for

ceilings 8 ft. or higher. For taller ceilings you may

want to use a longer downrod (not included). Angle

mounting is best suited for angled or vaulted ceilings.

A longer downrod is sometimes necessary to ensure

proper blade clearance.

Note:Flushmount installation and closemount

installation are not available for this item.

Important:If using the angle mounting, check to

ensure the ceiling angle is not steeper

than 23°.

Downrod Mounting

Flushmount Closemount

Angle Mounting

3. Ensure the blades (I) will be at least 30 in. from any

obstructions. Also check the downrod (D) length to

ensure the blades (I) will be at least 7 ft. above the

oor. D

7 ft. Min.

30 in. Min.

8Lowes.com/harborbreeze

ASSEMBLY INSTRUCTIONS

4. Remove the two mounting bracket screws (KK)

from the round holes of the canopy (B). Set aside

for later use. Detach mounting bracket (A) from

canopy (B).

5. Feed black and white wires up from the plug on the

mounting bracket (A) up through the hole in the top.

9Lowes.com/harborbreeze

ASSEMBLY INSTRUCTIONS

WARNING:Toreducetheriskofre,electricalshock,orpersonalinjury,wireconnectors

provided with this fan are designed to accept only one 12-gauge house wire and two lead wires from

the fan. If your house wire is larger than 12 gauges and there is more than one house wire to connect

to the two fan lead wires, consult an electrician for the proper size wire connectors to use.

CAUTION: Be sure the outlet box (not included) is properly grounded or that a ground (green or bare) wire

is present.

6. Connect with supply and mounting bracket (A) wires

according to the diagram and these steps:

•ConnecttheWhitewirefromthemountingbracket

(A) to the White supply wire.

•ConnecttheBlackwirefromthemountingbracket

(A) to the Black supply wire.

•Secureallwiringconnectionstogetherwithwire

connectors (AA).

Note: The Black wire is hot power for the fan. The

White wire is common for the fan and light kit. The

Green wire is the ground wire and will be connected

later. If house wires are different colors than referred

to above, stop immediately. It is recommended a

professional electrician determines the proper wiring.

Hardware Used

AA Wire Connector x 2

7. Wrap electrical tape (not included) around each

individual wire connector (AA) down to the wire.

Hardware Used

AA Wire Connector x 2

8. Turn the spliced/taped wires upward and gently push

the wires and wire connectors (AA) into the outlet box.

WARNING: Ensure no bare wire or wire strands

are visible after making connections. Place the Black

and White wire connections on opposite sides of the

outlet box.

BLACK

WHITE

BLACK

FAN

WHITE

10 Lowes.com/harborbreeze

ASSEMBLY INSTRUCTIONS

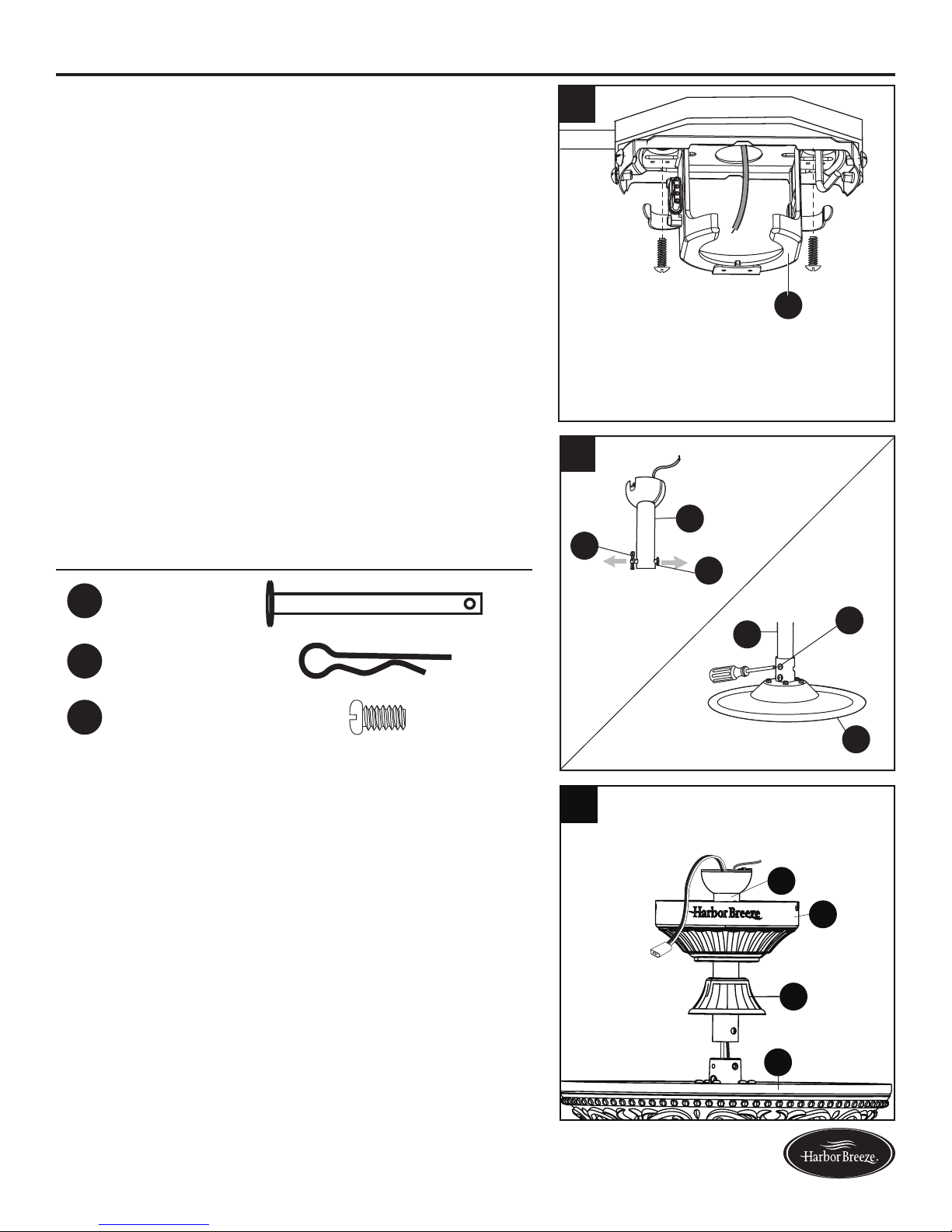

9. Feed green/bare (ground) supply wire down through

the hole in the top of the mounting bracket (A).Secure

the mounting bracket (A) to the outlet box using

screws and washers provided with the outlet box.

10. Remove the downrod clip (FF) and downrod pin

(EE) from the downrod (D). Then partially loosen the

motor housing set screws (GG) in the yoke at the top

of the motor assembly (F).

Hardware Used

EE Downrod Pin x 1

FF Downrod Clip x 1

GG Motor housing

set screw x 2

11. Place the downrod (D) into the canopy (B) and yoke

cover (E). Feed the wire harness from the motor

housing (F) through the downrod (D).

Table of contents

Languages:

Other Harbor Breeze Fan manuals

Harbor Breeze

Harbor Breeze BTH44ABZC5C User manual

Harbor Breeze

Harbor Breeze E-WCK44ABZ5LKS User manual

Harbor Breeze

Harbor Breeze 40945 User manual

Harbor Breeze

Harbor Breeze MZ44WW3LR User manual

Harbor Breeze

Harbor Breeze EDENTON L2B1 User manual

Harbor Breeze

Harbor Breeze 0883783 User manual

Harbor Breeze

Harbor Breeze CLASSIC STYLE 00819 User manual

Harbor Breeze

Harbor Breeze HTD20005 User manual

Harbor Breeze

Harbor Breeze MARINA COVE II User manual

Harbor Breeze

Harbor Breeze FLANAGAN User manual

Harbor Breeze

Harbor Breeze TEX52MBK5C1L User manual

Harbor Breeze

Harbor Breeze WINDRISE E-TLEII44BNK5C1 User manual

Harbor Breeze

Harbor Breeze LYNSTEAD User manual

Harbor Breeze

Harbor Breeze LAKE PLACIDO CPK1261 User manual

Harbor Breeze

Harbor Breeze MAYFIELD BTH44AB5CS User manual

Harbor Breeze

Harbor Breeze BATTLER E-LUK52HBB5LEDR User manual

Harbor Breeze

Harbor Breeze CE-JP13EB6RC User manual

Harbor Breeze

Harbor Breeze SARATOGA 00798 User manual

Harbor Breeze

Harbor Breeze ARMORY 40087 User manual

Harbor Breeze

Harbor Breeze 00880 User manual

Harbor Breeze

Harbor Breeze HIVE Series User manual

Harbor Breeze

Harbor Breeze BOLTZ 42300 User manual

Harbor Breeze

Harbor Breeze LANSING 40198 User manual

Harbor Breeze

Harbor Breeze SHREVEPORT E-NO52AB5C4 User manual

Popular Fan manuals by other brands

ELTA FANS

ELTA FANS H03VV-F installation guide

Hunter

Hunter 20714 Owner's guide and installation manual

Emerson

Emerson CARRERA VERANDA CF542ORB00 owner's manual

Hunter

Hunter Caraway Owner's guide and installation manual

Panasonic

Panasonic FV-15NLFS1 Service manual

Kompernass

Kompernass KH 1150 operating instructions

VES

VES FALA100/12V/TR Original instructions

Vertiv

Vertiv Liebert DCD user manual

Westinghouse

Westinghouse GFP Series owner's manual

Venmar

Venmar KUBIX HRV PLUS Series user guide

Maico

Maico ECR 31 installation instructions

Sonnenkonig

Sonnenkonig Dinky instruction manual

S&P

S&P ECOWATT HXBR manual

Wider

Wider IMP03369BH instruction manual

Panasonic

Panasonic F-60DHN Operating and installation instructions

Hinkley

Hinkley HIGHLAND instruction manual

Broan

Broan 766BN installation guide

Premium

Premium PFS16022 Use manual
