Hanna Instruments HI96704C User manual

INSTRUCTION MANUAL

HI96704C

Hydrazine ISM

Dear

Customer

Thank you for choosing a Hanna Instruments product.

Please read this instruction manual carefully before using this instrument. This

manual will provide you with the necessary information for correct use of this

instrument, as well as a precise idea of its versatility.

If you need additional technical information, do not hesitate to e-mail us at

[email protected] or view our worldwide contact list for a Hanna Instruments

representative near you at www.hannainst.com.

All rights are reserved. Reproduction in whole or in part is prohibited without the written consent

of the copyright owner, Hanna Instruments Inc., Woonsocket, Rhode Island, 02895, USA.

PRELIMINARY EXAMINATION .................................................................................................

GENERAL DESCRIPTION.........................................................................................................

ABBREVIATIONS...................................................................................................................

SPECIFICATIONS...................................................................................................................

PRECISION AND ACCURACY ...................................................................................................

PRINCIPLE OF OPERATION.....................................................................................................

FUNCTIONAL DESCRIPTION....................................................................................................

ERRORS AND WARNINGS......................................................................................................

GENERAL TIPS FOR AN ACCURATE MEASUREMENT..................................................................

STARTUP..............................................................................................................................

MEASUREMENT PROCEDURE .................................................................................................

VALIDATION PROCEDURE ......................................................................................................

CALIBRATION PROCEDURE.....................................................................................................

GLP .....................................................................................................................................

BATTERY MANAGEMENT........................................................................................................

BATTERY REPLACEMENT........................................................................................................

ACCESSORIES.......................................................................................................................

TABLE OF CONTENTS

HYDRAZINE

Please examine this product carefully. Make sure that the instrument is not damaged. If any damage

occurred during shipment, please contact your local Hanna Instruments Office.

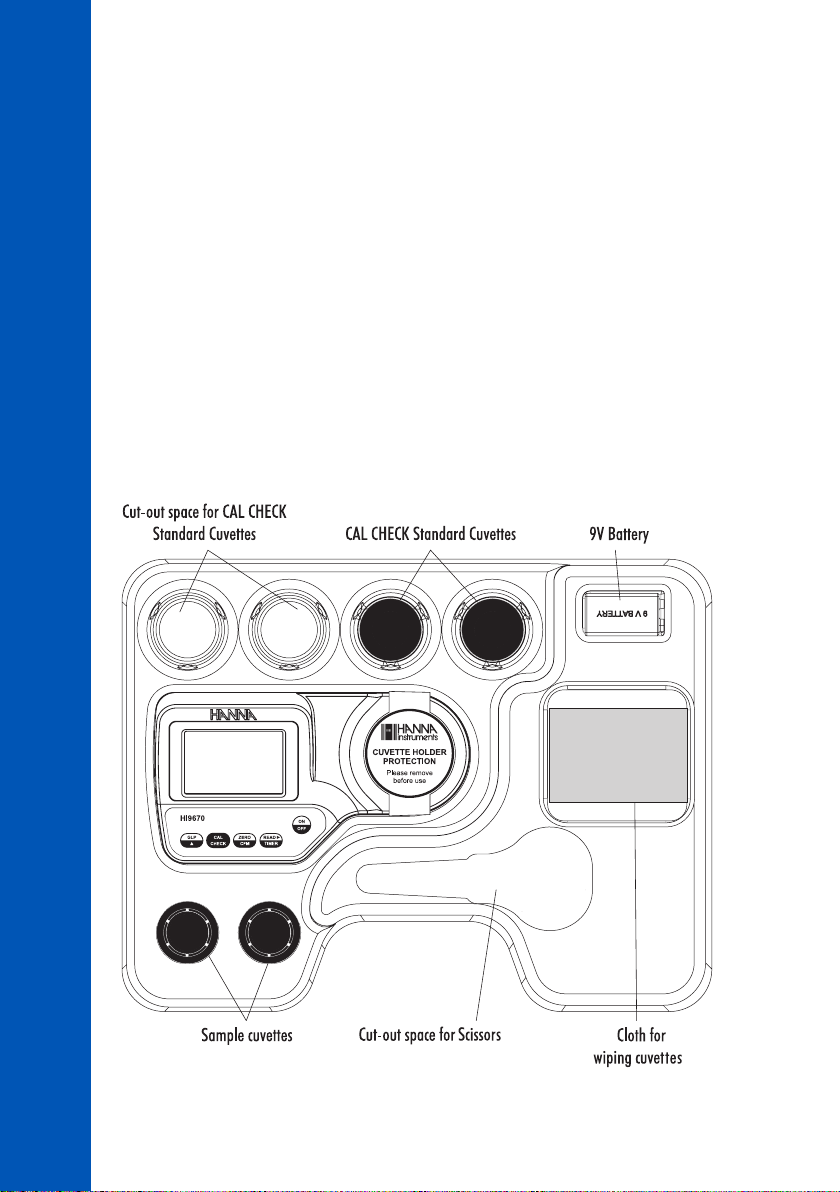

Each HI96704 Ion Selective Meter is supplied complete with:

• Sample Cuvettes and Caps (2 pcs.)

• CAL Check™ standard cuvettes

• 9V Battery

• Cloth for wiping cuvettes

• Instrument quality certificate

• Instruction Manual and Quick Reference Guide

• Rigid carrying case

Note: Save all packing material until you are sure that the instrument works correctly. Any

defective item must be returned in its original packing.

PRELIMINARY EXAMINATION

The HI96704 is an auto diagnostic portable microprocessor meter that benefits from

Hanna Instruments’ years of experience as a manufacturer of analytical instruments. It has the

advanced optical system based on a special Light Emitting Diode (LED) and a narrow band

interference filter that allows most accurate and repeatable readings. All instruments are factory

calibrated and the electronic and optical design minimizes the need of frequent calibration.

With the powerful CAL CheckTM validation function, you are able to validate good performance

of your instrument at any time. The validation procedure is extremely user friendly. Just use the

exclusive Hanna Instruments ready-made, NIST traceable standards to verify the performance of

the instrument and recalibrate if necessary.

All instruments are splash proof and the LED and filter units are protected from dust or dirt by a

transparent cup. This makes the instruments fulfill field applications. Display messages aid the user

in routine operation. The meter has an auto-shut off feature that will turn off the instrument after

10 minutes of non use in measurement mode or after 1 hour if left in calibration mode.

The meter uses an exclusive positive-locking system to ensure that the cuvette is in the same

position every time it is placed into the measurement cell. It is designed to fit a cuvette with a

larger neck making it easier to add both sample and reagents. The cuvette is made from special

optical glass to obtain best results.

The HI96704 meter measures the hydrazine content in water samples in the 0 to 400 µg/L (ppb)

range. The method is an adaptation of the ASTM Manual of Water and Environmental Technology,

method D1385 for natural and treated water.

The reagent is in liquid form and is supplied in dropper bottles. The amount of reagent is precisely

dosed to ensure the maximum repeatability.

degree Celsius

degree Fahrenheit

micrograms per liter. µg/L is equivalent to ppb (parts per billion)

milliliter

millivolt

American Society for Testing and Materials

°C:

°F:

µg/L:

mL:

mV:

ASTM:

GENERAL DESCRIPTION ABBREVIATIONS

Precision is how closely repeated measurements

agree with each other. Precision is usually

expressed as standard deviation (SD).

Accuracy is defined as the nearness of a test

result to the true value.

Although good precision suggests good accuracy,

precise results can be inaccurate. The figure

explains these definitions.

In a laboratory using a standard solution of

100 µg/L hydrazine and a representative lot

of reagent, an operator obtained with a single

instrument a standard deviation of 3 µg/L.

SPECIFICATIONS

PRECISION AND ACCURACY

Range 0 to 400 µg/L

Resolution 1 µg/L

Accuracy ±3% of full scale

Light Source Light Emitting Diode

Light Detector Silicon Photocell with narrow band interference filter @466 nm

Method

Adaptation of the ASTM Manual of Water and Environmental Tech-

nology, method D1385 for natural and treated water. The reaction

between hydrazine and the liquid reagent causes a yellow tint in the

sample.

Environment 0 to 50 ºC (32 to 122 ºF); max 95% RH non-condensing

Battery Type 9V (1 pc.)

Auto-Shut off

After 10` of non-use in measurement mode;

after 1 hour of non use in calibration mode;

with last reading reminder.

Dimensions 192 x 104 x 69 mm (7.6 x 4.1 x 2.7”)

Weight 320 g (11.3 oz.)

REQUIRED REAGENTS

Code Description Quantity/test

HI93704-0 Liquid Reagent 2 x 12 drops

PRINCIPLE OF OPERATION

Absorption of Light is a typical phenomenon of interaction between electromagnetic radiation and

matter. When a light beam crosses a substance, some of the radiation may be absorbed by atoms,

molecules or crystal lattices.

If pure absorption occurs, the fraction of light absorbed depends both on the optical path length

through the matter and on the physical-chemical characteristics of the substance according to the

Lambert-Beer Law:

-log I/Io= ελc d

A = ελc d

Where:

-log I/Io = Absorbance (A)

Io = intensity of incident light beam

I = intensity of light beam after absorption

ε

λ= molar extinction coefficient at wavelength λ

c = molar concentration of the substance

d = optical path through the substance

Therefore, the concentration “c” can be calculated from the absorbance of the substance as the

other factors are known.

Photometric chemical analysis is based on the possibility to develop an absorbing compound from a

specific chemical reaction between sample and reagents. Given that the absorption of a compound

strictly depends on the wavelength of the incident light beam, a narrow spectral bandwidth should

be selected as well as a proper central wavelength to optimize measurements.

The optical system of Hanna Instruments’ HI96’ colorimeter is based on special subminiature

LED and narrow-band interference filters to guarantee both high performance and reliable results.

HI96’s block diagram (optical layout)

PRINCIPLE OF OPERATION

A microprocessor controlled special LED emits radiation which is first optically conditioned and

beamed to the sample contained in the cuvette. The optical path is fixed by the diameter of the

cuvette. Then the light is spectrally filtered to a narrow spectral bandwidth, to obtain a light beam

of intensity Ioor I.

The photoelectric cell collects the radiation Ithat is not absorbed by the sample and converts it

into an electric current, producing a potential in the mV range.

The microprocessor uses this potential to convert the incoming value into the desired measuring

unit and to display it on the LCD.

The measurement process is carried out in two phases: first the meter is zeroed and then the actual

measurement is performed.

The cuvette has a very important role because it is an optical element and thus requires particular

attention. It is important that both, the measurement and the calibration (zeroing) cuvettes, are

optically identical to provide the same measurement conditions. Whenever possible use the same

cuvette for both. It is necessary that the surface of the cuvette is clean and not scratched. This to avoid

measurement interference due to unwanted reflection and absorption of light. It is recommended

not to touch the cuvette walls with hands.

Furthermore, in order to maintain the same conditions during the zeroing and the measuring phases,

it is necessary to close the cuvette to prevent any contamination.

PRINCIPLE OF OPERATION

1) GLP/ key

2) CAL CHECK key

3) ZERO/CFM key

4) READ /TIMER key

HYDRAZINE

INSTRUMENT DESCRIPTION

KEYPAD DESCRIPTION

5) ON/OFF key

6) Liquid Crystal Display (LCD)

7) Cuvette alignment indicator

8) Cuvette holder

• ON/OFF: to turn the meter on and off.

• ZERO/CFM: to zero the meter prior to measurement, to confirm edited values or to confirm

factory calibration restore.

• READ /TIMER: this is a multi-functional key. In measurement mode, press to make a

measurement, or press and hold for three seconds to start a pre-programmed countdown prior

to measurement. In GLP mode press to view the next screen.

• CAL CHECK: this is a bi-functional key. Just press to perform the validation of the meter, or

press and hold for three seconds to enter calibration mode.

•GLP/: this is a bi-functional key. Just press to enter GLP mode. In calibration mode press to

edit the date and time.

FUNCTIONAL DESCRIPTION

OPERATING MODES

• Measurement mode: default operation mode, enables both validation and measurement.

• Calibration mode: may be entered by keeping CAL CHECK pressed for three seconds (the

“CAL” tag appears), it enables calibration of the instrument.

• GLP mode may be entered by pressing GLP/(“GLP”appears), it enables consulting of user

calibration date or restore factory calibration.

DISPLAY ELEMENTS DESCRIPTION

1) The measuring scheme (lamp, cuvette, detector), appears during different phases of zero or

reading measurement

2) Error messages and warnings

3) The battery icon shows the charging level of the battery

4) The hourglass appears when an internal checking is in progress

5) Status messages

6) The chronometer appears when the reaction timer is running

7) The month, day and date icons appear when a date is displayed

8) Four digit main display

9) Measuring units

10) Four digit secondary display

FUNCTIONAL DESCRIPTION
