1
www.hannainst.com This Instrument is in
Compliance with the CE Directives
Instruction Manual
HI 95715
Ammonia Medium Range ISM
2
TABLE OF CONTENTS
PRELIMINARY EXAMINATION ..............................................................................................3
GENERAL DESCRIPTION ......................................................................................................4
ABBREVIATIONS ................................................................................................................4
SPECIFICATIONS ................................................................................................................5
PRECISION AND ACCURACY.................................................................................................5
PRINCIPLE OF OPERATION..................................................................................................6
FUNCTIONAL DESCRIPTION.................................................................................................7
GUIDE TO DISPLAY CODES..................................................................................................9
GENERAL TIPS FOR AN ACCURATE MEASUREMENT.............................................................11
MEASUREMENT PROCEDURE ............................................................................................13
VALIDATION PROCEDURE..................................................................................................15
CALIBRATION PROCEDURE................................................................................................16
BATTERY REPLACEMENT ...................................................................................................18
ACCESSORIES .................................................................................................................18
CE DECLARATION OF CONFORMITY....................................................................................19
WARRANTY .................................................................................................................19
Dear Customer,
Thank you for choosing a Hanna product. This manual will provide you with the necessary
information for the correct use of the instrument. Please read it carefully before using the meter. If
This instrument is in compliance with directives.
All rights are reserved. Reproduction in whole or in part is prohibited without the written consent
of the copyright owner, Hanna Instruments Inc., Woonsocket, Rhode Island, 02895 , USA.
3
PRELIMINARY EXAMINATION
Please examine this product carefully. Make sure that the instrument is not damaged. If any
damage occurred during shipment, please notify your Dealer.
Each HI 95715 Ion Selective Meter is supplied complete with:
• Two Sample Cuvets and Caps
• 9V Battery
• Tissue for wiping cuvets
• Instruction Manual and Quick Reference Guide
• Instrument Quality Certificate
• Rigid carrying case
Note:save all packing material until you are sure that the instrument works correctly.
Any defective item must be returned in its original packing.
4
The HI 95715 is an auto diagnostic portable microprocessor meter that benefits from Hanna’s
years of experience as a manufacturer of analytical instruments. It has the advanced optical
system based on a LED light source and a narrow band interference filter that allows most
accurate and repeatable readings. All instruments are factory calibrated and the electronic and
optical design minimizes the need of frequent calibration.
With the powerful CAL CHECK validation function you are able to validate good performance of
your instrument at any time. The validation procedure is extremely user friendly. Just use the
exclusive Hanna ready-made, NIST traceable standards to verify the performance of the
instrument and recalibrate if necessary.
All instruments are splash proof and the LED (Light Emitting Diode) and filter units are protected
from dust or dirt by a transparent cup. This makes the instruments fulfill field applications.
Display codes aid the user in routine operation. The meter has an auto-shut off feature that will
turn off the instrument after 10 minutes of non use or after 1 hour if left in the calibration mode.
The meter uses an exclusive positive-locking system to ensure that the cuvet is in the same
positionevery timeit isplaced intothe measurementcell. Itis designedto fita cuvetwith alarger
neck making it easier to add both sample and reagents. The cuvet is made from special optical
glass to obtain best results.
The HI 95715 meter measures the ammonia nitrogen (NH3-N) content in water samples in the
0.00 to 9.99 mg/L (ppm) range. The method is an adaptation from ASTM Manual of Water and
Environmental Technology, D1426-93, Nessler Method.
The reagents are in liquid form and are supplied in bottles. The amount of reagent is precisely
dosed to ensure the maximum repeatability.
GENERAL DESCRIPTION
ABBREVIATIONS
American Society for Testing and Materials
degree Celsius
degree Fahrenheit
Liquid Crystal Display
Light Emitting Diode
milligrams per liter. mg/L is equivalent to ppm (part per million)
milliliter
ASTM:
°C:
°F:
LCD:
LED:
mg/L:
mL:
5
Range 0.00 to 9.99 mg/L (as NH3-N)
Resolution 0.01 mg/L for measurement
0.1 mg/L for calibration and validation
Precision ±0.12 mg/L @ 6.00 mg/L
Typical EMC Deviation ±0.01 mg/L
Light Source Light Emitting Diode with narrow band interference filter @ 466 nm
Light Detector Silicon Photocell
Method AdaptationoftheASTMManualofWaterandEnvironmentalTechnology,
D1426-93, Nessler Method. The reaction between ammonia and the
reagents causes a yellow tint in the sample.
Environment 0 to 50°C (32 to 122°F); max 95% RH non-condensing
Battery Type 1 x 9 volt
Auto-Shut off After 10' of non-use in measurement mode;
after 1 hour of non-use in calibration mode.
Dimensions 180 x 83 x 46 mm (7.1 x 3.3 x 1.8")
Weight 290 g (10 oz.).
REQUIRED REAGENTS
Code Description Quantity/test
HI 93715A-0 First Reagent 4 drops (6 drops in seawater)
HI 93715B-0 Second Reagent 4 drops (10 drops in seawater)
SPECIFICATIONS
Precision is how closely repeated measurements
agreewitheachother. Precisionisusuallyexpressed
asstandard deviation (SD).
Accuracyisdefinedasthenearnessofatestresultto
the true value.
Although good precision suggests good accuracy,
preciseresultscanbeinaccurate.Thefigureexplains
these definitions.
In a laboratory using a standard solution of 6.00
mg/L ammonia nitrogen (NH3-N) and a
representativelotofreagents,anoperatorobtained
with a single instrument a standard deviation of
0.12 mg/L.
PRECISION AND ACCURACY
6
Absorption of Light is a typical phenomenon of interaction between electromagnetic radiation and
matter.When a light beamcrosses a substance,some of theradiation may be absorbedby atoms,
molecules or crystal lattices.
If pure absorption occurs, the fraction of light absorbed depends both on the optical path length
through the matter and on the physical-chemical characteristics of the substance according to the
Lambert-Beer Law: -log I/Io= ελc d
or
A = ελc d
Where:
-log I/Io= Absorbance (A)
Io= intensity of incident light beam
I= intensity of light beam after absorption
ελ= molar extinction coefficient at wavelength λ
c = molar concentration of the substance
d = optical path through the substance
Therefore, the concentration "c" can be calculated from the absorbance of the substance as the
other factors are known.
Photometric chemical analysis is based on the possibility to develop an absorbing compound from
a specific chemical reaction between sample and reagents. Given that the absorption of a
compound strictly depends on the wavelength of the incident light beam, a narrow spectral
bandwidth should be selected as well as a proper central wavelength to optimize measurements.
The optical system of Hanna's HI 95715 colorimeter is based on a Light Emitting Diode (LED)
combined with a narrow-band interference filter to guarantee both high performance and reliable
results.
HI 95715 block diagram (optical layout)
PRINCIPLE OF OPERATION
7
A microprocessor controlled LED emits radiation which is first optically conditioned and beamed
to the sample contained in the cuvet. The optical path is fixed by the diameter of the cuvet. Then
the light is spectrally filtered to a narrow spectral bandwidth, to obtain a light beam of intensity
Ioor I.
The photoelectric cell collects the radiation Ithat is not absorbed by the sample and converts
it into an electric current, producing a potential in the mV range.
The microprocessor uses this potential to convert the incoming value into the desired measuring
unit and to display it on the LCD.
Themeasurementprocess iscarriedoutin twophases:first themeteriszeroed andthenthe actual
measurement is performed.
The cuvet has a very important role because it is an optical element and thus requires particular
attention. It is important that both the measurement and the calibration (zeroing) cuvets are
optically identical to provide the same measurement conditions. Whenever possible use the same
cuvetfor both. Itisnecessary that thesurface of thecuvet is cleanand not scratched. Thisto avoid
measurement interference due to unwanted reflection and absorption of light. It is recommended
not to touch the cuvet walls with hands.
Furthermore, in order to maintain the same conditions during the zeroing and the measuring
phases, it is necessary to close the cuvet to prevent any contamination.
FUNCTIONAL DESCRIPTION
1) Liquid Crystal Display (LCD)
2) Cuvet Holder
3) Cuvet alignment indicator
4) ON/OFF key
5) ZERO key
6) READ/TIMER key
7) CAL CHECK key
8
KEYPAD DESCRIPTION
• ON/OFF: to turn the meter on and off.
• ZERO: to zero the meter prior to measurement.
• READ/TIMER: this is a bi-functional key, just press for making a measurement, or hold the
key for 3 seconds to start a pre-programmed countdown prior to measurement.
• CAL CHECK: this bi-functional key allows to perform validation of the instrument just pressing
the CAL CHECK key, or hold the key for 3 seconds to enter the calibration mode.
OPERATING MODES
•Measurement mode: default operation mode, enables both validation and measurement.
•Calibration mode: may be entered by keeping CAL CHECK pressed for three seconds (the “CAL”
icon appears), it enables calibration of the instrument.
DISPLAY ELEMENTS DESCRIPTION
1) four digit main display area.
2) CAL: appears when the instrument operates in the calibration mode.
3) the Month and Day icons appear above the number of month and day when a date is
displayed.
4) the blinking “Battery” icon appears when the battery voltage is getting low.
9

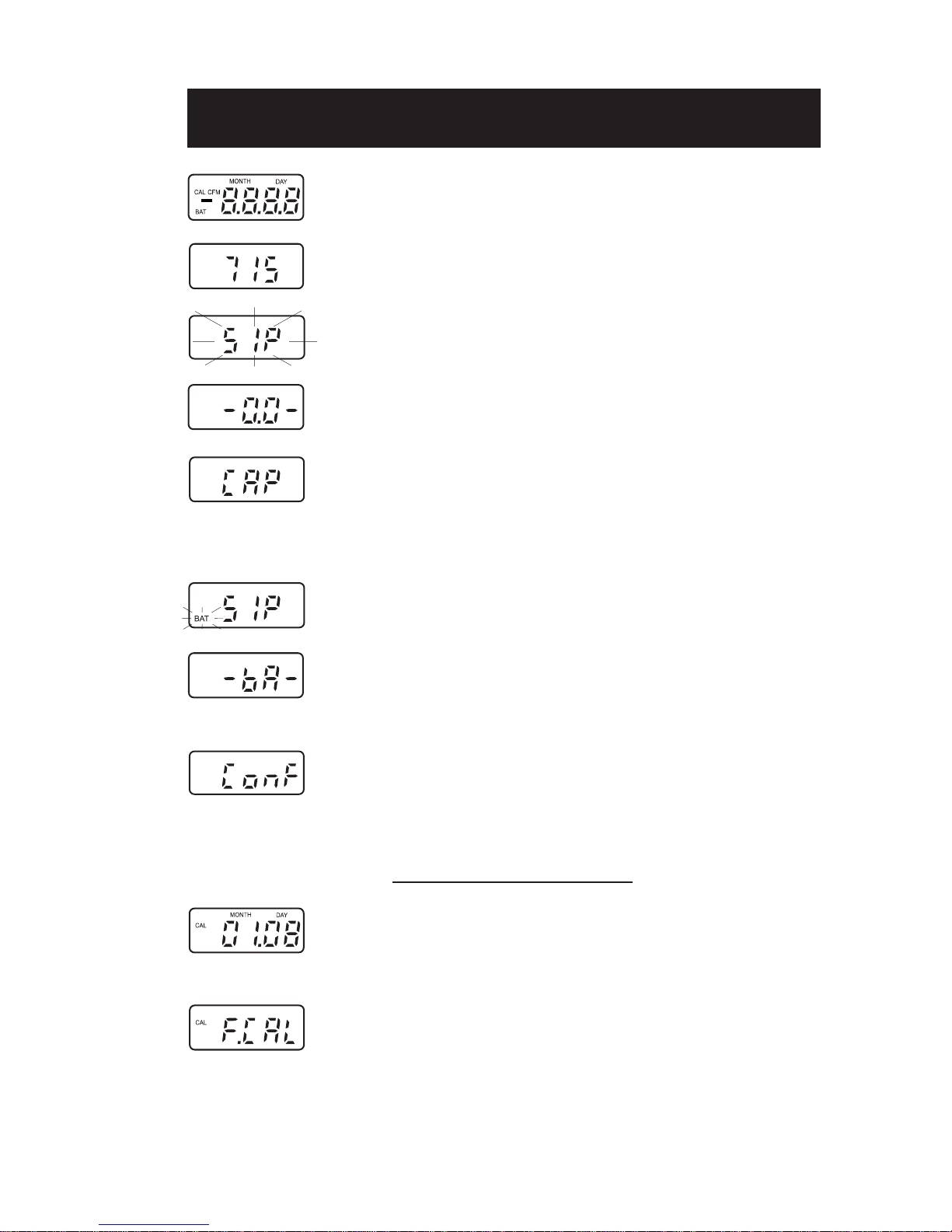

This prompt appears for 1 second each time the instrument is
turned on.
This indicates that the meter is in a ready state and zeroing can
be performed.
Sampling in Progress. This flashing prompt appears each time the
meter is performing a measurement.
Thisindicates thatthemeter isin azeroed stateandmeasurement
can be performed.
Light over range: the cuvet is not inserted correctly and an excess
ambient light is reaching the detector. If the cover is properly
installed, then contact your dealer or the nearest Hanna Customer
Service Center.
Theblinking "BAT" indicatesthat thebattery voltage isgetting low
and the battery needs to be replaced.
This indicates that the battery is dead and must be replaced. Once
this indication is displayed, the meter will lock up. Change the
battery and restart.
“Configuration”: this indicates that the meter has lost its
configuration. Contact your dealer or the nearest Hanna Customer
Service Center.
CALIBRATION MODE MESSAGES
The date of the last calibration appears on the LCD each time the
calibration mode is entered. If calibration is performed for the first
time, “F.CAL” appears.
This indicates that the factory calibration is selected.
GUIDE TO DISPLAY CODES
10
The flashing digits indicate that:
1) the month can be set
2) the day can be set
“Storage”: this prompt appears for 1 second at the end of the
calibration procedure, to indicate that the calibration data has
been stored.
“Error”: the concentration of the calibration solution used is not
correct. Repeat the calibration procedure with the right standard
solution,andverifyitisnotexpired.Ifthecalibrationprocedurefails
again, contact your dealer or the nearest Hanna Customer Service
Center.
ERROR MESSAGES
a) on zero reading
Thisindicatesthatthe zeroingprocedurefailed duetoalow signal-
to-noise ratio. In this case press ZERO again.
“NoLight”:theinstrumentcannotadjustthelightlevel.Pleasecheck
thatthesampledoesnotcontainanydebris.
“Light Low”: there is not enough light to perform a measurement.
Pleasecheckthe preparationofthezero cuvet.
“Light High”: there is too much light to perform a measurement.
Pleasecheckthe preparationofthezero cuvet.
b) on sample reading
There is too much light for the sample measurement. Please check
if the right sample cuvet is inserted.
“Inverted”:the sample and thezero cuvet are inverted.
“Zero”: a zero reading was not taken. Follow the instruction in
the measurement procedure for zeroing the meter.
Other manuals for HI 95715
1
Table of contents
Other Hanna Instruments Measuring Instrument manuals
Hanna Instruments
Hanna Instruments HI96750C User manual
Hanna Instruments
Hanna Instruments PCA 310 User manual
Hanna Instruments
Hanna Instruments HI715 User manual
Hanna Instruments
Hanna Instruments HI97721 User manual
Hanna Instruments
Hanna Instruments HI96711C User manual
Hanna Instruments
Hanna Instruments HI96708C User manual
Hanna Instruments
Hanna Instruments PCA 300 Series User manual
Hanna Instruments
Hanna Instruments HI 991003 User manual
Hanna Instruments
Hanna Instruments HI 991003 User manual
Hanna Instruments
Hanna Instruments HI 93714 User manual
Hanna Instruments
Hanna Instruments WATER TEST User manual
Hanna Instruments
Hanna Instruments HI 98713 User manual
Hanna Instruments
Hanna Instruments HI 96762 User manual
Hanna Instruments
Hanna Instruments HI 98509 User manual
Hanna Instruments
Hanna Instruments HI 7635 User manual
Hanna Instruments
Hanna Instruments HI97709 User manual
Hanna Instruments
Hanna Instruments HI 84429 User manual
Hanna Instruments
Hanna Instruments Conmet1 (HI 98305 User manual
Hanna Instruments
Hanna Instruments HI769828 User manual
Hanna Instruments
Hanna Instruments HI 747 User manual
