Hanna Instruments HI 6052 User manual

HI 6050 HI 6051 HI 6052

SUBMERSIBLE ELECTRODE HOLDERS

FIGURE 3

Dear Customer,

Thank you for choosing a Hanna product. This

sheet will provide you with the necessary in-

formation for a correct operation. Please read

it carefully before using the holder.

If you need additional technical information,

do not hesitate to e-mail us at

[email protected].

Examine carefully the holder and if any dam-

age has occurred during shipment, immediately

notify your Dealer or the nearest Hanna Cus-

tomer Service Center.

The Hanna submersible electrode holders

are available in three models:

HI 6050 HI 6051 HI 6052

TOTAL LENGTH 605 mm 1105 mm 1735 mm

(23.8") (43.5") (68.3")

SUBMERSION LENGTH 475 mm 975 mm 1605 mm

(18.7") (38.4") (73.4")

WEIGHT 0.8 kg (26 oz.) 1.2 kg (44 oz.) 1.7 kg (54 oz.)

www.hannainst.com

FIGURE 4

REMOVABLE ELECTRODE HOLDER CAN

SLIDE IN AND OUT OF MOUNTING

FLANGE WITHOUT NEEDING TOOLS.

475mm

19"

IMMERSION

LENGTH

DIA

120mm

4.75"

DIA

50mm

130mm

5.12"

The mounting flange (FIG. 1) is a rugged PVC

piece that mounts directly to the stainless steel

bracket on your tank.

FIG. 2 illustrates the suggested bracket di-

mensions used for mounting. Once mounted,

the electrode holder becomes a protective

housing that will extend the life of your pH

and ORP electrodes.

The electrode should be slid into the holder

(FIG. 3) and hand tightened. The cable from

the electrode will lead up through the holder

and out through the cap on top. The cable is

also shielded inside the holder to prevent any

damage to the insulation. The protective cap

is removable to allow for quick and simple

electrode maintenance and replacement (FIG.

4 and 5).

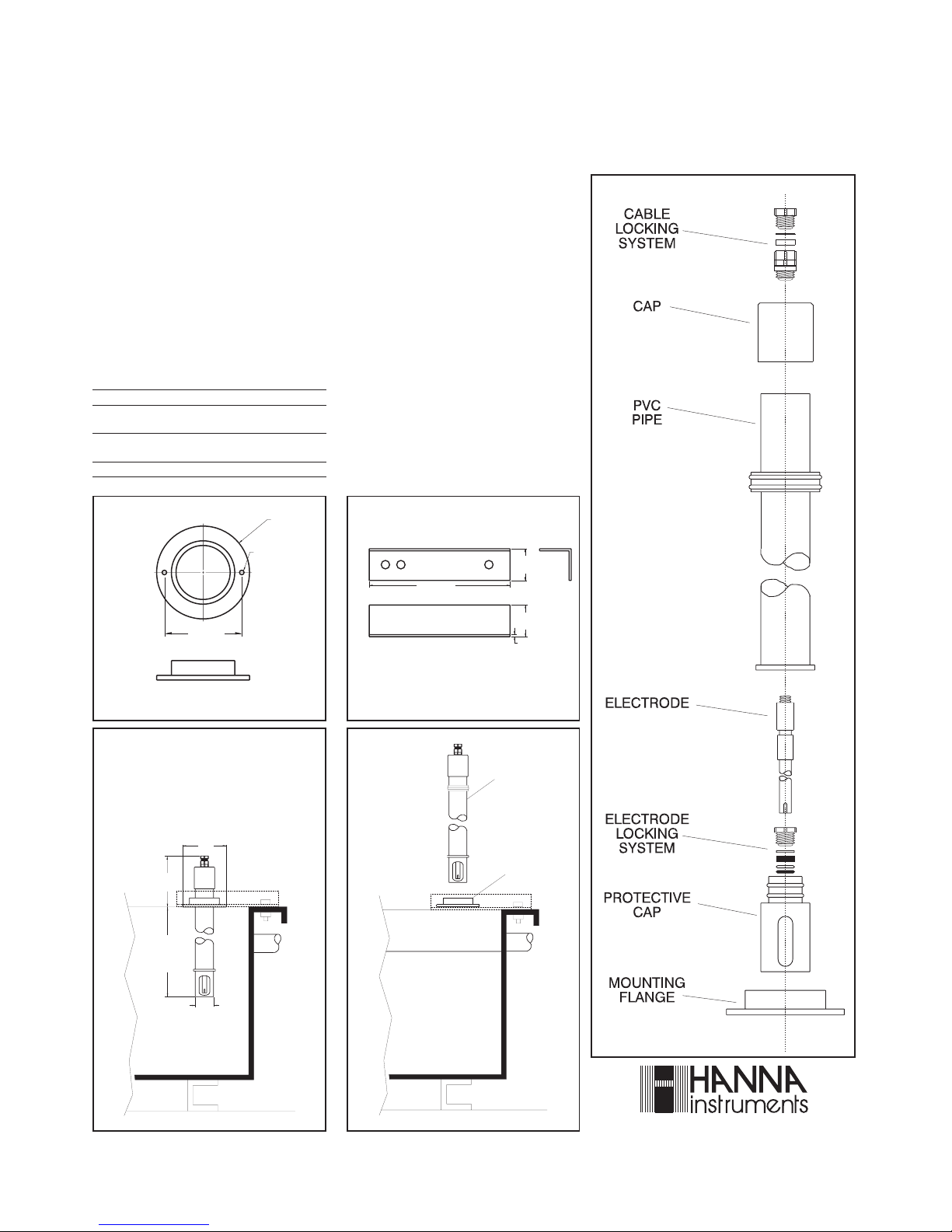

MOUNTING FLANGE FOR

ELECTRODE HOLDER

FIGURE 1

MOUNTING

HOLES

DIA

120mm

4.75"

100mm

3.94"

FIGURE 2 *

FIGURE 5

LEVEL

REMOVABLE

ELECTRODE

HOLDER

FIXED

FLANGE

SUGGESTED MOUNTING BRACKETS TO

MOUNT THE FLANGE (LEFT) ONTO THE TANK.

MATERIAL: STAINLESS STEEL (*not included).

45mm

1.77"

200mm

7.90"

45mm

1.77"

3mm

.12"
