1. To reduce the risk of electric shock, insure electricity

has been turned off at the circuit breaker or fuse box

before beginning.

2. All wiring must be in accordance with the National

Electrical Code ANSI/NFPA 70-1999 and local electrical

codes. Electrical installation should be performed by a

qualied licensed electrician.

3. WARNING: To reduce the risk of re or electric shock,

this fan should only be used with fan speed control part no.

FAN-32R-ONELIGHT, manufactured by Chia Wei Electric

Co., Ltd.

4. CAUTION: To reduce the risk of personal injury, use only

the screws provided with the outlet box.

5. The outlet box and support structure must be securely

mounted and capable of reliably supporting a minimum of

35 pounds. Use only UL Listed outlet boxes marked “FOR

FAN SUPPORT.”

6. The fan must be mounted with a minimum of 7 feet

clearance from the trailing edge of the blades to the oor.

7. Avoid placing objects in path of the blades.

8. To avoid personal injury or damage to the fan and

other items, be cautious when working around or

cleaning the fan.

9. Do not use water or detergents when cleaning the fan or fan

blades. A dry dust cloth or lightly dampened cloth will be

suitable for most cleaning.

10. After making electrical connections, spliced conductors

should be turned upward and pushed carefully up into

outlet box. The wires should be spread apart with the

grounded conductor and the equipment-grounding

conductor on one side of the outlet box and ungrounded con-

ductor on the other side of the outlet box.

11. Electrical diagrams are for reference only. Light kits that are

not packed with the fan must be UL Listed and marked suit-

able for use with the model fan you are installing. Switches

must be UL General Use Switches. Refer to the instructions

packaged with the light kits and switches for proper assembly.

12. All set screws must be checked and retightened where neces-

sary before installation.

Safety Rules 1.

READ AND SAVE THESE INSTRUCTIONS

TO REDUCE THE RISK OF PERSONAL INJURY, DO NOT BEND THE

BLADE BRACKETS (ALSO REFERRED TO AS “FLANGES”) DURING

ASSEMBLY OR AFTER INSTALLATION. DO NOT INSERT OBJECTS IN

THE PATH OF THE BLADES.

TO REDUCE THE RISK OF SHOCK, THIS FAN MUST BE INSTALLED

WITH AN ISOLATION WALL CONTROL/SWITCH.

TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR PERSONAL

INJURY, MOUNT TO OUTLET BOX MARKED “ACCEPTABLE FOR

FAN SUPPORT OF 35LBS (15.9KG) OR LESS” AND USE MOUNTING

SCREWS PROVIDED WITH THE OUTLET BOX. OUTLET BOXES COM-

MONLY USED FOR THE SUPPORT OF LIGHTING FIXTURES ARE NOT

ACCEPTABLE FOR FAN SUPPORT AND MAY NEED TO BE REPLACED.

CONSULT A QUALIFIED ELECTRICIAN IF IN DOUBT.

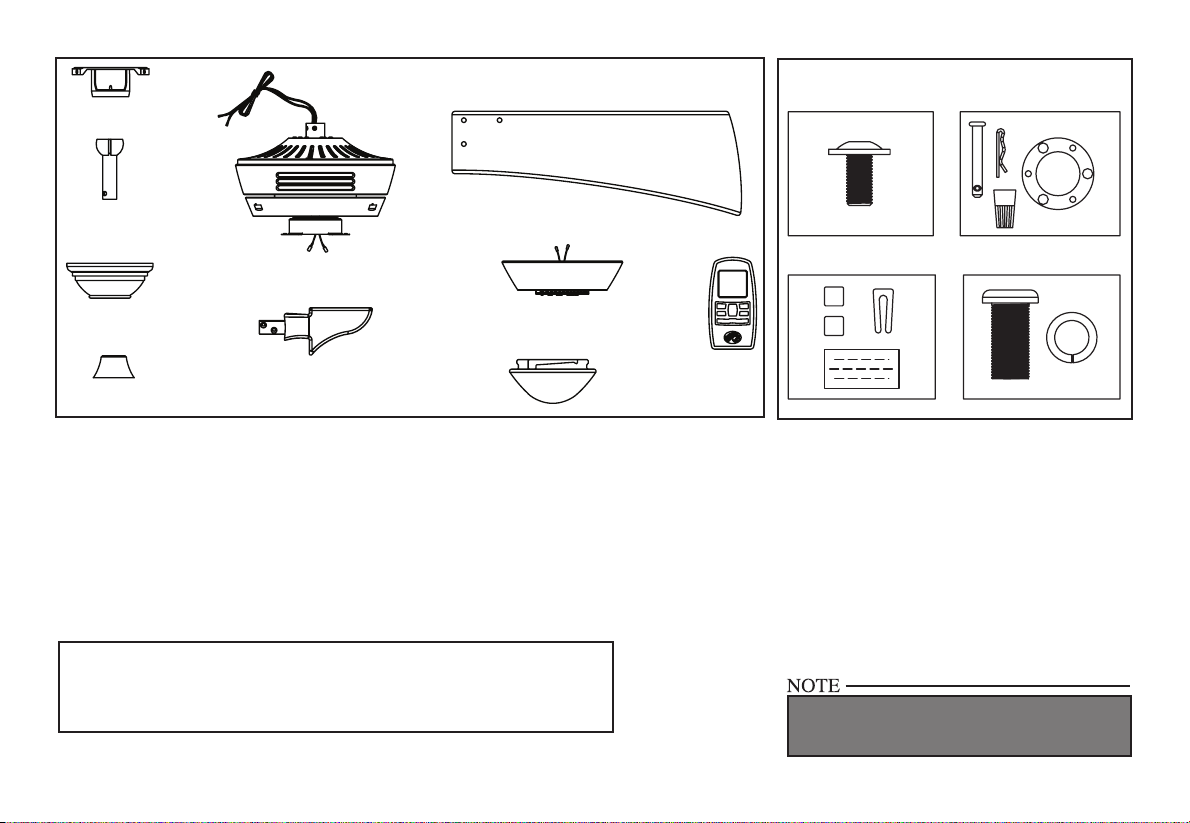

a. Blade attachment hardware

(9 screws)

b. Mounting & Electrical Hardware

(1 hanger pin, 1 locking pin, 3 plastic

wire connectors, 1 rubber gasket)

c. Blade Balancing Kit

d. Blade Bracket Hardware

(6 screws and lockwashers)

6. Blades Brackets (3)

7. Blades (3)

8. Lower Housing

9. Glass

10. Transmitter (Hand Unit)

1. Mounting Plate (inside Canopy)

2. Downrod and Ball Assembly

3. Canopy

4. Decorative Motor Collar Cover

5. Fan Motor Assembly

2. Unpacking Your Fan

IMPORTANT: THIS PRODUCT AND/OR COMPONENTS ARE COVERED

BY ONE OR MORE OF THE FOLLOWING U.S. PATENTS: 5,947,436;

5,988,580; 5,971,573; 6,010,306; 6,039,541; 6,046,416 AND OTHER

PATENTS PENDING.

Unpack your fan and check the contents. You should have the following items:

REMOVE RUBBER PACKING MOUNTS IN THE

FAN MOTOR ASSEMBLY AND DISCARD BEFORE

INSTALLATION.

Installing Your Fan 3.

Tools Required

Phillips screw driver, straight slot screw

driver, adjustable wrench, step ladder, and

wire cutters.

Mounting Options

If there isn’t an existing outlet box, then read

the following instructions. Disconnect the

power by removing fuses or turning off

circuit breakers.

Secure the outlet box directly to the building

structure. Use appropriate fasteners and

building materials. The outlet box and its

support must be able to fully support the

moving weight of the fan (at least 35 lbs.)

Do not use plastic outlet boxes.

Figures 1, 2, and 3 are examples of different

ways to mount the outlet box.

Outlet Box

Note: You may need a longer downrod to

maintain proper blade clearance when install-

ing on a steep, sloped ceiling. The maximum

angle allowable is 30˚. If the canopy touches

downrod, remove the decorative canopy

bottom cover and turn the canopy 180˚ before

attaching the canopy to the mounting plate.

Outlet Box

To hang your fan where there is an existing

xture but no ceiling joist, you may need an

installation hanger bar as shown in Figure 4

(available at your Hampton Bay retailer).

TO REDUCE THE RISK OF FIRE, ELECTRIC

SHOCK OR PERSONAL INJURY, MOUNT TO

OUTLET BOX MARKED “ACCEPTABLE FOR

FAN SUPPORT OF 35LBS (15.9KG) OR LESS”

AND USE MOUNTING SCREWS PROVIDED

WITH THE OUTLET BOX. OUTLET BOXES

COMMONLY USED FOR THE SUPPORT OF

LIGHTING FIXTURES ARE NOT ACCEPTABLE

FOR FAN SUPPORT AND MAY NEED TO

BE REPLACED. CONSULT A QUALIFIED

ELECTRICIAN IF IN DOUBT.

Figure 1

Figure 2

Figure 4

Figure 3

each section of the instructions will note the

different procedures to follow for the two types

of installation.

Standard Ceiling Mounting

1. Remove the canopy ring from the canopy

by turning the ring to the right until it un-

locks (Figure 5).

Hanging the Fan

REMEMBER to turn off the pow-

er. Follow the steps below to hang your

fan properly.

NOTE: This ceiling fan is supplied with two

types of hanging assemblies; the standard

ceiling installation using the downrod with

ball and socket mounting, and the “close-to-

ceiling” mounting. The “close-to-ceiling”

mounting is recommended in rooms with

less than 8-foot ceilings or in areas where

additional space is desired from the oor

to the fan blades. When using standard

downrod installation, the distance from the

ceiling to the bottom of the fan blades will be

approximately 12 inches. The “close-to-ceil-

ing” installation reduces the distance from

the ceiling to the bottom of the fan blades to

approximately 8 inches.

Once you have decided which ceiling

installation you will use, proceed with the

following instructions. Where necessary,

Turn Canopy Ring to Remove

Figure 5

Figure 7

2. Remove the mounting plate from the canopy

by loosening the four screws on the top of

the canopy. Remove the two non-slotted

screws and loosen the slotted screws. This

will enable you to remove the mounting

plate (Figure 6).

3. Route the wires exiting the top of the fan

motor through the decorative motor collar

cover then the canopy ring. Make sure the

slot openings are on top. Route the wires

through the canopy and then through the

ball/downrod assembly (Figure 7).

Tighten

Screws

Pin in

Locked

Position

Locking

Hanger Pin

Motor Collar

Cover

Downrod/Ball

Assembly

Canopy Ring

Canopy

Motor Wires

Hook

Ceiling

Mounting

Plate

Mounting Screws

(Supplied With

Outlet Box)

UL Listed

Outlet Box

Slide Mounting

Plate Over

Screw Heads

120V Wires

WHEN MOUNTING THE FAN ON A SLOPED

CEILING, THE STANDARD BALL/DOWNROD

MOUNTING METHOD MUST BE USED. THE

MOUNTING PLATE MUST BE MOUNTED SO

THAT THE SLOT OPENINGS ARE ON THE

LOWER SIDE BY SLIDING THE MOUNTING

PLATE FROM THE TOP DOWN. FOR A GREATER

MOUNTING ANGLE, REMOVE THE DECORA-

TIVE CANOPY BOTTOM COVER (FIGURE 8).

Remove

Loosen But

Do Not Remove

Figure 6

4. Loosen, but do not remove, the set screws

on the collar on the top of the motor

housing.

5. Align the holes at the bottom of the down-

rod with holes in the collar on top of the

motor housing (Figure 7). Carefully insert

the hanger pin through the holes in the col-

lar and downrod. Be careful not to jam the

pin against the wiring inside the downrod.

Insert the locking pin through the hole near

the end of hanger pin until it snaps into its

locked position as noted in the circle inset

of Figure 7.

6. Retighten the set screws on the collar on top

of the motor housing.

7. Proceed to “Installing the Fan” section.

“Close-to-Ceiling” Mounting

1. Remove the canopy ring from the canopy

by turning the ring to the right until it

unlocks (Figure 5).

2. Remove the mounting plate from the cano-

py by loosening the four screws on the top

of the canopy. Remove the two non-slotted

screws and loosen the slotted screws. This

will enable you to remove the mounting

plate (Figure 6).

FAILURE TO COMPLETELY TIGHTEN THE

THREE SCREWS IN STEP 7 COULD RESULT IN

THE FAN LOOSENING AND POSSIBLY FALLING.

FAILURE TO PROPERLY INSTALL THE SET

SCREWS AS NOTED IN STEP 6 COULD RESULT

IN FAN LOOSENING AND POSSIBLY FALLING.

Figure 8

Canopy

Bottom

Cover

Figure 9

Figure 10

Motor

Collar

Screw and

Lockwasher

(3 of 6 screws)

Collar

Screw and

Lockwasher

(3 Screws)

Ceiling

Canopy Canopy

Ring

Rubber

Gasket

3. Remove the decorative canopy bottom cov-

er from the canopy by depressing the three

studs (Figure 8).

4. Remove three of the six screws and lock-

washers (every other one) securing the mo-

tor collar to the top of the fan motor housing

(Figure 9).

5. Place the rubber gasket over the remaining

three screws, route the wires exiting the top

of the fan motor through the canopy ring

(make sure the slot opening are on top),

then proceed to place the ceiling canopy

over the collar at the top of the motor.

(Figure 10).

6. Align the mounting holes with the holes in

the motor and fasten, using the three screws

and lock-washers removed in step 4 (Figure

10).

7. Tighten the mounting screws securely.

Making the Electrical

Connections

REMEMBER to disconnect the power. If

you feel you do not have enough electrical

wiring knowledge or experience, have your fan

installed by a licensed electrician.

NOTE: See Operating Your Remote Control on

Page 11 for details, or follow the instructions

packed with the receiver.

Follow the steps below to connect the fan

to your household wiring. Use the wire

connecting nuts supplied with your fan. Se-

cure the connectors with electrical tape.

Make sure there are no loose strands or

connections (Figure 12).

1. Using supplied wire nut, connect the

green ground wire from the downrod and

the green ground wire from the mounting

plate to the ground household supply wire

(Figure 12).

2. Using supplied wire nut, connect the fan

supply (black) wire to the black household

supply wire (Figure 12).

3. Using supplied wire nut, connect the fan

neutral (white) wire to the white neutral

household supply wire (Figure 12).

4. After connecting the wires, spread them

apart so that the green and white wires are

on one side of the outlet box and the black

wire is on the other side.

Figure 11

Installing Fan to

the Outlet Box

1. Pass the 120-volt supply wires through the

center hole in the ceiling mounting plate as

shown in Figure 7.

2. Install the ceiling mounting plate on the out-

let box by sliding the mounting plate over

the two screws provided with the outlet box

(Figure 7). When using close-to-ceiling

mounting, it is important that the mount-

ing plate be level. If necessary, use leveling

washers (not included) between the mount-

ing plate and the outlet box. Note that the

at side of the mounting plate is toward the

outlet box (Figure 7).

3. Securely tighten the two mounting screws.

4. Carefully lift the assembly up to the ceil-

ing mounting plate. If using close-to-ceil-

ing mounting, hang the fan on the hook

provided by utilizing one of the holes at

the outer rim of the ceiling canopy (Fig-

ure 11). If using standard mounting, seat

WHEN MOUNTING THE FAN ON A SLOPED

CEILING, THE STANDARD BALL/DOWNROD

MOUNTING METHOD MUST BE USED. THE

MOUNTING PLATE MUST BE MOUNTED SO

THAT THE SLOT OPENINGS ARE ON THE

LOWER SIDE BY SLIDING THE MOUNTING

PLATE FROM THE TOP DOWN.

the hanger ball in the mounting plate

socket. Make sure the tab on the mount-

ing plate socket is properly seated in

the groove in the hanger ball.

WHEN USING THE STANDARD BALL/DOWN-

ROD MOUNTING, THE TAB IN THE RING AT THE

BOTTOM OF THE MOUNTING BRACKET MUST

REST IN THE GROOVE OF THE HANGER BALL.

FAILURE TO PROPERLY SEAT THE TAB IN THE

GROOVE COULD CAUSE DAMAGE TO WIRING.

THE HOOK AS SHOWN IN FIGURE 11 IS ONLY

TO BALANCE FAN WHILE ATTACHING WIRING.

FAILURE TO HANG AS SHOWN IN FIGURE 11

MAY RESULT IN HOOK BREAKING, CAUSING

THE FAN TO FALL. HOOK MUST PASS FROM

INSIDE TO OUTSIDE OF CANOPY.

EACH WIRE NUT (WIRE CONNECTOR) SUP-

PLIED WITH THIS FAN IS DESIGNED TO ACCEPT

UP TO ONE 12 GAUGE HOUSE WIRE AND TWO

WIRES FROM THE FAN. IF YOU HAVE LARGER

THAN 12 GAUGE HOUSE WIRING OR MORE

THAN ONE HOUSE WIRE TO CONNECT TO THE

FAN WIRING, CONSULT AN ELECTRICIAN FOR

THE PROPER SIZE WIRE NUTS TO USE.

Black (Motor) White (Neutral)

Green (Ground)

Outlet Box

Fan

Black (Hot) White (Neutral)

Figure 12

Finishing the Fan

Installation

STANDARD CEILING MOUNTING

1. Align the locking slots of the ceiling canopy

with the two screws in the mounting plate.

Push up to engage the slots and turn clock-

wise to lock in place. Immediately tighten

the two mounting screws rmly.

2. Install the remaining two mounting

screws into the holes in the canopy and

tighten rmly.

3. Install the decorative canopy ring by

aligning the ring’s slots with the screws

in the canopy. Rotate the ring counter-

clockwise to lock in place.

4. You may now proceed to attaching the

fan blades.

CLOSE-TO-CEILING MOUNTING

1. Carefully unhook the fan from the mount-

ing bracket and align the locking slots of

the ceiling canopy with the two screws in

the mounting plate. Push up to engage the

slots and turn clockwise to lock in place.

Immediately tighten the two mounting

screws rmly.

WHEN USING THE STANDARD BALL/DOWN-

ROD MOUNTING, THE TAB IN THE RING AT

THE BOTTOM OF THE MOUNTING PLATE MUST

REST IN THE GROOVE OF THE HANGER BALL.

FAILURE TO PROPERLY SEAT THE TAB IN THE

GROOVE COULD CAUSE DAMAGE TO WIRING. LOCKING SLOTS OF CEILING CANOPY ARE

PROVIDED ONLY AS AN AID TO MOUNTING.

DO NOT LEAVE FAN ASSEMBLY UNATTENDED

UNTIL ALL FOUR CANOPY SCREWS ARE EN-

GAGED AND FIRMLY TIGHTENED.

2. Install the remaining two mounting screws

into the holes in the canopy and tighten

rmly.

3. Install the decorative canopy ring by align-

ing the ring’s slots with the screws in the

canopy. Rotate the ring counter-clockwise

to lock in place.

4. You may now proceed to attaching the fan

blades.

Attaching the

Fan Blades

1. Attach blade to blade bracket using the

screws supplied (Figure 13). Start a screw

into the bracket. Repeat for the two remain-

ing screws.

2. Tighten each screw securely.

3. Insert the blade/blade bracket assembly

through the hole in the side of the center y-

wheel, align the 2 screw holes in the blade

bracket with the screw holes in the center

ywheel and secure with screws and lock-

washers supplied (Figure 14).

4. Repeat steps 1-3 for the remaining blades.

5. Turn the wires upward and push the wires

into the outlet box.

Screws Blade

Blade Bracket

Flywheel

Blade

Blade Bracket

Screws

Lockwashers

Figure 13

Figure 14

Figure 15

BLADE BALANCING

All blades are grouped by weight. Because nat-

ural woods vary in density, the fan may wobble

even though the blades are weight matched.

TO REDUCE THE RISK OF PERSONAL INJURY,

DO NOT BEND THE BLADE HOLDERS WHILE

INSTALLING, BALANCING THE BLADES, OR

CLEANING THE FAN. DO NOT INSERT FOREIGN

OBJECTS BETWEEN ROTATING BLADES.

Installing the Light Kit

and Glass Bowl

CAUTION - To reduce the risk of electrical

shock, disconnect the electrical supply circuit

to the fan before installing light kit.

1. Loosen, but do not remove, three of the

four mounting screws on the black bracket

below the fan motor assembly; remove the

other mounting screw (Figure 16).

Lower Housing

Mounting Screw

Mounting

Screw

Red

White

Figure 16

The following procedure should correct most

fan wobble. Check after each step.

1. Check that all blade and blade brackets are

secure.

2. Most fan wobble problems are caused when

blade levels are unequal. Check this level

by selecting a point on the ceiling above

the tip of one of the blades. Measure from

a point on the center of each blade to the

point on the ceiling. Measure this distance

as shown in Figure 15. Rotate the fan until

the next blade is positioned for measure-

ment. Repeat for each blade. Measurement

deviations should be within 1/8”. Run the

fan for 10 minutes.

3. Use the enclosed Bladed Balancing Kit if

the blade wobble is still noticeable.

This manual suits for next models

Table of contents

Languages:

Other HAMPTON BAY Fan manuals

HAMPTON BAY

HAMPTON BAY MINNA HE-12026 User manual

HAMPTON BAY

HAMPTON BAY MADISON AK30A-BN User manual

HAMPTON BAY

HAMPTON BAY Beverley II 325-475 User manual

HAMPTON BAY

HAMPTON BAY FZ-12A User manual

HAMPTON BAY

HAMPTON BAY SOUTHWIND II 52-RMGII User manual

HAMPTON BAY

HAMPTON BAY SENZE 24816-021 User manual

HAMPTON BAY

HAMPTON BAY 58919 User manual

HAMPTON BAY

HAMPTON BAY PANACHE 92407 User manual

HAMPTON BAY

HAMPTON BAY 7107-03 User manual

HAMPTON BAY

HAMPTON BAY Vasner 529-751 User manual

HAMPTON BAY

HAMPTON BAY Marlston N375B-BN User manual

HAMPTON BAY

HAMPTON BAY Gazebo II User manual

HAMPTON BAY

HAMPTON BAY Savona Tiffany User manual

HAMPTON BAY

HAMPTON BAY CHASTAIN II User manual

HAMPTON BAY

HAMPTON BAY 290-286 User manual

HAMPTON BAY

HAMPTON BAY ROANOKE YG216C-NI User manual

HAMPTON BAY

HAMPTON BAY Radcliffe User manual

HAMPTON BAY

HAMPTON BAY Waterton II User manual

HAMPTON BAY

HAMPTON BAY Torrington User manual

HAMPTON BAY

HAMPTON BAY YG098B-NM User manual

HAMPTON BAY

HAMPTON BAY SINCLAIR User manual

HAMPTON BAY

HAMPTON BAY Asbury Plus User manual

HAMPTON BAY

HAMPTON BAY GLENDALE AG524PR-ORB User manual

HAMPTON BAY

HAMPTON BAY Umber User manual

Popular Fan manuals by other brands

ELTA FANS

ELTA FANS H03VV-F installation guide

Hunter

Hunter 20714 Owner's guide and installation manual

Emerson

Emerson CARRERA VERANDA CF542ORB00 owner's manual

Hunter

Hunter Caraway Owner's guide and installation manual

Panasonic

Panasonic FV-15NLFS1 Service manual

Kompernass

Kompernass KH 1150 operating instructions

VES

VES FALA100/12V/TR Original instructions

Vertiv

Vertiv Liebert DCD user manual

Westinghouse

Westinghouse GFP Series owner's manual

Venmar

Venmar KUBIX HRV PLUS Series user guide

Maico

Maico ECR 31 installation instructions

Sonnenkonig

Sonnenkonig Dinky instruction manual

S&P

S&P ECOWATT HXBR manual

Wider

Wider IMP03369BH instruction manual

Panasonic

Panasonic F-60DHN Operating and installation instructions

Hinkley

Hinkley HIGHLAND instruction manual

Broan

Broan 766BN installation guide

Premium

Premium PFS16022 Use manual
