Owner·s ·Manual

Model

654451

. Quick-Connect Installation

•

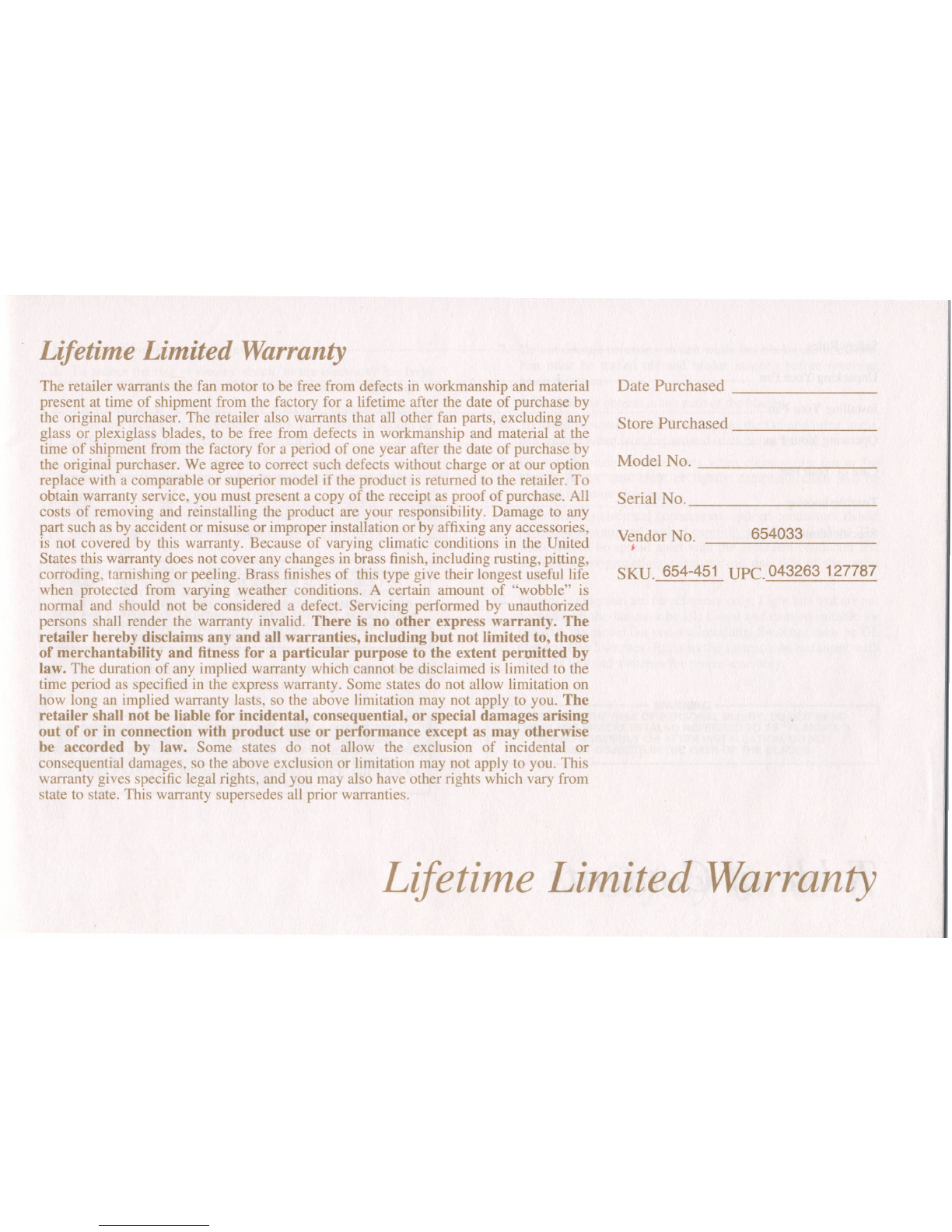

Lifetime Limited Warranty

The retailer warrants the fan motor to be free from defects in workmanship and material

present at time of shipment from the factory for a lifetime after the date of purchase by

the original purchaser. The retailer also warrants that all other fan parts, excluding any

glass or plexiglass blades, to be free from defects in workmanship and material at the

time of shipment from the factory for a period of one year after the date of purchase by

the original purchaser. We agree to correct such defects without charge or at our option

replace with a comparable or superior model if the product is returned to the retailer. To

obtain warranty service, you must present a copy of the receipt as proof of purchase. All

costs of removing and reinstalling the product are your responsibility. Damage to any

part such as by accident or misuse or improper installation or by affixing any accessories,

is not covered by this warranty. Because of varying climatic conditions in the United

States this warranty does not cover any changes in brass finish, including rusting, pitting,

corroding, tarnishing or peeling. Brass finishes of this type give their longest useful life

when protected from varying weather conditions. A certain amount of "wobble" is

normal and should not be considered a defect. Servicing performed by unauthorized

persons shall render the warranty invalid. There is no other express warranty. The

retailer hereby disclaims any and all warranties, including but not limited to, those

of merchantability and fitness for a particular purpose to the extent permitted by

law. The duration of any implied warranty which cannot be disclaimed is limited to the

time period as specified in the express warranty. Some states do not allow limitation on

how long an implied warranty lasts, so the above limitation may not apply to you. The

retailer shall not be liable for incidental, consequential, or special damages arising

out of or in connection with product use or performance except as may otherwise

be accorded by law. Some states do not allow the exclusion of incidental or

consequential damages, so the above exclusion or limitation may not apply to you. This

warranty gives specific legal rights, and you may also have other rights which vary from

state to state. This warranty supersedes all prior warranties.

Date Purchased _

Store Purchased _

Model No. _

Serial No. _

Vendor No.

•

654033

SKU. 654-451 UPC. 043263 127787

Lifetime Limited Warranty

Safety Rules

Unpacking Your Fan :

Installing Your Fan

Operating Your Fan . . .. . . . . . .. . . 10

Care of Your Fan 11

Troubleshooting 12

Specifications , 13

Table of Contents

1. Please read and save this manual.

To reduce the risk of electric shock, insure electricity has been

turned off at the circuit breaker or fuse box before beginning,

3. All wiring must be in accordance with the ational Electrical

Code and local electrical codes, Electrical installation should be

performed by a qualified licensed electrician,

4. WARNING: To reduce the risk of electrical shock and fire, do

not use this fan with any solid-state fan speed control device.

S. The outlet box and support structure must be securely mounted

and capable of reliably supporting a minimum of 50 pounds. Use

only UL Listed outlet boxes marked "FOR FAN SUPPORT,"

,..---------- WARNING -----------,

TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR PERSONAL

INJURY, MOUNT TO OUTLET BOX MARKED ACCEPTABLE FOR

FAN SUPPORT ONLY AND USE MOUNTING SCREWS PROVIDED

WITH THE OUTLET BOX. MOST OUTLET BOXES COMMONLY USED

FOR THE SUPPORT OF LIGHTING FIXTURES ARE NOT ACCEPTABLE

FOR FAN SUPPORT AND MAY NEED TO BE REPLACED. CONSULT A

QUALIFIED ELECTRICIAN IF IN DOUBT.

6. The fan must be mounted with a minimum of 7 feet clearance

from the trailing edge of the blades to the floor.

IMPORTANT

BEFORE SERVICING OR CLEANING UNIT, SWITCH POWER OFF AT

SERVICE PANEL AND LOCK SERVICE DISCONNECTING MEANS TO

PREVENT POWER FROM BEING SWITCHED ON ACCIDENTALLY. WHEN

THE SERVICE DISCONNECTING MEANS CANNOT BE LOCKED,

SECURELY FASTEN A PROMINENT WARNING DEVICE, SUCH AS A

TAG, TO THE SERVICE PANEL.

7. Do not operate reversing switch while fan blades are in motion.

Fan must be turned off and blades stopped before reversing

blade direction.

8. Avoid placing objects in the path of the blades.

9. To avoid personal injury or damage to the fan and other items.

be cautious when working around or cleaning the fan.

10. Do not use water or detergents when cleaning the fan or fan

blades. A dry dust cloth or lightly dampened cloth will be

suitable for most cleaning.

11. After making electrical connections. spliced conductors should

be turned upward and pushed carefully up into outlet box. The

wires should be spread apart with the grounded conductor and

the equipment-grounding conductor on one side of the outlet

box.

12. Electrical diagrams are for reference only. Light kits that are not

packed with the fan must be UL Listed and marked suitable for

use with the model fan you are installing. Switches must be UL

General Use Switches. Refer to the instructions packaged with

the light kits and switches for proper assembly.

,--------- WARNING ----------,

TO REDUCE THE RISK OF PERSONAL INJURY, DO NOT BEND

THE BLADE BRACKETS (ALSO REFERRED TO AS FLANGES )

DURING ASSEMBLY OR AFTER INSTALLATION. DO NOT

INSERT OBJECTS IN THE PATH OF THE BLADES.

Safety Rules 1

Loose Parts

2. 3.

d e

4. 5.

C.'

)

~.~

Unpack your fan and check the contents. You should have the following items:

I. Fan Motor Assembly with Pre-attached

Blade Brackets

2. Canopy with "Slide-on" Ceiling

Mounting Bracket

Downrod Assembly

4. Hanger Cover

5. Set of Blades (5) 6. Loose Parts Bags Containing:

a. Wire Nuts (3)

b. Pivot Pin (I)

c. Split Pin (I)

d. Pull Chain Pendant (I)

e. Fan Blade Balancing Kit

.-------WARNING ------,

DO NOT INSTALL OR USE FAN

IF ANY PART IS DAMAGED OR MISSING.

CALL TOLL FREE 1-800-527-3675

2 Unpacking Your Fan

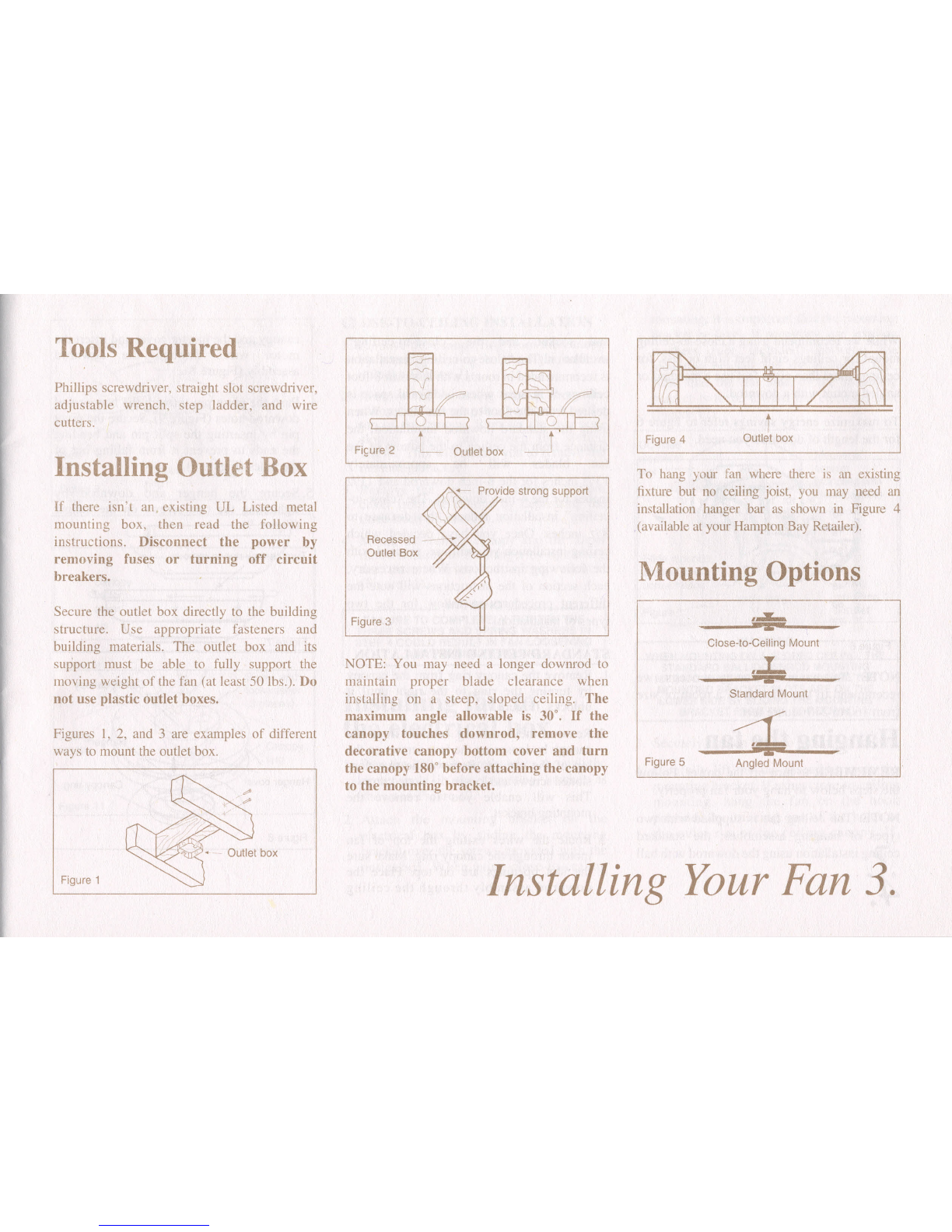

Tools Required

Phillips screwdriver, straight slot screwdriver,

adjustable wrench, step ladder, and wire

cutters.

Installing Outlet Box

there isn't an

exrsung

UL Listed metal

mounting box, then read the following

instructions. Disconnect the power by

removing fuses or turning off circuit

breakers.

Secure the outlet box directly to the building

structure. Use appropriate fasteners and

building materials. The outlet box and its

support must be able to fully support the

moving weight of the fan (at least 50 Ibs.). Do

not use plastic outlet boxes.

Figures I, 2, and 3 are examples of different

ways to mount the outlet box.

Figure 1

Jk~

Fi£ure 2

Outlet box -

Recessed

Outlet Box

Figure 3

NOTE: You may need a longer downrod to

maintain proper blade clearance when

installing on a steep, sloped ceiling. The

maximum angle allowable is

30'.

If the

canopy touches downrod, remove the

decorative canopy bottom cover and turn

the canopy 180' before attaching the canopy

to the mounting bracket.

Figure 4 Outlet box

To hang your fan where there is an

existmg

fixture but no ceiling joist, you may need an

installation hanger bar as shown in Figure 4

(available at your Hampton Bay Retailer).

Mounting Options

Close-to-Ceiling Mount

Standard Mount

Figure 5 Angled Mount

Installing Your Fan 3

While we recommend using a close-to-ceiling

mount for ceilings eight feet high or less, for

ceilings more than eight feet use a standard or

angled mount with a downrod.

To maximize energy savings refer to figure 6

for the length of downrod you need.

Ceiling Height

9' 10' 11' 12' 13' 14' 15'

i~:::

-L

111:

~ 24"

~ 36"

~ 48"

60"

~ I

72"

Figure 6

NOTE: To maximize energy savings, we

recommend to use this fan in a room of size

from 160 to 240 square feet.

Hanging the fan

REMEMBER to turn off the power. Follow

the steps below to hang your fan properly.

NOTE: The ceiling fan is supplied with two

types of hanging assemblies; the standard

ceiling installation using the downrod with ball

and socket, and the "close-to-ceiling"

installation. The "close-to-ceiling" installation

is recommended in rooms with less than 8-foot

ceilings or in areas where additional space is

desired from the floor to the fan blades. When

using the standard downrod installation, the

distance from the ceiling to the bottom of the

fan blades will be approximately

13'/2 inches for the 6-inch downrod and 11'/2

inches for the 4-inch downrod. The "close-to-

ceiling" installation reduces this distance to

8'/2 inches. Once you have decided which

ceiling installation you will use, proceed with

the following instructions. Where necessary,

each section of the instructions will note the

different procedures to follow for the two

types of installation.

STANDARD CEILING INSTALLATION

I. Remove the canopy ring from the canopy

by turning the ring to the right until it

unlocks. (Figure 7)

2. Remove the mounting bracket from the

canopy by loosening the four screws on the

top of the canopy. Remove the two non-

slotted screws and loosen the slotted screws.

This will enable you to remove the

mounting bracket.

3. Route the wires exiting the top of fan

motor through the canopy ring. Make sure

the slot openings are on top. Place the

downrod assembly through the ceiling

canopy and the hanger cover and insert the

motor wires through the downrod

assembly (Figure 8).

4. Push the Pivot pin through the hanger and

downrod holes (Figure 9). Secure the pivot

pin by inserting the split pin and bending

the ends to prevent it from falling out of

the holes (Figure 9).

5. Secure the hanger and downrod by

tightening the two screws on the hanger

(Figure 9).

Turn canopy ring to remove

q:+ -;

\:::'---)-r"

Figure 7 '

Ceiling canopy

Hanger

Figure 8

Canopy

ring Hanger Split pin

I I

c-.-

--r-)

Canopy

bottom

cover

Figure 10

Figure 11

Canopy

ring

CLOSE- TO-CEILING INSTALLATION

I. Remove the canopy ring from the canopy

by turning the ring to the right until it

unlocks. (Figure 7)

2. Remove the mounting bracket from the

canopy by loosening the four screws on the

top of the canopy. Remove the two non-

slotted screws and loosen the slotted

screws. This will enable you to remove the

mounting bracket.

3. Remove the decorative canopy bottom

cover from the canopy by depressing the

three studs (Figure 10).

4. Mount the ceiling canopy and the upper

motor housing to the hanger by tightening

the three screws and spring washers

(Figure ll).

,- __ ,.- __ WARNING ---.

FAILURE TO COMPLETELY TIGHTEN THE

THREE SCREWS AND SPRING WASHERS IN

STEP 4 COULD RESULT IN FAN LOOSENING

AND POSSIBLY FALLING.

Installing fan to

the electrical box

1. Pass the l20-volt supply wires through the

center hole in the mounting bracket as

shown in Figure 12.

2. Attach the mounting bracket on the

electrical box by sliding the mounting

bracket over the screws provided with the

outlet box. When using close-to-ceiling

mounting, it is important that the mounting

bracket be level. If necessary, use leveling

washers (not included) between the

mounting bracket and the electrical box.

Note that the flat side of the mounting

bracket is to be toward the electrical box

(Figure 12).

UL listed

electrical

box

Mounting

screws

(supplied with

electrical bOX)

Hook

120V Wires

Figure 12

r-------WARNING ------,

WHEN MOUNTING ON A SLOPED CEILING, THE

STANDARD BALUDOWNROD MOUNTING

METHOD MUST BE USED. MAKE SURE THE

MOUNTING BRACKET SLOTS ARE ON THE

LOWER SIDE BY SLIDING THE MOUNTING

BRACKET FROM THE TOP DOWN.

3. Securely tighten the two mounting screws.

4. Carefully lift the fan assembly up to the

mounting bracket. If using close-to-ceiling

mounting, hang the fan on the hook

provided by utilizing one of the holes at

the outer rim of the ceiling canopy. If

using standard mounting, seat the hanger

ball in the mounting bracket socket. Make

sure the tab on the mounting bracket

socket is properly seated in the groove in

the hanger ball. (Figure 13).

Close-to-ceilinq mounting Standard mounting

Figure 13

..------ WARNING --------.

THE HOOK AS SHOWN IN FIG. 131S ONLY TO

BALANCE FAN WHILE ATTACHING THE

WIRING. FAILURE TO HANG AS SHOWN IN

FIG. 11 MAY RESULT IN HOOK BREAKING

CAUSING THE FAN TO FALL. HOOK MUST

PASS FROM INSIDE TO OUTSIDE OF CANOPY.

Making the electrical

connections

If you feel that you do not have enough

electrical wiring knowledge or experience.

have your fan installed by a licensed

electrician.

,------- WARNING -------,

TO AVOID POSSIBLE ELECTRICAL SHOCK,

BE SURE ELECTRICITY IS TURNED OFF AT

THE MAIN FUSE BOX BEFORE WIRING.

NOTE: IF YOU ARE NOT SURE THE

ELECTRICAL BOX AND FAN ARE GROUNDED,

CONTACT A LICENSED ELECTRICIAN FOR

ADVICE. THEY MUST BE GROUNDED

FOR SAFE OPERATION.

,------- WARNING -----..,

EACH WIRE NUT (WIRE CONNECTOR)

SUPPLIED WITH THIS FAN IS DESIGNED TO

ACCEPT UP TO ONE 12 GAUGE HOUSE WIRE

AND TWO WIRES FROM THE FAN. IF YOU

HAVE LARGER THAN 12 GAUGE HOUSE

WIRING OR MORE THAN ONE HOUSE WIRE

TO CONNECT TO THE FAN WIRING,

CONSULT AN ELECTRICIAN FOR

THE PROPER SIZE WIRE NUTS TO USE.

I. Connect the ground conductor of the 120Y

supply (this may be a bare wire or a wire

with green colored insulation) to the green

ground lead(s) of the fan (Figure 14).

When using standard ceiling installation.

there are two green grounding leads. one

from the ceiling mounting bracket and one

from the downrod.

When using close-to-ceiling installation.

there is only one green ground lead from

the ceiling mounting bracket since the

downrod is not used.

2. Connect the fan motor white wire to the

supply white (neutral) wire using a wire nut

(Figure 14). Connect the fan motor black

wire to the supply black (hot) wire using a

wire nut (Figure 14). Do not connect the

blue wire from the fan unless you are

installing an optional light kit to the fan. (If

you are adding the light kit at this time.

connect the blue wire and the black wire

from the fan to the black houshold supply

wire). Your fan is now wired to be turned

on and off from the pull chain switch.

Turn the wire nut connections upward.

spreading them apart so that the green

(ground) and white wires will be on one

side of the outlet box and the black and

blue wires will be on the other side, and

push them up into the outlet box.

.-------- WARNING --------.

CHECK TO SEE THAT ALL CONNECTIONS

ARE TIGHT, INCLUDING GROUND, AND THAT

NO BARE WIRE IS VISIBLE AT THE WIRE

NUTS, EXCEPT FOR THE GROUND WIRE.

If you wish to control the light from a wall

switch and the fan from the pull chain switch

or if you wish to control both fan and light

from wall switches. refer to wiring diagrams

in Figure 15 and 16.

Table of contents

Other HAMPTON BAY Fan manuals

HAMPTON BAY

HAMPTON BAY 24816-021 User manual

HAMPTON BAY

HAMPTON BAY EF200S-52 User manual

HAMPTON BAY

HAMPTON BAY Beverley II 325-475 User manual

HAMPTON BAY

HAMPTON BAY YG098-NM User manual

HAMPTON BAY

HAMPTON BAY YG204D-BN User manual

HAMPTON BAY

HAMPTON BAY BPT18-34ALE-2 User manual

HAMPTON BAY

HAMPTON BAY BENNINGTON 52389 User manual

HAMPTON BAY

HAMPTON BAY NORWOOD 52129 User manual

HAMPTON BAY

HAMPTON BAY Marlston N375B-BN User manual

HAMPTON BAY

HAMPTON BAY Colonial Bamboo User manual

HAMPTON BAY

HAMPTON BAY Metarie 795-970 User manual

HAMPTON BAY

HAMPTON BAY METARIE II YG922B-MBK User manual

HAMPTON BAY

HAMPTON BAY 80213 User manual

HAMPTON BAY

HAMPTON BAY BELVOY AK330-BN User manual

HAMPTON BAY

HAMPTON BAY 1002 275 335 User manual

HAMPTON BAY

HAMPTON BAY Wellston User manual

HAMPTON BAY

HAMPTON BAY FC120-CARL User manual

HAMPTON BAY

HAMPTON BAY 284-485 User manual

HAMPTON BAY

HAMPTON BAY AM212-ORB User manual

HAMPTON BAY

HAMPTON BAY AK376-MBK User manual

HAMPTON BAY

HAMPTON BAY TY-50-L (HD) User manual

HAMPTON BAY

HAMPTON BAY 286-780 User manual

HAMPTON BAY

HAMPTON BAY ALTURA 52356 User manual

HAMPTON BAY

HAMPTON BAY MADISON AK30A-BN User manual

Popular Fan manuals by other brands

ELTA FANS

ELTA FANS H03VV-F installation guide

Hunter

Hunter 20714 Owner's guide and installation manual

Emerson

Emerson CARRERA VERANDA CF542ORB00 owner's manual

Hunter

Hunter Caraway Owner's guide and installation manual

Panasonic

Panasonic FV-15NLFS1 Service manual

Kompernass

Kompernass KH 1150 operating instructions

VES

VES FALA100/12V/TR Original instructions

Vertiv

Vertiv Liebert DCD user manual

Westinghouse

Westinghouse GFP Series owner's manual

Venmar

Venmar KUBIX HRV PLUS Series user guide

Maico

Maico ECR 31 installation instructions

Sonnenkonig

Sonnenkonig Dinky instruction manual

S&P

S&P ECOWATT HXBR manual

Wider

Wider IMP03369BH instruction manual

Panasonic

Panasonic F-60DHN Operating and installation instructions

Hinkley

Hinkley HIGHLAND instruction manual

Broan

Broan 766BN installation guide

Premium

Premium PFS16022 Use manual
