HAMPTON BAY Havenville User manual

Havenville by Hampton Bay

52” Havenville

Ceiling Fan by Hampton Bay

Date Purchased

Store Purchased

Model No.

Serial No.

Vendor No.

UPC

Thank you for purchasing our ceiling fan. This product has been

manufactured with the highest standards of safety and quality.

Table of Contents

Safety Rules . . . . . . . . . . . . . . . . . . . . 1

Unpacking Your Fan . . . . . . . . . . . . . . 2

Installing Your Fan . . . . . . . . . . . . . . . 3

Installing the Light Kit . . . . . . . . . . . 11

Operating Your Fan . . . . . . . . . . . . . . . 13

Care of Your Fan . . . . . . . . . . . . . . . . 14

Troubleshooting . . . . . . . . . . . . . . . . . 14

Specifications . . . . . . . . . . . . . . . . . . 15

Warranty Information . . . . . . . . . . . . 16

322-771

219054

718212149522

Safety Rules - Read and Save These Instructions

To reduce the risk of electric shock, insure electricity has been turned off

at the circuit breaker or fuse box before beginning.

All wiring must be in accordance with the National Electrical Code

“ANSI/NFPA 70-1999” and local electrical codes. Electrical installation

should be performed by a qualified licensed electrician.

WARNING: To reduce the risk of electrical shock or fire, do not use this

fan with any solid-state fan speed control device. It will permanently

damage the electronic circuitry.

CAUTION: To reduce the risk of personal injury, use only the screws

provided with the outlet box.

The outlet box and support structure must be securely mounted and

capable of reliably supporting a minimum of 35 pounds. Use only UL

Listed outlet boxes marked “FOR FAN SUPPORT”.

The fan must be mounted with a minimum of 7 feet clearance from the

trailing edge of the blades to the floor.

Avoid placing objects in path of the blades.

To avoid personal injury or damage to the fan and other items, be

cautious when working around or cleaning the fan.

Do not use water or detergents when cleaning the fan or fan blades. A dry

dust cloth or lightly dampened cloth will be suitable for most cleaning.

After making electrical connections, spliced conductors should be turned

upward and pushed carefully up into outlet box. The wires should be

spread apart with the grounded conductor and the equipment-grounding

conductor on one side of the outlet box and ungrounded conductor on the

other side of the outlet box.

All set screws must be checked and retightened where necessary before

installation.

10.

11.

WARNING

TO REDUCE THE RISK OF PERSONALL INJURY, DO NOT BEND THE

BLADE ARMS (ALSO REFERRED TO AS FLANGES), WHEN

INSTALLING THE BRACKETS, BALANCING THE BLADES OR

CLEANING THE FAN. DO NOT INSERT FOREIGN OBJECTS IN –

BETWEEN ROTATING FAN BLADES.

WARNING

TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR PERSONAL

INJURY, MOUNT FAN TO OUTLET BOX MARKED ACCEPTABLE

FOR FAN SUPPORT WITH THE SCREWS PROVIDED WITH THE

OUTLET BOX.

ATTENTION

FAN INCLUDES A 190W LIMITER TO COMPLY WITH THE

DEPARTMENT OF ENERGY 2009 REGULATION. LAMPING THIS

PRODUCT OVER 190W WILL CAUSE THIS FAN TO NOT LIGHT.

PLEASE USE BULBS WITH A TOTAL WATTAGE UNDER THE 190W

REGULATION.

Unpacking Your Fan Unpack your fan and check the contents. You should have the following items:

Set of blades (5)

Ceiling canopy

Hanger bracket

Canopy cover

Ball/downrod assembly

Coupling cover

2a.

2b.

2c.

Fan motor assembly

Blade holders (5)

Mounting plate

Switch housing

Decorative cover

Plug

Light kit

60 Watt candelabra bulbs (3)

Glass shades (3)

Pull chains and fobs (2)

8a.

8b.

8c.

10.

11.

12.

WARNING

DO NOT INSTALL OR USE FAN IF ANY

PART IS DAMAGED OR MISSING.

CALL TOLL FREE 1-800-527-0998.

Blade Attachment Hardware

3/16"×7.5mm Screws (16PCs.)

Fiber Washers (16 PCs.)

Electrical Hardware

Plastic Wire Nuts (3PCs.)

Balancing Kit

Installing Your Fan

Figures 1~3 are examples of different ways to

mount the outlet box.

If there isn't an existing UL listed mounting box,

then read the following instructions. Disconnect

the power by removing fuses or turning off circuit

breakers.

Secure the outlet box directly to the building

structure. Use appropriate fasteners and building

materials. The outlet box and its support must be

able to fully support the moving weight of the fan

(at least 35 lbs). Do not use plastic outlet boxes.

Tools Required

Mounting Options

WARNING

TO REDUCE THE RISK OF FIRE, ELECTRIC

SHOCK OR PERSONAL INJURY, MOUNT FAN

ONLY TO AN OULET BOX MARKED ACCEPT-

ABLE FOR FAN SUPPORT AND USE THE

MOUNTING SCREWS PROVIDED WITH THE

OULET BOX. OUTLET BOX COMMONLY USED

FOR THE SUPPORT OF LIGHTING FIXTURE

MAY NOT BE ACCEPTABLE FOR FAN SUPPORT

AND MAY NEED TO BE REPLACED. CONSULT A

QUALIFIED ELECTRICIAN IF IN DOUBT.

Outlet Box

Figure 2

Figure 1

Note: You may need a longer downrod to

maintain proper blade clearance when installing

on a steep, sloped ceiling. The maximum angle

allowable is 20°. If the canopy touches downrod,

remove the decorative canopy bottom cover and

turn the canopy 180°before attaching the canopy

to the mounting plate.

To hang your fan where there is an existing fixture

but no ceiling joist, you may need an installation

hanger bar as shown in Figure 4 (available at any

Home Depot store).

Ceiling

Mounting

Plate

Provide Strong

Support

Recessed

Outlet Box

Figure 3

Figure 4

Phillips screwdriver, straight slot screwdriver, step

ladder and wire cutters.

REMEMBER to turn off the power. Follow the

steps below to hang your fan properly.

Hanging the Fan WARNING

FAILURE TO PROPERLY INSTALL COTTER PIN

AS NOTED IN STEP 5 COULD RESULT IN FAN

LOOSENING AND POSSIBLY FALLING.

Remove the canopy cover from the canopy by

turning the cover counter clockwise. (Figure 5)

Remove the hanger bracket from the canopy by

removing the 1 of 2 screws from the bottom of

the hanger bracket and loosening the other one

a half turn from the screw head. Next, turn the

canopy counter clockwise to removing the

hanger bracket from the canopy. (Figure 5)

Remove the clevis pin, cotter pin and set

screws from the top of the motor assembly.

(Figure 6)

Remove hanger ball from downrod assembly

by loosening set screw, removing the cross pin,

and sliding ball off rod. (Figure 7)

Carefully feed motor wires up through the

downrod. Thread the rod into the coupling.

Next line up holes and replace cotter pin and

clevis pin. Tighten set screws. (Figure 8)

Hanger Bracket

Ceiling

Canopy

Canopy Cover

Figure 5

Figure 6

Set Screws

Clevis Pin

Cotter Pin

Figure 7

Cross Pin

Hanger Ball

Downrod

Figure 8

Downrod

Motor Wires

Installing Fan to

the Electrical Box

WARNING

TO REDUCE THE RISK OF FIRE, ELECTRIC

SHOCK OR OTHER PERSONAL INJURY.

MOUNT FAN ONLY TO AN OUTLET BOX OR

SUPPORTING SYSTEM MARKED ACCEPTABLE

FOR FAN SUPPORT AND USE THE MOUNTING

SCREWS PROVIDED WITH THE OUTLET BOX.

Pass the 120-volt supply wires through the

center hole in the hanger bracket as shown in

Figure 10.

Install the hanger bracket on the outlet box

with the screws and washers provided with

your outlet box (Figure 10).

Security tighten the two mounting screws.

Carefully lift the fan assembly up to the hanger

bracket and seat the hanger ball in the hanger

bracket socket. Make sure the tab on the hanger

bracket socket is properly seated in the groove

in the hanger ball (Figure 11). This will help to

balance the ceiling fan.

Figure 10

UL Listed Outlet Box

Hanger Bracket

120V

Wires

Mounting

Screws (Supplied

with Electrical Box)

Tab

WARNING

THE TAB IN THE RING MUST REST IN THE

GROOVE OF THE HANGER BALL AS FIGURE 11.

FAILURE TO PROPERLY SEAT THE TAB IN THE

GROOVE COULD CAUSE DAMAGE TO WIRING.

Figure 11

Groove

Tab

Figure 9

Pin in Locked

Positioon

Motor Collar

Coupling Cover

Motor Wires

Ball/Downrod

Assembly

Ceiling

Canopy

Canopy Cover

Cotter Pin

Tighten Screw

Firmly

Clevis Pin

Slip coupling cover, canopy cover and canopy

onto downrod. Carefully reinstall hanger ball

onto rod being sure that cross pin is in correct

position, set screws are tighten and wires are not

twisted. (Figure 9)

blue wire will be on the other side, and push

carefully up into the outlet box.

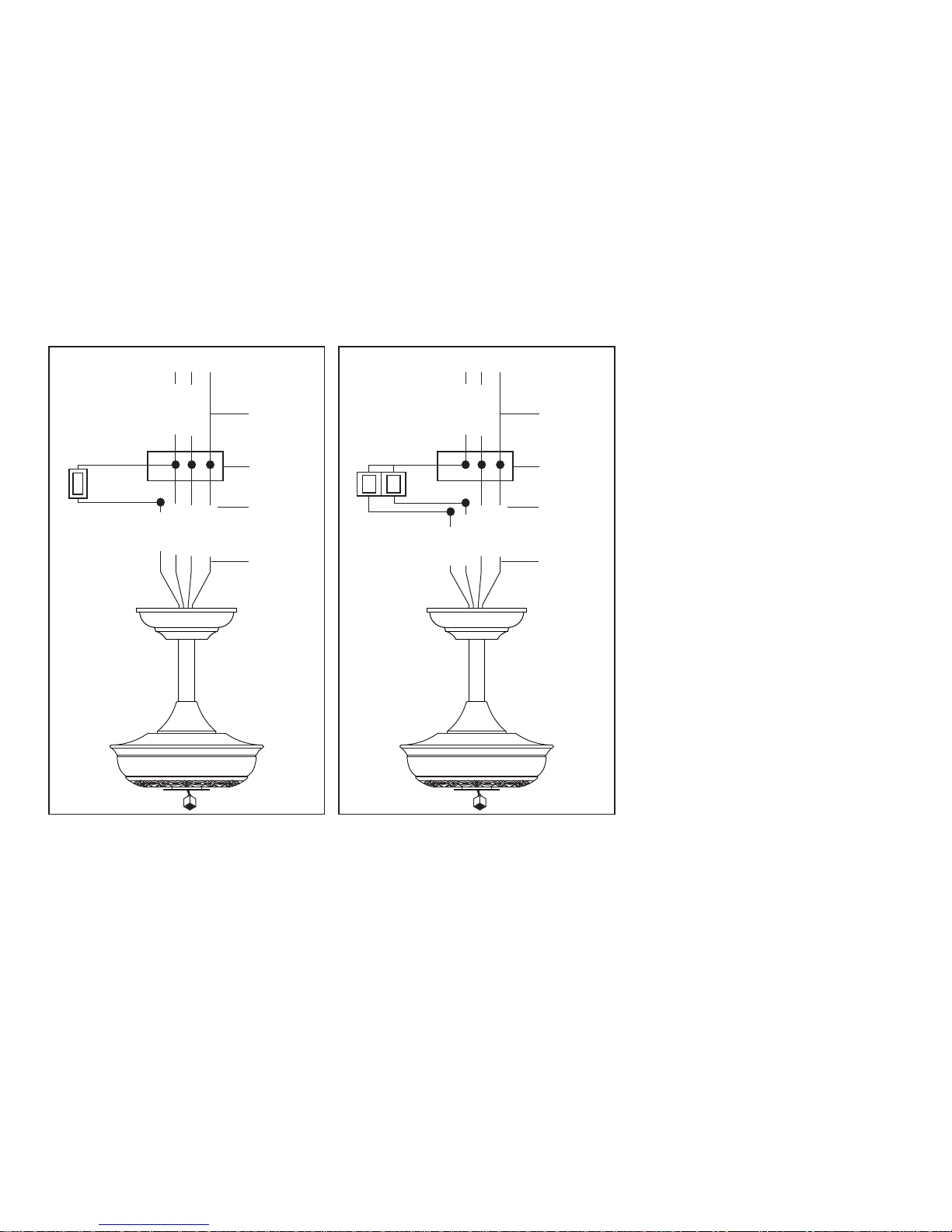

Figures 13 and 14 illustrate the wiring

connections for optional wall control

(available at your Hampton Bay Retailer, the

wire color out of wall control may vary, see

wall control's installation manual for correct

wire connections.)

Connect the ground conductor of the 120V

supply (this may be a bare wire or a wire with

green colored insulation) to the green ground

lead(s) of the fan (Figure 12).

Connect the fan motor white wire to the supply

white (neutral) wire using a wire nut. (Figure

12)

Connect the fan motor black wire to the supply

black (hot) wire using a wire nut (Figure 12).

Connect the blue wire for light kit to the black

household supply wire.

Turn wire nut connections upward, spreading

them apart so the green (ground) will be on one

side of the outlet box and the white, black and

Making the Electrical

Connections

REMEMBER to disconnect the power.

If you feel you do not have enough electrical

wiring knowledge or experience, have your fan

installed by a licensed electrician.

Follow the steps below to connect the fan to your

household wiring. Use the wire nuts supplied with

your fan. Secure the wire nuts with electrical tape.

Make sure there are no loose strands or

connections.

SUPPLY CIRCUIT

Figure 12

BLACK

WHITE

BLACK

WHITE

BLUE

GREEN

Outlet Box

Ground

Conductor

Green

Ground

Lead

Ground to

Downrod

WARNING

CHECK TO SEE THAT ALL CONNECTIONS ARE

TIGHT, INCLUDING GROUND, AND THAT NO

BARE WIRE IS VISIBLE AT THE WIRE NUTS.

EXCEPT FOR THE GROUND WIRE.

ELECTRICAL DIAGRAMS ARE FOR

REFERENCE ONLY. OPTIONAL USE OF ANY

LIGHT KIT SHALL BE UL LISTED AND

MARKED SUITABLE FOR USE WITH THIS FAN.

WARNING

SUPPLY CIRCUIT

Figure 13

BLACK

WHITE

BLACK

WHITE

BLUE

GREEN

Outlet Box

Ground

Conductor

Green

Ground

Lead

Ground to

Downrod

SUPPLY CIRCUIT

Figure 14

BLACK

WHITE

BLACK

WHITE

BLUE

GREEN

Outlet Box

Ground

Conductor

Green

Ground

Lead

Ground to

Downrod

This manual suits for next models

Table of contents

Other HAMPTON BAY Fan manuals

HAMPTON BAY

HAMPTON BAY SIDLOW 52151 User manual

HAMPTON BAY

HAMPTON BAY WELLSTON 51360 User manual

HAMPTON BAY

HAMPTON BAY PORTSMOUTH 51355 User manual

HAMPTON BAY

HAMPTON BAY SAN MARINO 91153 User manual

HAMPTON BAY

HAMPTON BAY CYPRUS 220 635 User manual

HAMPTON BAY

HAMPTON BAY SEAPORT AL634-NI User manual

HAMPTON BAY

HAMPTON BAY ETRIS 52 User manual

HAMPTON BAY

HAMPTON BAY 164-352 User manual

HAMPTON BAY

HAMPTON BAY ASHBURTON YG593-EB User manual

HAMPTON BAY

HAMPTON BAY 266-848 Installation guide

HAMPTON BAY

HAMPTON BAY 1002 498 557 User manual

HAMPTON BAY

HAMPTON BAY Dawson 581 645 User manual

HAMPTON BAY

HAMPTON BAY Rapallo User manual

HAMPTON BAY

HAMPTON BAY BPT18-34A-1 User manual

HAMPTON BAY

HAMPTON BAY HALPERT 52169 User manual

HAMPTON BAY

HAMPTON BAY Brookedale User manual

HAMPTON BAY

HAMPTON BAY 286-780 User manual

HAMPTON BAY

HAMPTON BAY 48" Roanoke User manual

HAMPTON BAY

HAMPTON BAY Enchantment 149-155 User manual

HAMPTON BAY

HAMPTON BAY BISTRO 499 430 User manual

HAMPTON BAY

HAMPTON BAY ROANOKE YG216-MWH User manual

HAMPTON BAY

HAMPTON BAY CARROLTON II AM215-ORB User manual

HAMPTON BAY

HAMPTON BAY Gazebo II YG187-WH User manual

HAMPTON BAY

HAMPTON BAY CHASTAIN II User manual

Popular Fan manuals by other brands

ELTA FANS

ELTA FANS H03VV-F installation guide

Hunter

Hunter 20714 Owner's guide and installation manual

Emerson

Emerson CARRERA VERANDA CF542ORB00 owner's manual

Hunter

Hunter Caraway Owner's guide and installation manual

Panasonic

Panasonic FV-15NLFS1 Service manual

Kompernass

Kompernass KH 1150 operating instructions

VES

VES FALA100/12V/TR Original instructions

Vertiv

Vertiv Liebert DCD user manual

Westinghouse

Westinghouse GFP Series owner's manual

Venmar

Venmar KUBIX HRV PLUS Series user guide

Maico

Maico ECR 31 installation instructions

Sonnenkonig

Sonnenkonig Dinky instruction manual

S&P

S&P ECOWATT HXBR manual

Wider

Wider IMP03369BH instruction manual

Panasonic

Panasonic F-60DHN Operating and installation instructions

Hinkley

Hinkley HIGHLAND instruction manual

Broan

Broan 766BN installation guide

Premium

Premium PFS16022 Use manual
