GW Instek GDP-040D User manual
Differential Probe
GDP-040D for GDS-200 & GDS-300 Series
QUICK START GUIDE
GW INSTEK PART NO. 82DP-040D0MA1
ISO-9001 CERTIFIED MANUFACTURER
This manual contains proprietary information, which is protected by
copyright. All rights are reserved. No part of this manual may be
photocopied, reproduced or translated to another language without
prior written consent of Good Will Corporation.
The information in this manual was correct at the time of printing.
However, Good Will continues to improve its products and therefore
reserves the right to change the specifications, equipment, and
maintenance procedures at any time without notice.
SAFETY INSTRUCTIONS
This section contains the basic safety symbols that may appear on the
accompanying Quick Start Guide or on the instrument.
Safety Symbols
These safety symbols may appear in the user manual or on the
instrument.
Warning
Warning: Identifies conditions or practices that could
result in injury or loss of life.
Caution
Caution: Identifies conditions or practices that could
result in damage to the instrument or to other
properties.
DANGER High Voltage
Attention Refer to the Manual
Protective Conductor Terminal
Earth (ground) Terminal
Do not dispose electronic equipment as unsorted
municipal waste. Please use a separate collection
facility or contact the supplier from which this
instrument was purchased.
GETTING STARTED
The Getting started chapter introduces the main features, appearance,
and set up procedure.
Main Features
Features
•600V CATII input.
•DC~40MHz bandwidth
•x200 attenuation.
•Dual channel
•Locked attachment for GDS-200/300
•Integrated test leads
Package Contents and Accessories
Standard Accessories
Item
Part Number
Quick Start Guide
Differential Probe
GDP-040D
Test Lead
GTL-131 x2

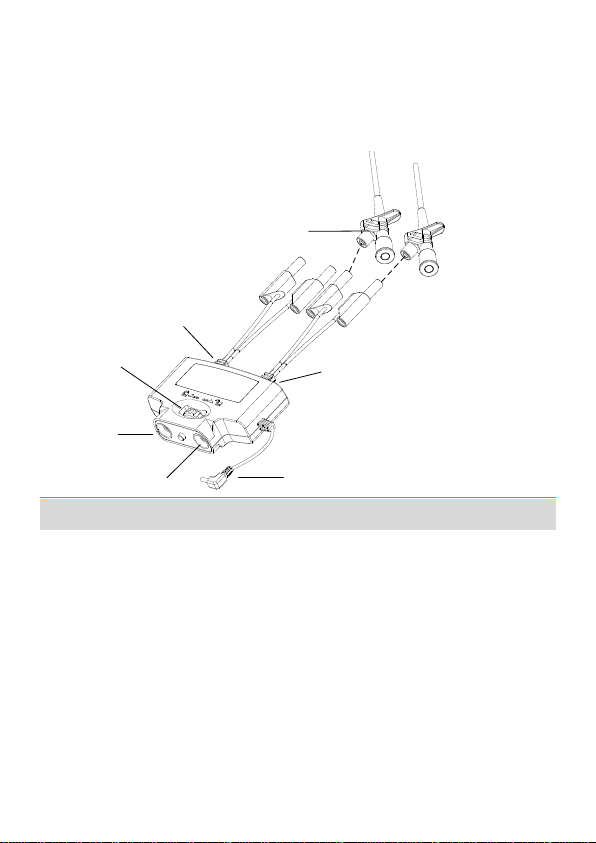

Overview
Front Panel
CH2
DC input
Lock wheel
CH1 input
CH1
CH2 input
Test leads
Item
Description
CH1
CH1 output. 600V CAT II
CH2
CH2 output. 600V CAT II
CH1 Input
CH1 input from the GDS-200/300 CH1 terminal.
CH2 Input
CH2 input from the GDS-200/300 CH2 terminal.
Lock wheel
Used to fix the differential probe to the GDS-200/300.
DC Input
DC5V, 150mA
Connection

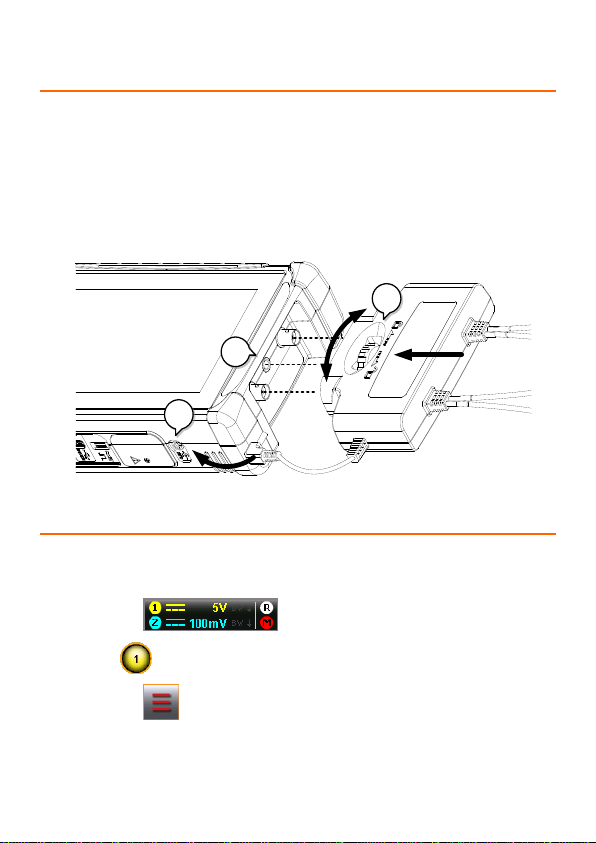

1. Connect the CH1 and CH2 inputs to the gds-200/300 channel
inputs. Make sure the face of the differential probe is top-side up,
as shown below.
2. Turn the lock wheel to the left to fix the probe to the scope.
3. Connect the DC input to the external power port on the GDS-
200/300.
1
2
3
GDS-200/300 Setup
To use the differential probe on the GDS-200/300, simply set the probe
attenuation to X200.
1. Press the vertical icon.
2. Select CH1.
3. Press the Option button.
4. Press Probe and set the probe to x200.
5. Repeat the procedure for CH2.

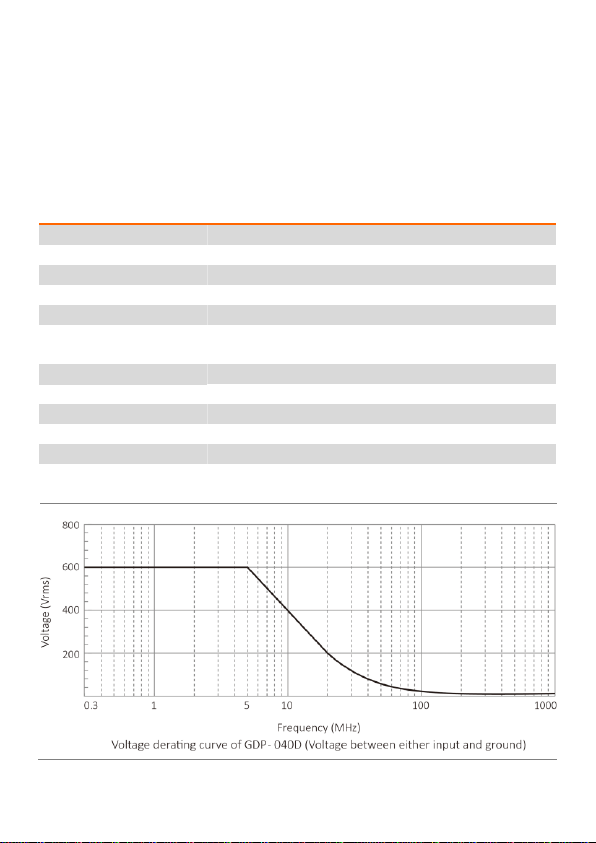

SPECIFICATIONS
The specifications apply when the oscilloscope is powered on for at least
30 minutes under +20°C~+30°C.
Differential Probe Specs
Channels
2 channels
Bandwidth (-3dB)
DC-40MHz (x200)
Attenuation
x200
Accuracy
± 2%
Voltage Input Range
600Vrms for x200
Input Impedance
Differential: 2MΩ//1.2pF
Between terminal and GND: 1MΩ//2.4pF
Output
≤±3V
Output Impedance
50Ω
Rise Time
8.75ns for x200
CMRR
80dB at 60Hz, 60dB at 100Hz, 50dB at 1MHz
Power Supply
5V DC from GDS-200
Dimensions
81.7(H) x 123.0(W) x 28.0(D) (unit:mm)
Electrical equipment for measurement, control and laboratory use –– EMC
requirements (2013)
EC Declaration of Conformity
GDP-040D
Is herewith confirmed to comply with the requirements set out in the Council
Directive on the Approximation of the Law of Member States relating to
Electromagnetic Compatibility (2004/108/EC) and Low Voltage Equipment
Directive (2006/95/EC). For the evaluation regarding the Electromagnetic
Compatibility and Low Voltage Equipment Directive, the following standards
were applied:
◎EMC
EN 61326-1 :
EN 61326-2-1:
EN 61326-2-2:
Conducted and Radiated Emissions
EN 55011: 2009+A1: 2010
Electrostatic Discharge
EN 61000-4-2: 2009
Current Harmonic
EN 61000-3-2: 2006+A1: 2009+A2: 2009
Radiated Immunity
EN 61000-4-3: 2006+A1: 2008+A2: 2010
Voltage Fluctuation
EN 61000-3-3: 2013
Electrical Fast Transients
EN 61000-4-4: 2012
-------------------------
Surge Immunity
EN 61000-4-5: 2006
-------------------------
Conducted Susceptibility
EN 61000-4-6: 2009
-------------------------
Power Frequency Magnetic Field
EN 61000-4-8: 2010
-------------------------
Voltage Dips/Interrupts
EN 61000-4-11: 2004
Safety
Low Voltage Equipment Directive 2006/95/EC
Safety Requirements
EN 61010-2-031+A1: 2008
