Grizzly T32839 User manual
COPYRIGHT © NOVEMBER, 2021 BY GRIZZLY INDUSTRIAL, INC.
NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE
OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.
(FOR MODELS MFD. SINCE 11/21) #CS22152 PRINTED IN TAIWAN V1.11.21
Using Jig
Mount the Model T32839 on the tracks of the
T32838 Bandsaw Sled to smoothly feed logs
up to 113⁄4" wide across the table of your vertical
wood-cutting bandsaw.
IMPORTANT: Refer to the bandsaw manual for
information on safely operating your bandsaw.
Items Needed Qty
Vertical Bandsaw ............................................... 1
T32838 Bandsaw Sled ...................................... 1
To reduce risk of eye injury from flying
chips or lung damage from breathing dust,
always wear safety glasses and a respirator
when operating bandsaw.
4. Loosen lock knobs shown in Figure 2 and
and adjust log holders fully open.
To use jig:
1. Refer to Model T32838 Instructions to
install bandsaw sled on bandsaw.
2. DISCONNECT BANDSAW FROM POWER!
Figure 1. Crosscut jig slid onto bandsaw sled.
Tracks
Sled
Jig
For questions or help with this product contact Tech Support at (570) 546-9663 or techsupport@grizzly.com
MODEL T32839
SLIDING LOG
CROSSCUT JIG
INSTRUCTIONS
3. Align tracks of crosscut jig with tracks of
bandsaw sled, then slide jig onto sled (see
Figure 1).
Figure 2. Location of lock knobs and log holders.
Log
Holder
(1 of 2)
Lock Knob
(1 of 4)
-2- Model T32838 (Mfd. Since 11/21)
7. Connect bandsaw to power, turn bandsaw
ON, then slide jig forward on sled to feed
workpiece through blade and to complete cut.
If workpiece center of gravity (see Figure
4) extends too far right, jig can easily tip
off of bandsaw sled. Body parts could
be pulled into moving blade or pinched/
crushed if caught under falling workpiece. If
jig is not firmly seated on bandsaw sled, use
roller table (or other method of workpiece
support) or cut down workpiece to more
manageable length.

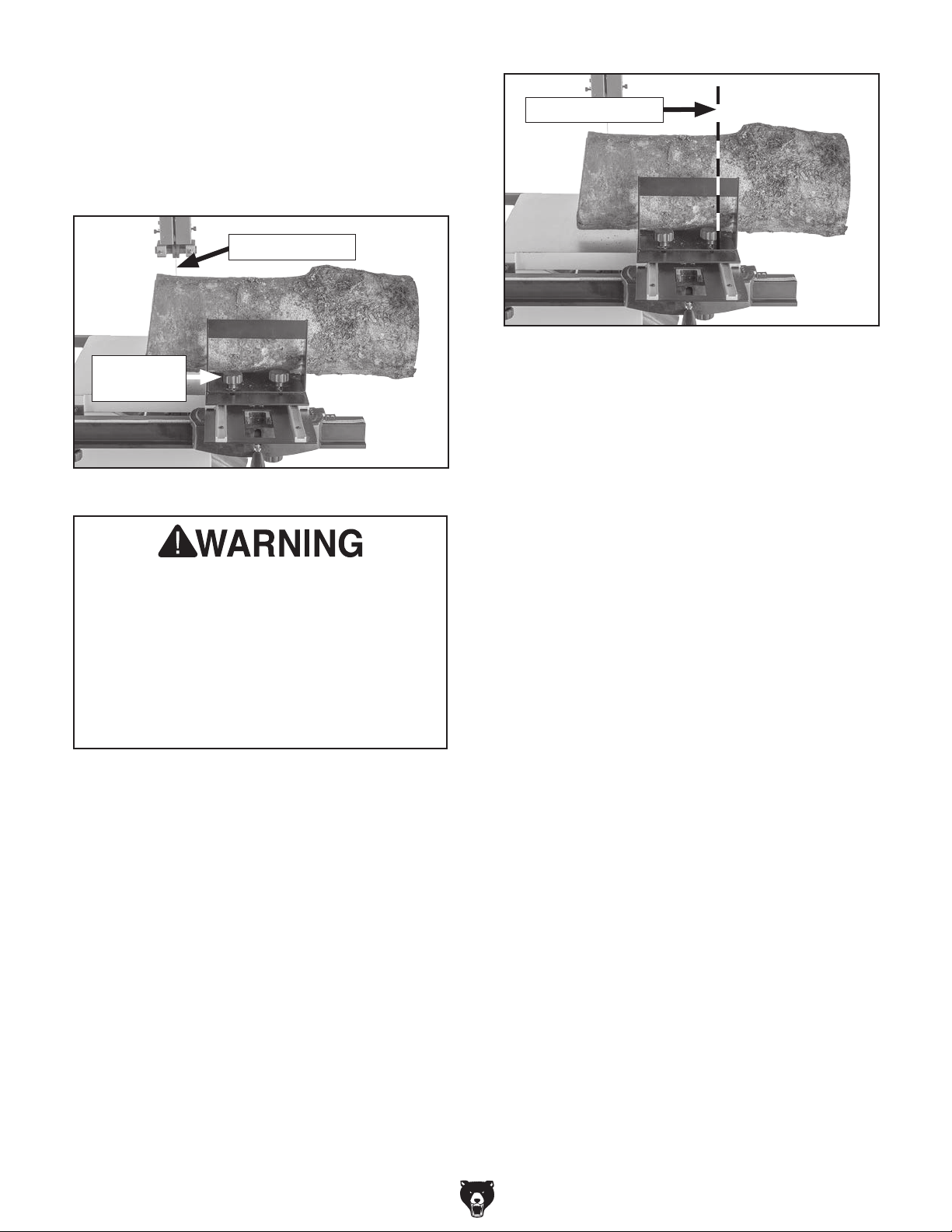

Figure 4. Example of center of gravity.
Center of Gravity
5. Rest workpiece between log holders and
align bandsaw blade with intended line of cut
(see Figure 3).
6. Adjust log holders until workpiece is secure,
then tighten lock knobs (see Figure 3).
Figure 3. Workpiece secured in log holders.
Lock Knob
(1 of 4)
Bandsaw Blade
Model T32838 (Mfd. Since 11/21)-3-
BUY PARTS ONLINE AT GRIZZLY.COM !
Scan QR code to visit our Parts Store.

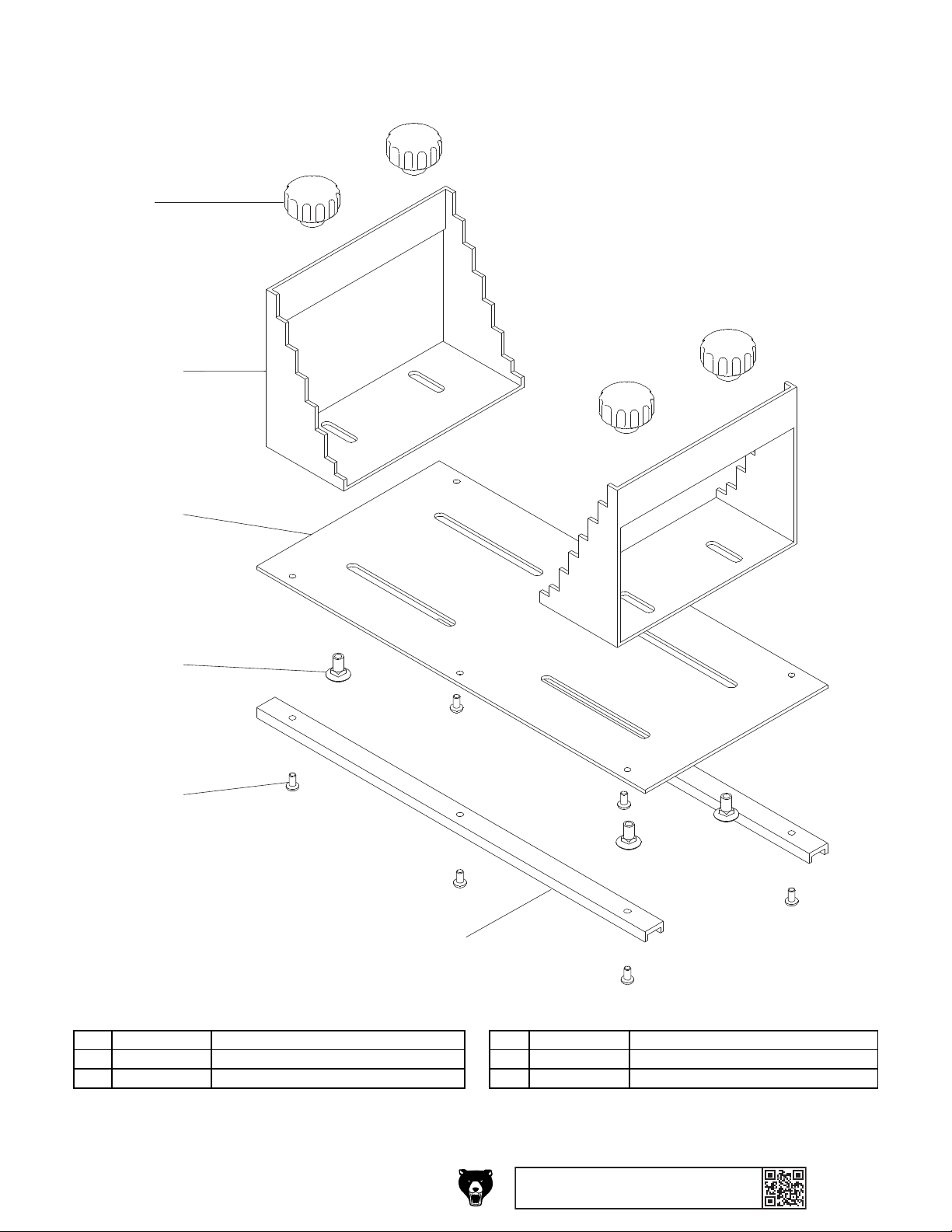

T32839 Parts Breakdown & List
Please Note: We do our best to stock replacement parts whenever possible, but we cannot guarantee that all parts shown here
are available for purchase. Call (800) 523-4777 or visit our online parts store at www.grizzly.com to check for availability.
1
2
3
4
5
6
REF PART # DESCRIPTION REF PART # DESCRIPTION
1 PT32839001 CROSSCUT TABLE 4 PT32839004 KNOB M8-1.25, 12-LOBE, D39
2 PT32839002 LOG HOLDER 5 PT32839005 TRACK
3 PT32839003 CARRIAGE BOLT M8-1.25 X 15 6 PT32839006 BUTTON HD CAP SCR M5-. 8 X 10
