GXP2200
Enterprise Multimedia Phone for AndroidTM
Quick Start Guide
Content
English..............................................................................1
简体中文..........................................................................9
Español............................................................................17
Français...........................................................................25
Deutsch...........................................................................33
Italiano............................................................................41
Русскй.............................................................................49
1 2
The GXP2200 is not pre-congured to support or
carry emergency calls to any type of hospital, law
enforcement agency, medical care unit (“Emergency
Service(s)”) or any other kind of Emergency Service.
You must make additional arrangements to access
Emergency Services. It is Your responsibility to pur-
chase SIP-compliant Internet telephone service, prop-
erly congure the GXP2200 to use that service, and
periodically test your conguration to conrm that it
works as You expect. If You do not do so, it is Your re-
sponsibility to purchase traditional wireless or landline
telephone services to access Emergency Services.
GRANDSTREAM DOES NOT PROVIDE CON-
NECTIONS TO EMERGENCY SERVICES VIA THE
GXP2200. NEITHER GRANDSTREAM NOR ITS
OFFICERS, EMPLOYEES OR AFFILIATES MAY
BE HELD LIABLE FOR ANY CLAIM, DAMAGE, OR
LOSS, AND YOU HEREBY WAIVE ANY AND ALL
SUCH CLAIMS OR CAUSES OF ACTION ARISING
FROM OR RELATING TO YOUR INABILITY TO USE
THE GXP2200 TO CONTACT EMERGENCY SER-
VICES, AND YOUR FAILURE TO MAKE ADDITIONAL
ARRANGEMENTS TO ACCESS EMERGENCY SER-
VICES IN ACCORDANCE WITH THE IMMEDIATELY
PRECEDING PARAGRAPH.
PACKAGE CONTENTS:
EN
PRECAUTIONS:
WARNING: Please DO NOT power cycle the GXP2200 during system boot
up or rmware upgrade. You may corrupt rmware images and cause the unit to
malfunction.
WARNING: Use only the power adapter included in the GXP2200 package.
Using an alternative non-qualied power adapter may possibly damage the unit.

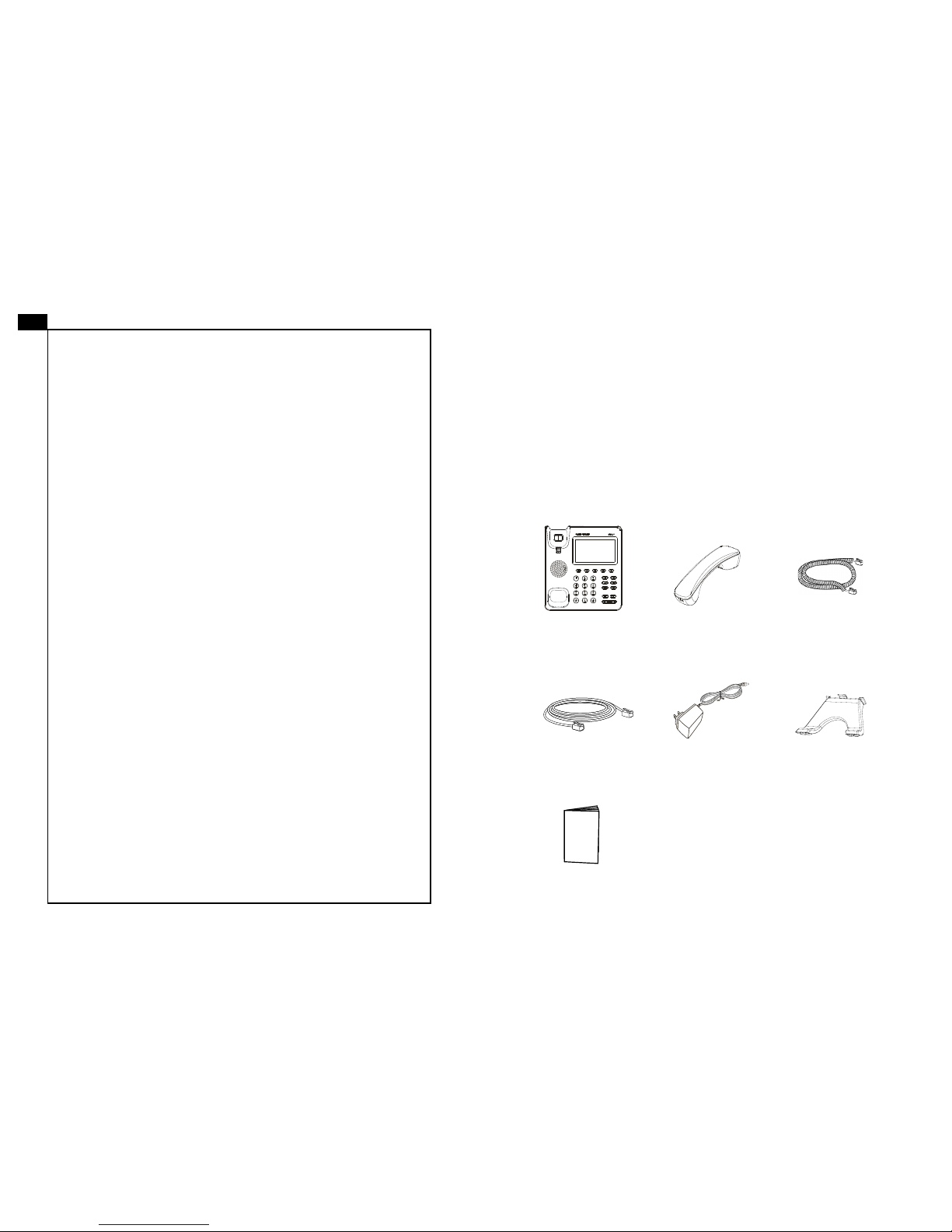

1 X GXP2200 Main Case 1 X Handset 1 X Phone Cord
1 X Ethernet Cable 1 X 12V Power Adapter 1 X Phone Stand
1 X Quick Start Guide
12V
3 4
CONNECTING THE PHONE:

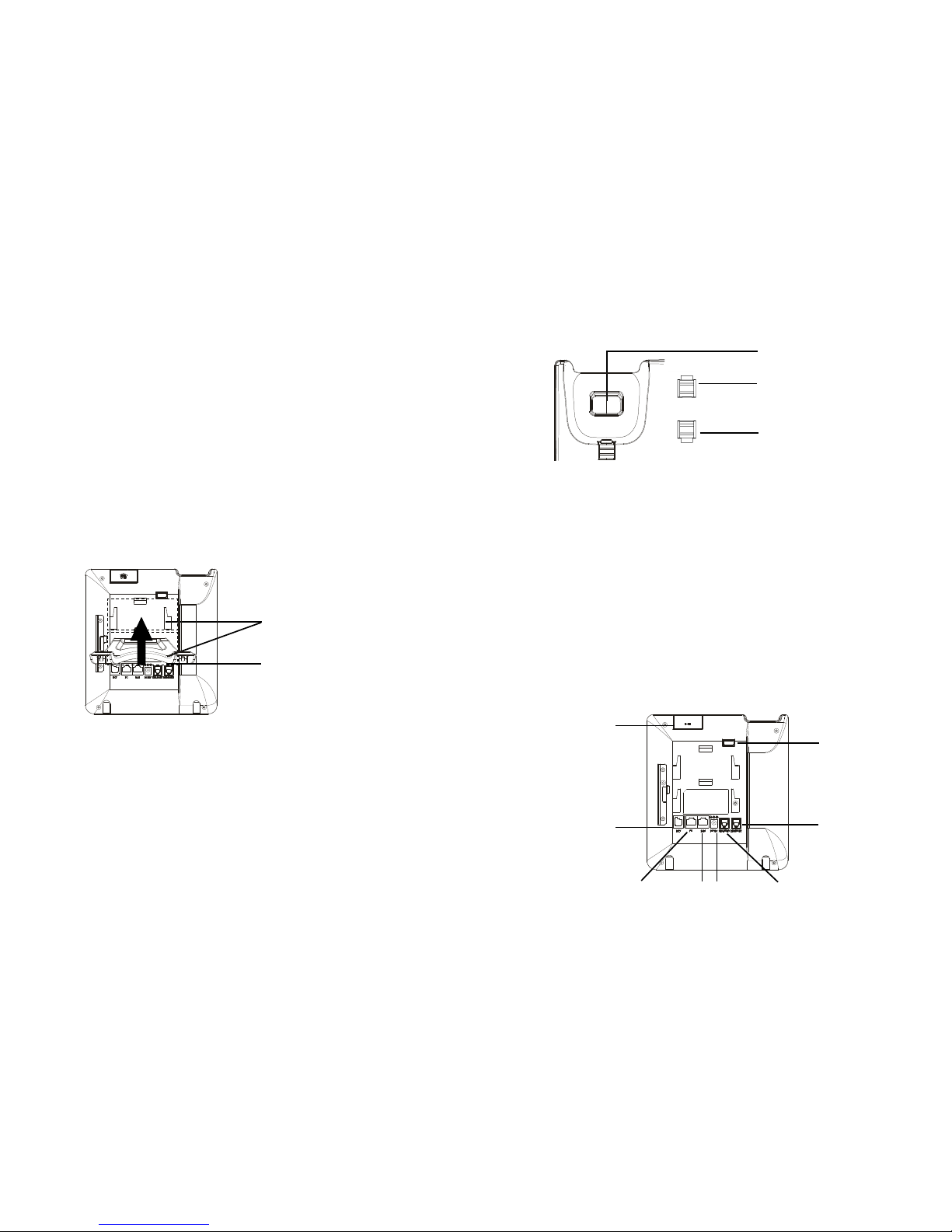

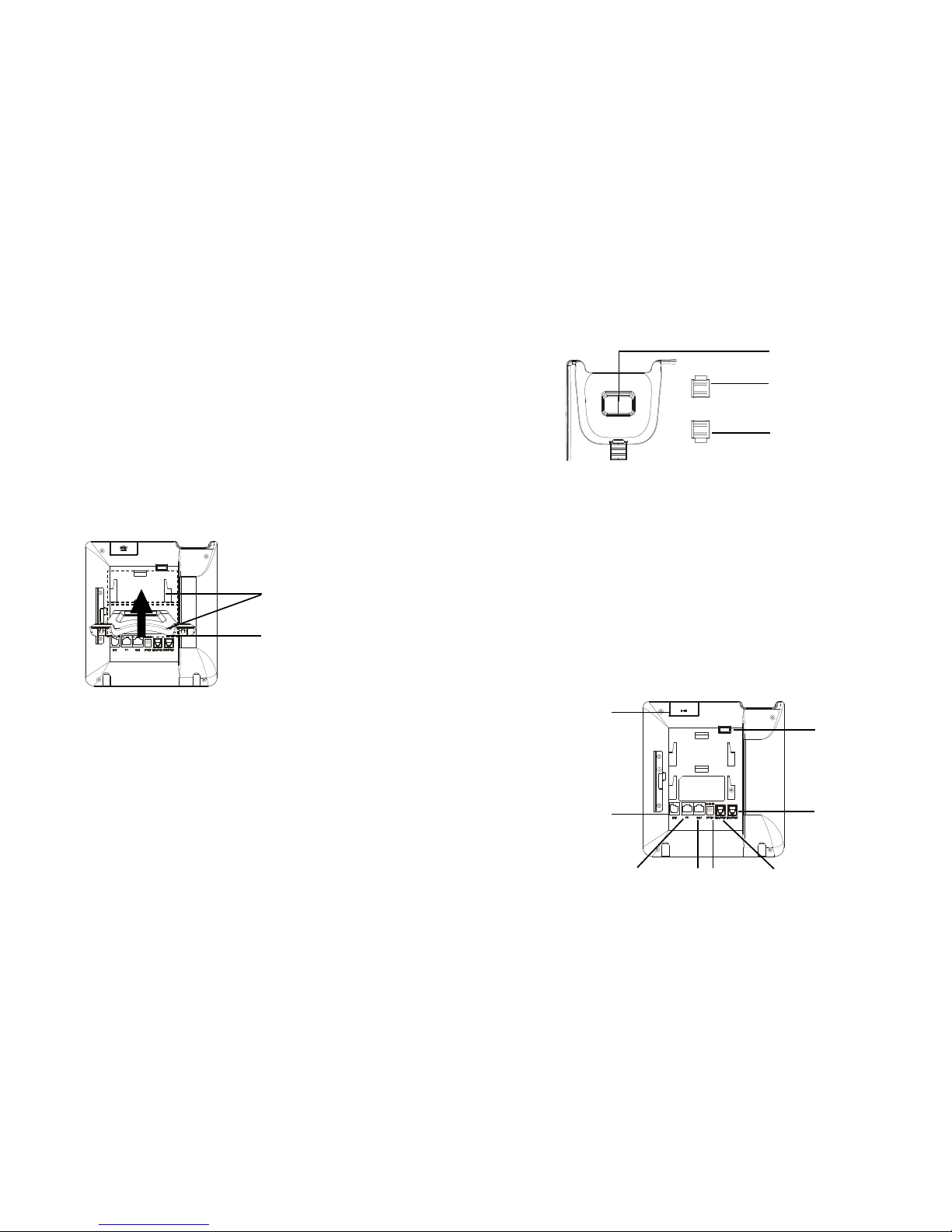

OVERVIEW:
EXT Port
PC Port LAN Port
Handset Port
Tab with extension up
Slots for the phone stand
Handset Rest
Tab with extension down
PHONE SETUP:
GXP2200 represents the future of enterprise business telephones in modern In-
ternet age. Featuring Android Operating System 2.3 and its vast number of 3rd
party applications, a 480x272 capacitive touch screen TFT LCD, dual Gigabit net-
work ports, integrated PoE and Bluetooth, this unique product is distinguished
in a special class of its own. The GXP2200 delivers superior HD audio quality,
leading edge telephony features, integration of rich Web content with access to
the rapidly growing Android applications base, automated provisioning. Built with
advanced security protection for privacy, this enterprise application phone also
features broad interoperability with most 3rd party SIP based devices, IP PBX and
major IMS platforms. The GXP2200 is an innovative smart desk phone loaded
with tremendous value for Web-integrated business communications as well as
unprecedented power for advanced custom business applications development
and personalization.
Push phone stand upwards
Power Headset Port
SD Card Slot
USB Port
1. Attach the phone stand to the back of the phone where there is a slot for the
phone stand. Upper part and bottom part are available for two angels;
2. When using the bottom part for phone stand, you may also adjust the tab from
the handset cradle. Pull out the tab from the handset cradle (see Figure in next
page);
3. Rotate the tab and plug it back into the slot with the extension up to hold the
handset.
Installing The Phone Stand:
1. Connect the handset and main phone case with the phone cord;
2. Connect the LAN port of the phone to the RJ-45 socket of a hub/switch or a
router (LAN side of the router) using the Ethernet cable;
3. Connect the 12V DC output plug to the power jack on the phone; plug the power
adapter into an electrical outlet. If PoE switch is used in step 2, this step could be
skipped;
4. The LCD will display booting up or rmware upgrading information. Before con-
tinuing, please wait for the main screen display to show up;
5. Using the web conguration interface or from the menu of the touch screen,
you can further congure network connection using either static IP, DHCP and etc.
5 6

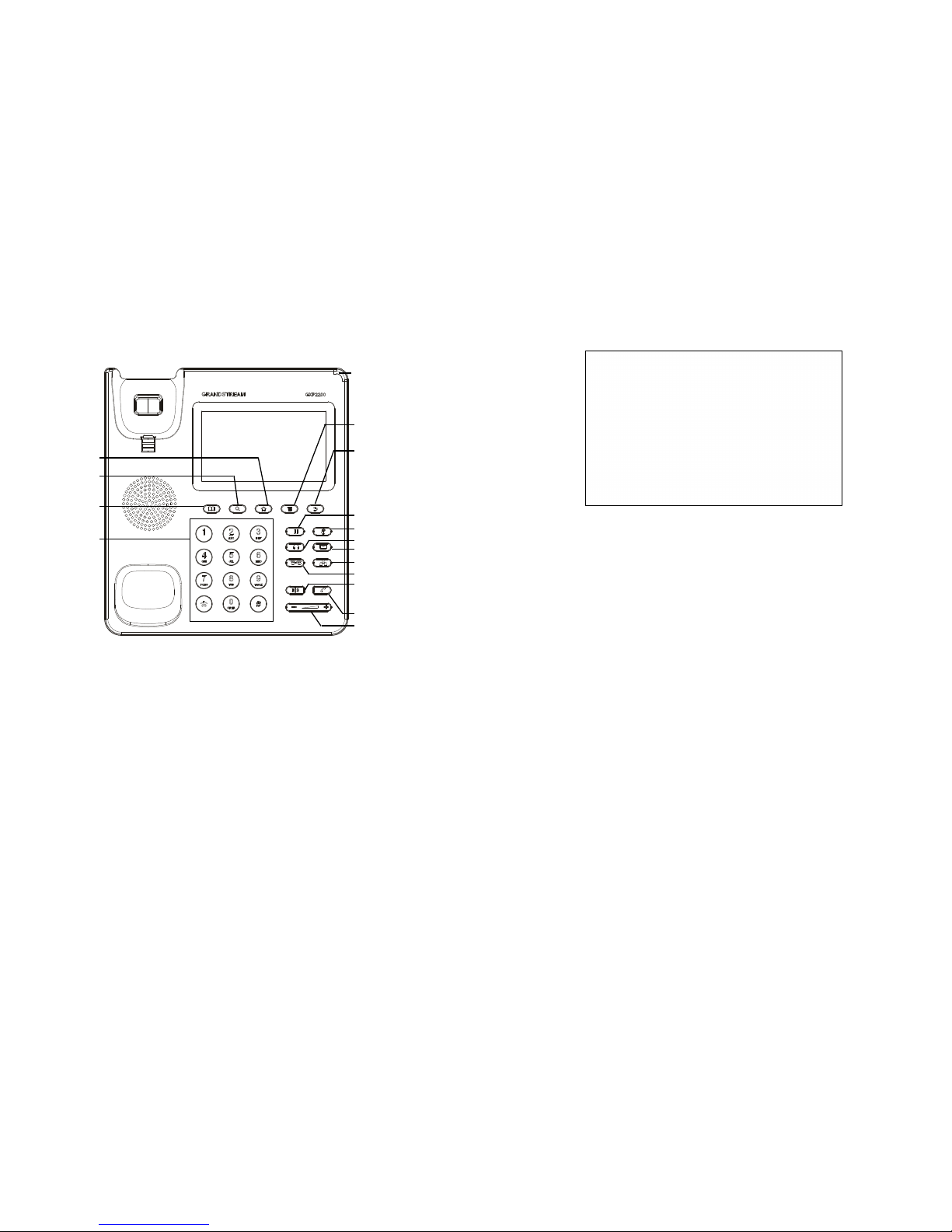

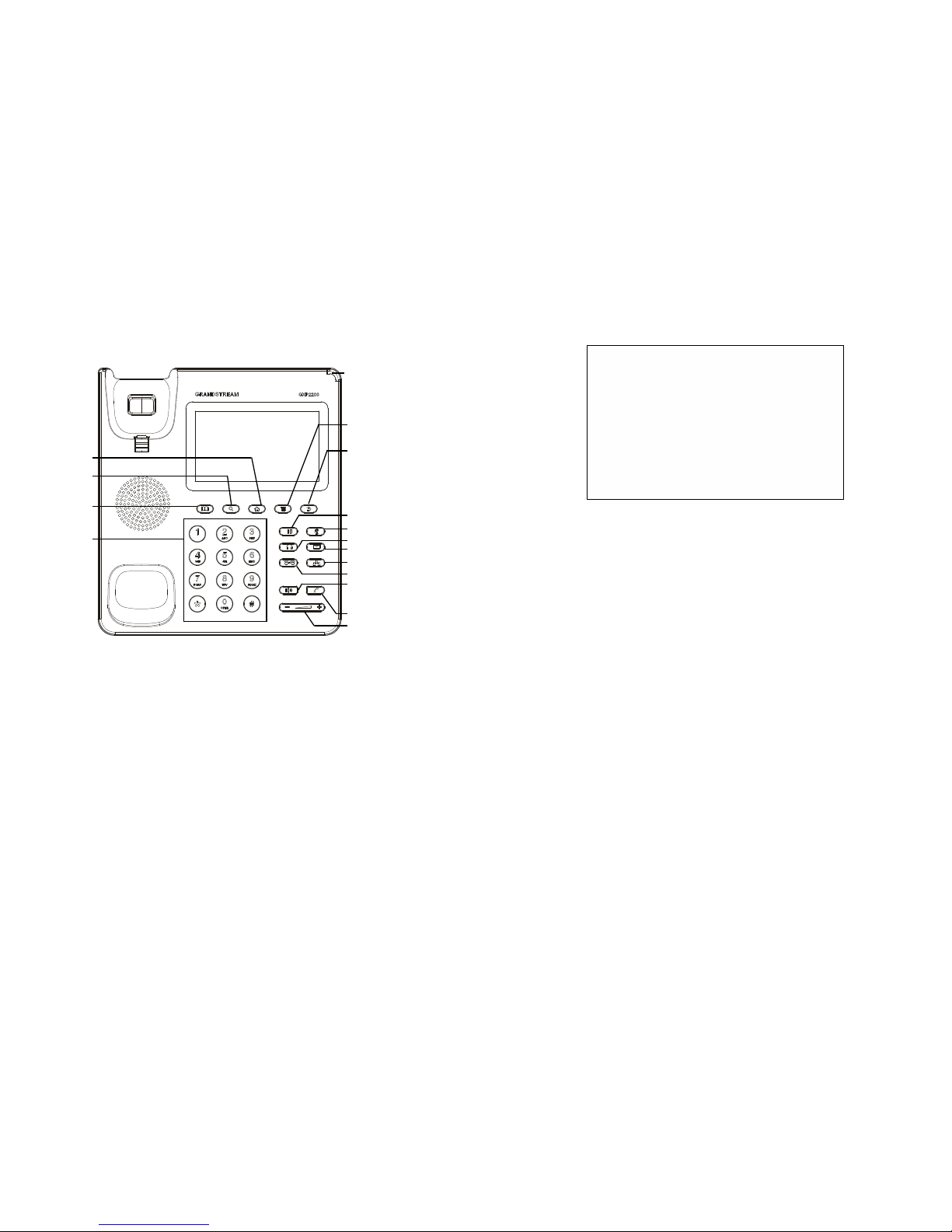

Tips For Using the Keypad:
Congure the GXP2200 using the Touch Screen:
Message Waiting
Indicator
Hold
Mute
Headset
Message
Transfer
Volume
Send
Speaker
Conference
Menu
Back
Home
Search
Contacts
Standard
Keypad
PHONE CONFIGURATION:
Congure the GXP2200 using Web Browser:
1. Ensure your phone is properly powered up and connected to the Internet;
2. The IP address of the phone will show in the main screen when pressing the
Home button;
3. Type the phone’s IP address in your PC’s browser (See Figure in next page);
4. The default username and password for administrator is “admin” and “admin“.
The default username and password for user is “user“ and “123”;
5. In the web GUI, select Account 1/2/3/4/5/6 page to congure Account name, SIP
Server, Outbound Proxy, SIP User ID, Authenticate ID and Authenticate Password
to register the account on GXP2200.
1. Make sure the phone is properly powered up and in idle screen;
2. Tap on the screen Menu icon to access GXP2200’s applications and settings;
3. Select Settings->Advanced Settings->Account. Tap on one of the Account to
congure Account name, SIP Server, Outbound Proxy, SIP User ID, SIP Auth ID,
SIP Auth Password to register the account on GXP2200. After successfully regis-
tered, the main screen will be shown as the gure below;
4. Follow the screen Menu icon options to congure other settings on the phone.
For example: To use Static IP on GXP2200, set up IP address via Settings-
>Networks->Ethernet Settings;
5. Please contact your ITSP (Internet Telephony Service Provider) for additional
settings that may be necessary to congure the phone.
7 8
The GXP2200 extension module is an ideal solution for the busy enterprise envi-
ronment looking to add the ability to receive and dispatch calls efciently. Each ex-
tension module has 20 programmable buttons, Left and Right buttons, supporting
40 Multiple Purpose Keys to be congured. GXP2200 supports up to 4 extension
modules, adding 160 fully programmable phone extensions to the phone.
Note: The extension module is an additional accessory for the GXP2200 and is
not included in the GXP2200 box.
Note: For the detailed user manual, please download from:
http://www.grandstream.com/support
GXP2200 Extension Module Package Content:
Conguring GXP2200 Extension Module:
1. Login GXP2200’s web GUI and congure Multiple Purpose Keys for Extension
board 1/2/3/4 following the GXP2200 web GUI tabs;
2. On the GXP2200 extension board, press Left or Right button to browse all the
MPKs’ status in different pages;
3. For more information, please refer to the GXP2200 user manual.
3. Connect the extension board to GXP2200 via the EXT port using the RJ11-RJ11
cable provided;
4. Install the phone stand on GXP2200 and extension board;
5. Power up the GXP2200. The GXP2200 extension board will show the booting
up screen with version information and connecting status;
6. After successfully booting up, the extension board will stay in idle. Press and
hold the Left button for 3 seconds to check the version information and status.
Installing GXP2200 Extension Module:

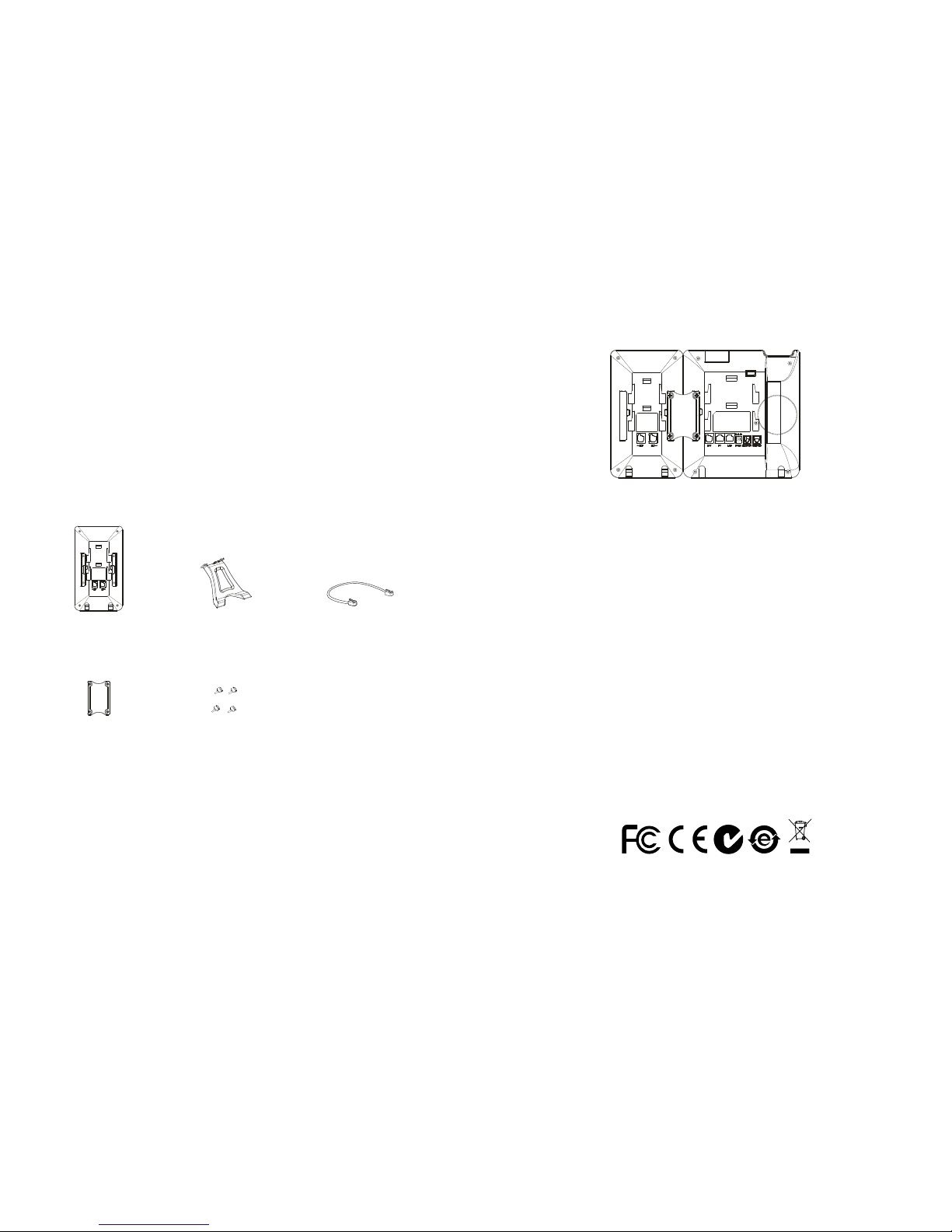

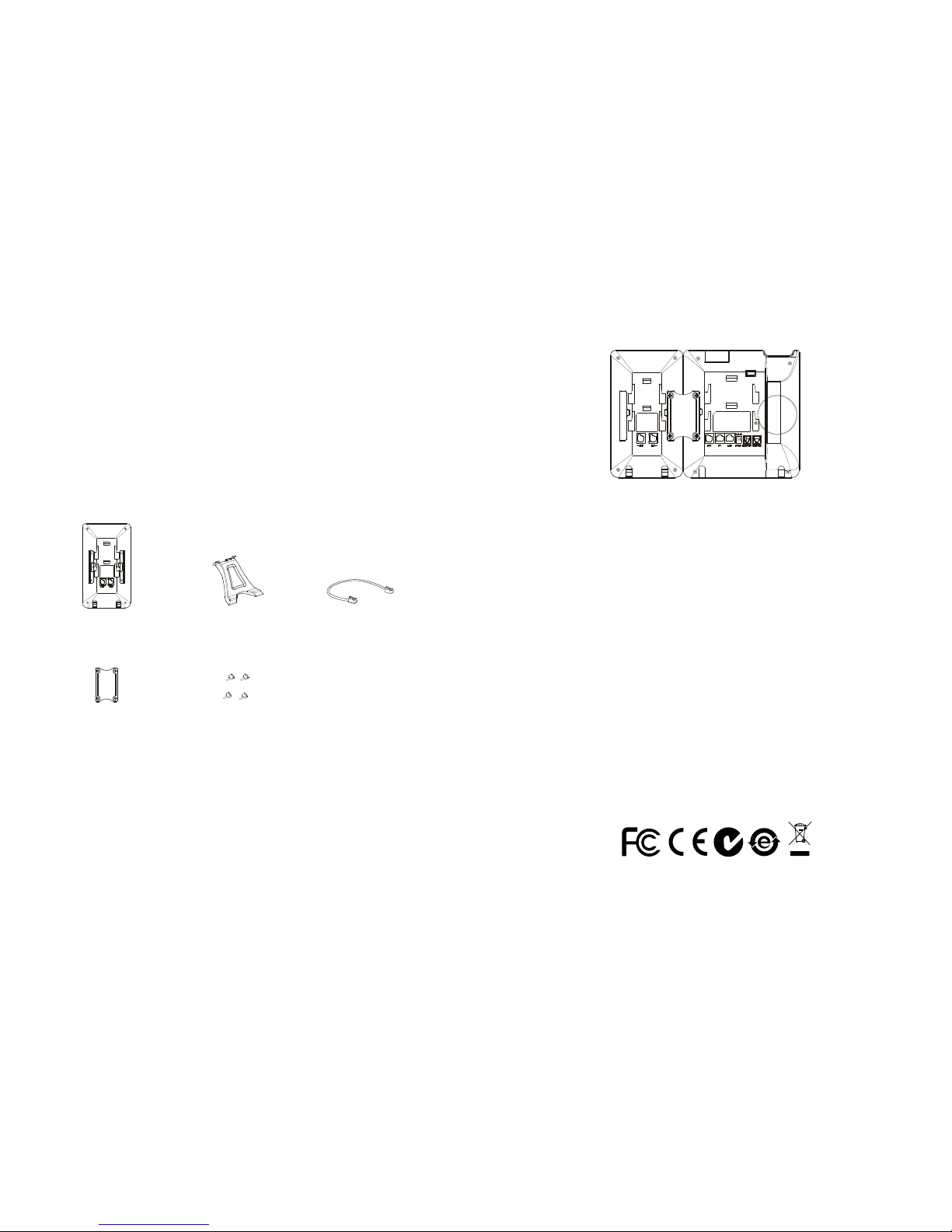

1 X GXP2200
Extension Board
1 X GXP2200
Extension Board Stand
1 X RJ11-RJ11 Cable
1 X Extension Board
Connector Plate
4 X Screws
1. On the back of GXP2200 and the extension board, there are slots for connector
plate. Attach the connector plate between the slots for GXP2200 and the exten-
sion board;
2. Apply the screws provided and securely tighten them in (see Figure in the next
page);
GXP2200 EXTENSION MODULE:
9 10
GXP2200不预设对医院，执法机构，医疗中
心(急救服务)以及各种紧急服务的紧急通话服
务。用户必须自行设定紧急通话功能。用户必
须自行购买SIP兼容的网络电话服务，正确的设
定GXP2200使用该服务，并定期测试您的配置
以确保GXP2200如预期工作，否则请购买传统
无线或有线电话服务来拨打紧急通话。
Grandstream Networks 公司的GXP2200不支
持紧急通话服务。Grandstream Networks公
司、其管理者和员工以及其相关机构对此所造
成的任何索赔、损失或者损害都不负有任何法
律追究责任。在此，您将无权对任何以及所有
由于无法通过GXP2200拨打紧急电话以及没有
遵照前段文字描述而造成紧急通话失败的事件
提出诉讼。
设备包装清单:
ZH
注意事项:
警告：请不要在设备启动未完成的时候或设备的软件升级过程中断开电源。如上
所述的操作会导致话机本身的程序损坏，进而造成设备无法启动。
警告：请使用设备包装中的电源。使用其他没有经过认证的替代电源适配器有可
能对设备造成损害。
GXP2200话机（1台） 电话手柄（1个） 手柄连线（1根）
网线 （1根） 电源适配器 （1个） 桌面支架 （1个）
快速安装手册（1本）
12V
11 12
电话的连接：
产品概览:
扩展板端口
PC端口 网络连接端口
凸出处向上
桌面支架插槽
话机手柄插槽
凸出处向下
安装电话:
GXP2200是一台功能丰富的企业级商务电话。它基于Android 2.3操作系统平台，
广泛支持第三方应用，使用480x272电容式触摸TFT液晶显示屏，2个Gigabit网
络接口，支持PoE供电和蓝牙。GXP2200具有优异的高清晰语音质量，完备的电
话功能，并集成了大量最新Android应用，支持自动配置，及先进的安全隐私保护
设置。它广泛兼容其它第三方SIP设备及主要SIP/NGN/IMS平台。对于企业用户来
说，GXP2200是一款集开发应用和个人多媒体信息服务于一体的理想智能桌面电
话。
将支架向上推，固定在插槽内
12V电源 耳机连接端口
SD卡插槽
USB端口
1.将桌面支架插入电话背面的支架插槽中。用户可以使用两排插槽中的一排，不
同的插槽用于不同的倾斜角度；
2.当使用下排桌面插槽时，用户可以将话机手柄槽下方的扣机零件取出；
3.将该零件倒转，然后重新插入原处。此时零件凸出处在外，手柄可以垂直地稳
定扣入手柄槽中，不会滑落 （如下页图中所示）。
安装电话桌面支架:
1.用手柄连线连接电话手柄和电话主机；
2.用网线连接电话的网络接口和外部网络接口（如：集线器或交换机上的RJ-45网
络接口）；
3.用12V电源适配器连接电话电源接口和交流电源插座。如果在第二步中使用了
PoE交换机，可忽略此步骤；
4.电话屏幕将会显示设备启动或固件升级信息。请耐心等待至主画面显示；
5.话机启动后，用户可以在主菜单或WEB浏览器进一步设置静态IP，DHCP等其他
配置，从而获得网络连接。
手柄连接端口
13 14
使用GXP2200键盘：
信息指示灯
保持
静音
耳机
菜单
返回
主界面
搜索
联系人
标准键盘
1.请确保电话与电源，电话与网络已正确连接；
2.用户可以按下“主界面”按键，电话的IP地址将会显示在话机屏幕主界面上；
3.在电脑浏览器中输入话机的IP地址（电话和电脑必须在同一个网段）。请参见下
页中图片；
4. 默认管理员的用户名是“admin”，密码是“admin”；默认终端用户的用户
名是“user”，密码是“123”；
5. 在WEB界面中，选择账号1/2/3/4/5/6页面，配置账号显示名、SIP服务器、代
理服务器、SIP用户ID、认证ID、认证密码等信息，可以在GXP2200上注册账号。
1.请确保电话已正常启动，并且显示空闲状态；
2.如下图所示，用户可以按下屏幕中间正下方的“菜单”图标，此时电话会显示
菜单（包括应用和设置等选项）；
3.进入设置->高级设置->账号，选择一个账号，配置账号显示名、SIP服务
器、代理服务器、SIP用户ID、认证ID、认证密码等信息注册账号。注册成功
后，GXP2200屏幕主画面将如下图所示；
4.按下主画面中菜单图标，使用菜单中各选项进行其他配置。例如，若需设置电
话静态IP地址，进入设置->网络->以太网设置；
5.如有其它需要的设置，请联系您的服务提供商。
消息
会议
转接
免提
音量
发送
电话的配置：
通过WEB浏览器配置GXP2200：
通过触摸屏配置GXP2200：
15 16
GXP2200扩展板为企业提供了有效处理大量频繁通话的解决方案。它支持20个可
编程按键、左键和右键，可配置40个多功能键。GXP2200支持最多4个扩展板，
总共160个多功能键可以配置和使用。
注意：GXP2200扩展板是额外的配件，它使用单独的包装，因此不包含在
GXP2200包装盒中。
备注：欲获取详细的话机使用信息，请在以下链接中下载GXP2200用户手册。
http://www.grandstream.com/support
1.登陆GXP2200的WEB界面，选择相应扩展板1、2、3、4的标签，配置该扩展
板的多功能键；
2.在GXP2200扩展板上，按下左键或右键，可以浏览不同页面的多功能键状态；
3.欲获取更多详细信息，请参考GXP2200用户手册。
3.使用包装中的RJ11-RJ11连接线，一端接入GXP2200背面的EXT接口，一端接
入GXP2200扩展板背面接口；
4.连接GXP2200桌面支架；连接GXP2200扩展板桌面支架；
5.连接好后，启动GXP2200话机。GXP2200扩展板将显示启动界面，版本信息和
连接状态；
6.启动成功后，GXP2200扩展板将处于空闲状态。用户可以持续按住左键3秒，
查看版本信息和连接状态。
GXP2200
扩展板（1个）
GXP2200扩展板
桌面支架（1个）
RJ11-RJ11连接线
（1根）
连接板（1个） 螺丝（4个）
1.在GXP2200话机和GXP2200扩展板背面，用户可以看到用于连接板的插槽。将
连接板放置于在话机和扩展板的插槽上；
2.将包装中的螺丝安装在连接板上，从而固定GXP2200话机和GXP2200扩展板的
连接（请参见下页图示）；
GXP2200扩展板：
GXP2200扩展板包装清单：
安装GXP2200扩展板：
配置GXP2200扩展板：
Other manuals for GXP2200
5
Table of contents
Languages:
Other Grandstream Networks Telephone manuals
Grandstream Networks
Grandstream Networks GRP26 Series User manual
Grandstream Networks
Grandstream Networks GXP2135 User manual
Grandstream Networks
Grandstream Networks GXV3350 User manual
Grandstream Networks
Grandstream Networks WP820 Instruction Manual
Grandstream Networks
Grandstream Networks Grandstream GXP-2010 User manual
Grandstream Networks
Grandstream Networks Grandstream GXP-2000 User manual
Grandstream Networks
Grandstream Networks GHP620/W User manual
Grandstream Networks
Grandstream Networks GXP2135 User manual
Grandstream Networks
Grandstream Networks GXP2200 User manual
Grandstream Networks
Grandstream Networks GHP620/W User manual
Grandstream Networks
Grandstream Networks GXV3370 User manual
Grandstream Networks
Grandstream Networks GXP1628 User manual
Grandstream Networks
Grandstream Networks GXV 3006 User manual
Grandstream Networks
Grandstream Networks GXP2100 User manual
Grandstream Networks
Grandstream Networks GXP2160 User manual
Grandstream Networks
Grandstream Networks WP820 Instruction Manual
Grandstream Networks
Grandstream Networks GHP6 Series Instruction Manual
Grandstream Networks
Grandstream Networks GXV3350 User manual
Grandstream Networks
Grandstream Networks GXP2120 User manual
Grandstream Networks
Grandstream Networks GXV3380 Manual
