General XL1G User manual
INSTRUCTION MANUAL
XL1G Multi-line Laser
2
Please read this instruction manual before operating this product.
Please store this instruction manual in the carry case for future reference.
CAUTION: Class 3 Laser Product
Do not stare directly into the laser beam from apertures.
Do not disassemble the instrument or attempt to perform any internal servicing
as this will void your warranty. No user serviceable parts included.
Only approved and authorised service technicians can carry out warranty repairs.
SAFETY
3
Carry case
Laser glasses
Battery packCharger
Laser targetIndoor tripod Tripod spacer
General XL1G
Please ensure the following items are included with your laser.
If anything is missing please contact your retailer.
ITEM CHECKLIST
INCHES CM
1
1
2
3
4
5
6
7
2
3
4
Adjustable support legs 360° protractor base
Carry strap
Vertical laser ports (x2)
PRODUCT OVERVIEW
Horizontal laser ports (x1)
Control panel and bubble vial
Power / locking switch
5

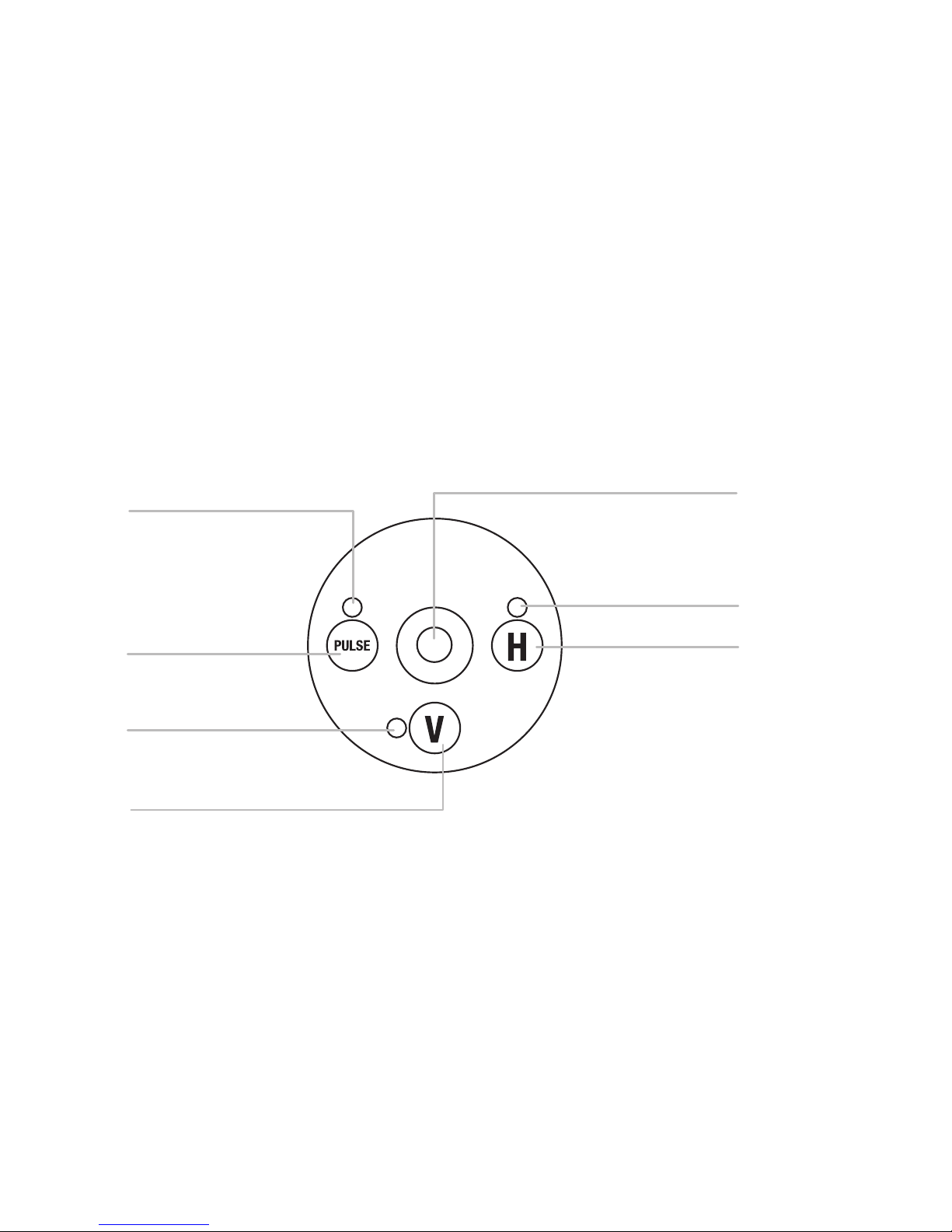

CONTROL PANEL
Bubble vial
Horizontal line
Horizontal line indicator
Pulse mode indicator
Pulse mode
Vertical line indicator
Vertical lines
6
DETECTOR CONTROL PANEL*
*The detector is an additional accessory which can be purchased from your retailer.
MODE
Sound on / off
Laser sensor
Power indicator
Coarse / fine mode indicator
Coarse / fine mode
Bubble vial
On/off switch
Direction arrows
7
USING YOUR LASER
Setting Up
Power Supply
Operation
‣Select a place as close as practical to the work site.
Ensure the location is clear of traffic.
‣Place the laser on a level surface such as a bench or mount.
‣Level the unit by eye using the bubble vial as a guide.
The XL1G is powered by a lithium-ion battery pack. To charge the unit
insert the charger into the port located on the side of the battery pack.
‣Once the unit is approximately level, turn the power switch to
“on” position. Self levelling will commence and the horizontal
beam will appear.
‣If the unit is outside the self levelling range the unit will make
an audible beep and the beams will switch off.
‣Press the Vand Hbutton on the control panel to cycle
through the active beams.
8
USING A CONSTRUCTION TRIPOD
‣Stand the tripod on a level surface with legs spaced for stability.
‣Screw the tripod spacer into the base of the laser until firm.
‣ Push the yoke through the hole of the tripod spacer and screw into place.
See page 9 for illustration.
Instructions are for a domed or flat construction tripod only,
and do not apply when using the indoor tripod supplied.
Please note: attaching a laser to a tripod without
the correct tripod spacer may cause damage.
9
USING A CONSTRUCTION TRIPOD (DIAGRAM)
Tripod yoke
Tripod spacer
10
Using Your Detector*
‣Press the pulse button on the control panel on top of the laser to
enter into pulse mode.
‣Switch the detector on and move it into the path of the laser beam.
‣Hold the detector upright for horizontal beams. Rotate the detector 90°
for vertical beams. The direction arrows will indicate the position of the
laser beam. The centre LED will indicate alignment with the beam.
*The detector is an additional accessory which can be purchased from your retailer.
MODE
MODE
