Frigidaire CRA086HT10 User manual

READ BEFORE INSTALLING UNIT

For Through-the-Wall Air Conditioners

To avoid risk of personal injury, property damage, or product damage due to the weight of this device and sharp

edges that may be exposed:

Air conditioners covered in this manual pose an excessive weight hazard. Two or more people are needed to

move and install the unit. To prevent injury or strain, use proper lifting and carrying techniques when moving unit.

Carefully inspect location where air conditioner will be installed. Be sure it will support the weight of the unit over

an extended period of time.

Handle air conditioner with care. Wear protective gloves whenever lifting or carrying the unit. AVOID the sharp

metal fins of front and rear coils.

Make sure air conditioner does not fall during installation.

Do This First (for existing sleeve)

Note that the air conditioner dimensions are: 24" wide,14" high, and 19" deep (without front). Install Air Conditioner

according to these installation instructions to achieve the best performance. Save these installation instructions for

future reference.

• DO NOT USE ANY SCREWS OTHER THAN THOSE SPECIFIED HERE

Items in Kit

You may not need all parts in the kit. Discard unused parts.

No. Hardware

1 Tapered Spacer Blocks (17" Long)

2 Centering/Support Blocks ( 4_" x 3_" x 1_" )

3 PlasticDivider(_'x4_'x14_')

4 Stuffer Seat (1" x 1 _ "x 84" )

5 seal ( 1" x 1_ "x 25" )

6 seal( l"x 1Y2"x 14")

7 seal ( 1" x 3/8" x 25" )

8 seal(1"x3/8"x14" )

9 seal(1"x3/4"x14" )

Qty.

No.

Hardware

Trim Frame (side legs)

Trim Frame (top & bottom legs)

Ground Wire (green)

Toothed washer for grounding screw

Grounding Screw

Grille (plastic)

Grille Aluminum

Nuts (plastic)

Screw w/washer

Qty.

2020213A0593

How to Install

1. Identify the wall-sleeve brand for your installation, from the chart below.

Wall Sleeve Dimensions

Brand

White-Westinghouse

Frigidaire

Carrier (52F Series)

Width Height

251/2 151/4

25½ 151/4

General Electric/Hotpoint 26 15_8 157/8

Whirlpool 257/'8 161/2 17Y8 or 23

Fedders/Emerson 27 163/'4 163/'4or 193/4

Sears/Kenmore 253/4 167/'8 18%

Emerson/Fedders 263/4 153/'4 15

Carrier (51S Series) 253/4 167/8 18%

Friedrich 27 163/'4 163/'4

Depth

16, 171/2 or22

16, 17Y2 or22

16, 171/2 or22

o All wall sleeves used to mount the newAir Conditioner must be in sound structural condition and have a rear

grille that securely attaches to sleeve, or rear flange that serves as a stop for the Air Conditioner.

o When installation is complete, replacement unit MUST have a rearward slope as shown in Fig.1.

2. Remove old Air Conditioner from wall sleeve and prepare wall sleeve as follows:

* Clean interior (do not disturb seals).

* Wall sleeve must be securely fastened in wall before installing Air Conditioner. Drive more nails or screws through

sleeve, into wall, if needed.

* Retouch wall sleeve painted surface if needed.

.If not existing, drill a 3/16" clearance hole for grounding screw through left side of wall sleeve, in a clear area about

3 inches maximum back from front edge of sleeve, using grounding screw and toothed washer. Pull loose end

of ground wire out front of sleeve, and temporarily bend it down and around lower edge of sleeve (Fig.2). This

ground wire will later be attached to frame of air conditioner once it is installed.

REAR

1/4" to 5/16"

Wall _ II

sleeve _I_--

_XLEVEL

Wallsleeve to unit t 3/16"

sleeve grounding / - Hole

1" IIfj

/ t

Fig.1 Fig.2

4. Prepare the wall sleeve for installation of the new unit per the following Brand instructions.

#1 Emerson 15" Deep

#2 Fedders 193/4"Deep

#3 Fedders or Friedrich 163/4"Deep

#4 General Electric/Hotpoint 167/?'Deep

#5 Sears or Carrier(51S Series) 18%" Deep

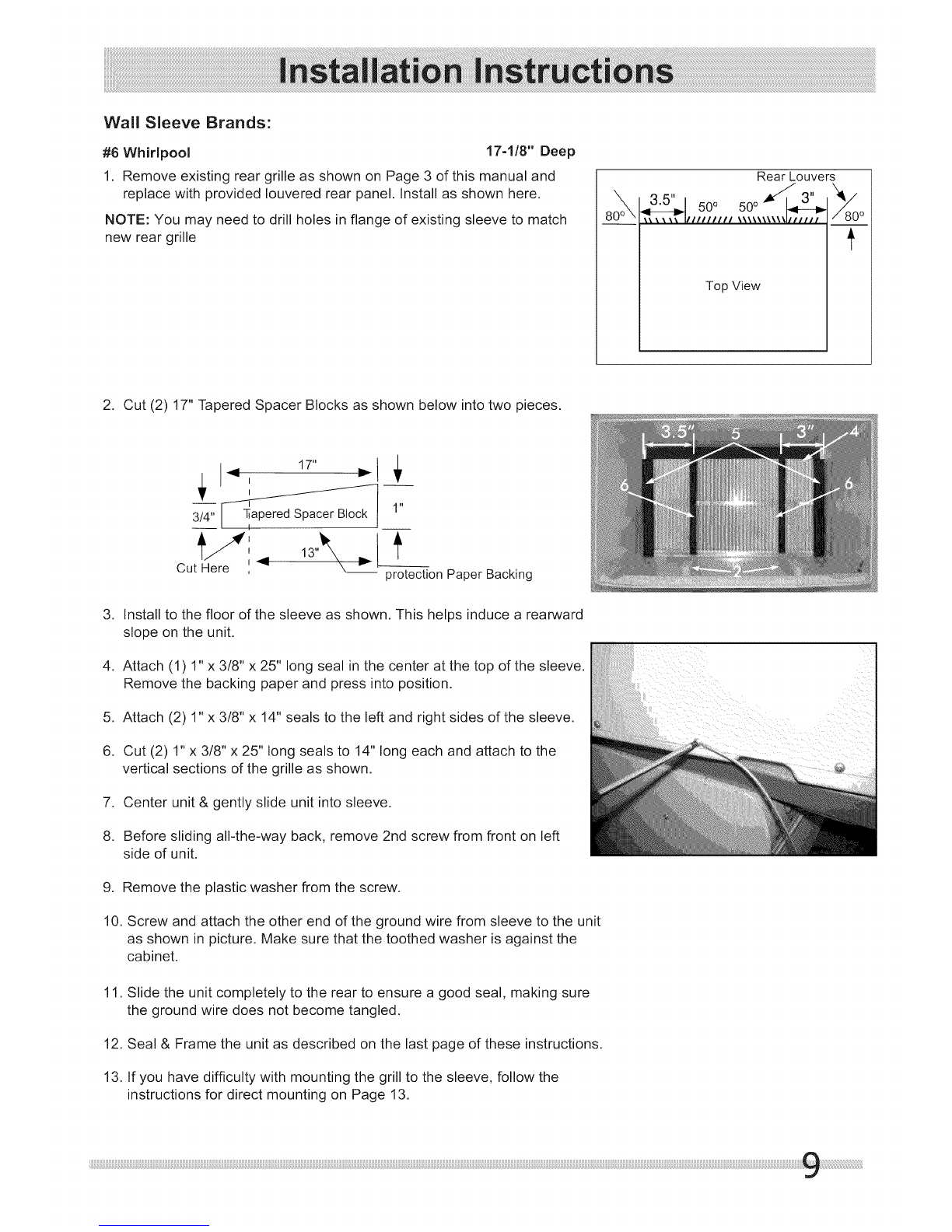

#6 Whirlpool 17W' Deep

#7 Whirlpool 23" Deep

#8 White-Westinghouse/Frigidaire/ 16" + 17YY'Deep

Carrier(52F Series)

#9 White-Westinghouse/Frigidaire 22" Deep

5. Identify your wall sleeve type and follow the instructions for that type in the following pages.

• This unit's increased performance characteristics result from having two rear air intakes.

• It is very important that these installation instructions are followed so your unit can operate at maximum

efficiency.

• If there is an existing sleeve, and there is an existing rear grille, it needs to be replaced by one that has been

shipped with the unit in the accessory kit.

FOR iNCREASED EFFiCiENCY, UTiLiZE THE PROVIDED LOUVERED REAR PANEL

Installation of new grille provided with unit

1. Remove the existing grille.

2. Place the grille included with the new air conditioner towards the rear of the sleeve.

3. Mark through the hole positions.

4. Drill through the sleeve flanges with a 1/8" drill bit.

5. Attach the new grille with self-threading screws and washers(not included).

6. It is VERY IMPORTANT that the grille is placed exactly as shown.

7. Most decorative exterior grilles may be left in place as long as the proper interior air direction grille is installed.

Wall Sleeve Brands:

#1 Emerson 15" Deep

1. Remove existing rear grille as shown on Page 3 of this manual and

replace with provided Iouvered rear panel. Install as shown here.

NOTE: You may need to drill holes in flange of existing sleeve to match

new rear grille

80 ° k

Rear Louvers

Top View

2. Attach(I)1" x 3/8" x 25" long seal in the center at the top of the sleeve.

Remove the backing paper and press into position.

3. Attach(2)1" x 3/8" x 14" seals to the left and right sides of the sleeve.

4. Cut(2)1" x 3/8" x 25" long seals to 14" long each and attach to the

vertical sections of the grille as shown.

5. Attach (2) 4 Y," x 3 Y," x 1Y,"centering/support blocks one on each

side wall. Place in center of side wall with the tapered end facing the

opening.

6. Gently slide unit into sleeve.

7. Before sliding all-the-way back, remove 2nd screw from fron on left

side of unit.

8. Remove the plastic washer from the screw.

9. Screw and attach the other end of the ground wire from sleeve to the

unit as shown in picture. Make sure that the toothed washer is against

the cabinet.

10. Slide the unit completely to the rear to ensure a good seal, making

sure the ground wire does not become tangled.

11. Seal & Frame the unit as described on the last page of these

instructions.

12. If you have difficulty with mounting the grill to the sleeve, follow the

instructions for direct mounting on Page 13.

Wall Sleeve Brands:

#2 Fedders 19=3/4" Deep

1. Remove existing rear grille as shown on Page 3 of this manual and

replace with provided Iouvered rear panel. Install as shown here.

NOTE: You may need to drill holes in flange of existing sleeve to match

new rear grille

2. Attach (2) 4 Y," x 3 Y," x 1Y,"centering/support blocks one on each

side wall. Place in center of side wall with the tapered end facing the

opening.

3. Cut (2) 17" Tapered Spacer Blocks as shown below into two pieces.

_: 17"

_ock __

3/4"

4,,_X

Cut Here _ \ "- _

protection Paper Backing

80 ° k

Rear Louvers

Top View

4. The 4" section is placed in front of the rib on base with the tapered

end facing the back of the sleeve. The remaining portion will be placed

behind the rib again sloping toward the rear of the sleeve. This helps

induce a rearward slope on the unit.

5. Attach (1) 1" x 3/8" x 25" long seal in the center at the top of the sleeve.

Remove the backing paper and press into position.

6. Attach (2) l"x 3/8" x 14" seals to the left and right sides of the sleeve.

7. Cut (2) 1" x 3/8" x 25" long seals to 14" long each and attach to the

vertical sections of the grille as shown.

8. Gently slide unit into sleeve.

9. Before sliding all-the-way back, remove 2nd screw from front on left

side of unit.

10. Remove the plastic washer from the screw.

11. Screw and attach the other end of the ground wire from sleeve to the unit

as shown in picture. Make sure that the toothed washer is against the

cabinet.

12. Slide the unit completely to the rear to ensure a good seal, making sure

the ground wire does not become tangled.

13. Seal & Frame the unit as described on the last page of these instructions.

14. If you have difficulty with mounting the grill to the sleeve, follow the

instructions for direct mounting on Page 13.

Wall Sleeve Brands:

#3 Fedders or Friedrich 16=3/4" Deep

1. Remove existing rear grille as shown on Page 3 of this manual and

replace with provided Iouvered rear panel, install as shown here.

NOTE: You may need to drill holes in flange of existing sleeve to match

new rear grille

2. Attach (2) 4 Y," x 3 Y," x 1Y,"centering/support blocks one on each

side wall. Place in center of side wall with the tapered end facing the

opening.

3. Cut (2) 17" Tapered Spacer Blocks as shown below into two pieces.

I_ 17" I _ ,_,

i I _ 1"

TaperedSpa

3/4" t

12-1/2" _ p_ootection

Paper Backing

4. The 2Y," section is placed in front of the rib on base with the tapered

end facing the back of the sleeve. Cut the remaining portion to 12Yd'

and place behind the rib again sloping toward the rear of the sleeve.

This helps induce a rearward slope on the unit.

5. Attach (1) 1" x 3/8" x 25" long seal in the center at the top of the sleeve.

Remove the backing paper and press into position.

6. Attach (2) l"x 3/8" x 14" seals to the left and right sides of the sleeve.

7. Cut (2) l"x 3/8" x 25" long seals to 14" long each and attach to the

vertical sections of the grille as shown.

8. Gently slide unit into sleeve.

9. Before sliding all-the-way back, remove 2nd screw from front on left side

of unit.

10. Remove the plastic washer from the screw.

11. Screw and attach the other end of the ground wire from sleeve to the unit

as shown in picture. Make sure that the toothed washer is against the

cabinet.

12. Slide the unit completely to the rear to ensure a good seal, making sure

the ground wire does not become tangled.

13. Seal & Frame the unit as described on the last page of these instructions.

14. If you have difficulty with mounting the grill to the sleeve, follow the

instructions for direct mounting on Page 13.

80 ° k

Rear Louvers

Top View

Wall Sleeve Brands:

#4 General Electric/Hotpoint 16=7/8" Deep

1. Remove existing rear grille as shown on Page 3 of this manual and

replace with provided Iouvered rear panel. Install as shown here.

NOTE: You may need to drill holes in flange of existing sleeve to match

new rear grille 80 ° k

Rear Louvers

50° 50° o

\\ \ \ \\ IIIIIIIIII \\\\\\\\\\1111111

Top View

2. Cut (2) 17" Tapered Spacer Blocks as shown below into two pieces.

17" t

3/4" aperedSpacerBlock_-_

13" =.l

\y'

1" Cut Here

-- _rotection Paper Backing

3. Install as shown with the tapered end 1/2" from the back of the sleeve.

This helps induce a rearward slope on the unit.

4. Attach (1) l"x 3/8" x 25" long seal in the center at the top of the sleeve.

Remove the backing paper and press into position.

5. Attach (2) 1" x 3/8" x 14" seals to the left and right sides of the sleeve.

6. Cut (2) 1" x 3/8" x 25" long seals to 14" long each and attach to the

vertical sections of the grille as shown.

7. Center unit & gently slide unit into sleeve.

8. Before sliding all-the-way back, remove 2nd screw from front on

left side of unit.

9. Remove the plastic washer from the screw.

10. Screw and attach the other end of the ground wire from sleeve to the unit

as shown in picture. Make sure that the toothed washer is against the

cabinet.

11. Slide the unit completely to the rear to ensure a good seal, making sure

the ground wire does not become tangled.

12. Seal & Frame the unit as described on the last page of these instructions.

13. If you have difficulty with mounting the grill to the sleeve, follow the

instructions for direct mounting on Page 13.

Wall Sleeve Brands:

#5 Sears or Carrier 51S Series 18=5/8" Deep

1. Remove existing rear grille as shown on Page 3 of this manual and

replace with provided Iouvered rear panel. Install as shown here.

NOTE: You may need to drill holes in flange of existing sleeve to match

new rear grille

80°_

Rear Louvers

50° 50°

\\ \ \ \\ IIIIIIIIII \\\\\\\\\\lllllll

Top View

2. Install (2) tapered spacer blocks to the floor of the sleeve as shown.

This helps induce a rearward slope on the unit.

3. Install as shown with the tapered end 1/2" from the back of the sleeve.

This helps induce a rearward slope on the unit.

4. Attach (1) l"x 3/8" x 25" long seal in the center at the top of the sleeve.

Remove the backing paper and press into position

5. Attach (2) 1" x 3/8" x 14" seals to the left and right sides of the sleeve.

6. Cut (2) 1" x 3/8" x 25" long seals to 14" long each and attach to the

vertical sections of the grille as shown.

7. Center unit & gently slide unit into sleeve.

8. Before sliding all-the-way back, remove 2nd screw from front on left

side of unit.

9. Remove the plastic washer from the screw.

10. Screw and attach the other end of the ground wire from sleeve to the

unit as shown in picture. Make sure that the toothed washer is against

the cabinet.

11. Slide the unit completely to the rear to ensure a good seal, making

sure the ground wire does not become tangled.

12. Seal & Frame the unit as described on the last page of these instructions.

13. If you have difficulty with mounting the grill to the sleeve, follow the

instructions for direct mounting on Page 13.

Wall Sleeve Brands:

#6 Whirlpool 17=1/8" Deep

1. Remove existing rear grille as shown on Page 3 of this manual and

replace with provided Iouvered rear panel. Install as shown here.

NOTE: You may need to drill holes in flange of existing sleeve to match

new rear grille

80 ° X

Rear Louvers

Top View

2. Cut (2) 17" Tapered Spacer Blocks as shown below into two pieces.

3/4"

Cut Here _ \ _

' -- protection Paper Backing

3. Install to the floor of the sleeve as shown. This helps induce a rearward

slope on the unit.

4. Attach (1) l"x 3/8" x 25" long seal in the center at the top of the sleeve.

Remove the backing paper and press into position.

5. Attach (2) l"x 3/8" x 14" seals to the left and right sides of the sleeve.

6. Cut (2) 1" x 3/8" x 25" long seals to 14" long each and attach to the

vertical sections of the grille as shown.

7. Center unit & gently slide unit into sleeve.

8. Before sliding all-the-way back, remove 2nd screw from front on left

side of unit.

9. Remove the plastic washer from the screw.

10. Screw and attach the other end of the ground wire from sleeve to the unit

as shown in picture. Make sure that the toothed washer is against the

cabinet.

11. Slide the unit completely to the rear to ensure a good seal, making sure

the ground wire does not become tangled.

12. Seal & Frame the unit as described on the last page of these instructions.

13. If you have difficulty with mounting the grill to the sleeve, follow the

instructions for direct mounting on Page 13.

Wall Sleeve Brands:

#7 Whirlpool 23" Deep

1. Remove existing rear grille as shown on Page 3 of this manual and

replace with provided Iouvered rear panel. Install as shown here.

NOTE: You may need to drill holes in flange of existing sleeve to match

new rear grille

Because of the increased unit depth, first try dry fitting using

the method described below:

2. Place (2) 1" x lY," x 14" seals against each side.

3. Gently slide unit in and check if amount extending from the sleeve is

sufficient once the trim frame is attached.

4. If position is okay, remove unit and Proceed to the next step.If not go

to step 9.

5. Attach (1) 1" x 1Y,"x 25" long seal in the center at the top of the

sleeve. Remove the backing paper and press into position.

6. Attach (2) l"x 1Yd'x 14" seals to the left and right sides of the sleeve.

7. Cut (2) 1" x 3/8" x 25" long seal to 14" long each and attach to the

vertical sections of the grille as shown.

8. Attach the tapered spacer blocks to the floor of the sleeve. Now go to

step 15.

Use these next steps if the unit requires extra extension into

the room.

9. Attach 1" x 3/4"x 14" long seal over the solid vertical portion of the rear

grille.

10. Attach (2) 43/4"x 33/4"x 1¾" foam blocks with the slot overlapping the

seal above.

11. Install the divider into the slots of the foam blocks. You may need to

trim the length to size.

12. Repeat steps 9-11 for the other vertical shown portion of the grille as

shown in the picture.

13. Attach (2) l"x lb"x 14" seals along the sides of the sleeve again

making sure all seals are flush.

14. Cut the 1" x 1Y," x 25" seal to fit the top of the sleeve. The pieces must

be fitted flush to the edge of the divider.

15. Center unit & gently slide unit into sleeve.

16. Before sliding all-the-way back, remove 2nd screw from front on left

side of unit.

17. Remove the plastic washer from the screw.

18. Screw and attach the other end of the ground wire from sleeve to the

unit as shown in picture. Make sure that the toothed washer is against

the cabinet.

19. Slide the unit completely to the rear to ensure a good seal, making

sure the ground wire does not become tangled.

20. Seal & Frame the unit as described on the last page of these instructions.

21. If you have difficulty with mounting the grill to the sleeve, follow the

instructions for direct mounting on Page 13.

80 ° \

Rear Louvers

Top View

Other manuals for CRA086HT10

Table of contents

Other Frigidaire Air Conditioner manuals

Frigidaire

Frigidaire FWA2107RN User manual

Frigidaire

Frigidaire FAS257R2A2 User manual

Frigidaire

Frigidaire FAS156N1A Quick start guide

Frigidaire

Frigidaire FAS155P1A1 User manual

Frigidaire

Frigidaire FFPA1222R1 Owner's manual

Frigidaire

Frigidaire FRA12EZU2 User manual

Frigidaire

Frigidaire Home Comfort FRA093PT1 User manual

Frigidaire

Frigidaire FAC126P1 User manual

Frigidaire

Frigidaire FRA08EZT1 User manual

Frigidaire

Frigidaire FAS157P1A1 User manual

Frigidaire

Frigidaire LRA18HMT20 Instruction Manual

Frigidaire

Frigidaire FAC089L7A2 User manual

Frigidaire

Frigidaire GAH085Q1T - GIBSON 8000BTU 115V 8.0A 9.4EE3 SPD 4 WAY AIR... User manual

Frigidaire

Frigidaire FAS157P1A2 Service manual

Frigidaire

Frigidaire Home Comfort FRA082AT7 User manual

Frigidaire

Frigidaire FFTA1233S1 Owner's manual

Frigidaire

Frigidaire FAS255P2A - Heavy Duty Room Air Conditioner User manual

Frigidaire

Frigidaire FAH096J2T3 User manual

Frigidaire

Frigidaire FRA103BT113 User manual

Frigidaire

Frigidaire 819042236-01 User manual

Frigidaire

Frigidaire FFRA0811R1 Owner's manual

Frigidaire

Frigidaire FAH14ES2TA12 User manual

Frigidaire

Frigidaire FAC104P1A User manual

Frigidaire

Frigidaire FAH106J1T1 User manual

Popular Air Conditioner manuals by other brands

Spheros

Spheros CC 355 instructions

Bosch

Bosch Climate 5000 SCI 24 CAS/ OU- OUE owner's manual

Panasonic

Panasonic CS-E12HKEW operating instructions

nedis

nedis ACMB1WT7 quick start guide

Samsung

Samsung AR KV Series User & installation manual

Daikin

Daikin FCFV50A Operation manual

Fujitsu

Fujitsu Inverter ASBA30JFC operating manual

Toshiba

Toshiba RAS-M10SMUV-E installation manual

Daikin

Daikin FXLQ20MAVE Operation manual

Hitachi

Hitachi RAS-E24CAK instruction manual

CIAT

CIAT Magister 2 Series Installation, Operation, Commissioning, Maintenance

Bestron

Bestron AAC6000 instruction manual

Hisense

Hisense 7K Use and Installation Instructions

Samsung

Samsung AS09HM3N user manual

Soleus Air

Soleus Air GB-PAC-08E4 operating instructions

McQuay

McQuay MCK020A Technical manual

Webasto

Webasto Frigo Top 25 DS Instructions for use

Mitsubishi Electric

Mitsubishi Electric MSC-GE20VB operating instructions
