Frigidaire FAH096J2T3 User manual

ROOM AIR CONDITIONER

Model No.

FAH096J2T3

FACTORY PARTS CATALOG

ROOM AIR CONDITIONER

WIRING DIAGRAM - # 309107703

OWNER’S GUIDE - # 309000823

ENERGY GUIDE - # 309367465

ELECTROLUX HOME PRODUCTS, INC

P.O.BOX 212378, AUGUSTA, GA 30917

PRODUCT NO. BASE MODEL NO. VOLTS BTU-COOLING

FAH096J2T3 FAH096J2T 115 8500 BTU

MARKET

North America

Publication No.

5995371126

020430

-EN/SERVICE /BLT

345

04/02 2

Publication No. FAH096J2T3

5995371126

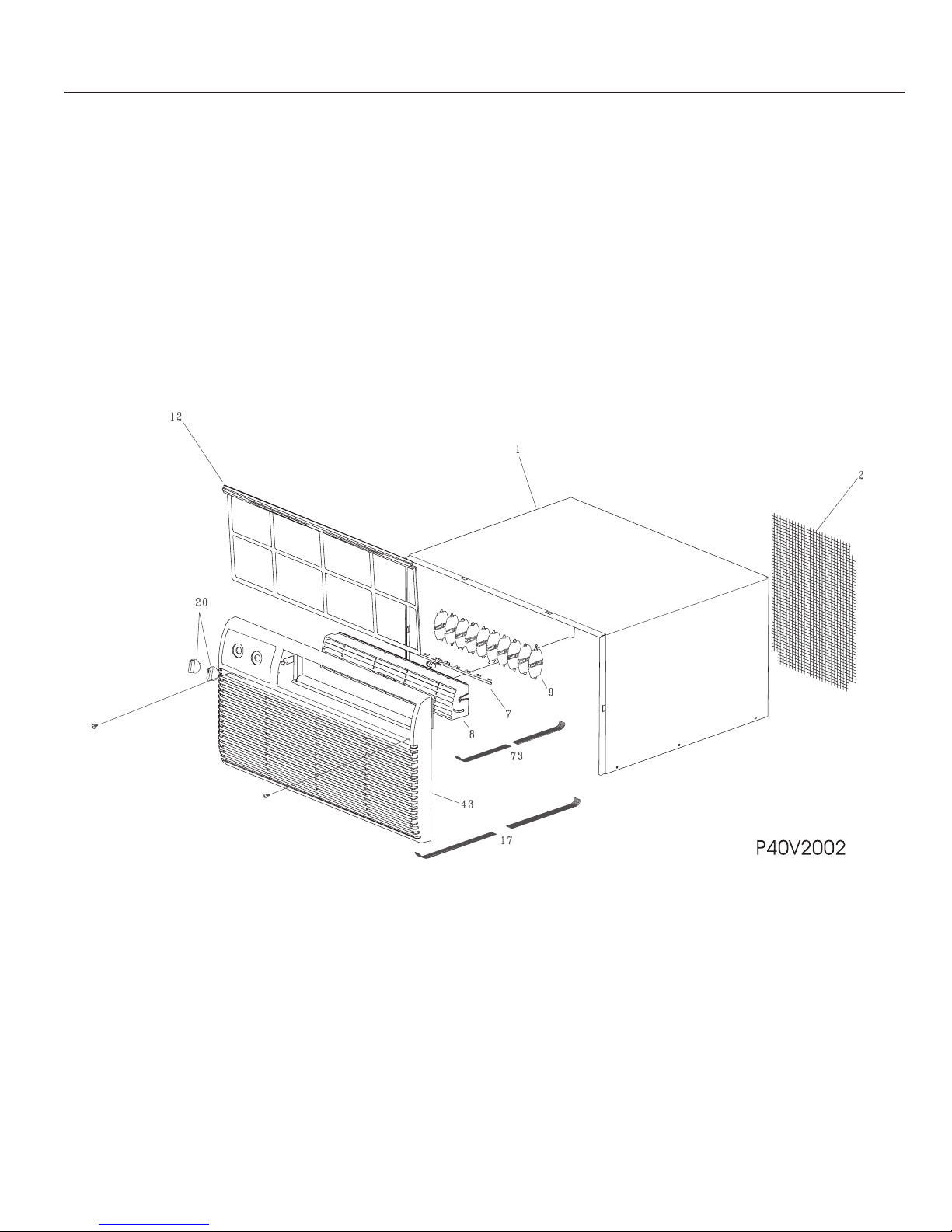

CABINET FRONT AND WRAPPER

# = Fast-moving Parts 3 04/02

* = Non-Illustrated Parts

FAH096J2T3 Publication No.

5995371126

CABINET FRONT AND WRAPPER

POS. NO PART NO DESCRIPTION

1 309627504 Cabinet,wrapper

2 309636101 Screen-safety,18.5BLD

7 309324004 Link-handle

8 309628004 Louver,horizontal

9 309628104 Louver-vertical

12 309628204 Filter,air ,molded plastic ,grey

17 309629405 Front Assy,18.5 bld cool

20 309307013 Knob,control

43 309627904 Frame,front panel

73 309629304 Louver Assy,grey ,Incl-7,8,9

* 5304402119 Seal-tube

* 3202951 Seal,fan housing ,bottom

04/02 4

Publication No. FAH096J2T3

5995371126

CONTROLS

# = Fast-moving Parts 5 04/02

* = Non-Illustrated Parts

FAH096J2T3 Publication No.

5995371126

CONTROLS

POS. NO PART NO DESCRIPTION

7 # 309628501 Box-control

8 # 5304408739 Switch,GE 3sp l

9 # 5304408746 Control-temperature,12AMP

10 309627401 Bulkhead

10* 309111201 Grommet,wire protector

12 309329801 Clip,sensor retainer ,3/8 inch

13 # 5303202395 Capacitor,370 V ,6+25 mfd

14 5303285199 Screw,Ph truss hd ,8-18 x 0.38 ,grounding

15 5303303077 Strap,capacitor mtg.

17 # 309343109 Cord-service,type C ,230V/18GA

18 5303007754 Screw,6-32 x 0.188

35 3200761 Spacer,control bulb ,rubber

04/02 6

Publication No. FAH096J2T3

5995371126

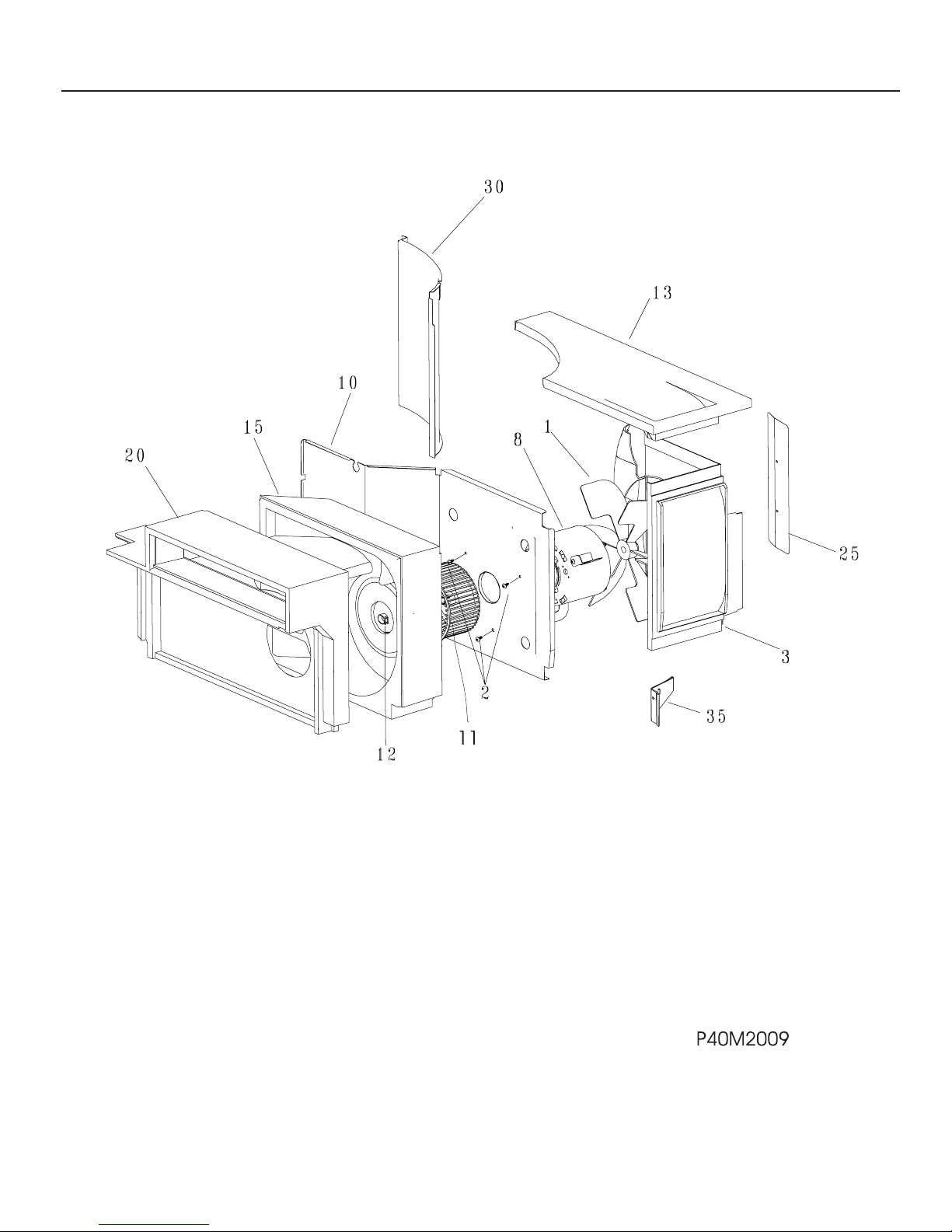

AIR HANDLING PARTS

# = Fast-moving Parts 7 04/02

* = Non-Illustrated Parts

FAH096J2T3 Publication No.

5995371126

AIR HANDLING PARTS

POS. NO PART NO DESCRIPTION

1 # 309629102 Fan Blade

2 3202975 Screw,10-16AB x 0.72 ,square drive

3 309628901 Shroud,cond fan motor

8 # 5304408763 Motor-fan,GE 3sp w/lds ,48FR

10 309627401 Bulkhead

11 # 309631701 Blower Wheel

12 5303012110 Clamp,blower wheel mt

13 309628802 Top-cover

15 309622801 Scroll

20 309622901 Scroll Plate

25 309335201 Baffle-air

30 309629001 Partition,shroud,galv-steel

35 309335001 Baffle-splash/motor

* 3202951 Seal,fan housing ,bottom

04/02 8

Publication No. FAH096J2T3

5995371126

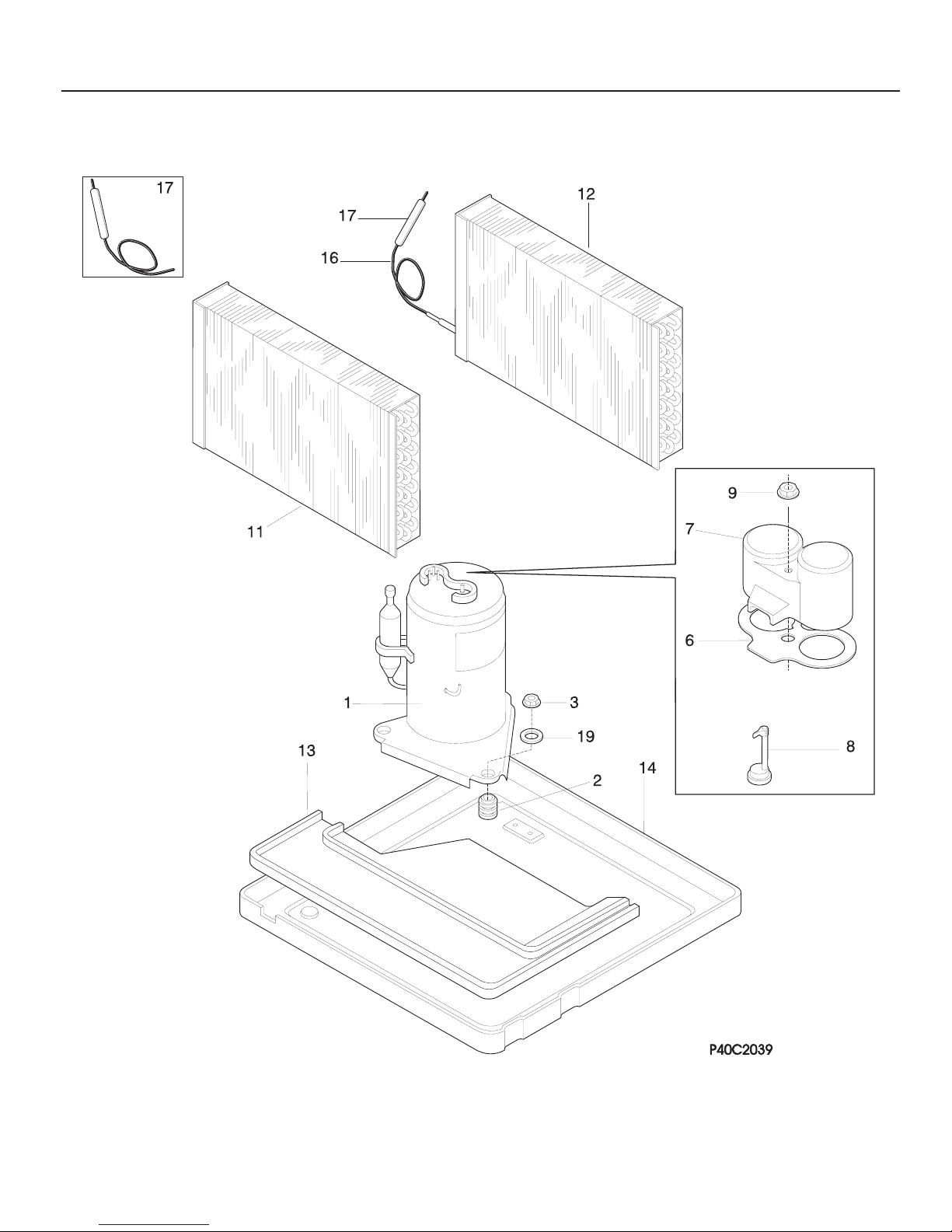

COMPRESSOR PARTS

04/02 9

FAH096J2T3 Publication No.

5995371126

COMPRESSOR PARTS

POS. NO PART NO DESCRIPTION

1 # 5304427233 Compressor

2 5303283877 Grommet,compressor mtg ,(3)

3 5308006948 Nut,compressor mtg ,(3)

6 3200282 Gasket,terminal cover

7 3200281 Cover,compr terminal

8 # 5304427232 Overload Protector

9 5303211017 Nut,terminal cover ,compressor elec

11 # 309632303 Evaporator-assy,2RW/17FPI

12 309641901 Condenser,2R/15FPI

13 309628705 Tray-base

14 309632004 Assy-base/stud

16 # 5303209547 Capillary Tube,50 inch long

17 # 5300265301 Drier-filter,service kit

17* 5303290357 Strainer

19 5303002664 Washer,compressor mtg

19* 309112501 Washer,metallic

04/02 10

Publication No. FAH096J2T3

5995371126

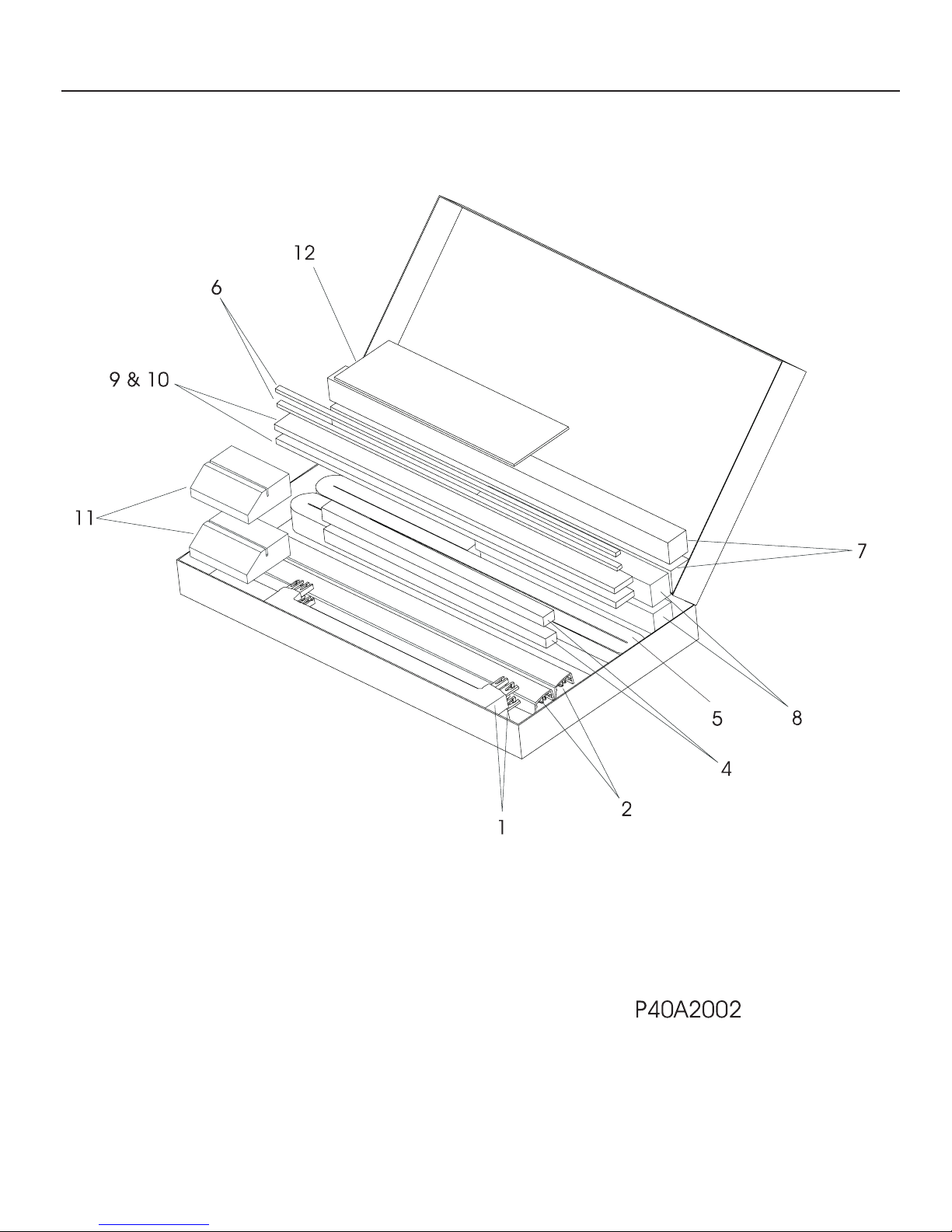

WINDOW MOUNTING PARTS
