Frigidaire FAH106J1T1 User manual

PRODUCT NO.

BASE MODEL NO.

VOLTS

BTU-COOLING

FAH106J1T1 FAH106J1T 115 10000

P.O. Box 212378

Augusta, GA 30917

FACTORY PARTS CATALOG

ROOM AIR CONDITIONER

Model No.

FAH106J1T1

WIRING DIAGRAM # - 309107701

OWNERS GUIDE # - 309000823

Publication No.

000307

-EN/SERVICE /REP

345

5995338521

FAH106J1T1

CABINET FRONT AND WRAPPER

5/00 1

FAH106J1T1

1 309627504 WRAPPER-U BEND 18.5 BLD

2 309636101 SCREEN-SAFETY 18.5 BLD

7 309324004 LINK-VERT LOUVER

8 309628004 LOUVERS-HORIZ

9 309628104 LOUVER-VERT

12 309628204 FILTER-MOLDED AIR

17 309629405 FRONT ASSY 18.5 BLD

20 309307011 KNOB-CONTROL

29 5304410881 SCREW

43 309631805 FNT/CTRL LABEL ASSY

73 309629304 LOUVER ASSY

*5304408740 PANEL-REAR PLASTIC

# = Functional Parts

* = Non-illustrated Parts

CABINET FRONT AND WRAPPER

POS. NO. PART NO. DESCRIPTION

5/00 2

FAH106J1T1

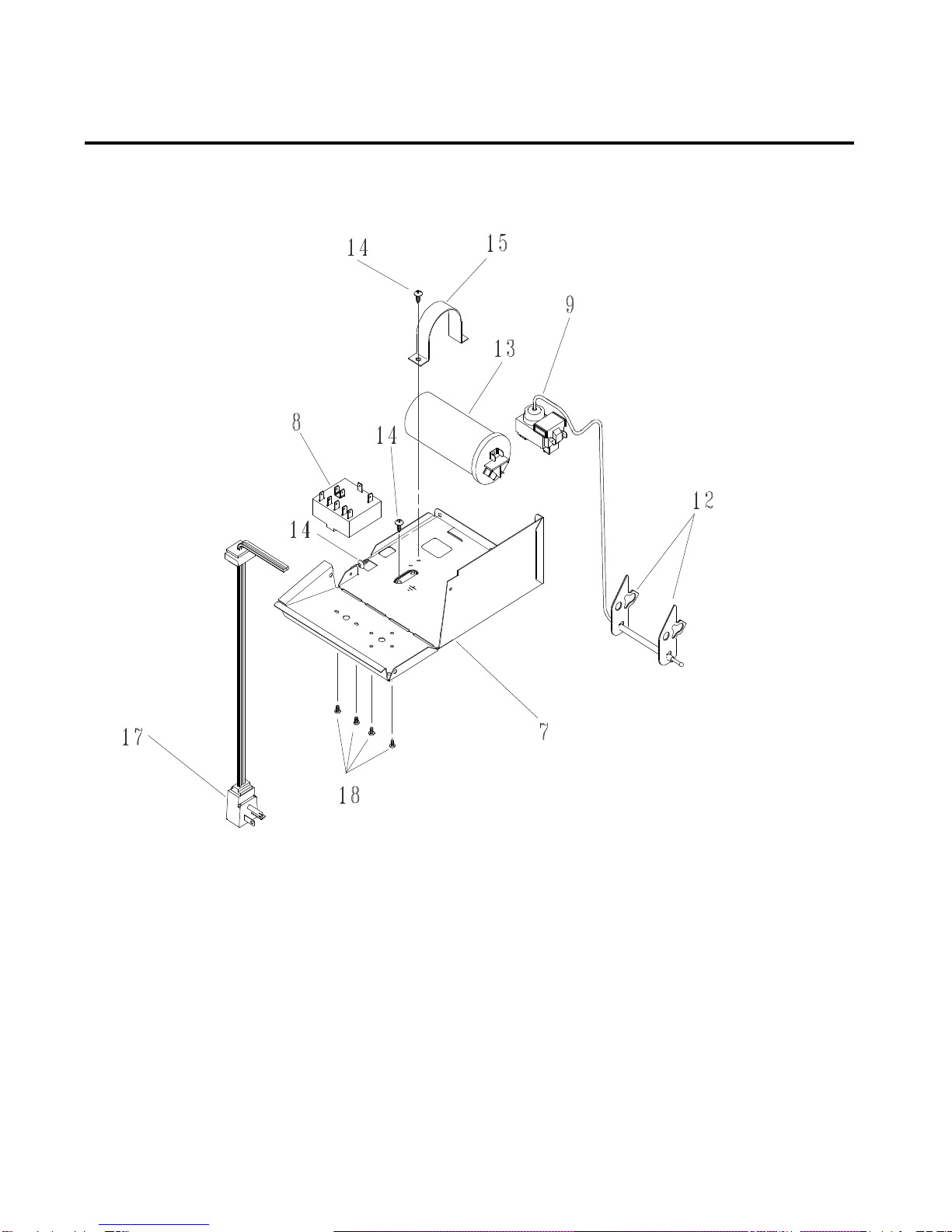

CONTROL PARTS

5/00 3

FAH106J1T1

7# 309628501 #BOX-CONTROL

8# 5304408739 SWITCH-7POS GE

9 5304408746 CONTROL-AIR TEMP

12 309329801 #RETAINING CLIP

13# 5303318963 Capacitor,370V, 40+10

14 5303285199 Screw,phillips, 8-18,sq. recess

truss head

15 5303303077 Strap-capacitor

17# 309343108 CORD-SRV 115V/16GA TYPE A

18 5303007754 Screw,.138-32

35 3200761 Spacer-control bulb

*309111201 Grommet-wires

POS. NO. PART NO. DESCRIPTION

CONTROL PARTS

# = Functional Parts

* = Non-illustrated Parts

5/00 4

FAH106J1T1

AIR HANDLING PARTS

5/00 5

FAH106J1T1

1# 309629102 BLADE-FAN ASSY

2 3202975 Screw,10-16 x 0.72 sq. drive

3 309628901 SHROUD-CONDENSER

8# 5304408764 MOTOR-FAN 3SP,W/LEADS

10 309627401 BULKHEAD-18.5CHASSIS

11# 309631701 BLOWER WHEEL

12 5303012110 Clamp-blower

13 309628802 TOP-CONDENSER

15 309622801 SCROLL-18.5

20 309622901 SCROLL PLATE

25 309335201 BAFFLE-AIR

30 309629001 PARTITION-SHROUD

35 309335001 BAFFLE-CONDENSATE

# = Functional Parts

* = Non-illustrated Parts

AIR HANDLING PARTS

POS. NO. PART NO. DESCRIPTION

5/00 6

FAH106J1T1

COMPRESSOR PARTS

5/00 7

FAH106J1T1

1# 5303320010 COMPR-MATSUSHITA

2 5303283877 Grommet,compressor,(3)

3 5308006948 Nut,compressor,(3)

6 5303002035 Gasket-cover

7 3002034 Cover-terminal

8# 5303211100 OVERLOAD-MRA 98695-386

9 5303301734 Nut,cover

11# 309632301 EVAP ASSY-2RW/17FPI

12# 309632501 COND ASSY-3RW/15FPI

13 309628703 TRAY-BASE

14 309632003 BASE/STUD ASSY

16# 5303209547 Capillary tube

17 5300265301 Drier-filter

19 5303002664 Washer,compressor

20 5303002036 Spring,overload

21 5303295516 Washer,cover

# = Functional Parts

* = Non-illustrated Parts

COMPRESSOR PARTS

POS. NO. PART NO. DESCRIPTION

5/00 8

FAH106J1T1

1 309628603 TRIM FRAME-SIDES

2 309628604 TRIM FRAME-TOP & BOTTOM

3 5304409303 KIT-GROUNDING WIRE

4 5304409304 BLOCK-TAPERED

5 5303301038 SEAL-WRAPPER

6 5304409305 SEAL-COND END BRACKET

7 5304409306 SEAL-COND/REAR PANEL

8 5304409307 SEAL-COND/REAR PNL,SIDES

9 5304409308 SEAL-COND/RR PNL,TOP &BTTM

10 5304409309 SEAL-COND/REAR PNL, SIDES

11 5304409310 BLOCK-CHASSIS/CABINET

12 309335101 DIVIDER-COND IN/OUT

13 5304409311 KIT-GRILLE MOUNTING

15 309636002 KIT-MTG-ALL PARTS ABOVE

WINDOW MOUNTING PARTS

POS. NO. PART NO. DESCRIPTION

# = Functional Parts

* = Non-illustrated Parts

5/00 9
