Extech Instruments MA250 User manual

User's Guide

200Amp AC Clamp Meter + NCV

Model MA250

www.ponpe.com

contact:

[email protected]

MA250-EU-EN-V3.2-6/11

Introduction

Congratulations on your purchase of this Extech MA250 Clamp Meter. This meter measures AC

Current, AC/DC Voltage, Resistance, Capacitance, Frequency, Diode Test, Duty Cycle and Continuity.

Special features include Thermocouple Temperature and Non-Contact Voltage detection. The double

molded case is designed for heavy duty use. This meter is shipped fully tested and calibrated and, with

proper use, will provide years of reliable service.

Safety

International Safety Symbols

This symbol, adjacent to another symbol or terminal, indicates the user must refer

to the manual for further information.

This symbol, adjacent to a terminal, indicates that, under normal use, hazardous

voltages may be present

Double insulation

This WARNING symbol indicates a potentially hazardous situation, which if not

avoided, could result in death or serious injury.

This CAUTION symbol indicates a potentially hazardous situation, which if not

avoided, may result damage to the product.

PER IEC1010 OVERVOLTAGE INSTALLATION CATEGORY

OVERVOLTAGE CATEGORY I

Equipment of OVERVOLTAGE CATEGORY I is equipment for connection to circuits in which

measures are taken to limit the transient overvoltages to an appropriate low level.

Note – Examples include protected electronic circuits.

OVERVOLTAGE CATEGORY II

Equipment of OVERVOLTAGE CATEGORY II is energy-consuming equipment to be supplied from

the fixed installation.

Note – Examples include household, office, and laboratory appliances.

OVERVOLTAGE CATEGORY III

Equipment of OVERVOLTAGE CATEGORY III is equipment in fixed installations.

Note – Examples include switches in the fixed installation and some equipment for industrial use with

permanent connection to the fixed installation.

OVERVOLTAGE CATEGORY IV

Equipment of OVERVOLTAGE CATEGORY IV is for use at the origin of the installation.

Note – Examples include electricity meters and primary over-current protection equipment

WARNING

CAUTION

contact:

[email protected]

www.ponpe.com

MA250-EU-EN-V3.2-6/11

SAFETY NOTES

•Do not exceed the maximum allowable input range of any function.

•Do not apply voltage to meter when resistance function is selected.

•Set the function switch OFF when the meter is not in use.

•Remove the battery if meter is to be stored for longer than 60 days.

WARNINGS

•Set function switch to the appropriate position before measuring.

•When measuring volts do not switch to current/resistance modes.

•Do not measure current on a circuit whose voltage exceeds 600V.

•When changing ranges always disconnect the test leads from the circuit under test.

CAUTIONS

•Improper use of this meter can cause damage, shock, injury or death. Read and understand

this user manual before operating the meter.

•Always remove the test leads before replacing the battery or fuses.

•Inspect the condition of the test leads and the meter itself for any damage before operating the

meter. Repair or replace any damage before use.

•Use great care when making measurements if the voltages are greater than 25VAC rms or

35VDC. These voltages are considered a shock hazard.

•Always discharge capacitors and remove power from the device under test before performing

Diode, Resistance or Continuity tests.

•Voltage checks on electrical outlets can be difficult and misleading because of the uncertainty

of connection to the recessed electrical contacts. Other means should be used to ensure that

the terminals are not "live".

•If the equipment is used in a manner not specified by the manufacturer, the protection provided

by the equipment may be impaired.

Function Maximum Input

A AC, 200A

V DC, V AC 600V DC/AC

Resistance, Capacitance, Frequency, Diode

Test, Continuity, Temperature 250V DC/AC

contact:

[email protected]

www.ponpe.com

MA250-EU-EN-V3.2-6/11

Description

Meter Description

1. Current clamp

2. NCV LED indicator

3. Clamp opening trigger

4. MODE button

5. HZ/% button

6. LCD Display

7. Negative input jack

8. Non-Contact Voltage Detector

9. HOLD button

10. Function Switch

11. Relative Button

12. Battery compartment (rear)

13. Positive input jack

Display icons Description

HOLD Data Hold

AUTO Autoranging

DC Direct Current

AC Alternating Current

Low battery

REL Relative

V Volts (Voltage)

ΩOhms (Resistance)

A Amperes (Current)

F Farad (Capacitance)

Hz Hertz (Frequency)

% Duty Ratio

oF and oC Fahrenheit and Celsius units (Temperature)

n, m, μ, M, k Unit of measure prefixes: nano, milli, micro, mega, and kilo

•))) Continuity test

Diode test

www.ponpe.com

contact:

[email protected]

MA250-EU-EN-V3.2-6/11

Operation

NOTES: Read and understand all Warning and Caution statements in this operation manual prior

to using this meter. Set the function select switch to the OFF position when the meter is not in use.

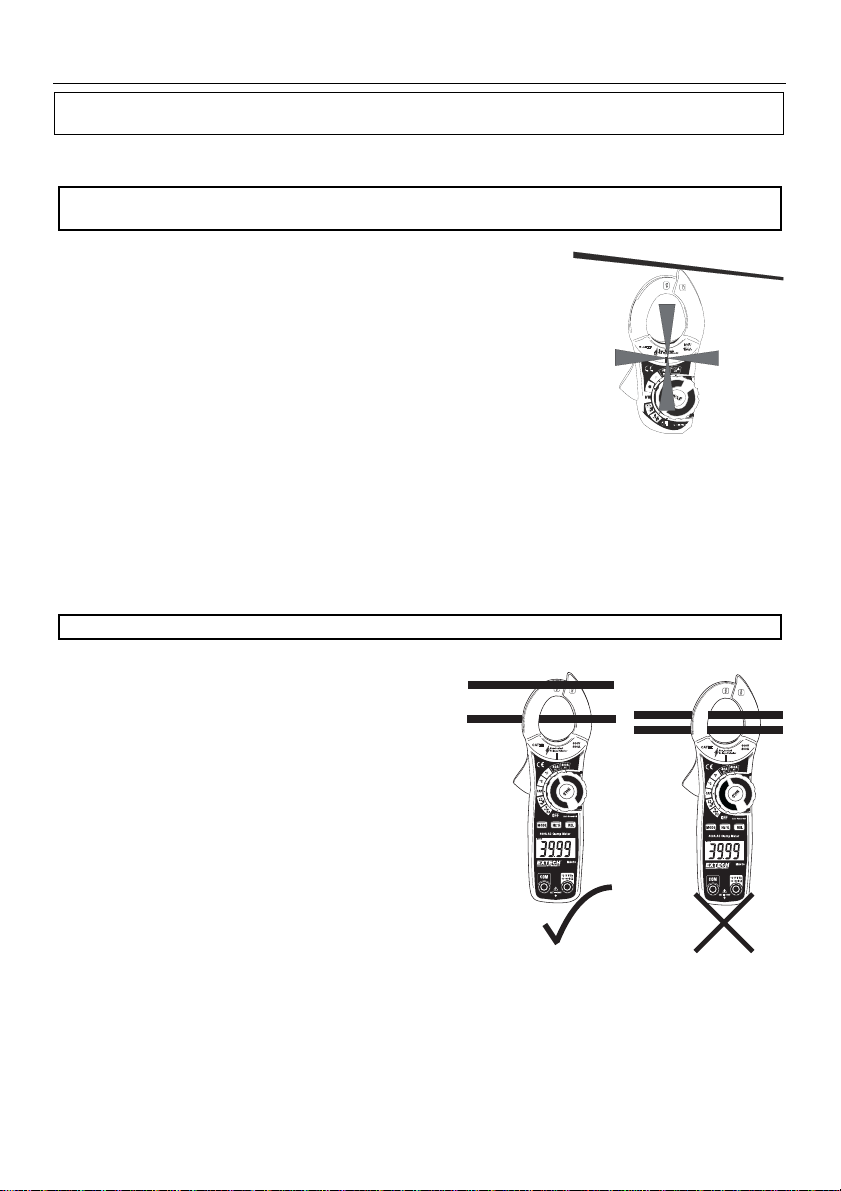

Non-Contact Voltage Detector

WARNING: Risk of Electrocution. Before use, always test the Voltage Detector on a known live

circuit to verify proper operation.

1. Rotate the Function switch to any measurement position.

2. Place the detector probe tip on the conductor to be tested.

3. If AC voltage is present, the NCV detector light will turn on with

a steady red light.

NOTE: The conductors in electrical cord sets are often twisted. For

best results, move the probe tip along a length of the cord to

assure placing the tip in close proximity to the live

conductor.

NOTE: The detector is designed with high sensitivity. Static

electricity or other sources of energy may randomly trip the sensor. This is normal operation.

AC Current Measurements

WARNING: Disconnect the test leads before making clamp measurements.

1. Rotate the Function switch to the 200A position

2. Press the trigger to open jaw. Fully enclose

only one conductor.

3. Read the current value in the display.

4. If the value is less than 40A, rotate the function

switch to the 20A position to improve

resolution.

contact:

[email protected]

www.ponpe.com

MA250-EU-EN-V3.2-6/11

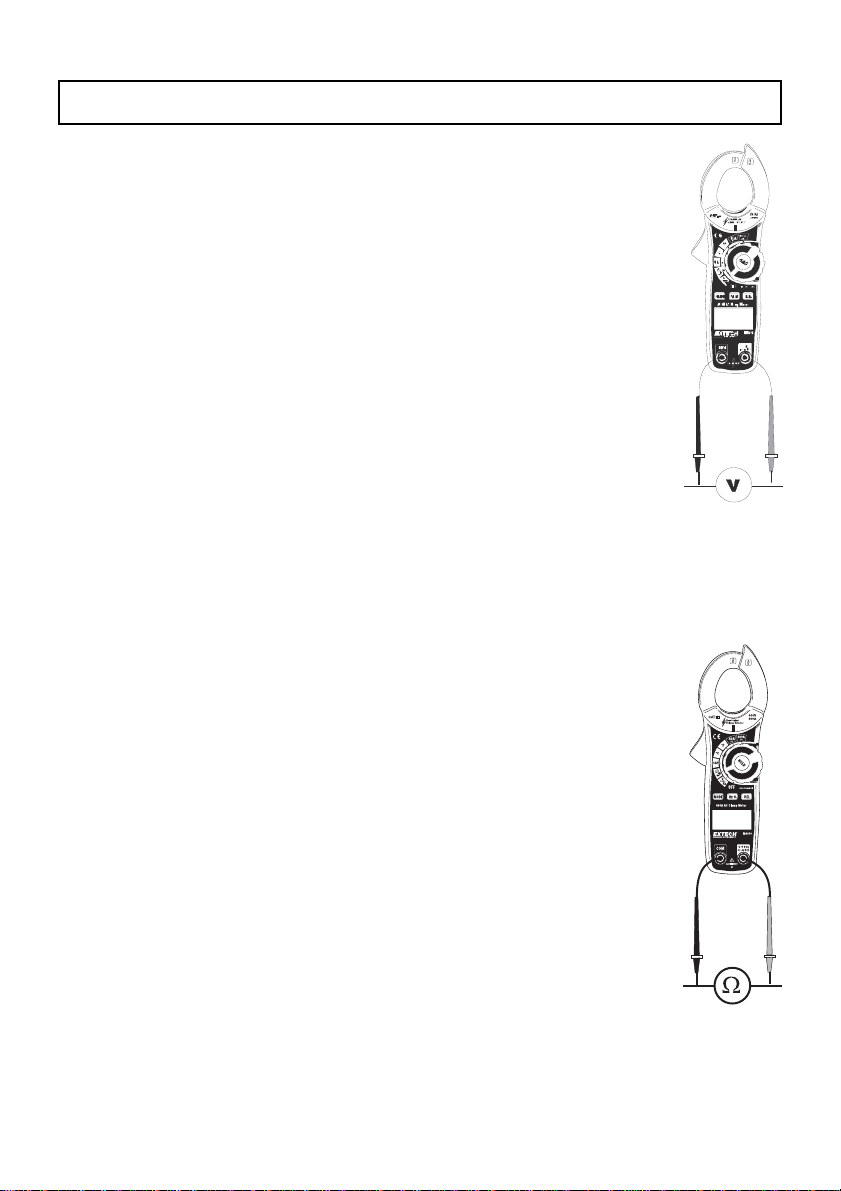

AC/DC Voltage, Frequency, Duty Cycle Measurements

CAUTION: Do not measure voltages if a motor on the circuit is being switched ON or OFF. Large

voltage surges may occur that can damage the meter.

1. Rotate the function switch to the V position.

2. Press the MODE button to select AC or DC Voltage.

3. Insert the black test lead banana plug into the negative COM jack.

Insert the red test lead banana plug into the positive Vjack.

4. Touch the black test probe tip to the negative side of the circuit.

Touch the red test probe tip to the positive side of the circuit.

5. Read the voltage value in the display.

6. Press the Hz % button to display Frequency

7. Press the Hz % button to display Duty Cycle

Resistance, Diode, Continuity Measurements

Note: Remove power from the device under test before making resistance measurements

1. Set the function switch to the Ω position.

2. Insert the black test lead banana plug into the negative COM jack.

Insert the red test lead banana plug into the positive Vjack.

3. Touch the black test probe tip to one side of the device.

Touch the red test probe tip to the other side of the device.

4. Read the resistance value in the display.

5. Press the MODE button to select the DIODE mode. The Diode symbol will

appear in the display.

6. Press the MODE button to select the Continuity mode. The continuity symbol

will appear in the display. If the resistance is <150 ohms the tone will sound.

www.ponpe.com

contact:

[email protected]

MA250-EU-EN-V3.2-6/11

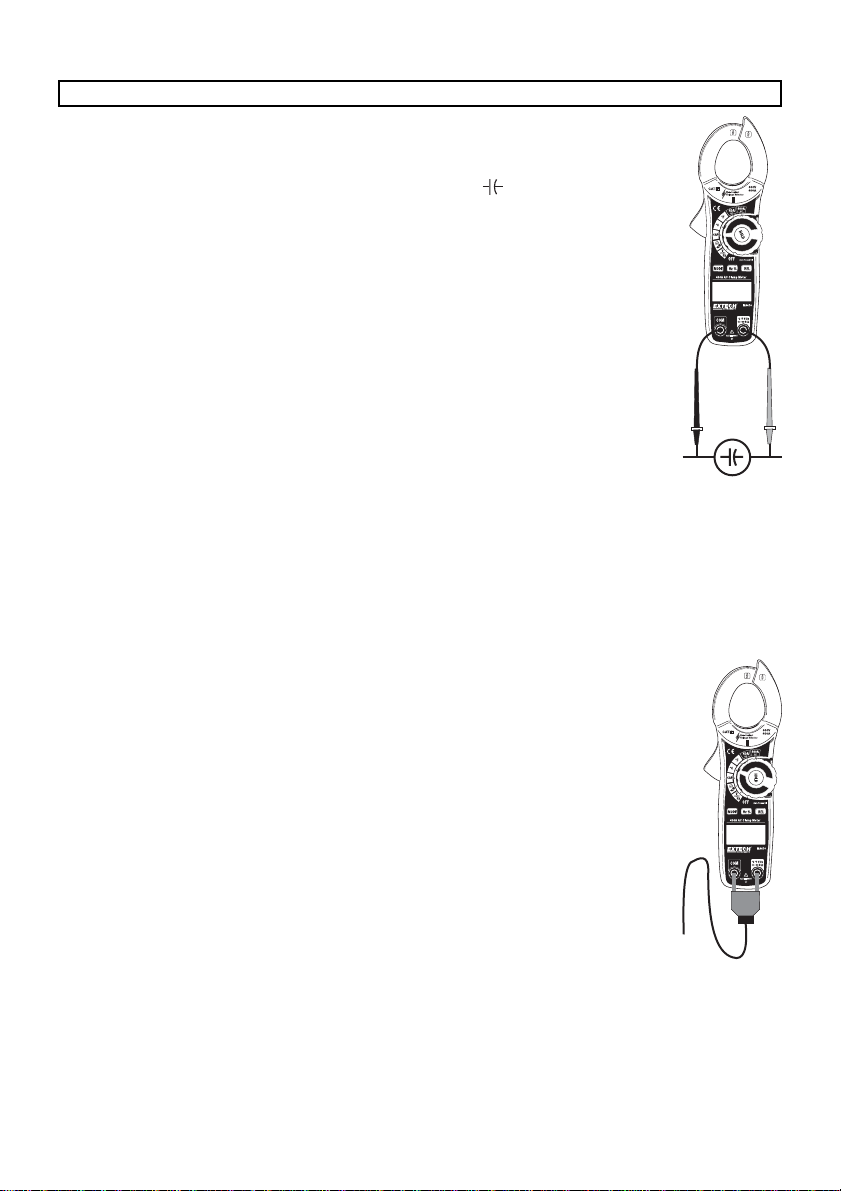

Capacitance Measurements

WARNING: To avoid electric shock, discharge the capacitor before measuring.

1. Rotate the function switch to the CAP capacitance position.

2. Insert the black test lead banana plug into the negative COM jack.

Insert the red test lead banana plug into the positive jack.

3. Touch the black test probe tip to one side of the device.

Touch the red test probe tip to the other side of the device.

4. Read the capacitance value in the display.

Type K Temperature Measurements

1. Rotate the function switch to the °F or °C temperature position.

2. Insert the Temperature Probe into the input jacks.

3. Place the temperature probe tip(s) where needed.

4. Read the temperature on the display.

Note: In case of an open input or a temperature overrange, the meter will display

“OL” .

contact:

[email protected]

www.ponpe.com

MA250-EU-EN-V3.2-6/11

Data Hold

To freeze the LCD reading, press the HOLD button. The HOLD icon appears on the LCD. Press the

HOLD button again to return to normal operation.

Relative

Press the REL button (REL will appear in the display) to zero the reading and create a reference

point. All future reading will be the difference between the actual reading and the stored “REL”

reading. In the REL mode, autoranging is disabled and measurements are limited to the range

active when the REL button was pressed. Press the REL button to exit the mode.

Note: Relative does not function in Frequency or Duty Cycle mode.

Automatic Power Off

In order to conserve battery life, the meter will automatically turn off after approximately 30 minutes.

To turn the meter on again, change the position of the function switch.

Low battery indication

When the icon appears in the display, the battery should be replaced. Refer to the battery

replacement procedure in the maintenance section.

www.ponpe.com

contact:

[email protected]

MA250-EU-EN-V3.2-6/11

Maintenance

WARNING: To avoid electrical shock, disconnect the meter from any circuit, remove the test leads

from the input terminals, and turn OFF the meter before opening the case. Do not operate the meter

with an open case.

Cleaning and Storage

Periodically wipe the case with a damp cloth and mild detergent; do not use abrasives or

solvents. If the meter is not to be used for 60 days or more, remove the battery and store it

separately.

Battery Replacement

1. Remove the 2 Phillips head screws that secures the rear battery cover

2. Open the battery compartment

3. Replace the 2 AAA batteries.

4. Secure the battery compartment door

You, as the end user, are legally bound (EU Battery ordinance) to return all used

batteries, disposal in the household garbage is prohibited! You can hand over your

used batteries / accumulators at collection points in your community or wherever batteries

accumulators are sold!

Disposal: Follow the valid legal stipulations in respect of the disposal of the device at the

end of its lifecycle

contact:

[email protected]

www.ponpe.com

MA250-EU-EN-V3.2-6/11

Specifications

Function Range Resolution Accuracy

(% of reading + digits)

20.00 AAC 0.01A ±(2.5% + 8 digits)AC Current

50/60Hz 200.0 AAC 0.1A ±(2.8% + 8 digits)

4.000 VAC 0.001V

40.00 VAC 0.01V

400.0 VAC 0.1V

±(1.8% + 8 digits)

AC Voltage

50 to 400Hz

600 VAC 1V ±(2.5% + 8 digits)

400.0 mVDC 0.1mV ±(0.8% + 2 digits)

4.000 VDC 0.001V

40.00 VDC 0.01V

400.0 VDC 0.1V

±(1.5% + 2 digits)

DC Voltage

600 VDC 1V ±(2.0% + 2 digits)

400.0Ω0.1Ω±(1.0% + 4 digits)

4.000kΩ0.001kΩ

40.00kΩ0.01kΩ

400.0kΩ0.1kΩ

±(1.5% + 2 digits)

4.000MΩ0.001MΩ±(2.5% + 3 digits)

Resistance

40.00MΩ0.01MΩ±(3.5% + 5 digits)

40.00nF 0.01nF ±(4.0% + 20 digits)

400.0nF 0.1nF

40.00µF 0.01µF

Capacitance

100.0µF 0.1µF

±(3.0% + 5 digits)

10 to 10kHz 0.01Hz ±(1.5% + 2 digits)Frequency

Sensitivity: 15V rms

0.5% to 99.0% 0.1% ±(1.2% + 2 digits)Duty Cycle

Pulse width: 100μs to 100ms, Frequency: 10Hz to 10kHz

-4.0 to 1400°F

-20 to 760°C

0.1° <400°

1° >400° ±(3% + 9°F/5°C)

Temperature

Type K

Specification does not include probe accuracy. Range of supplied probe is -22

to 572°F (-30 to 300°C).

www.ponpe.com

contact:

[email protected]

Table of contents

Other Extech Instruments Measuring Instrument manuals

Extech Instruments

Extech Instruments 475055 User manual

Extech Instruments

Extech Instruments SDL720 User manual

Extech Instruments

Extech Instruments 451181 User manual

Extech Instruments

Extech Instruments LT40 User manual

Extech Instruments

Extech Instruments LT505 User manual

Extech Instruments

Extech Instruments RH390 User manual

Extech Instruments

Extech Instruments SDL400-NIST User manual

Extech Instruments

Extech Instruments EasyView EA30 User manual

Extech Instruments

Extech Instruments RF20 User manual

Extech Instruments

Extech Instruments 42265 User manual

Extech Instruments

Extech Instruments AM300 User manual

Extech Instruments

Extech Instruments 461891 User manual

Extech Instruments

Extech Instruments CO260 User manual

Extech Instruments

Extech Instruments ExStik RE300 User manual

Extech Instruments

Extech Instruments 475040 User manual

Extech Instruments

Extech Instruments 380943 User manual

Extech Instruments

Extech Instruments CO40 User manual

Extech Instruments

Extech Instruments RPM250W User manual

Extech Instruments

Extech Instruments CO250 User manual

Extech Instruments

Extech Instruments MultiScope 381270 User manual

Extech Instruments

Extech Instruments 433201A User manual

Extech Instruments

Extech Instruments HD780 User manual

Extech Instruments

Extech Instruments CO240 User manual

Extech Instruments

Extech Instruments MF100 User manual

Popular Measuring Instrument manuals by other brands

Suaoki

Suaoki D40 user manual

Elster

Elster BK-G1.6 operating instructions

Endress+Hauser

Endress+Hauser Deltabar FMD71 technical information

Duratool

Duratool D03128 manual

Vega

Vega VEGAPULS 65 Quick setup guide

Tonghui

Tonghui TH2618B Operation manual

Tenmars

Tenmars TM-801 user manual

MSR

MSR 145 user manual

TPS

TPS WP-82 manual

ELMETRON

ELMETRON CP-511 user manual

PCB Piezotronics

PCB Piezotronics 003C30 Installation and operating manual

Tenma

Tenma 72-10465 manual

Endress+Hauser

Endress+Hauser Proline Promag 50 Brief operating instructions

Siemens

Siemens SITRANS F Coriolis FCT030 Function manual

KLINGER

KLINGER CMF V Series instruction manual

EXFO

EXFO FTB-2 Notice

Keysight

Keysight M8290A Getting started guide

ADTEK

ADTEK MW-5 operating manual
