EverFocus EDN Plus Series User manual

EDN Plus Series

Indoor IP Dome Camera

Quick Installation Guide

Release Date: October, 2012

EDN Plus Series

1. Overview

The EDN Plus series IP dome is designed for indoor use. The series comes in three models: EDN3160

Plus / 3260 Plus / 3340 Plus.

Model Name Megapixel P-Iris WDR

EDN3160 Plus 1.3 MP Yes Yes

EDN3260 Plus 2 MP Yes Yes

EDN3340 Plus 3 MP Yes No

467

Camera Body

No. Item Name Descriptions

1 IR LEDs 33 IR LEDs for infrared illumination in night vision applications.

2 Light Sensor Detects lights.

3 Lens

Varifocal lens with P-Iris control.

4 5-Pin Data Cable

Provides connections for power, TV-out, video input / output and

alarm input / output. See 5-Pin Data Cable later in this Quick

Installation guide.

5 LAN / PoE Cable Connects to a 10/100 Ethernet or PoE.

6 Micro SD / SDHC Slot For inserting a micro SD / SDHC card.

7 Reset Button Resets all configurations to the factory default settings.

EDN Plus Series

System Requirement

Before installing, please check that your computer meets this system requirement.

•Operating System: Microsoft Windows XP / Vista (32-bit) / 7 (32-bit)

•Microsoft Internet Explorer 7 or above

Packing List

•EDN Plus Series Camera x 1 •Terminal Block x 1

•Long Screw x 4 •RJ-45 Connector x 1

•Screw Anchor x 4 •Mounting Template x 1

•Hexagon Screwdriver x 1 •Software CD x 1

•Power Pigtail Cable x 1 •Quick Installation Guide x 1

•Circle Plate x 1

Note: Contact the shipper if any items appear to have been damaged in the shipping process. If

any items are missing, notify your EverFocus Electronics Corp. Sales Representative or Customer

Service Branch. Please also keep the shipping carton for possible future use.

2. 5-Pin Data Cable

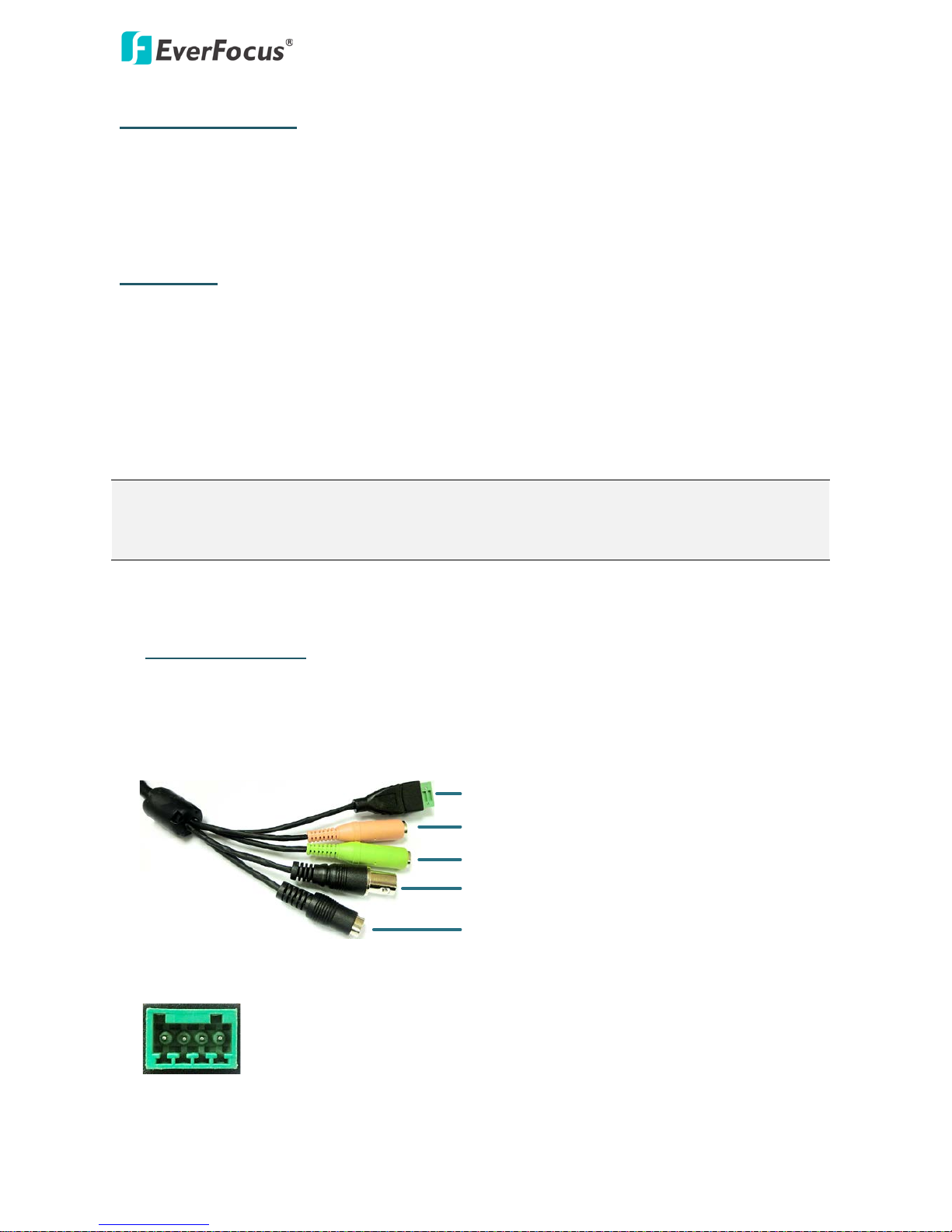

The 5-Pin Data Cable provides connections for power, TV-out, video input / output and alarm input

/ output. The wires are illustrated and defined below. Please note that microphones with external

power supplies are required.

Alarm Input / Output

Audio Input (Pink)

Audio Output (Green)

TV Output (BNC)

12V DC Input

Pin Assignment for Alarm Input / Output

4 3 2 1

Pin 1: Alarm In

Pin 2: Alarm GND

Pin3: Alarm Out-

Pin4: Alarm Out+

EDN Plus Series

3. Installation

There are two ways to mount the EDN Plus IP Dome: Wall-Surface Mount and In-Ceiling Mount.

Wall-Surface Mount:

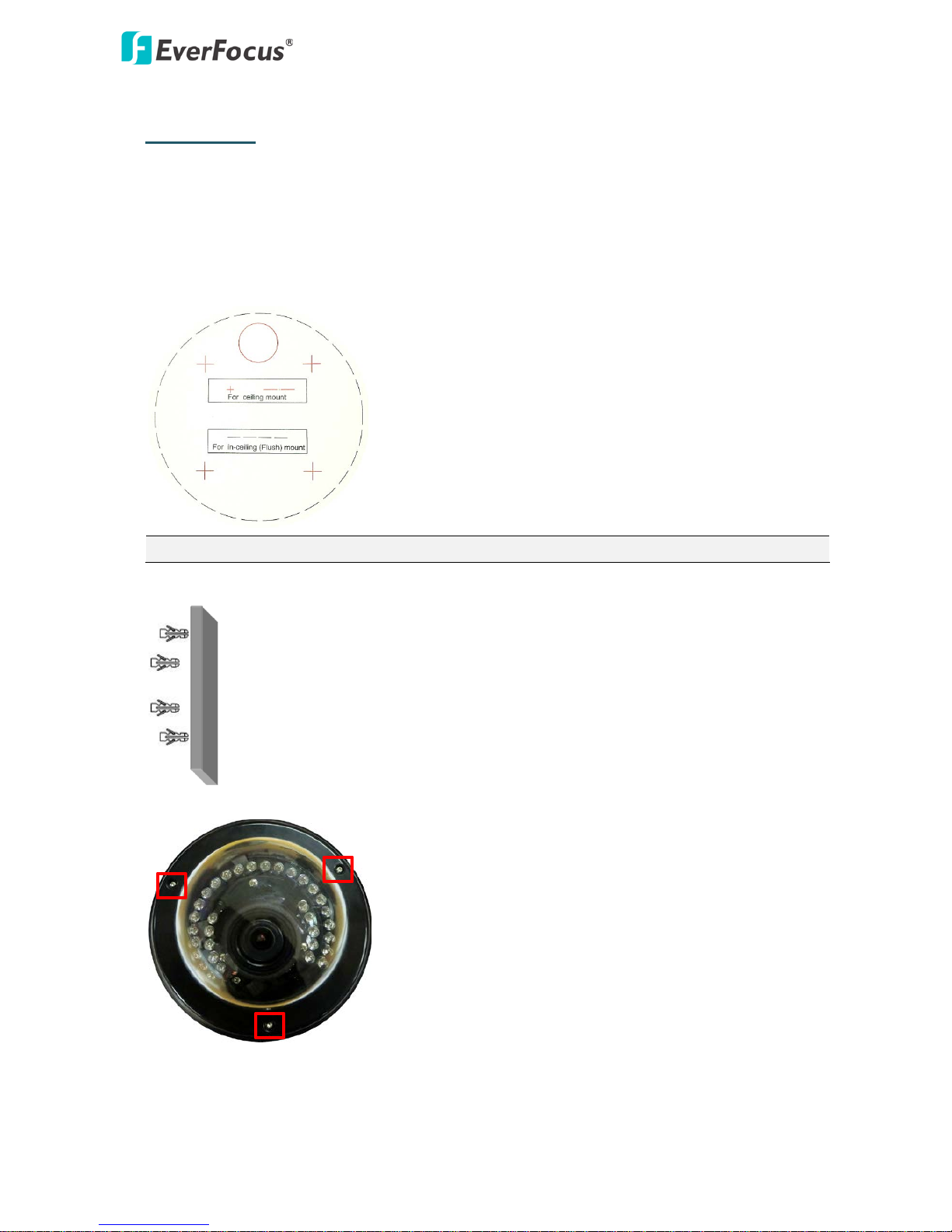

1. Paste the supplied mounting template onto a desired location on the wall. Drill the four red

cross marks, and the red circle mark only if you wish to run the wires into the wall.

Note: The minimum recommended thickness of the wall is 1 cm.

2. Push the four supplied anchors into the four holes on the wall.

3. Unscrew the three screws by using the supplied hex screwdriver and remove the cover.

EDN Plus Series

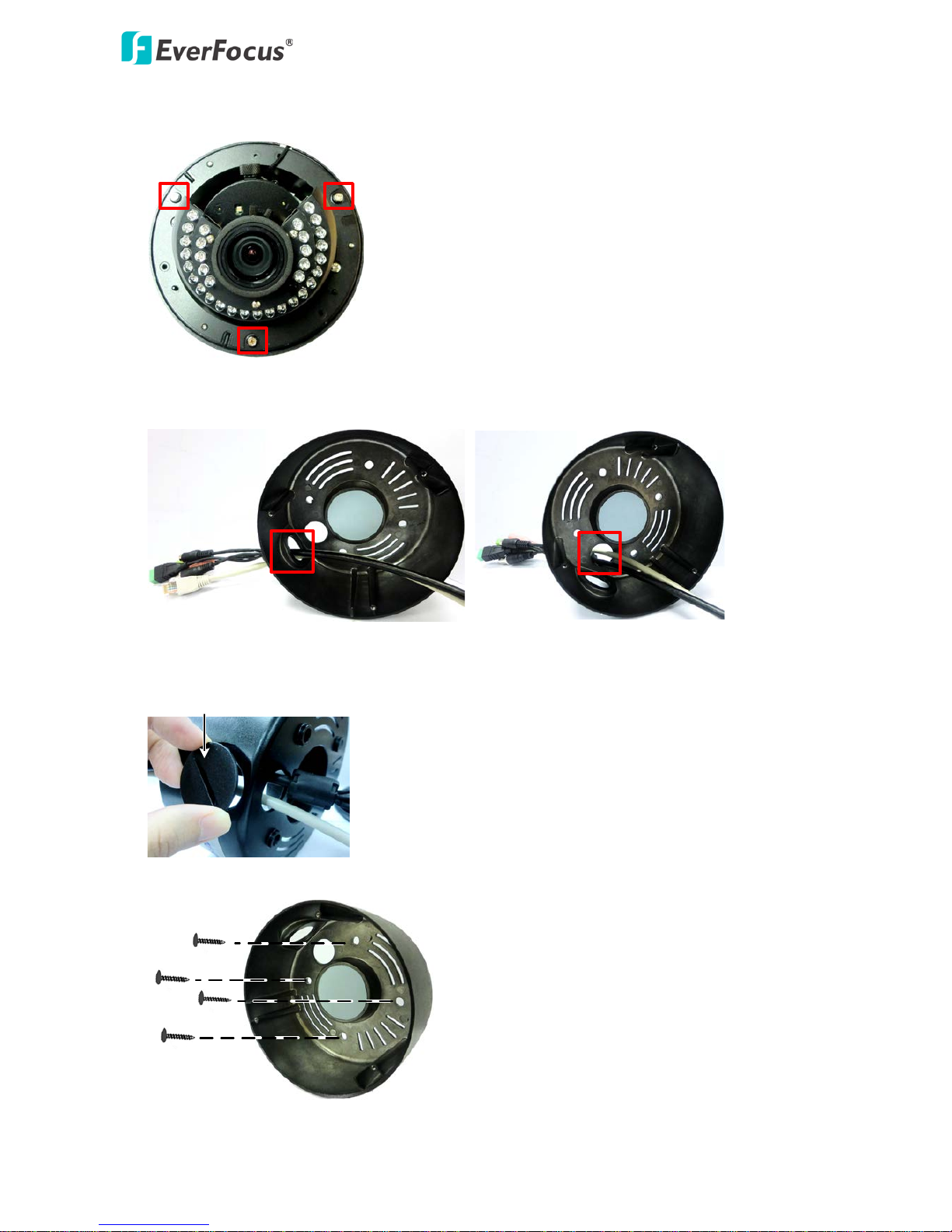

4. Unscrew the three screws and take out the camera body.

5. Thread the cables on the side of the camera case. If you want to wire the cables through the

wall, run the cables through the hole at the bottom.

Side Hole

Bottom Hole

6. If you run the cables through the bottom hole in Step 5, screw the circle plate on the side hole

for waterproofing. You can simply tighten the circle plate using a coin.

Circle Plate

7. Secure the camera case to the wall using the supplied four long screws.

EDN Plus Series

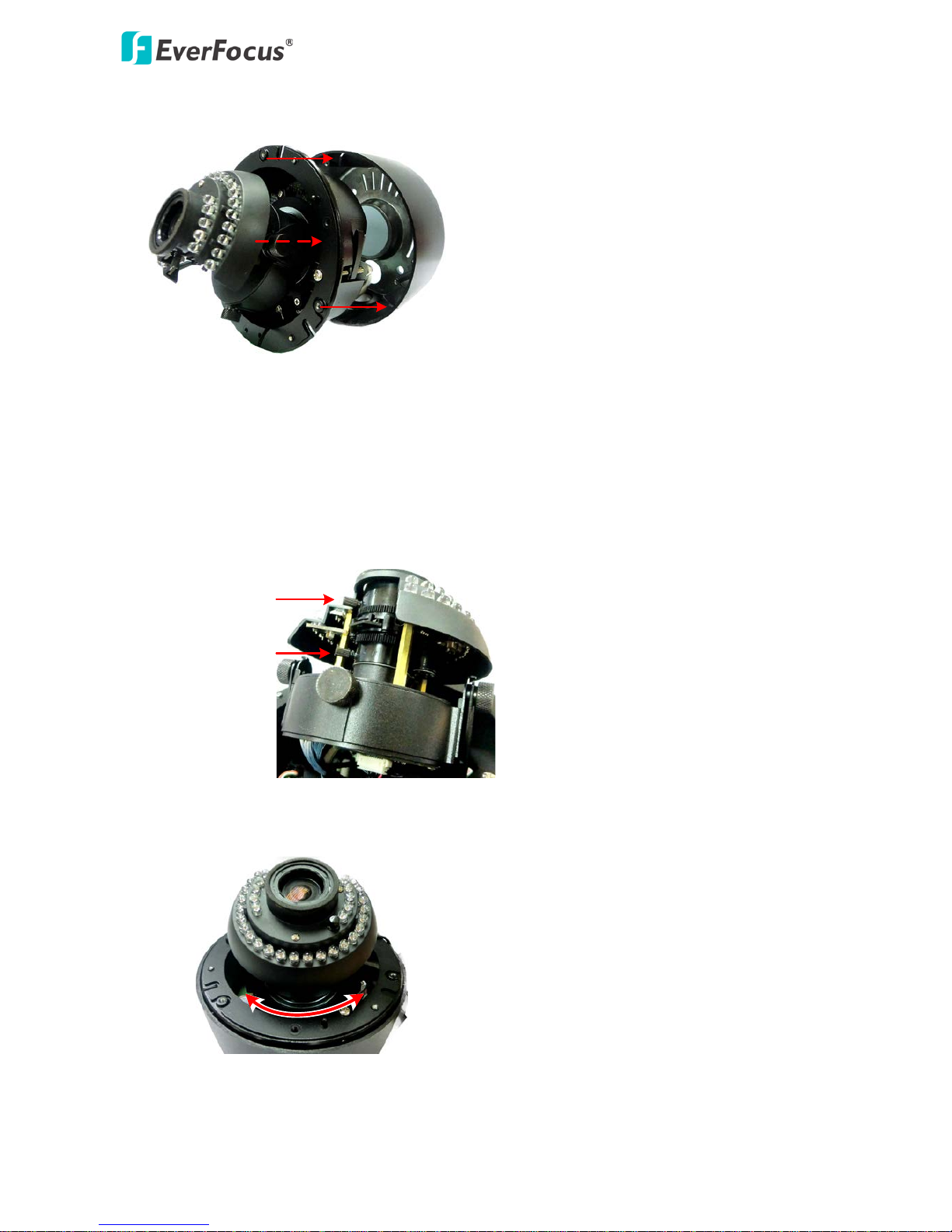

8. Place and screw the camera body back to the camera case.

9. Connect the network, power and other cables to the camera. Refer to 2. 5-Pin Data Cable.

10. Optionally insert a micro SD / SDHC card to the card slot. See No.5in 1. Overview.

11. Access the camera live view. See 5. Assigning an IP Address. Or using the TV-out cable to

connect a monitor to the camera for setting image aim and focus.

12. Adjust camera lens and angles.

a. Use the Zoom / Focus screws to adjust camera lens.

Zoom Screw

Focus Screw

b. To adjust the camera to a desired angle:

Pan Adjustment: Simply turn left / right of the top camera body.

360°360°

EDN Plus Series

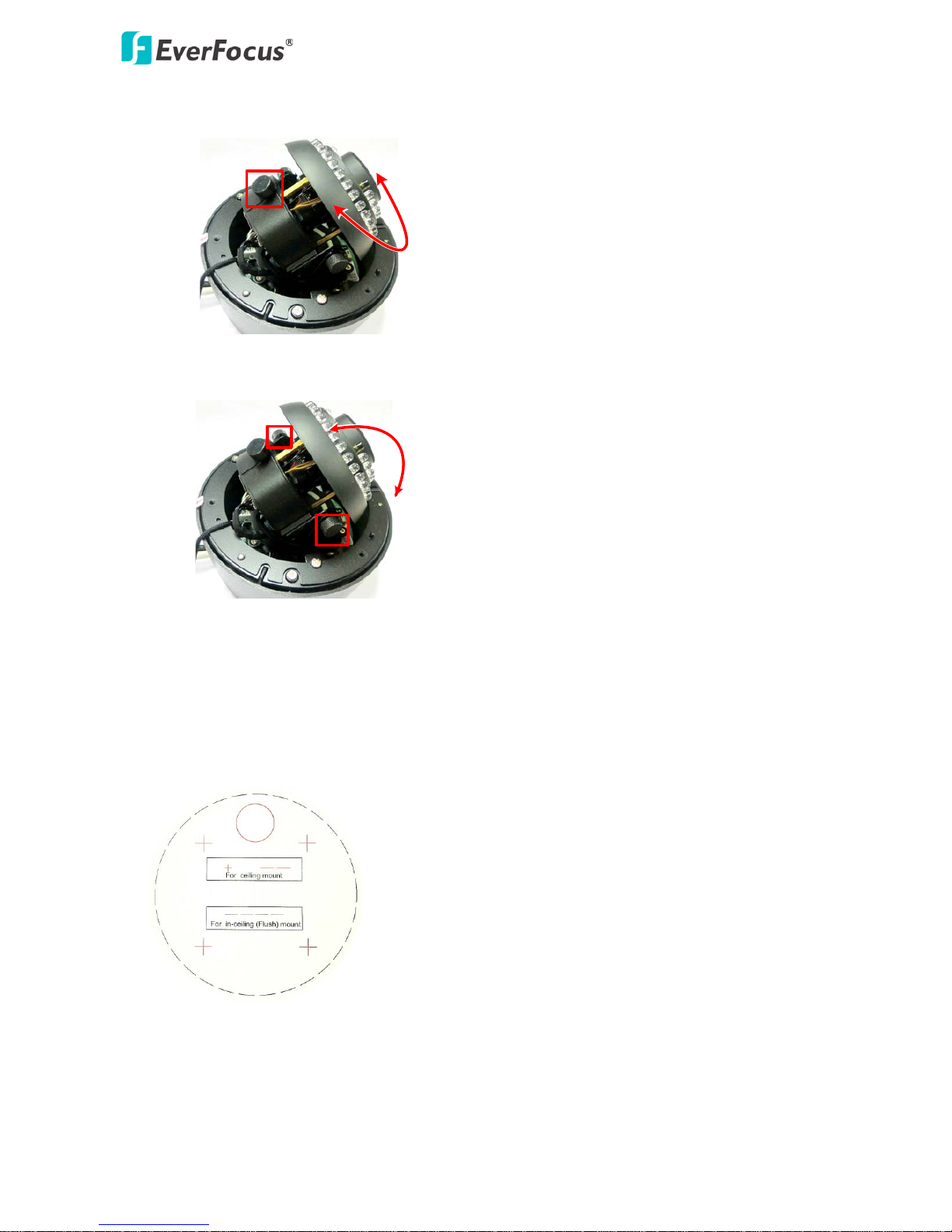

Rotational Adjustment: Using the rotate screw.

180°

Tilt Adjustment: Using the two tilt screws.

64°

13. Secure the cover back to the camera.

In-Ceiling Mount:

1. Paste the supplied mounting template onto a desired location on the wall. Cut a circle on the

ceiling along the circle edge of the mounting template.

2. Follow Steps 3 to 6 in Wall-Surface Mount to take out the camera body and run the cables.

3. Place the camera body into the ceiling opening.

EDN Plus Series

4. On the back side, make sure the black plastic clips are slightly above the ceiling board and

pointing outward.

5. Tighten the bracket screws from the front side of the camera.

6. Connect the network, power and other cables to the camera. Refer to 2. 5-Pin Data Cable.

7. Optionally insert a micro SD / SDHC card to the card slot. See No.5 in 1. Overview.

8. Access the camera live view. See 5. Assigning an IP Address. Or using the TV-out cable to

connect a monitor to the camera for setting image aim and focus.

9. Adjust camera lens and angles. See Step 11 in Wall-Surface Mount.

10. Secure the cover back to the camera.

EDN Plus Series

4. Accessing the Camera

You have to assign an IP address for your camera to be accessible. To assign an IP address to the

camera, use the IP Utility (IPU) software included in the software CD. Please connect the camera in

the same LAN of your computer.

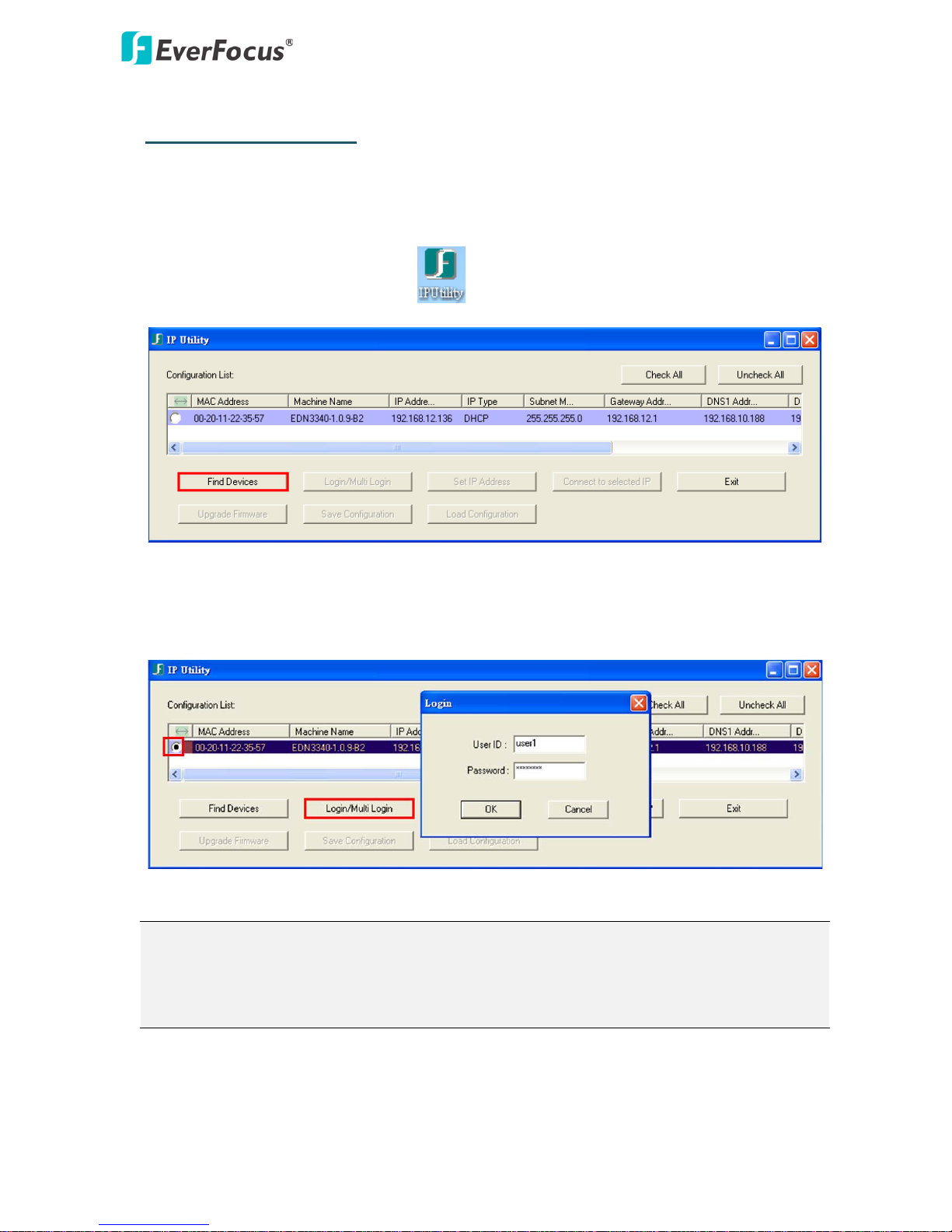

1. Install and then start the IPU program . The following dialog box appears.

2. Click Find Devices to search the cameras connected in the LAN. The default network values of

the cameras will be displayed. By default, the network protocol of the camera is DHCP.

3. To configure the network settings, select a camera and then click Login/Multi Login to log in.

4. Type the user ID and password. Click OK.

Note:

1. The default user ID is user1 and the default password is 11111111.

2. If you select more than one camera that has the same user ID / password, you will be able

to log in several cameras at once.

EDN Plus Series

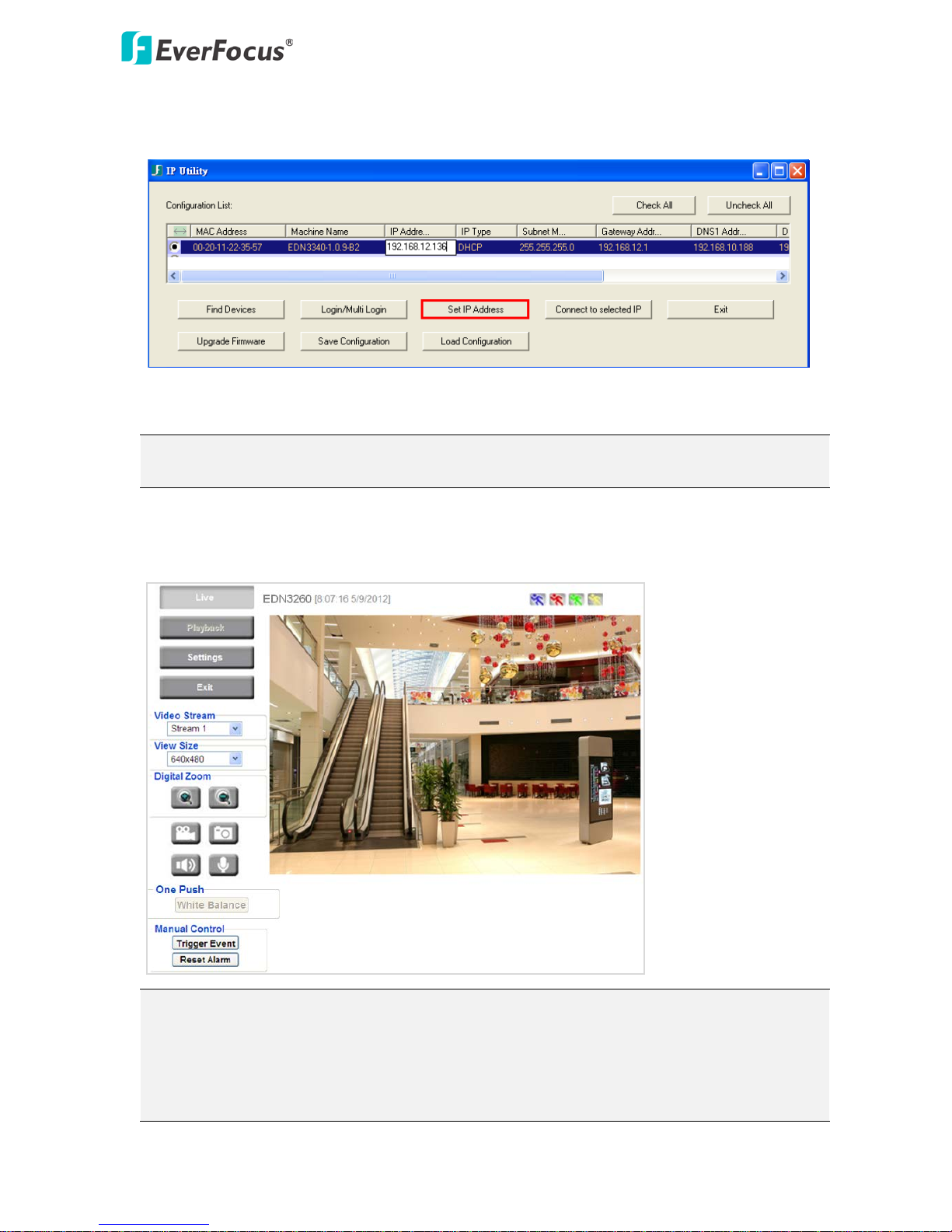

5. To change the IP address, double-click the IP Address of the camera. Type a new IP address and

then click Set IP Address to save the settings.

You can also change the other settings by double-clicking the values. After configuring the

values, click Save Configuration.

Note: Most networks uses DHCP to assign IP address, if you are unsure of your network

settings, please consult your network administrators for configuration details.

6. To access the camera, highlight the camera and click Connect to Selected IP. The Internet

Explorer window pops up.

7. Type the user ID and password to log in. The Live View window of the camera appears.

Note:

1. You might be required to download ActiveX for viewing the camera feed. If asked, click Yes.

2. To enable Remove Live View, Firmware Upgrade and ActiveX Prompt on Internet Explorer,

some settings have to be complete. Please refer to 5.2 Settings for Microsoft Internet

Explorer in the User’s Manual.
