Overview

Install the Yoke using the instructions that follow. Images

show a small (fos4PL8 or fos4PD8) fixture, but the instructions

are the same for all fos/4 Panel models.

WARNING: In addition to primary suspension, attach a safety cable (or other

approved safety device) to the fixture. Safety cables must be rated to support ten

times the fixture weight. Consult local standards to ensure that safety cables

meet all requirements.

Follow all safety precautions described in the

fos/4 Panel User Manual

, which is

available for download at etcconnect.com.

AVERTISSEMENT : En plus de la suspension principale, fixez une chaîne de

sécurité (ou tout autre dispositif de sécurité homologué) au projecteur. Les

chaînes de sécurité doivent être en mesure de supporter dix fois le poids du

projecteur. Consultez les normes locales pour vous assurer que les câbles de

sécurité respectent toutes les exigences.

What's in the Box

In addition to the yoke, there are two of each of the hardware items described below.

Image Name Part Number Description

Plate 7471A3063 fos/4 Panel pressure plate

Spacer HWM960 Spacer 16 mm OD x 10 mm ID x 10 mm L

Tilt-lock HWM8014 fos/4 Panel tilt-lock

Tilt-lock bolt HWM2344 Bolt M8 x 25 mm CARR CL-8.8

Washer (large) HW5126 Flat washer 5/16 .375 x .875 x .078

Washer (small) HWM2351 M8 washer 8.4 mm ID x 16 mm OD x 1.6 mm

Yoke bolt HWM2350 Bolt M8 x 25 mm

ETC Installation Guide

fos/4 Panel Yoke

fos/4 Panel Yoke Page 2 of 2 ETC

Install the Yoke

Tools required:13 mm socket wrench

Tilt-lock

Spacer

Yoke bolt

Washers

Tilt-lock bolt

Plate

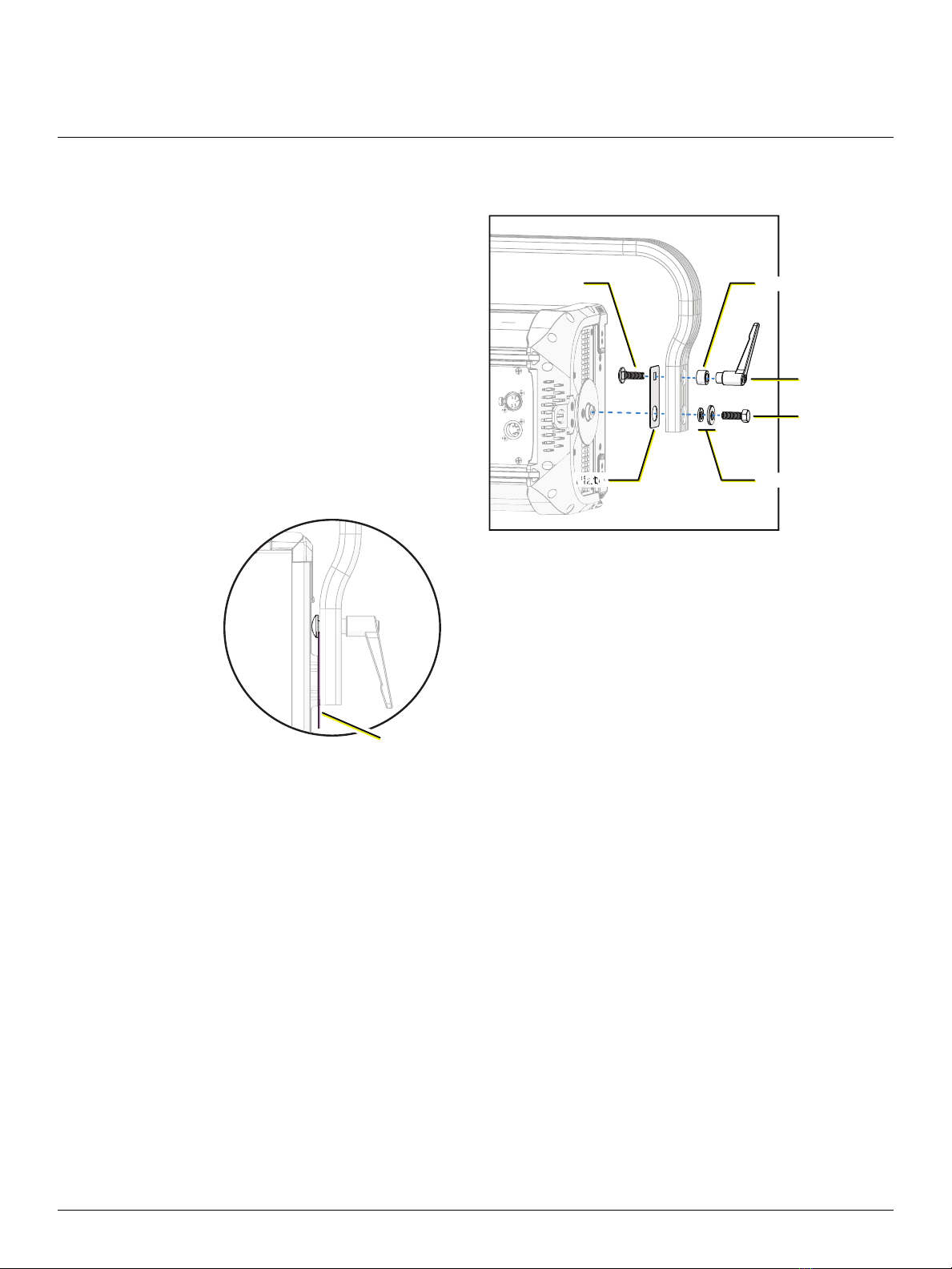

Position the fixture facedown on a

flat surface.

2. Position the yoke to align with the

sides of the fixture.

3. Use the yoke hardware to loosely

attach the yoke to one side of the

fixture (as shown in the image at

right).

•

Make sure that the plate is captured

by both the tilt-lock bolt and the

yoke bolt.

•

Make sure that the head of the tilt-

lock bolt is behind the circular clutch

plate on the fixture (see image

below).

Circular

clutch plate

4. Repeat step 3 on the other side.

5. Use the 13 mm socket wrench to tighten the yoke bolts, securing the yoke to the fixture.

6. Tighten the tilt-locks to secure the fixture position within the yoke.
