ETC Source 4WRD User manual

Source 4WRD

PAR and PARNel Fixture Bodies

Installation and User Manual

Part Number: 7067M1220 Rev C

Released: 2020-02

To view a list of ETCtrademarks and patents, go to

etcconnect.com/ip. All other trademarks, both marked and not

marked, are the property of their respective owners.

ETC intends this document, whether printed or electronic, to be

provided in its entirety.

Table of Contents

Source 4WRD Installation and User Manual i

Introduction 1

Help from ETC Technical Services 2

Safety 3

Install the Fixture 8

Wire the power connector(if needed) 8

Install the Source 4WRDLED 8

Attach C-clamp and Safety Cable 10

Connect Cables 11

Configure the Fixture 14

RDMValues 14

Set Up the Fixture 15

Set the Angle within the Yoke 15

Use the Accessory Holder 15

Loosen the Z-adjustmentKnob 15

Adjust the Focus Knob

(PARNelFixturesOnly) 16

Troubleshoot the Source 4WRD 17

About PARLenses 18

Clean and Maintain the Fixture 18

Clean the Fixture 18

Store the Retrofit 19

Clean the Lenses 19

Change a PARLens 19

Change a Front PARNelLens 21

Clean the Reflector 23

ii Source 4WRD Installation and User Manual

Source 4WRD Installation and User Manual 1

Introduction

Use the Source 4WRDLED or Source 4WRD II LED (supplied separately)

with the Source 4WRD PAR or PARNel Fixture Body to create the Source

4WRD PAR or PARNel fixture. The fixture produces about 20% more flux

than a 750W long-life Source Four PAR while consuming less power, and

it can be line-dimmed, DMX-dimmed, or dimmed locally on the fixture.

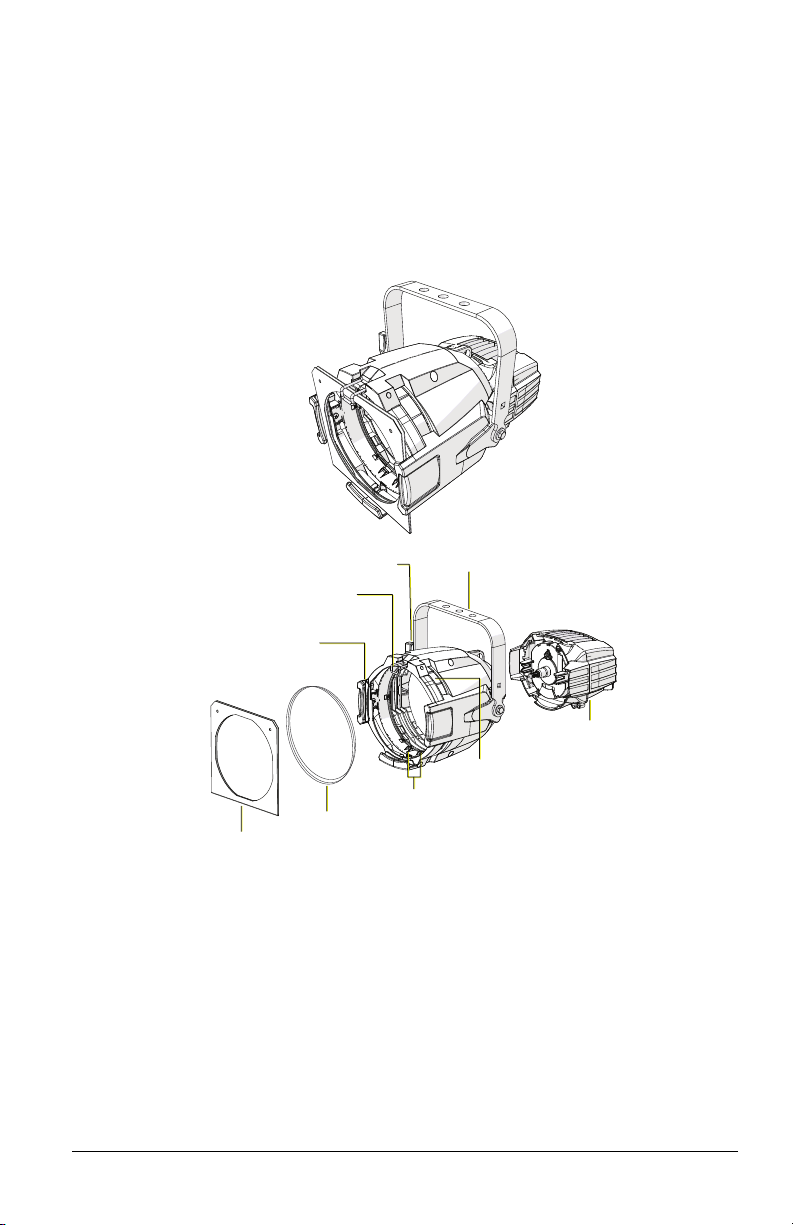

Yoke

Source 4WRD LED

or Source 4WRD II LED

(not included)

Lens

rotation

ring

Tabs

Lens

Color frame

holder

Color frame

retaining clip

Yoke locking knob

2 Source 4WRD Installation and User Manual

Help from ETC Technical Services

If you are having difficulties and your problem is not addressed by this

document, try the ETC support website at support.etcconnect.com or the

main ETC website at etcconnect.com. If none of these resources are

sufficient, contact ETC Technical Services directly at one of the offices

identified below. Emergency service is available from all ETC offices

outside of normal business hours.

When calling for help, take these steps first:

•

Prepare a detailed description of the problem

•

Go near the equipment for troubleshooting

•

Find your notification number if you have called in previously

Americas United Kingdom

ETC, Inc. ETC Ltd

Technical Services Department Technical Services Department

3031 Pleasant View Road 26-28 Victoria Industrial Estate

Middleton, WI 53562 Victoria Road,

800-775-4382 (USA, toll-free) London W3 6UU England

+1-608 831-4116 +44 (0)20 8896 1000

service@etcconnect.com techservltd@etcconnect.com

Asia Germany

ETCAsia ETC GmbH

Technical Services Department Technical Services Department

Room 1801, 18/F Ohmstrasse 3

Tower 1, Phase 1 Enterprise Square 83607 Holzkirchen, Germany

9 Sheung Yuet Road +49 (80 24) 47 00-0

Kowloon Bay, Kowloon, Hong Kong techserv-hoki@etcconnect.com

+852 2799 1220

techservasia@etcconnect.com

France

ETC France

Zone Urbaparc -

Bâtiment E

6 Boulevard de la Libération

Saint-Denis, 93200

+33 1 4243 3535

techservltd@etcconnect.com

Source 4WRD Installation and User Manual 3

Safety

The Source 4WRD fixture is intended for professional use only. Read the

entire manual before using this equipment.

WARNING: This fixture must be installed by a qualified

electrician in accordance with all national and local electrical

and construction codes and regulations.

WARNING: Note the following safety warnings before use:

•

Do not mount the fixture on or near a flammable

surface.

•

Do not use this fixture with a damaged power lead. If

the power lead (cord set) is damaged, it must be

replaced.

•

Mount and support the fixture only by the primary

suspension holes in the yoke.

•

Suspend the fixture from a suitable structure using only

hardware rated for the weight of the fixture.

•

In addition to primary suspension, attach a safety cable

(ETC Model 400SC or other approved safety cable or

device) to the fixture housing. An appropriate

attachment point (hole) is provided in the protruding

tab on the fixture housing.

•

Disconnect the unit from power and DMX and allow the

fixture to cool before removing or installing accessories,

and before all cleaning and maintenance.

•

Do not cover the fixture with material that is used for

thermal insulation.

4 Source 4WRD Installation and User Manual

AVERTISSEMENT : Prendre connaissance des avertissements

de sécurité suivants avant toute utilisation :

•

Ne pas installer le projecteur sur ou à côté d’une surface

inflammable.

•

Ne pas utiliser ce projecteur avec un cordon

d’alimentation endommagé. Si le cordon d’alimentation

(câble) est abîmé, il doit être remplacé.

•

Installer et accrocher le projecteur uniquement par les

trous de fixation principaux de la lyre.

•

Accrocher le projecteur à une structure convenable en

utilisant seulement du matériel adapté au poids du

projecteur.

•

En plus de l'accroche principale, fixer une élingue de

sécurité (modèle ETC400SC ou autre câble/dispositif de

sécurité certifié) au corps du projecteur. Un point

d’accroche (trou) approprié est prévu dans la patte qui

ressort du boîtier du projecteur.

•

Déconnecter l’alimentation et le DMX et laisser le

projecteur refroidir avant d’enlever ou installer

l'optique découpe ou les autres adaptateurs, et avant

tout nettoyage et entretien.

WARNING: RISK OF FIRE OR ELECTRIC SHOCK! Installing the

Source 4WRDLED retrofit kit requires knowledge of luminaire

electrical systems. If you are not qualified, do not attempt

installation. Contact a qualified electrician.

AVERTISSEMENT : RISQUE D'INCENDIE OU DE DÉCHARGE

ÉLECTRIQUE! Installer le nécessaire de conversion Source

4WRDLED nécessite une connaissance des systèmes

électriques de projecteurs. Si vous n’êtes pas qualifié, ne

tentez pas l’installation. Faire appel à un électricien qualifié.

WARNING: RISK OF FIRE OR ELECTRIC SHOCK! Install this kit

only onto luminaires that have the construction features and

dimensions shown in the images in this document and where

the input rating of the retrofit kit does not exceed the input

rating of the luminaire.

AVERTISSEMENT : RISQUE D'INCENDIE OU DE DÉCHARGE

ÉLECTRIQUE! N’installer ce kit que sur les projecteurs qui ont

les caractéristiques de construction et les dimensions

indiquées sur les images de ce document et où la puissance

électrique nécessaire à la conversion n’excède pas la puissance

maximale du projecteur.

Source 4WRD Installation and User Manual 5

WARNING: Note the following safety warnings before use:

•

The Source 4WRD LED is not user serviceable. Field

modification of the Source 4WRD LED will void your ETC

warranty.

•

Do not use the Source 4WRD fixture below 5°C (41°F).

•

Minimum storage temperature is 5°C (41°F). When the

fixture has been stored or transported in cold

temperatures, allow it to warm to room temperature

for a minimum of 1hour before applying power.

Applying power to a cold fixture will cause damage to

the fixture and void the ETCwarranty.

•

Do not use this fixture if a glass lens is deeply scratched

or cracked. Damaged lenses must be replaced.

•

To prevent wiring damage, or abrasion, do not expose

wiring to edges of sheet metal or other sharp objects.

•

Use the Source 4WRD fixture in dry locations only,

where humidity does not exceed 90 percent (non-

condensing). These fixtures are not intended for

outdoor use.

•

Do not make or alter any open holes in an enclosure of

wiring or electrical components during kit installation.

Note:

THE RETROFIT KIT IS ACCEPTABLE AS A COMPONENT OF A

LUMINAIRE WHERE THE SUITABILITY OF THE COMBINATION SHALL

BE DETERMINED BY AUTHORITIES HAVING JURISDICTION.

6 Source 4WRD Installation and User Manual

Specifications

For full product specifications, see the Source 4WRD PAR or PARNel

datasheet at etcconnect.com.

Electrical (120V)

•

114–125 VAC 60 Hz power input

•

150 W draw at full

•

Recommended 2 fixtures per dimmed circuit (D20 module)

•

Maximum of 14 fixtures per non-dimmed circuit (R20 module)

•

If using in DMX mode: Connect fixture to relay, constant power, or

dimmer with regulation off and parked at full

Typical Power Consumption

Mode Power Current

Idle:DMXMode 1.2W .03A

Idle: ACMode 0W 0 A

Full Intensity 150W 1.26A

Electrical (230V)

•

209–252 VAC 47–53 Hz power input

•

175 W draw at full

•

Recommended 2 fixtures per dimmed circuit (ED15 module)

•

Maximum of 6 fixtures per non-dimmed circuit (ER15AFR module)

•

If using in DMX mode: Connect fixture to relay, constant power, or

dimmer with regulation off and parked at full

Typical Power Consumption

Mode Power Current

Idle:DMXMode 3.7W .05A

Idle: ACMode 0W 0 A

Full Intensity 175W .75A
