Overview

The Aero Wave Station provides battery-free, wireless control of lighting,

combined with simple installation and long-term maintenance-free reliability.

Wave Stations require no wiring connections and use no batteries. The kinetic

energy of depressing either the ON or OFF side of the switch generates

enough power to transmit the switch event.

Two models are available including a single rocker switch and dual rocker

switch. Either station can be assigned to a controller exactly the same way. For

the dual switch models, each switch is separate from the other and can be

assigned to the same controller or independent controllers.

Preparation

The Aero Wave Station can be mounted to any surface such as a wall, cubicle,

or desk using the provided peel-and-stick adhesive strip, flush mounted in a

standard electrical back box or screwed to a surface.

The Wave Station should be installed in the room where the Aero controllers

are controlling the light fixtures or circuits. Consideration should be made for

locating the controllers, switches, and sensors based on the construction

Models

Model Description

UAW1001 Aero Wave Station, 1-gang, single switch

UAW1002 Aero Wave Station, 1-gang, dual switch

Single gang - single

switch Wave station

Single gang - dual

switch Wave station

ETC Installation Guide

Aero Wave Station

Unison Aero Wave Station Page 2 of 4

materials in the space and furniture that may disrupt the transmissions.

Installation should follow local codes and standard practices.

It is recommended that stations and sensors be placed with in 50 feet (15m) of

the controller for optimal performance.

Installing the Aero Wave Station

The Wave Station can be surface mounted double-sided tape or Velcro®,

screws, or it can be flush mounted in a standard back box. Mounting hardware

or tape is supplied. The “On” side of the station (indicated with an imprinted “I”)

should be mounted at the top.

Surface Mount Using Adhesive Peel-and-Stick or Velcro

Use the provided double-sided tape or Velcro (not included) to attach the

station to the surface.

Step 1: Attach a 1.5 inch (4 cm) strip of tape or Velcro to the back of the station,

ensuring it does not extend beyond the edge.

Step 2: Do one of the following:

• If using double-sided tape, remove the protective film to reveal the

sticky surface.

• If using Velcro, attach the opposite Velcro material to its mating

strips and then remove the protective film to reveal the adhesive.

Step 3: Align the station to the surface with the “On” side of the station directed

to the top, then press the station into place.

Typical Radio Range

Material Range - typical

Line of sight 100 feet (30m) corridors

Line of sight 330 feet (100m) open halls

Plasterboard 100 feet (30m) through 5 walls

Brick 65 feet (20m) through 3 walls

Concrete 65 feet (20m) through 3 walls

FerroConcrete 33 feet (10m)

Ceiling 1 ceiling

Signal Loss

Material Attenuation

Wood/Plaster/Glass 0-10%

Brick/MDF 5-35%

Metal 90-100%

ETC Installation Guide

Control Series

Page 3 of 4 Unison Aero Wave Station

Surface Mount Using Screws

Use the appropriate screws and anchors (not provided) for surface or back box

mounting.

Step 1: Remove the front cover from the station by gently prying the two pieces

apart from either the top or bottom. For dual switch versions, you will

need to remove both the left and the right side switch covers as well

as the divider.

Step 6: Attach the faceplate to the installed back plate.

• For the single switch station, align the faceplate to the back plate

(be sure the “On” side is directed up), then snap the two pieces

together at the center pivot point.

• For the dual switch station, align the left side switch cover to the

station (be sure the “On” side is directed up), then snap it into place

at the center pivot point. Insert the divider piece into the provided

slot with the curve in the top position (see image above). Attach the

right side switch cover to the station (be sure the “On” side is

directed up), then snap it into place at the center pivot point.

Flush Mount in a Back Box

Install the Wave Station to a flush mounted installed single gang back box.

Step 1: Remove the front cover from the station by gently prying the two pieces

apart from either the top or bottom. For dual switch versions, you will

pre-drill in these

locations for

surface mount

using screws

Step 2: Pre-drill two holes in the back

plate using the provided hole

marks.

Step 3: Drill the required mounting

holes.

Step 4: Install anchors (if required).

Step 5: Attach the back plate to the

wall using screws (hardware

provided by others).

ETC Installation Guide

Aero Wave Station

Unison Aero Wave Station Page 4 of 4

need to remove both the left and the right side switch covers as well

as the divider.

• For the dual switch station, align the left side switch cover to the

station (be sure the “On” side is directed up), then snap it into place

at the center pivot point. Insert the divider piece into the provided

slot with the curve in the top position (see image to the left). Attach

the right side switch cover to the station (be sure the “On” side is

directed up), then snap it into place at the center pivot point.

Linking to a Controller

After the Aero Wave Station has been installed, it must be linked to the correct

controller. Reference the Unison Aero 902 MHz User Programming Guide.

ETC documentation is available for free download at www.etcconnect.com.

Note:

If line voltage wiring is installed in the back box, proper

voltage barrier is required between the wiring and the back

box.

pre-drill at

dimples

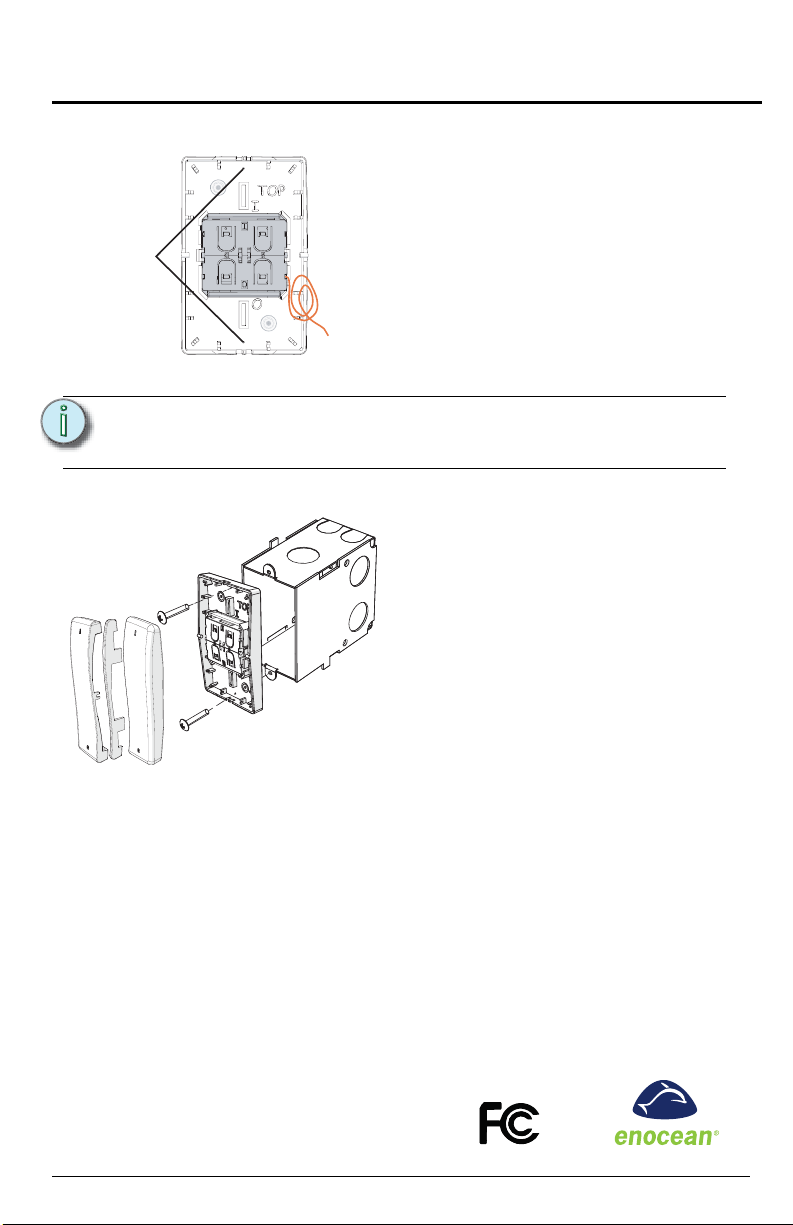

Step 2: Gently pull the loose end of the orange

antenna from the back plate just until it

reveals direct access to the top and

bottom of the back plate for pre-drilling of

the mounting holes.

Step 3: Notice the pinpoint dimples at the center

top and center bottom of the back plate.

Pre-drill each dimple to accept mounting

hardware (not provided) for attachment

to a back box.

Step 4: Insert the backplate to the

installed back box and secure

with two screws (hardware

provided by others).

Step 5: Attach the faceplate to the

installed back plate.

• For the single switch station,

align the faceplate to the

back plate (be sure the “On”

side is directed up), then

snap the two pieces together

at the center pivot point.

When equipped with 902MHz radio -

Contains FCC ID: SZV-PTM210U and contains IC: 5713A-PTM210U

When equipped with 315MHz radio -

Contains FCC ID: SZV-PTM200C and contains IC: 5713A-PTM200C

The enclosed device complies with Part 15 of the FCC Rules.

Operation is subject to the following two conditions:

(I.) this device may not cause harmful interference and

(ii.) this device must accept any interference received, including interference

that may cause undesired operation.
