Emerson EIM HQ Series User manual

Installation, Operation and Maintenance Manual

VCIOM-15204-EN Rev. 1

May 2020

EIM HQ Series Quarter-Turn Electric Actuator

Models HQ-008/015/020/030/050/060/080/120/200/300/

Manual HQ-400-1005

Installation, Operation and Maintenance Manual

VCIOM-15204-EN Rev. 1

This page intentionally left blank

Notes

May 2020

Installation, Operation and Maintenance Manual

VCIOM-15204-EN Rev. 1

Table of Contents

Section 1: General

1.1 Pre-Installation Inspection ............................................................................ 1

Section 2: Actuator Mounting

Actuator Mounting ................................................................................................. 2

Section 3: External Construction

External Construction ............................................................................................. 3

Section 4: Wiring Diagrams

Wiring Diagrams..................................................................................................... 4

Section 5: Power Requirements

Power Requirements............................................................................................... 6

Section 6: Duty Cycle

Duty Cycle .............................................................................................................. 7

Section 7: Handwheel Declutch / Manual Override

Handwheel Declutch / Manual Override .................................................................. 8

Section 8: Mechanical Travel Stop Adjustment

Mechanical Travel Stop Adjustment......................................................................... 9

Section 9: Electrical Connection

Electrical Connection............................................................................................ 10

Section 10: Limit Switch Setting Instructions

Limit Switch Setting Instructions........................................................................... 11

Table of Contents

May 2020

Table of Contents

Installation, Operation and Maintenance Manual

VCIOM-15204-EN Rev. 1

Section 11: Torque Switch Adjustment

Torque Switch Adjustment.................................................................................... 12

Section 12: Reverse Acting (Counterclockwise to Close)

Reverse Acting (Counterclockwise to Close).......................................................... 13

Section 13: Lubrication

Lubrication............................................................................................................ 14

Section 14: MDPI (Mechanical Dial Position Indicator) Settings

MDPI (Mechanical Dial Position Indicator) Settings................................................ 15

Section 15: Maintenance

Maintenance......................................................................................................... 16

Section 16: Storage

Storage................................................................................................................. 17

Section 17: Mounting Base Detail

Mounting Base Detail............................................................................................ 18

Section 18: Drive Bushing Details

Drive Bushing Details ............................................................................................ 19

Section 19: Troubleshooting

Troubleshooting ................................................................................................... 20

Section 20: Product Features and Specications

Product Features and Specications...................................................................... 21

Table of Contents

May 2020

Installation, Operation and Maintenance Manual

VCIOM-15204-EN Rev. 1

May 2020

Section 1: General

HQ Series electric actuators are design to provide reliable and efcient operation of 90°

quarter-turn valves, dampers, etc.

! WARNING

Use caution when working in, with, or around valves and actuators. High pressures, forces,

voltages and ammable media can be present.

! WARNING

Failure to follow instructions for proper electrical wiring, storage, set-up and maintenance

may cause serious injury, damage equipment, or void warranty.

1.1 Pre-Installation Inspection

Verify the actuator nameplate to insure correct model number, torque, operating speed,

voltage and enclosure type before installation or use. It is important to verify that the

output torque of the actuator is appropriate for the torque requirements of the valve and

that the actuator duty cycle is appropriate of the intended application.

Section 1: General

General

May 2020

Installation, Operation and Maintenance Manual

VCIOM-15204-EN Rev. 1

Section 2: Actuator Mounting

Do not lift the actuator by the handwheel.

The actuator may be mounted in any position. The HQ-Series actuators are supplied

with a female drive output, ISO5211. Bolt patterns are provided for actuator mounting.

The actuator drive bush is removable for ease of machining.

It is mandatory that the actuator be rmly secured to a sturdy mounting bracket or directly

mounted to the valve’s ISO mounting pad. High tensile bolts or studs with spring locking

washers must be used. The valve output shaft must be in line with the actuator output

drive to avoid side-loading the shaft. To prevent backlash, no exibility in the mounting

bracket or mounting should be allowed.

Actuator Mounting

Section 2: Actuator Mounting

Installation, Operation and Maintenance Manual

VCIOM-15204-EN Rev. 1

May 2020

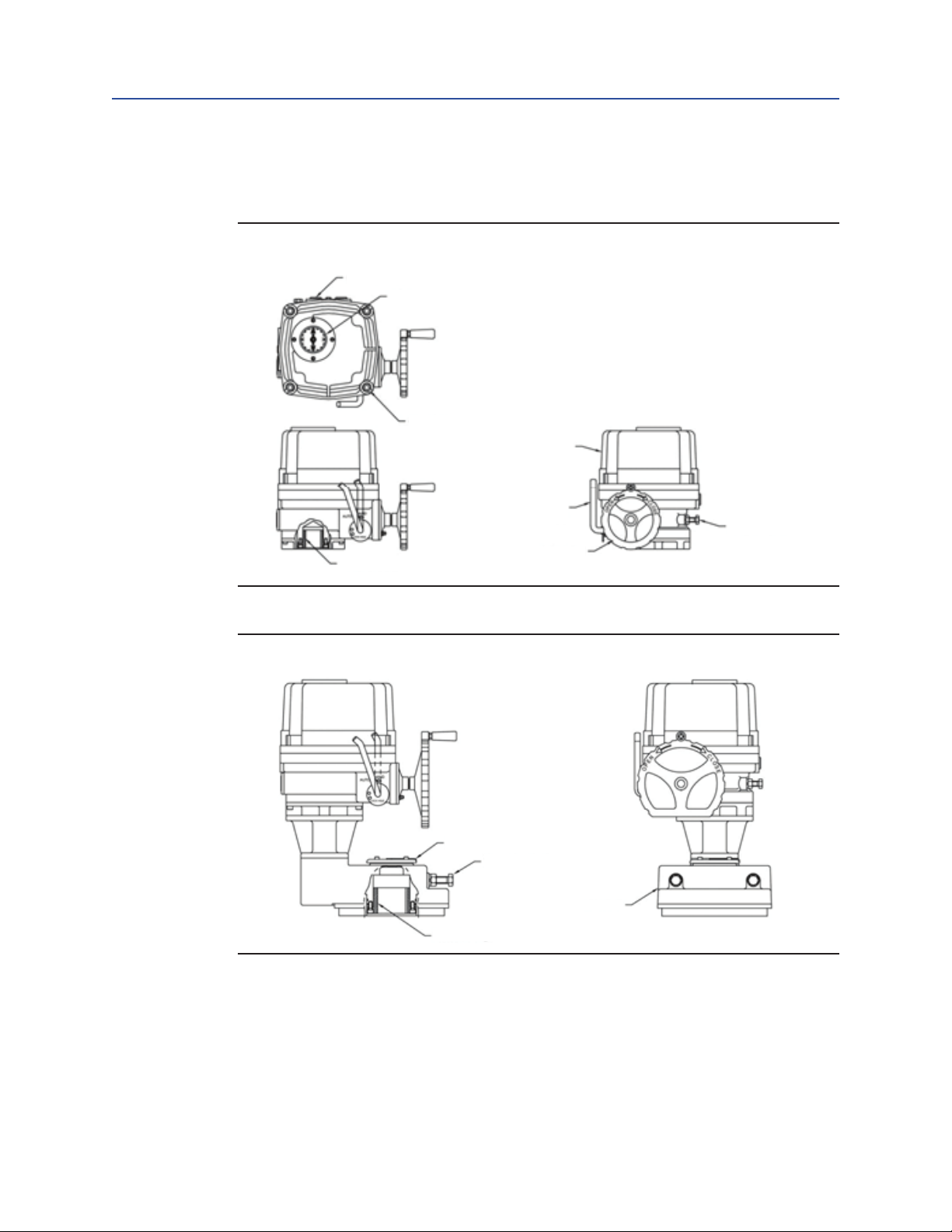

Section 3: External Construction

Figure 1 HQ-008 – HQ-120

Figure 2 HQ-200 – HQ-300

Conduit Entries

MDPI

Cover Bolts

Drive Bushing

Declutch

Lever

Cover

Handwheel

Travel Stop Bolts

Drive Bushing

Travel Stop Bolts

Gearbox

MDPI

Section 3: External Construction

External Construction

May 2020

Installation, Operation and Maintenance Manual

VCIOM-15204-EN Rev. 1

OT OC

Section 4: Wiring Diagrams

Figure 3 AC Single Phase Power Model HQ 015 - 300

POWER

(V)

INCOMING

AC 1PH

LIVE

NEUTRAL

OVER

TORQUE

LAMP

OPEN

LAMP OPEN STOP CLOSE

AUX. CONTACT

2 EXTRA SWITCHES

MAX. 250 V AC 16 A

SUGGESTED CUSTOMERS WIRING

ACTUATORS WIRING

CONDENSER

BASE

EARTH

Section 4: Wiring Diagrams

Wiring Diagrams

Installation, Operation and Maintenance Manual

VCIOM-15204-EN Rev. 1

May 2020

Figure 4 AC 3-Phrase Power Model

Wiring Diagrams

Section 4: Wiring Diagrams

May 2020

Installation, Operation and Maintenance Manual

VCIOM-15204-EN Rev. 1

Section 5: Power Requirements

Consult the nameplate of the actuator for duty cycle and current draw information.

Section 5: Power Requirements

Power Requirements
