Emerson EIM 2000 Series Manual

Installation and Maintenance Manual

E2K-401-0817 Rev. 1

August 2017

EIM 2000 Series E1195 MCP

Installation and Maintenance Manual

E2K-401-0817 Rev. 1

Table of Contents

August 2017

Table of Contents

Section 1: Storage Instructions

1.1 Short Term Storage....................................................................................... 1

1.2 Long Term Storage........................................................................................ 1

1.3 Do................................................................................................................. 2

1.4 Don't............................................................................................................. 2

1.5 Lubrication.................................................................................................... 2

1.6 Maintenance ................................................................................................. 3

1.7 Pressure Relief............................................................................................... 3

Section 2: Assembly to Valves

2.1 Threaded Valve Stem .................................................................................... 4

2.1.1 Thrust Spool Installation (Multi-Turn) ................................................. 5

2.1.2 Spline Bushing (Quarter-Turn) ............................................................ 6

2.2 Quarter Turn Valve ........................................................................................ 6

2.2.1 Stop Setting Procedure (Quarter-Turn) ............................................... 6

Section 3: MCP and Electrical Hook Up

3.1 Modular Control Package - MCP .................................................................... 8

3.2 Electrical Hook Up......................................................................................... 9

Section 4: Geared Rotary Limit Switch Setting Instructions

4.1 Before making any switch setting:............................................................... 10

4.2 To set Open Limit Switch (LSO).................................................................... 10

4.3 To set Close Lmit Switch (LSC) ..................................................................... 12

4.4 To set Intermediate Switch (LSA or LSB)....................................................... 12

4.5 Torque Seated Valves .................................................................................. 12

Section 5: Torque Switch TSC and TSO Setting

5.1 Description ................................................................................................. 13

5.2 Adjust with Screwdriver............................................................................... 14

5.3 Approximate Torque Spring Chart............................................................... 14

5.4 Torque Switch Calibration ........................................................................... 14

5.4.1 To set CLOSE Torque Switch (TSC)..................................................... 14

5.4.2 To Set OPEN Torque Switch (TSO) ..................................................... 15

5.5 Switch Rotation Limit .................................................................................. 15

Table of Contents

August 2017

Installation and Maintenance Manual

E2K-401-0817 Rev. 1

Table of Contents

Section 6: MDPI and Potentiometer Gear Box P/N 1030

6.1 Description ................................................................................................. 16

6.2 N Number ................................................................................................... 16

6.3 Calibration .................................................................................................. 16

6.4 MDPI and POT ............................................................................................. 17

6.5 Potentiometer Only .................................................................................... 17

6.6 Gear System to Field Mount MDPI ............................................................... 17

6.7 Part No. 1030 - CHANGE ............................................................................. 18

Section 7: Wiring Diagram

7.1 Symbols for MCP......................................................................................... 19

Section 8: Troubleshooting ................................................24

Installation and Maintenance Manual

E2K-401-0817 Rev. 1

August 2017

Storage Instructions

Section 1: Storage Instructions

1.1 Short Term Storage

(Stored at job site less than one year from shipment)

1. Actuator should be stored in the recommended mounting position. The motor

should be horizontal and Electrical Enclosure either horizontal or vertical.

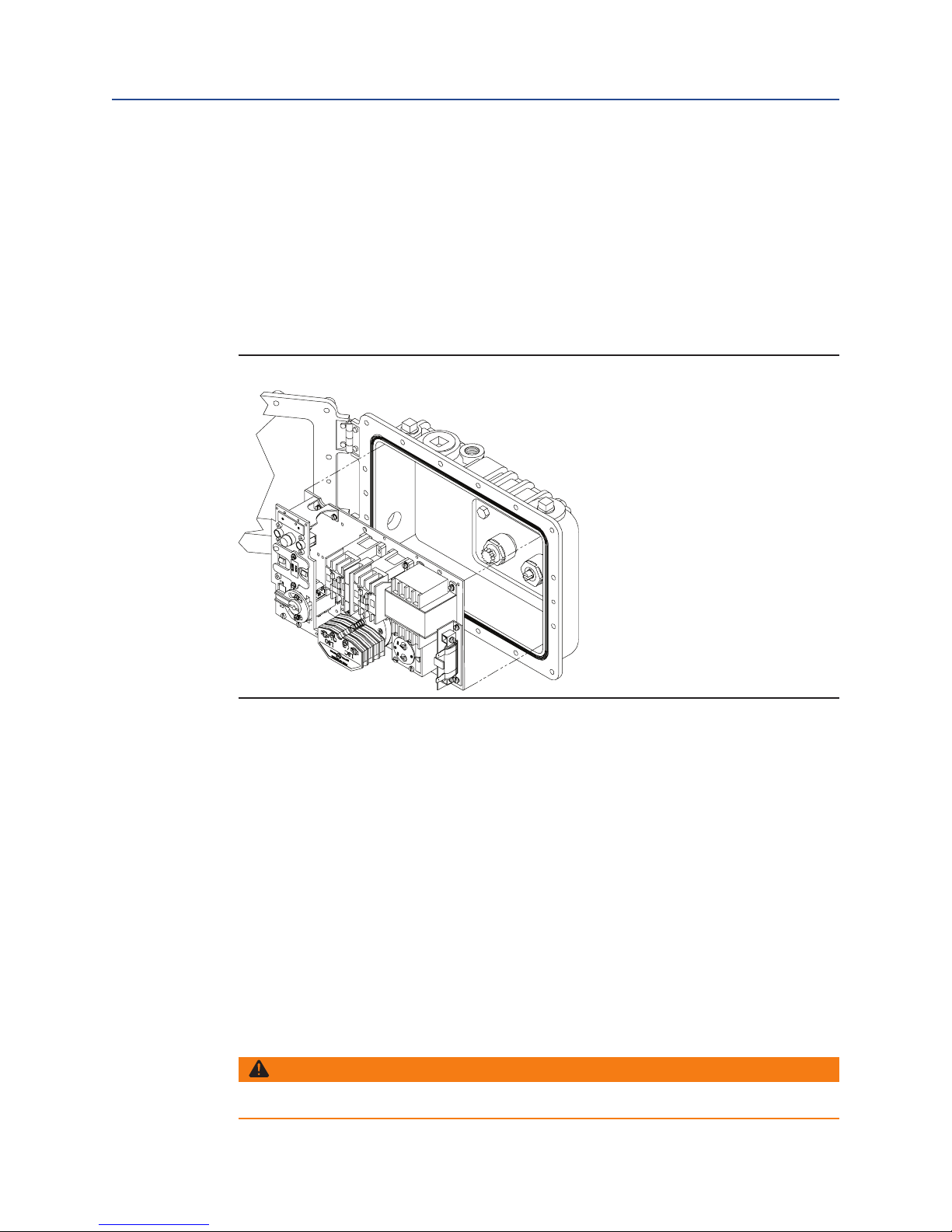

Figure 1

2. Actuator should be stored indoors free from job site dirt, mud, moisture and

temperature changes.

3. If indoor storage is not possible, the actuator must be stored off the ground, above

possible water or snow level. Remove MCP and store with other electrical and

electronic equipment in protected warehouse. If MCP is not removed,

Space Heater MUST be energized to protect Electrical and Electronic Controls.

4. EIM supplies plugs in each conduit entry. Do not remove until electrical hook-up.

5. Cover units loosely with a plastic sheet. This serves as partial protection from rain.

1.2 Long Term Storage

(Stored more than one year from shipment)

1. Store indoors or MCP must be removed and stored in protected area. Follow

procedures of short term storage.

WARNING:

Failure to store actuator properly will void warranty of electrical & electronic components.

Section 1: Storage Instructions

August 2017

Installation and Maintenance Manual

E2K-401-0817 Rev. 1

Storage Instructions

1.3 Do

1. Do follow proper storage procedures. Improper storage will void warranty.

2. DANGER: Do check for proper motor rotation. If valve goes wrong direction when

button is pushed, you have no torque or limit protection.

Either incoming power or motor wiring must be reversed.

3. Do read and follow procedures before attempting to energize actuator.

4. Do cut off electric power before opening switch compartment.

5. Do install pressure relief vent in highest point of gearbox.

6. Do use stem covers of sufcient length to protect valve stem.

7. Do clean Electrical Enclosure ange thoroughly & lightly grease before closing.

8. Do secure all Electrical bolts.

9. Do follow an annual maintenance procedure.

10. Do use caution when working on, with, or around valves and actuators. You are

dealing with high pressures, forces, voltages and ammable or toxic media.

1.4 Don't

1. Start-up without reading this manual.

2. Don’t stack actuators.

3. Don’t store actuator on the ground unprotected.

4. Don’t lift the unit by clutch lever or handwheel.

5. Don’t lift a valve assembly by electric actuator.

6. Don’t operate electrically without rst checking for proper phase rotation, valve

position, torque and limit switch adjustments.

7. Don’t plug the motor by starting and stopping repeatedly to move a valve that is

too stiff. Check for cause.

8. Don’t jumper torque switches except as recommended by Wiring Diagram or

Valve Manufacturer.

9. Don’t use oversize thermal motor overloads to eliminate a tripping problem.

Find the cause and correct.

10. Don’t use a cheater to try to force the handwheel. You can damage gearing and

shafting. Find the cause and correct.

11. Don’t torque seat valve, sluice gate or damper unless the valve manufacturer

recommends.

1.5 Lubrication

EIM Actuators are factory lled with a high quality lubricant carefully selected to insure

actuator performance under specied operating conditions. Refer to EIM JOB SPEC

SHEET to identify the lubricant provided. Normal operation of actuator will not require

replacement of lubricant.

Section 1: Storage Instructions

Installation and Maintenance Manual

E2K-401-0817 Rev. 1

August 2017

Storage Instructions

1.6 Maintenance

At least once a year a check should be made of your EIM actuator.

a. Disconnect all electrical power to actuator.

b. Open Electrical Enclosure. Inspect and tighten all electrical connections.

c. Visually inspect for any electrical or mechanical damage.

Replace worn or damaged components.

d. Check lubrication consistency and level. Fill or replace if required.

1.7 Pressure Relief

During normal operation of Electric Actuator, gear temperature increase in combination

with outdoor temperature variations will cause a small pressure build-up.

EIM furnishes a Pressure Relief Vent Fitting P/N 83385. Placement on Actuator can be

determined only after eld location and position of valve has been determined.

Select the highest 1/2 NPT vent location in the Gear Box, remove 1/2 NPT Plug and replace

with P/N 83385. Possible locations of the Plugs are shown on EIM Outline Drawing.

Section 1: Storage Instructions

August 2017

Installation and Maintenance Manual

E2K-401-0817 Rev. 1

Assembly to Valves

Section 2: Assembly to Valves

2.1 Threaded Valve Stem

Figure 2 Stem Nut Installation (Multi-Turn)

1. Unscrew Locknut (55) holding Bronze Stem Nut (54) and remove Stem Nut and

Key (52).

2. Lubricate Stem and run Stem Nut down Stem to check acme thread t, then

remove Stem Nut and set aside.

3. Lower actuator over Stem onto valve ange. The screws thru valve ange into

actuator must engage a minimum of one full screw diameter deep into bottom

base and be tightened to a preload. See assembly drawing for screw size and

torque to tighten properly.

4. Screw Stem Nut on Valve Stem until it enters Drive Sleeve. Line Nut Key with Drive

Sleeve keyway and insert Stem Nut Key (52).

5. Turn handwheel in Open direction, pulling the Stem Nut into Drive Sleeve until it

bottoms out (valve will begin to open).

CAUTION:

Locknut must be tight against stem nut.

6. Lower Locknut (55) over Valve Stem and screw into place rmly against top of

Stem Nut. Tap Locknut ears using brass drift.

Section 2: Assembly to Valves

Installation and Maintenance Manual

E2K-401-0817 Rev. 1

August 2017

Assembly to Valves

2.1.0.1 Mounting Screws

If EIM supplied adaption, the mounting screws are included. If the adaption to the valve

was the responsibility of others, the mounting screws are not furnished by EIM. Screws thru

adapter MUST engage a minimum of one screw diameter deep into EIM actuator base.

2.1.0.2 Locknut Lockpin Installation

1. With the actuator in place on the valve, ensure proper ange mating and valve

actuator orientation.

2. Use a number 30 (.1285) drill bit to drill a hole 3/4 inch deep into the Drive Sleeve

assembly threads for the Locknut Lockpin(56). Use the groove in the Stem Nut

Locknut threads as a guide.

3. Install the Locknut Lockpin (56) into the drilled hole to prevent the Stem Nut

Locknut from working loose and turning.

NOTE:

When installing, the Locknut Lockpin should extend 1/4 inch above the Drive Sleeve

assembly to allow for easy removal.

2.1.1 Thrust Spool Installation (Multi-Turn)

1. Locate Thrust Mounting bolts.

2. Remove the eight mounting bolts and separate the Spool from the actuator.

3. Position the Spool over the Valve Stem. Thread the Spool onto the Valve Stem until

it meets the valve plate.

4. Bolt and secure the Spool onto valve.

5. Position actuator above Spool. Lower actuator onto Spool while manually rotating

the unit until ears on the Stem Nut and ears on the main Drive Sleeve mesh.

6. Grease the ange face before securing unit to Spool.

7. Re-install thrust plate mounting bolts. Tighten to proper torque.

NOTE:

Reverse procedure if the Stem Nut needs to be replaced. Actuator does not need to be

returned to factory for this procedure.

Section 2: Assembly to Valves

August 2017

Installation and Maintenance Manual

E2K-401-0817 Rev. 1

Assembly to Valves

2.1.2 Spline Bushing (Quarter-Turn)

EIM removable Spline Bushing allows easy adaption to valve shaft diameter and Key.

Actuator may be rotated with respect to the valve shaft for unexpected or awkward eld

installations.

1. Move valve to full Open or Close.

2. Place Spline Bushing on valve shaft with Key and tighten set screw.

3. Using the handwheel on actuator, move the Gear Position Indicator Arrow (21)

to full Open or Close (duplicating the position in Step 1).

4. Position actuator so the spline bore is correctly aligned with the Spline Bushing

on stem shaft.

5. Move the actuator onto the shaft until the ange faces properly mate.

Secure with screws thru the adapter ange into the base of the actuator.

2.2 Quarter Turn Valve

2.2.1 Stop Setting Procedure (Quarter-Turn)

Built-in mechanical stops are provided to prevent handwheel operation beyond total

valve travel (90° ± 6°).

Positive mechanical stops are in full accordance with AWWA 250% rim pull overload

requirement. End of travel stops are independently adjusted, locked in place and sealed.

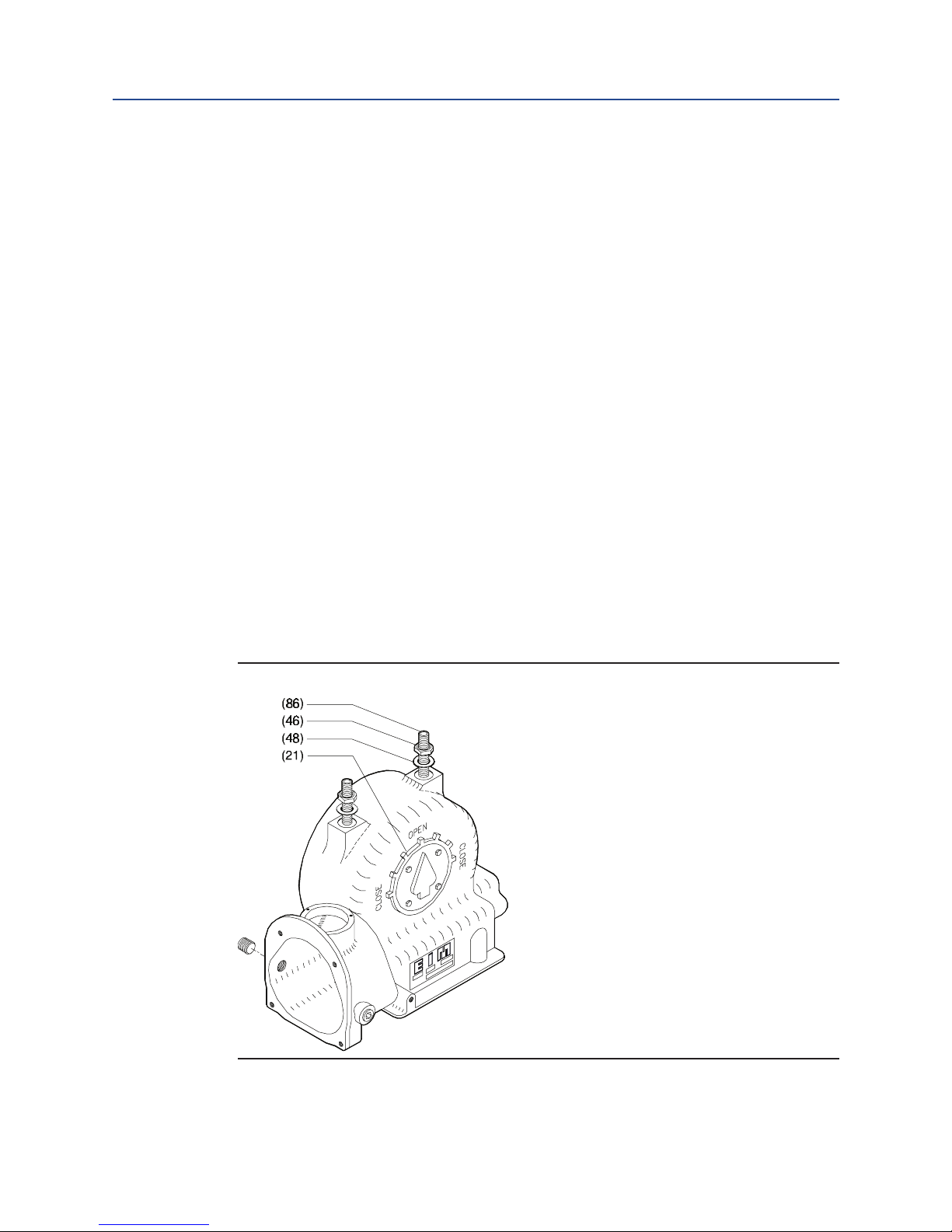

Figure 3

Section 2: Assembly to Valves

Other manuals for EIM 2000 Series

Table of contents

Other Emerson Controllers manuals

Emerson

Emerson Fisher easy-Drive 200L User manual

Emerson

Emerson Fisher 1305 Series User manual

Emerson

Emerson Fisher HSRL Series User manual

Emerson

Emerson Bettis Nuclear Series User manual

Emerson

Emerson Vilter MicroVission Operation manual

Emerson

Emerson Fisher D4 User manual

Emerson

Emerson Powerdrive F300 User manual

Emerson

Emerson FISHER 66 User manual

Emerson

Emerson 350 series User manual

Emerson

Emerson numatics g3 series User manual

Emerson

Emerson Bristol ControlWave PAC User manual

Emerson

Emerson Asset Management Tag User manual

Emerson

Emerson TARTARINI FL Series User manual

Emerson

Emerson Liebert OpenComms EM User manual

Emerson

Emerson Fisher Y692VB Series User manual

Emerson

Emerson Copeland Site Supervisor Controller User manual

Emerson

Emerson XM678D User manual

Emerson

Emerson Fisher 92S User manual

Emerson

Emerson OPM4001 User manual

Emerson

Emerson EXD-SH2K User manual

Emerson

Emerson Dixell WING XW264K Wiring diagram

Emerson

Emerson Fisher 161AY Series User manual

Emerson

Emerson Fisher 785C User manual

Emerson

Emerson Bettis RPE Series User manual

Popular Controllers manuals by other brands

Digiplex

Digiplex DGP-848 Programming guide

YASKAWA

YASKAWA SGM series user manual

Sinope

Sinope Calypso RM3500ZB installation guide

Isimet

Isimet DLA Series Style 2 Installation, Operations, Start-up and Maintenance Instructions

LSIS

LSIS sv-ip5a user manual

Rockwell Automation

Rockwell Automation 1769-L31 installation instructions

Airflow

Airflow Uno hab Installation and operating instructions

ABB

ABB ACS580-01 drives Hardware manual

Panasonic

Panasonic GM1 Series Reference manual

AutoAqua

AutoAqua Smart ATO micro SATO-120P manual

Panasonic

Panasonic FP? Positioning Unit RTEX Technical manual

Samson

Samson Type 5824 Mounting and operating instructions

Alpha IP

Alpha IP MIOB 21001 manual

Siemens

Siemens OpenAir GMA 1 Series Mounting instructions

Surecom

Surecom SR-629 user manual

Fishman

Fishman TriplePlay installation guide

Regulus

Regulus SRS1 T Installation and operation manual

3M MicroTouch EX113 reference guide
