Electrolux EWF 128500 H User manual

EWF 128500 H EN WASHING MACHINE USER MANUAL 2

FR LAVE-LINGE NOTICE D'UTILISATION 27

CONTENTS

1. SAFETY INFORMATION...................................................................................... 3

2. SAFETY INSTRUCTIONS.....................................................................................4

3. PRODUCT DESCRIPTION................................................................................... 5

4. CONTROL PANEL...............................................................................................6

5. PROGRAMMES ..................................................................................................8

6. CONSUMPTION VALUES..................................................................................11

7. OPTIONS...........................................................................................................12

8. SETTINGS......................................................................................................... 14

9. BEFORE FIRST USE..........................................................................................14

10. DAILY USE...................................................................................................... 14

11. HINTS AND TIPS............................................................................................. 18

12. CARE AND CLEANING....................................................................................19

13. TROUBLESHOOTING......................................................................................23

14. TECHNICAL DATA...........................................................................................25

WE’RE THINKING OF YOU

Thank you for purchasing an Electrolux appliance. You’ve chosen a product that

brings with it decades of professional experience and innovation. Ingenious and

stylish, it has been designed with you in mind. So whenever you use it, you can be

safe in the knowledge that you’ll get great results every time.

Welcome to Electrolux.

Visit our website for:

Get usage advice, brochures, trouble shooter, service information:

www.electrolux.com

www.registerelectrolux.com

Buy Accessories, Consumables and Original spare parts for your appliance:

www.electrolux.com/shop

CUSTOMER CARE AND SERVICE

Always use original spare parts.

When contacting our Authorised Service Centre, ensure that you have the following

data available: Model, PNC, Serial Number.

The information can be found on the rating plate.

Warning / Caution-Safety information

General information and tips

Environmental information

Subject to change without notice.

www.electrolux.com2

1. SAFETY INFORMATION

Before the installation and use of the appliance, carefully

read the supplied instructions. The manufacturer is not

responsible if an incorrect installation and use causes

injuries and damages. Always keep the instructions with

the appliance for future reference.

1.1 Children and vulnerable people safety

•This appliance can be used by children aged from 8

years and above and persons with reduced physical,

sensory or mental capabilities or lack of experience and

knowledge if they have been given supervision or

instruction concerning use of the appliance in a safe

way and understand the hazards involved.

•Do not let children play with the appliance.

•Keep all packaging away from children.

•Keep all detergents away from children.

•Keep children and pets away from the appliance door

when it is open.

•If the appliance has a child safety device, we

recommend you activate it.

•Cleaning and user maintenance shall not be made by

children without supervision.

1.2 General Safety

•Do not change the specification of this appliance.

•Obey the maximum load volume of 8 kg (refer to the

“Programme chart” chapter).

•The operating water pressure (minimum and maximum)

must be between 0,5 bar (0,05 MPa) and 8 bar (0,8

MPa).

•The ventilation openings in the base (if applicable) must

not be obstructed by a carpet.

•The appliance is to be connected to the water mains

using the new supplied hose-sets. Old hose sets must

not be reused.

ENGLISH 3

•If the supply cord is damaged, it must be replaced by

the manufacturer, its Authorised Service Centre or

similarly qualified persons in order to avoid a hazard.

•Before maintenance, deactivate the appliance and

disconnect the mains plug from the mains socket.

•Do not use water spray and steam to clean the

appliance.

•Clean the appliance with a moist soft cloth. Only use

neutral detergents. Do not use abrasive products,

abrasive cleaning pads, solvents or metal objects.

2. SAFETY INSTRUCTIONS

2.1 Installation

• Remove all the packaging and the

transit bolts.

• Keep the transit bolts. When you move

the appliance again you must block the

drum.

• Always be careful when you move the

appliance because it is heavy. Always

wear safety gloves.

• Do not install or use a damaged

appliance.

• Obey the installation instruction

supplied with the appliance.

• Do not install or use the appliance

where the temperature is less than 0

°C or where it is exposed to the

weather.

• Make sure that the floor where you

install the appliance is flat, stable, heat

resistant and clean.

• Make sure that there is air circulation

between the appliance and the floor.

• Adjust the feet to have the necessary

space between the appliance and the

carpet.

• Do not install the appliance where the

appliance door can not be fully

opened.

2.2 Electrical Connection

• The appliance must be earthed.

• Always use a correctly installed

shockproof socket.

• Make sure that the electrical

information on the rating plate agrees

with the power supply. If not, contact

an electrician.

• Do not use multi-plug adapters and

extension cables.

• Make sure not to cause damage to the

mains plug and to the mains cable.

Should the mains cable need to be

replaced, this must be carried out by

our Authorised Service Centre.

• Connect the mains plug to the mains

socket only at the end of the

installation. Make sure that there is

access to the mains plug after the

installation.

• Do not touch the mains cable or the

mains plug with wet hands.

• Do not pull the mains cable to

disconnect the appliance. Always pull

the mains plug.

• Only for UK and Ireland: The appliance

has a 13 amp mains plug. If it is

necessary to change the fuse in the

mains plug, use a 13 amp ASTA (BS

1362) fuse.

• This appliance complies with the E.E.C.

Directives.

2.3 Water connection

• Make sure not to cause damage to the

water hoses.

• Before you connect the appliance to

new pipes or pipes not used for a long

time, let the water flow until it is clean.

• The first time you use the appliance,

make sure that there is no leakage.

www.electrolux.com4

2.4 Use

WARNING!

Risk of injury, electrical

shock, fire, burns or damage

to the appliance.

• Use this appliance in a household only.

• Obey the safety instructions on the

detergent packaging.

• Do not put flammable products or

items that are wet with flammable

products in, near or on the appliance.

• Make sure that you remove all metal

objects from the laundry.

• Do not put a container to collect

possible water leakage under the

appliance. Contact the Authorised

Service Centre to ensure which

accessories can be used.

• Do not touch the glass of the door

while a programme operates. The

glass can be hot.

2.5 Disposal

WARNING!

Risk of injury or suffocation.

• Disconnect the appliance from the

mains supply.

• Cut off the mains cable and discard it.

• Remove the door catch to prevent

children and pets to get closed in the

appliance.

3. PRODUCT DESCRIPTION

3.1 Appliance overview

1Worktop

2Detergent dispenser

3Control panel

4Door handle

5Rating plate

6Drain pump filter

7Feet for the appliance level

ENGLISH 5

3.2 How to activate the child

safety device

This device prevents children or pets to be

closed in the drum.

Turn the device clockwise, until the groove

is horizontal.

You cannot close the door.

To close the door, turn the device

anticlockwise until the groove is vertical.

4. CONTROL PANEL

4.1 Control panel description

1 2 3 4 5 6 7 8 9

1Programme knob

2Temperature button (Température)

3Spin reduction button (Essorage)

4Easy iron button (Repassage Facile)

5Extra rinse button (Rinçage Plus)

6Delay start button (Départ Différé)

7Display

8Start/Pause button (Départ/Pause)

9Time Manager buttons (Time

Manager)

www.electrolux.com6

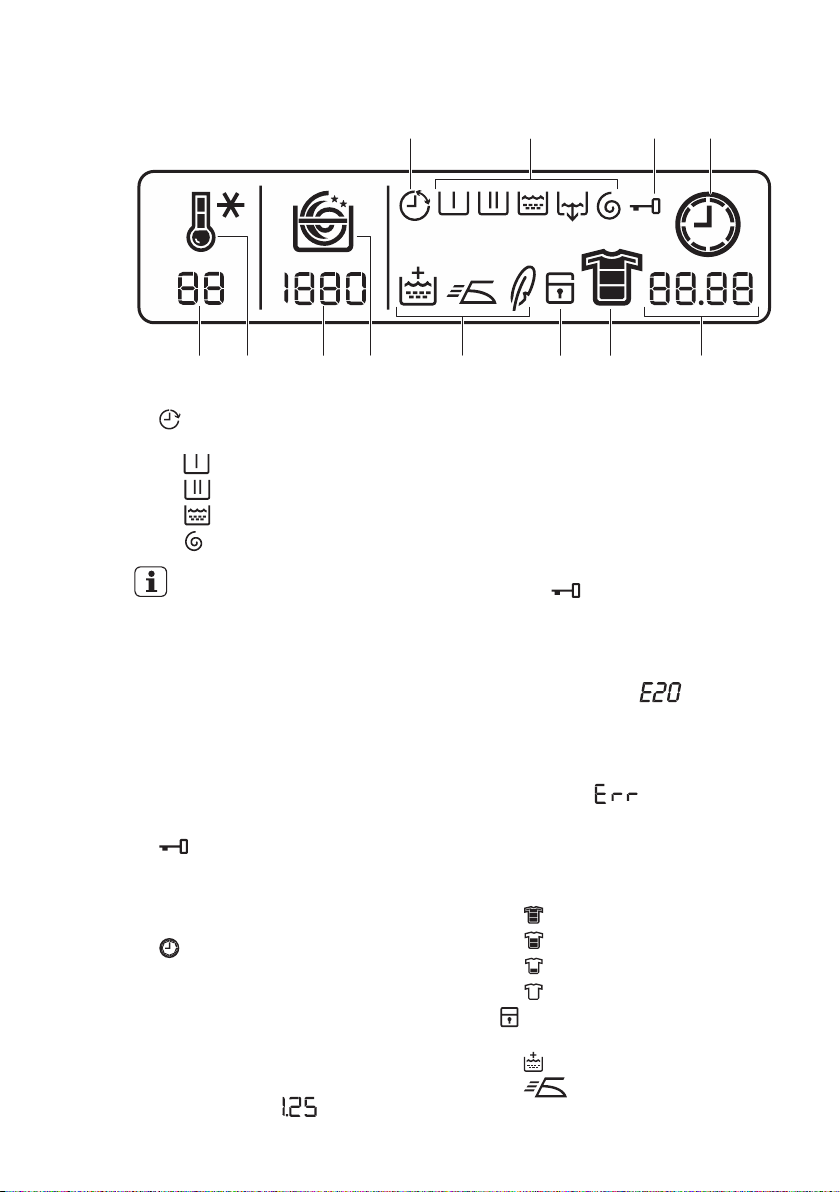

4.2 Display

A B C D

EFGHIJKL

A) : The delay start indicator

B) Washing indicators:

• : The prewashing phase

• : The washing phase

• : The rinses phase

• : The spin phase

When a programme is

set, all the indicators of

the phases related to the

programme come on.

When the programme

starts, only the indicator

of the phase in operation

flashes.

When a phase is

complete the indicator of

the phase remains on.

When the programme is

completed, the symbol of

the last phase is on.

C) : The door locked indicator

• You cannot open the appliance

door when the symbol is on.

• You can open the door only when

the symbol goes off.

D) Clock indicator:

After the programme has started, the

duration is displayed and the clock

icon is animated.

E) The time area:

•The programme duration:

After selecting a programme, the

duration is displayed in hours and

minutes (e.g. ). The duration is

calculated automatically on the

basis of the maximum

recommended load for each type

of fabric. After the programme has

started, the time remaining is

updated every minute.

•The programme end:

When the programme has finished

three flashing zeros are displayed,

the indicator disappears and

the door can be opened.

•Alarm codes:

In the event of operating problems,

some alarm codes can be

displayed, e. g. (refer to

chapter «Troubleshooting.»).

If an option which is not

compatible with the set wash

programme is selected, the

message is displayed for a

few seconds and the integrated

red light of button Départ/Pause

starts flashing.

•Delay time.

F) Soil degree indicators:

• : Intensive.

• : Normal/Daily.

• : Light/Quick.

• : Super Quick.

G) : The indicator of the child lock.

H) Option indicators:

• : Extra Rinse.

• : Easy Iron.

ENGLISH 7

• : Sensitive (if available).

I) Spin indicators:

• : during the spinning phase this

indicator is animated.

• : No Spin.

• : Rinse Hold.

• : Night Cycle.

J) Spin value

K) Temperature indicator, cold

indicator

L) The temperature value

5. PROGRAMMES

5.1 Programme Chart

Programme

Temperature

range

Maximum

load

Maximum

spin speed

Programme description

(Type of load and soil level)

Cottons (Coton)

Normal

90°C - (Cold)

8 kg

1200 rpm White cotton and coloured cotton. Normal soil

and light soil.

Eco1)

Cotton Economy

90°C - 40°C

8 kg

1200 rpm White cotton and colour-fast cotton. Normal

soil. The energy consumption decreases and the

time of the washing programme is extended.

Cottons + Pre-

wash

90°C - (Cold)

8 kg

1200 rpm White cotton and coloured cotton. Heavy soil

and normal soil.

Eco

Cotton Economy

+ Prewash

90°C - 40°C

8 kg

1200 rpm White cotton and colour-fast cotton. Normal

soil with stains. The energy consumption decrea-

ses and the time of the washing programme is ex-

tended.

Synthetics (Synthétiques)

Normal

60°C - (Cold)

3,5 kg

900 rpm Synthetic items or mixed fabric items. Normal

soil.

Synthetics + Pre-

wash

60°C - (Cold)

3,5 kg

900 rpm Synthetic items or mixed fabric items. Heavy

soil and normal soil.

Eco

Synthetics Econ-

omy

40°C

3,5 kg

900 rpm Synthetic items and mixed fabric items and al-

lows to obtain a good washing temperature effi-

ciency by saving energy.

www.electrolux.com8

Programme

Temperature

range

Maximum

load

Maximum

spin speed

Programme description

(Type of load and soil level)

Eco

Synthetics Econ-

omy + Prewash

40°C

3,5 kg

900 rpm Synthetic items and mixed fabric items with

stains. This programme allows to obtain a good

washing temperature efficiency by saving energy.

Delicates (Délicats)

Delicates + Pre-

wash

40°C - (Cold)

3,5 kg

700 rpm Delicate fabrics as acrylics, viscose, polyest-

er items. Normal soil with stains.

Delicates

40°C - (Cold)

3,5 kg

700 rpm Delicate fabrics as acrylics, viscose, polyest-

er items. Normal soil.

Hand wash/Wool (Lavage à la main/Laine)

Wool

40°C - (Cold)

2 kg

1000 rpm Machine washable wool and hand washable

wool.

Hand wash

40°C - (Cold)

2 kg

1000 rpm Delicate fabrics with «hand washing» care sym-

bol. 2)

Special programmes (Spécial)

Lingerie

40°C

1 kg

900 rpm Special programme for very delicate items, as lin-

gerie, bras and underwear etc.

Silk

30°C

1 kg

700 rpm Special programme for silk and mixed synthetic

items.

Jeans

40°C

3,5 kg

1200 rpm Items in denim and jersey. Also for dark col-

oured items.

Other programmes

ENGLISH 9

Programme

Temperature

range

Maximum

load

Maximum

spin speed

Programme description

(Type of load and soil level)

Trempage

30°C

8 kg Prewash - Soak for about 40 minutes - Stop with

water in the tub. Special programme for heavily

soiled laundry. At the end of this time the appli-

ance will stop automatically with water left in the

tub. Before starting a new washing phase, it is

necessary to empty out the water (read "At the

end of the programme"). 3)

Rinçage

8 kg

1200 rpm To rinse and spin the laundry. All fabrics.

Vidange

8 kg To drain the water in the drum. All fabrics.

Essorage

8 kg

1200 rpm To spin the laundry and to drain the water in the

drum. All fabrics.

Essorage-délicat

3,5 kg

700 rpm Separate short spin for delicate, synthetic, wool,

silk and hand washed garments.

On/Off

To switch the appliance on or off and for cancelling

the programme which is running.

1) Standard programmes for the Energy Label consumption values. According to regu-

lation 1061/2010, these programmes are respectively the «Standard 60°C cotton programme»

and the «Standard 40°C cotton programme». They are the most efficient programmes in terms

of combined energy and water consumption for washing normally soiled cotton laundry.

The water temperature of the washing phase may differ from the temperature de-

clared for the selected programme.

2) During this cycle the drum rotates slowly to ensure a gentle washing. It can seem that the

drum doesn't rotate or doesn't rotate properly. Consider this as a normal functioning of the ap-

pliance.

3) This programme cannot be used for very delicate fabrics as silk or wool. Pour the detergent

for the soak programme into the compartment marked . At the end of the soak (after hav-

ing emptied out the water) you can select the desired washing programme. First turn the appli-

ance off, then select the programme and start it.

4) The default phase of the spin speed is related to cotton items. Set the spin speed. Make

sure that it agrees with the laundry.

www.electrolux.com10

Table of contents

Languages:

Other Electrolux Washer manuals

Electrolux

Electrolux EWF 148420 W User manual

Electrolux

Electrolux EFLS210TIW User manual

Electrolux

Electrolux EWF12763E User manual

Electrolux

Electrolux EW6F5549E4 User manual

Electrolux

Electrolux WH838 Instruction Manual

Electrolux

Electrolux EWF 1284BMW User manual

Electrolux

Electrolux EWG 147410 W User manual

Electrolux

Electrolux EWT 1367 EDW User manual

Electrolux

Electrolux EFLS210TIS01 User manual

Electrolux

Electrolux EWF 87210 W User manual

Electrolux

Electrolux EFLS617SIW Operating manual

Electrolux

Electrolux EWF 805 User manual

Electrolux

Electrolux EWC 1350 User manual

Electrolux

Electrolux W565H User manual

Electrolux

Electrolux EW6F6449Q4 User manual

Electrolux

Electrolux EW 842 F User manual

Electrolux

Electrolux EWB 76210 W User manual

Electrolux

Electrolux EWB 86215 W User manual

Electrolux

Electrolux EW 559 F User manual

Electrolux

Electrolux EWH 147313 W User manual

Electrolux

Electrolux EWF 1287 HDW2 User manual

Electrolux

Electrolux WA1459F User manual

Electrolux

Electrolux EWS 126510 W User manual

Electrolux

Electrolux EWF12022 User manual

Popular Washer manuals by other brands

Tricity Bendix

Tricity Bendix AW 1000 W Operating & installation instructions

Panasonic

Panasonic NA-F60L5WRB operating instructions

GE WSLP1500 Dimensions and installation information

Bosch

Bosch WAN2829BSN User manual and installation instructions

LG TV2516DV3B owner's manual

LG TH2517DSAV owner's manual

VESTEL

VESTEL CMH-XL 7510 TE user manual

AEG

AEG 74335 User information

Johnson

Johnson JWF721A user manual

Beko

Beko WTE7604XLW0 owner's manual

Danby

Danby DTT100A1WDB Owner's use and care guide

Amica

Amica WA 14 Ex operating instructions

Daewoo

Daewoo DWD-F1222 instruction manual

Bosch

Bosch WAS28461AU instruction manual

Miele

Miele PW 6080 Vario manual

Finlux

Finlux FLX108CF220 user manual

Whirlpool

Whirlpool 3LBR5132AN0 Use and care guide

Beko

Beko WKB 51231 PTMA manual
