1. SAFETY INFORMATION
Before the installation and use of the appliance, carefully
read the supplied instructions. The manufacturer is not
responsible if an incorrect installation and use causes
injuries and damages. Always keep the instructions with
the appliance for future reference.
1.1 Children and vulnerable people safety
•This appliance can be used by children aged from 8
years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience
and knowledge if they have been given supervision or
instruction concerning use of the appliance in a safe
way and understand the hazards involved.
•Do not let children play with the appliance.
•Children of less than 3 years should be kept away
unless continuously supervised.
•Keep all packaging away from children.
•Keep all detergents away from children.
•Keep children and pets away from the appliance door
when it is open.
•Cleaning and user maintenance shall not be made by
children without supervision.
1.2 General Safety
•Do not change the specification of this appliance.
•Obey the maximum load volume of 8 kg (refer to the
“Programme chart” chapter).
•The operating water pressure (minimum and
maximum) must be between 0,5 bar (0,05 MPa) and 8
bar (0,8 MPa).
•The ventilation openings in the base (if applicable)
must not be obstructed by a carpet.
•The appliance is to be connected to the water mains
using the new supplied hose-sets. Old hose sets must
not be reused.
ENGLISH 3
•If the supply cord is damaged, it must be replaced by
the manufacturer, its Authorised Service Centre or
similarly qualified persons in order to avoid a hazard.
•Before maintenance, deactivate the appliance and
disconnect the mains plug from the mains socket.
•Do not use water spray and steam to clean the
appliance.
•Clean the appliance with a moist soft cloth. Only use
neutral detergents. Do not use abrasive products,
abrasive cleaning pads, solvents or metal objects.
2. SAFETY INSTRUCTIONS
2.1 Installation
• Remove all the packaging and the
transit bolts.
• Keep the transit bolts. When you
move the appliance again you must
block the drum.
• Always be careful when you move the
appliance because it is heavy. Always
wear safety gloves.
• Do not install or use a damaged
appliance.
• Obey the installation instruction
supplied with the appliance.
• Do not install or use the appliance
where the temperature is less than 0
°C or where it is exposed to the
weather.
• Make sure that the floor where you
install the appliance is flat, stable,
heat resistant and clean.
• Make sure that there is air circulation
between the appliance and the floor.
• Adjust the feet to have the necessary
space between the appliance and the
carpet.
• Do not install the appliance where the
appliance door can not be fully
opened.
2.2 Electrical connection
• The appliance must be earthed.
• Always use a correctly installed
shockproof socket.
• Make sure that the electrical
information on the rating plate agrees
with the power supply. If not, contact
an electrician.
• Do not use multi-plug adapters and
extension cables.
• Make sure not to cause damage to
the mains plug and to the mains
cable. Should the mains cable need to
be replaced, this must be carried out
by our Authorised Service Centre.
• Connect the mains plug to the mains
socket only at the end of the
installation. Make sure that there is
access to the mains plug after the
installation.
• Do not touch the mains cable or the
mains plug with wet hands.
• Do not pull the mains cable to
disconnect the appliance. Always pull
the mains plug.
• Only for UK and Ireland: The
appliance has a 13 amp mains plug. If
it is necessary to change the fuse in
the mains plug, use a 13 amp ASTA
(BS 1362) fuse.
• This appliance complies with the
E.E.C. Directives.
2.3 Water connection
• Make sure not to cause damage to
the water hoses.
• Before you connect the appliance to
new pipes or pipes not used for a long
time, let the water flow until it is clean.
• The first time you use the appliance,
make sure that there is no leakage.
www.electrolux.com4
2.4 Use
WARNING!
Risk of injury, electrical
shock, fire, burns or damage
to the appliance.
• Use this appliance in a household
only.
• Obey the safety instructions on the
detergent packaging.
• Do not put flammable products or
items that are wet with flammable
products in, near or on the appliance.
• Make sure that you remove all metal
objects from the laundry.
• Do not put a container to collect
possible water leakage under the
appliance. Contact the Authorised
Service Centre to ensure which
accessories can be used.
• Do not touch the glass of the door
while a programme operates. The
glass can be hot.
2.5 Service
• To repair the appliance contact an
Authorised Service Centre.
• Use original spare parts only.
2.6 Disposal
WARNING!
Risk of injury or suffocation.
• Disconnect the appliance from the
mains supply.
• Cut off the mains cable and discard it.
• Remove the door catch to prevent
children and pets to get closed in the
appliance.
3. PRODUCT DESCRIPTION
3.1 Appliance overview
1 2 3
5
6
7
4
1Worktop
2Detergent dispenser
3Control panel
4Door handle
5Rating plate
6Drain pump filter
7Feet for the appliance level
ENGLISH 5
4. CONTROL PANEL
4.1 Control panel description
On/Off
Programs
Start/Pause
Cottons
Synthetics
Delicates
Wool/Handwash
Silk
Refresh 20 min
Mix 20
Cotton ECO 1200
1000
800
Quick
Intensive
Easy Iron
Rinse Only
Drain &
spin
Finish In
987621 3 4 5
1On / Off button (On/Off)
2Programme selection touchpad
3Temperature selection touchpad
4Spin selection touchpad
5Options selection touchpad
6Start/Pause touchpad
7Finish in touchpad (Finish In)
8Display
9Door locked indicator
4.2 Display
Finish In
AB D C
A) The time area:
• : the programme duration
• : the "finish in" time
• : the alarm codes
•: the message of error
• : the programme is completed.
B) The child lock indicator:
• The indicator comes on when you
activate this device.
C) The extra rinse indicator:
• The indicator comes on when you
activate this option.
D) The Finish In touchpad.
www.electrolux.com6
5. PROGRAMME CHART
Programme
Temperature
range
Maximum load
Maximum spin speed
Programme description
(Type of load and soil level)
Cottons
90 °C - Cold
White cotton and coloured cotton. Normal soil and light soil.
8 kg
1000 rpm for model EWF 1084BMW; 1200 rpm for model EWF
1284BMW
Cotton ECO1)
60 °C - 40 °C
White cotton and colour-fast cotton. Normal soil. The energy
consumption decreases and the time of the washing pro‐
gramme is extended.
8 kg
1000 rpm for model EWF 1084BMW; 1200 rpm for model EWF
1284BMW
Synthetics
60 °C - Cold
Synthetic items or mixed fabric items. Normal soil.
3 kg
1000 rpm for model EWF 1084BMW; 1200 rpm for model EWF
1284BMW
Delicates
40 °C - Cold
Delicate fabrics as acrylics, viscose, polyester items. Nor‐
mal soil.
3 kg
1000 rpm for model EWF 1084BMW; 1200 rpm for model EWF
1284BMW
Wool/Handwash
40 °C - Cold
Machine washable wool, hand washable wool and delicate
fabrics with «hand washing» care symbol.2)
1,5 kg
1000 rpm for model EWF 1084BMW; 1200 rpm for model EWF
1284BMW
Silk
30 °C
Special programme for silk and mixed synthetic items.
1 kg
800 rpm
Refresh 20 min
40 °C - 30 °C
A very short cycle for cottons and synthetics items with light
soil level or worn only once.
1 kg
1000 rpm for model EWF 1084BMW; 1200 rpm for model EWF
1284BMW
ENGLISH 7
Programme
Temperature
range
Maximum load
Maximum spin speed
Programme description
(Type of load and soil level)
Mix 20°
20 °C
Special programme for cotton, synthetic and mixed fabrics with
light soil. Set this programme to decrease the energy consump‐
tion. Make sure that the detergent is for low temperature in or‐
der to have good washing results3).
2 kg
1000 rpm for model EWF 1084BMW; 1200 rpm for model EWF
1284BMW
1) Standard programmes for the Energy Label consumption values. According to regu‐
lation 1061/2010, these programmes are respectively the «Standard 60°C cotton pro‐
gramme» and the «Standard 40°C cotton programme». They are the most efficient pro‐
grammes in terms of combined energy and water consumption for washing normally soiled
cotton laundry.
The water temperature of the washing phase may differ from the temperature
declared for the selected programme.
2) During this cycle the drum rotates slowly to ensure a gentle washing. It can seem that the
drum doesn't rotate or doesn't rotate properly. Consider this as a normal functioning of the
appliance.
3) No temperature indicator is on .

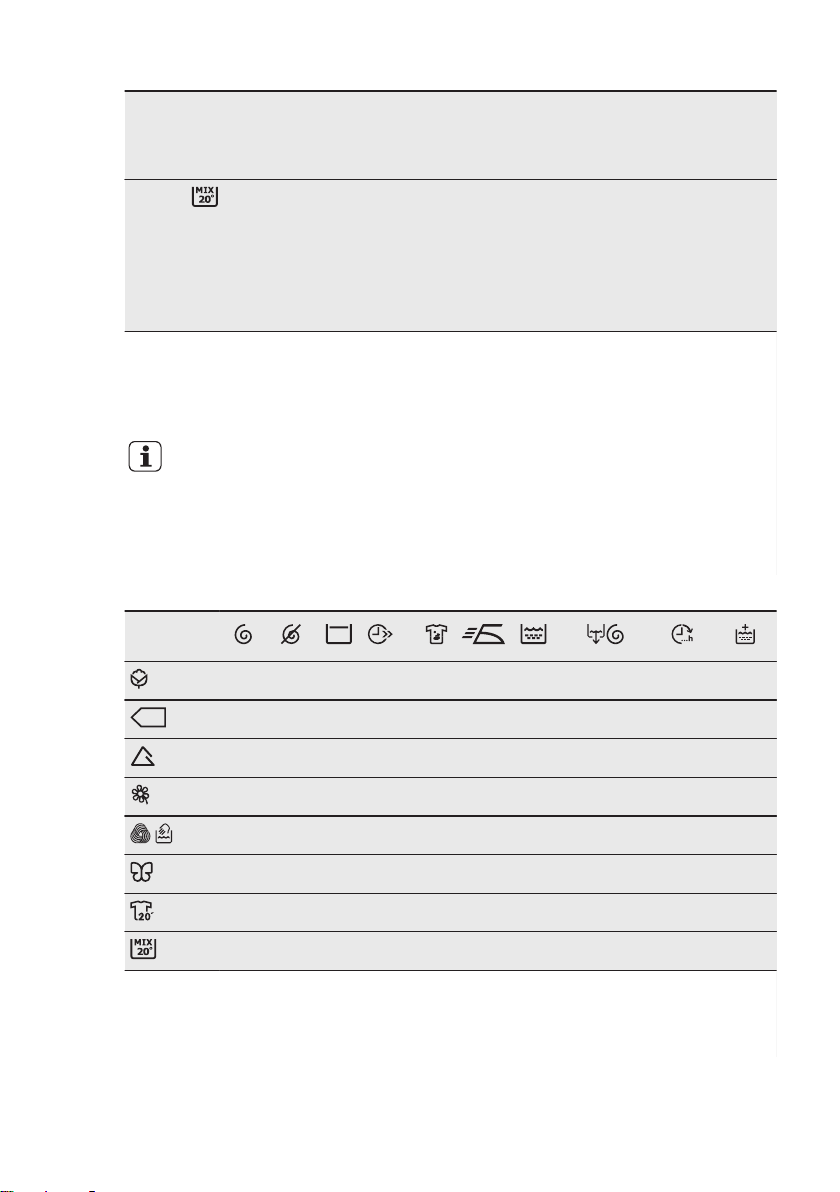

Programme options compatibility
Pro‐
gramme 1)
■ ■ ■ ■ ■ ■ ■ ■ ■ ■
■ ■ ■ ■ ■ ■ ■ ■
■ ■ ■ ■ ■ ■ ■ ■ ■ ■
■ ■ ■ ■ ■ ■ ■ ■ ■
■ ■ ■ ■ ■ ■
■ 2) ■ ■ ■ ■
■ ■ ■ ■ ■ ■
■ ■ ■ ■ ■ ■ ■
1) When you set this option, we recommend that you decrease the quantity of the laundry. It
is possible to keep the full load but the washing results can be unsatisfactory. Recommen‐
ded load: cotton: 4 kg, synthetics and delicates: 1,5 kg.
2) Available only for model EWF 1084BMW.
www.electrolux.com8
5.1 Woolmark Apparel Care -
Blue
The wool wash cycle of this machine has
been approved by The Woolmark
Company for the washing of wool
garments labelled as «hand wash»
provided that the garments are washed
according to the instructions issued by
the manufacturer of this washing
machine. Follow the garment care label
for drying and other laundry instructions.
M1511
In UK, Eire, Hong Kong and India the
Woolmark symbol is a certification
trademark.
6. CONSUMPTION VALUES
The data of this table are approximate. Different causes can change the
data: the quantity and type of laundry, the water and ambient tempera‐
ture.
At programme start the display shows the duration programme for the
maximum load capacity.
During the washing phase the programme duration is automatically cal‐
culated and can be greatly reduced if the laundry load is lower than the
maximum load capacity (e.g. Cotton 60°C, maximum load capacity 8 kg,
the programme duration exceeds 2 hours; real load 1 kg, the programme
duration don’t reach 1 hour).
When the appliance is calculating the real programme duration a dot
blinks in the display.
Pro‐
grammes
Load (kg) Energy
consump‐
tion (kWh)
Water con‐
sumption
(litre)
Approxi‐
mate pro‐
gramme du‐
ration (mi‐
nutes)
Remaining
moisture
(%)1)
Cottons 60
°C 8 1,35 70 159 602) / 533)
Cottons 40
°C 8 0,87 69 158 602) / 533)
Synthetics
40 °C 3 0,60 56 103 372) / 353)
Delicates 30
°C 3 0,55 59 81 372) / 353)
ENGLISH 9
Pro‐
grammes
Load (kg) Energy
consump‐
tion (kWh)
Water con‐
sumption
(litre)
Approxi‐
mate pro‐
gramme du‐
ration (mi‐
nutes)
Remaining
moisture
(%)1)
Wool/Hand‐
wash 30 °C 1,5 0,45 62 75 322) / 303)
Standard cotton programmes
Standard 60
°C cotton 8 0,96 52 244 602) / 533)
Standard 60
°C cotton 4 0,73 40 210 602) / 533)
Standard 40
°C cotton 4 0,62 41 196 602) / 533)
1) At the end of spin phase.
2) For model EWF 1084BMW.
3) For model EWF 1284BMW.
Off Mode (W) Left On Mode (W)
0,48 0,48
The information given in the chart above are in compliance with the EU Commission
regulation 1015/2010 implementing directive 2009/125/EC.
7. OPTIONS
7.1 Temperature
With this option you can change the
default temperature.
Indicator = cold water.
The indicator of the set temperature
comes on.
7.2 Spin
With this option you can change the
default spin speed.
The indicator of the set speed comes on.
Additional spin options:
No Spin
• Set this option to deactivate all spin
phases. Only the drain phase is
available.
• The related indicator comes on.
• Set this option for very delicate
fabrics.
• The rinses phase uses more water for
some washing programmes.
Rinse Hold
• Set this option to prevent the laundry
creases.
• The related indicator comes on.
• There is a water in the drum when the
programme is completed.
• The drum turns regularly to prevent
the laundry creases.
• The door stays locked. You must
drain the water to unlock the door.
To drain the water refer to
‘At the end of the
programme’.
www.electrolux.com10
This manual suits for next models
1
Table of contents
Languages:
Other Electrolux Washer manuals
Electrolux
Electrolux EW 934 S User manual
Electrolux
Electrolux EWT655WN User manual
Electrolux
Electrolux EW6S347SI User manual
Electrolux
Electrolux EWT 1367 VDW User manual
Electrolux
Electrolux EWF 1487 HDW2 User manual
Electrolux
Electrolux EWF8024D3WB User manual
Electrolux
Electrolux EWS 1230 User manual
Electrolux
Electrolux WA GL6 E 101 User manual
Electrolux
Electrolux EWN 12791 W User manual
Electrolux
Electrolux EN6F5922FB User manual
Electrolux
Electrolux EFLS210TIW00 User manual
Electrolux
Electrolux EIFLS20QS Series User manual
Electrolux
Electrolux EWF1246 User manual
Electrolux
Electrolux EWM1000 User manual
Electrolux
Electrolux EWF 126110W User manual
Electrolux
Electrolux EWG 147540 W User manual
Electrolux
Electrolux EWT 136511 W User manual
Electrolux
Electrolux EW7T3372 User manual
Electrolux
Electrolux EWF 860 User manual
Electrolux
Electrolux Compact front series User manual
Popular Washer manuals by other brands
Tricity Bendix
Tricity Bendix AW 1000 W Operating & installation instructions
Panasonic
Panasonic NA-F60L5WRB operating instructions
GE
GE WSLP1500 Dimensions and installation information
Bosch
Bosch WAN2829BSN User manual and installation instructions
LG
LG TV2516DV3B owner's manual
LG
LG TH2517DSAV owner's manual
