Electrolux EWF12763E User manual

EWF12763E

User ManualWashing Machine

CONTENTS

CUSTOMER CARE AND SERVICE

2 www.electrolux.com

SAFETY INFORMATION

PRODUCT DESCRIPTION

CONTROL PANEL

BEFORE FIRST USE

DAILY USE

WASHING HINTS

INTERNATIONAL WASH CODE SYMBOLS

CARE AND CLEANING

TROUBLESHOOTING

................................................................................... 3

................................................................................ 6

............................................................................................ 7

...................................................................................... 12

..................................................................................................... 12

............................................................................................ 18

.................................................... 21

................................................................................... 22

..................................................................................... 25

TECHNICAL DATA ......................................................................................... 2810

INSTALLATION ............................................................................................... 2911

ENVIRONMENT CONCERNS ......................................................................... 3412

WARRANTY .................................................................................................... 3513

We recommend the use of original spare parts.

When contacting Service, ensure that you have the following data available.

The information can be found on the rating plate. Model, PNC, Serial Number.

Environmental information.

Subject to change without notice.

Warning / Caution-Safety information.

General information and tips.

SAFETY INFORMATION

In the interest of your safety and to ensure the correct use, before

installing and first using the appliance, read this user manual care-

fully, including its hints and warnings.

This appliance is intended to be used in household and similar

applications such as:

Farm houses

By clients in serviced apartments, holiday apartments and

residential type environments.

CONDITIONS OF USE

To avoid unnecessary mistakes and accidents, it is important to

ensure that all people using the appliance are thoroughly familiar

with its operation and safety features.

Save these instructions and make sure that they remain with the

appliance if it is moved or sold, so that everyone using it through its

life will be properly informed on appliance use and safety.

1.1 GENERAL SAFETY

Make sure that small pets do not climb into the drum. To avoid this,

please check into the drum before using the appliance.

Any objects such as coins, safety pins, nails, screws, stones or any other

hard, sharp material can cause extensive damage and must not be placed

into the machine.

Only use the advised quantities of fabric softener and detergent. Damage

to the fabric or appliance can occur if you overfill. Refer to the

manufacturer’s recommendations of quantities.

Wash small items such as socks, laces, washable belts etc in a washing

bag or pillow case as it is possible for such items to slip down between the

tub and the inner drum.

It is dangerous to alter the specifications or attempt to modify this product

in anyway.

During high temperature wash program the door glass may get hot.

Do not touch it!

www.electrolux.com

Do not use your washing machine to wash articles with whalebones,

material without hems or torn material.

Always unplug the appliance and turn off the water supply after use, clean

and maintenance.

This appliance is heavy. Care should be taken when moving it.

When unpacking the appliance, check that it is not damaged. If in doubt,

do not use it and contact the Service Centre.

All packing and transit bolts must be removed before use. Serious damage

can occur to the product and to property if this is not adhered to. See

relevant section in the user manual.

After having installed the appliance, check that it is not standing on the

inlet and drain hose and the worktop is not pressing the electrical supply

cable.

If the machine is situated on a carpeted floor, please adjust the feet in

order to allow air to circulate freely.

Always be sure, that there is no water leakage from hoses and their

connections after the installation.

Any plumbing work required to install this appliance should be carried out

by a qualified plumber.

Any electrical work required to install this appliance should be carried out

by a qualified electrician.

Under no circumstances should you attempt to repair the machine

yourself. Repairs carried out by inexperienced persons may cause injury or

serious malfunctioning. Contact your local Service Centre. Always insist on

genuine spare parts.

1.2 INSTALLATION

This appliance is not intended for use by persons (including children) with

reduced physical, sensory or mental capabilities, or lack of experience and

knowledge, unless they have been given supervision or instruction

concerning use of the appliance by a person responsible for their safety.

This washing machine is not intended for use by young children or infirm

persons without supervision.

Young children should be supervised to ensure that they do not play with

the appliance.

The packaging components (e.g. plastic film, polystyrene) can be dangerous

to children - danger of suffocation! Keep them out of children’s reach.

Make sure that children or pets do not climb into the drum.

Keep all detergents in a safe place out of children’s reach.

This appliance is designed for domestic use. It must not be used for

purposes other than those for which it was designed.

Only wash fabrics which are designed to be machine washed. Follow the

instructions on each garment label.

Do not overload the appliance. See the relevant section in the user manual.

Before washing, ensure that all pockets are empty and buttons and zips are

fastened. Avoid washing frayed or torn articles and treat stains such as

paint, ink, rust, and grass before washing. Underwired bras must NOT be

machine washed.

Garments which have been in contact with volatile petroleum products

should not be machine washed. If volatile cleaning fluids are used, care

should be taken to ensure that the fluid is removed from the garment before

placing in the machine.

Never pull the power supply cable to remove the plug from the socket;

always take hold of the plug itself.

Never use the washing machine if the power supply cable, the control panel,

the working surface or the base are damaged so that the inside of the

washing machine is accessible.

1.3 USE

1.4 CHILD SAFETY

PRODUCT DESCRIPTION2.

Worktop

Detergent/Softener Dispenser

Control Panel

Door Handle

Door

Rating Label

Drum Leaf Lifter

Level Adjustment Feet (Front)

Mains Cable

Water Inlet Hose

Water Drain Hose

Hose Support (2pcs)

Level Adjustment Feet (Back)

Transit Bolts (3pcs)

www.electrolux.com

To remove the transit

bolts.

To adjust levelling legs.

To connect the drain

hose on the edge of a

sink.

Plastic caps

To close the holes on

the rear side of the

cabinet after the

removal of the transit

bolts.

ACCESSORIES

Plastic hose guide

Spanner

CONTROL PANEL3.

On/Off Button

On/Off button is used to turn on

and turn off your washing

machine.

Program Touchpad ( )

Press this touchpad to select the

washing program. The relevant light

will light up. (For more information

about washing programs, please

see page 10)

Temperature Touchpad ( )

Press this touchpad repeatedly to

increase or decrease the wash

temperature if you want your

laundry to be washed at a

temperature different from the one

proposed by the washing machine.

Spin Touchpad ( )

Press this touchpad repeatedly to

increase or decrease the spin speed,

if you want your laundry to be spun

at a speed different from the one

proposed by the washing machine.

The relevant light will light up.

This option eliminates all the spin

phases and increases the number

of rinses.

No Spin

By selecting this option the water of

the last rinse is not emptied out and

the drum turns regularly to prevent

the laundry creases. The door is still

locked to indicate that the water

must be emptied out.

Rinse Hold

Different temperatures can be

combined which is dependent

on the program selected.

Different spin speed can be

combined which is dependent

on the program selected.

3.1 Control Panel Description

The relevant light will light up.

The door stays locked with the

water in the drum. To drain

the water refer to relevant

paragraph on page 16.

1 2 3 49 10 5 6 87

www.electrolux.com

Option Touchpad ( )

Press this touchpad, if you want

your laundry to be washed with

special functions.

The relevant light

will light up.

With this option you can decrease

the program duration.

Use this option for items with light

soil or items to refresh.

Time Save

Use this option if your clothes are

heavily soiled. The washing cycle

lasts longer with this option.

Heavy Duty

When selecting this option the

laundry is gently washed and spun

to avoid creasing. In this way

ironing is easier.

The appliance decreases the spin

speed, uses more water and

adapts the program duration

to the type of laundry.

Easy Iron

This option performs the final rinse

stage of the selected wash program.

Rinse Plus function “ ” can also

be selected to add more rinses.

Rinse & Spin

Use this option for very wet clothes

to remove the water and spin.

If “No Spin” is selected, appliance

will only drain.

Drain & Spin

Different options can be

combined which is dependent

on the program selected.

This option will reduce the

working time and the number

of rinses.

If you need to add more rinse

phases, press “ ” + “ ” at

the same time to add “Rinse

Plus” option. (see page 9)

Delay End Touchpad ( )

Before you start the program, this

option makes it possible to define

the end of the washing program

from minimum 3 hours to maximum

20 hours.

If program duration is longer

than 3 hours minimum Delay

End option starts from 4 hours.

For example, if the program duration

of your selected program is 3.20

hours and you define the “Delay

End” time to 6 hours. This means

your wash program will finish in 6

hours. (See diagram below)

After selecting Delay End time, press

Start/Pause touchpad to start the

program. Machine will then

countdown and update time on the

display every hour until it reaches

the starting point of the wash cycle.

Press the Delay End touchpad to

choose the end time as your wish.

The display will show the number of

hours and the indicator above the

touchpad will light up. This option

must be selected after choosing the

wash program, and before pressing

the “Start/Pause” touchpad.

Spin speed can also be modified. If

“No Spin” is selected, appliance will

only rinse.

3.20 hrs.2.80 hrs.

Working Cycle

“Delay End” Time : 6 hrs.

Pressed

Start/Pause

End of

Cycle

Start the

Program

Countdown

NOTE:

Display

Rinse Plus Option ( )

This option is recommended for

people who are allergic to

detergents, and in areas where the

water is very soft.

To deactivate press

and hold

these 2 touchpads at the same

time

until the LED “ ” goes off.

Start/Pause Touchpad ( )

To start the selected program,

press the “Start/Pause”.

To interrupt a program which is

running, press the “Start/Pause” to

pause the machine, t

he Start/Pause

pilot light flashes.

To restart the program from the

point at which it was interrupted,

press the “Start/Pause” again,

the

Start/Pause pilot light will stop

flashing

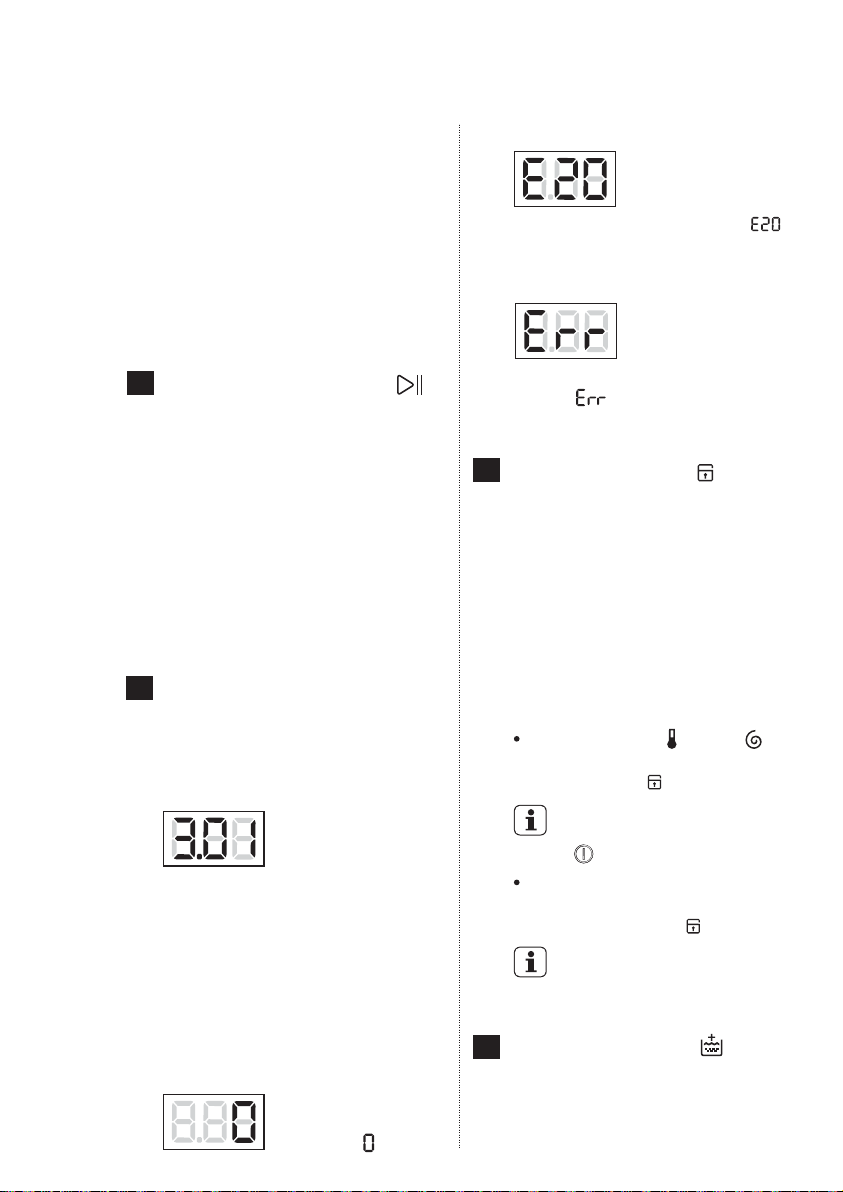

The display shows the following

information:

Child Lock Option ( )

Your appliance is provided with

CHILD SAFETY LOCK which

permits you to leave the appliance

unsupervised with the door closed

without having to worry that

children might be injured by or

cause damage to the appliance.

Set this option after pressing the

Start/Pause touchpad.

This function remains

enabled even after the

appliance is switched off.

Press and hold “ ” and “ ”

touchpads at the same time

until the LED “ ”

lights up

The touchpads are locked

(except for the On/Off

“ ” button).

To set “Child Lock” option:

When the program is

completed the display

will show “ ”.

Incorrect Option Selection

If an option which is

not compatible with

the set wash

program selected, the display will

show “ ” and flash with 3

consecutive short beeps.

End Of Program

In the event of

operating problems,

some alarm codes

can be displayed, for example .

(See “Troubleshooting”.)

Alarm Codes

Estimated time of the selected

program

After selecting a

program, the

estimated time is

The estimated time is calculated

automatically on the basis of the

maximum recommended load for

each type of fabric. After the

program has started, the time

remaining is updated every minute.

displayed in hours and minutes (for

example 3.01).

If you wish to modify or cancel Delay

End option after starting the

program, follow the steps below:

set the washing machine to

PAUSE by pressing “Start/Pause”

touchpad;

deselect this option by pressing

Delay End once;

press the “Start/Pause” to start

the program.

To deactivate press

and hold

these 2 touchpads at the same

time

until the LED “ ” goes off.

Press and hold “ ” and “ ”

touchpads at the same time until

the LED “ ”

lights up

www.electrolux.com

3.3 Programs + Options

Select this option to add rinsing

phases to a program.

This function increases the

program duration.

NOTE:

Program;

Temp.

Cottons;White cotton with

heavy level of soil.

Cold to

90 °C

Cold to

60 °C

30 °C

7 kg 1200 rpm

3.5 kg 1200 rpm

Program

Description

(type of load

and soil level)

Maximum

Dry Clothes

Capacity

(Model: Max.

kg)

Maximum

Spin

Speed

(Model: Max.

rpm)

Options

Time Save

Heavy Duty

Easy Iron

Rinse & Spin

Drain & Spin

Delay End

Rinse +

Mixed;Synthetic or mixed

fabric items with

normal level of soil.

Quick 30;Synthetic and

mixed fabric items.

Light soil and items

to freshen up.

Enabling/Disabling Buzzer

Sounds

If you want to disable the

buzzer sound (except for event

of appliance malfunction)

press

and hold

“Programs ( )” and

“Temp ( )” touchpads at the

same time for 3 seconds, and

listen for “BEEP, BEEP”.

To set “Rinse Plus” option:

No Spin

Rinse Hold

3.2

This function remains enabled

even after the appliance is

switched off.

3 kg 800 rpm

The program is completed.

The appliance has a malfunction.

The buzzer sounds operate when:

To enable the Buzzer press

and

hold

these 2 touchpads at the

same time for 3 seconds, and

listen for “BEEP”.

Cold to

40 °C

Cold to

40 °C

Delicates;Delicate fabrics as

acrylics, viscose,

polyester items

with normal soil.

Bedding;Special program

for one synthetic

blanket, duvet,

bedspread and

so on.

3.5 kg 1200 rpm

3.5 kg 800 rpm

  



        

    

     

   

Table of contents

Other Electrolux Washer manuals

Electrolux

Electrolux EW 1131 F Quick guide

Electrolux

Electrolux EWF8024BDWA User manual

Electrolux

Electrolux ESF4510LOX User manual

Electrolux

Electrolux EWM 1046 EEU User manual

Electrolux

Electrolux washing machine User manual

Electrolux

Electrolux EWF 146410 A User manual

Electrolux

Electrolux EWT 136451 W User manual

Electrolux

Electrolux EW 1548 F Quick guide

Electrolux

Electrolux EWF1408B1WA User manual

Electrolux

Electrolux EWC 1050 User manual

Electrolux

Electrolux EW8T663G1G User manual

Electrolux

Electrolux EFLS210TIW User manual

Electrolux

Electrolux EWF1141AEWA User manual

Electrolux

Electrolux WH1128 Instruction Manual

Electrolux

Electrolux EWF1294DSW User manual

Electrolux

Electrolux EWF 1274BW User manual

Electrolux

Electrolux MWX445MB User manual

Electrolux

Electrolux EWF 10679 W User manual

Electrolux

Electrolux EWF 1083 User manual

Electrolux

Electrolux WA GL6 S 101 User manual

Electrolux

Electrolux EIFLS60LSS User manual

Electrolux

Electrolux EWF 1020 User manual

Electrolux

Electrolux EWT959 User manual

Electrolux

Electrolux LAVAMAT 64850L User manual

Popular Washer manuals by other brands

Tricity Bendix

Tricity Bendix AW 1000 W Operating & installation instructions

Panasonic

Panasonic NA-F60L5WRB operating instructions

GE WSLP1500 Dimensions and installation information

Bosch

Bosch WAN2829BSN User manual and installation instructions

LG TV2516DV3B owner's manual

LG TH2517DSAV owner's manual

VESTEL

VESTEL CMH-XL 7510 TE user manual

AEG

AEG 74335 User information

Johnson

Johnson JWF721A user manual

Beko

Beko WTE7604XLW0 owner's manual

Danby

Danby DTT100A1WDB Owner's use and care guide

Amica

Amica WA 14 Ex operating instructions

Daewoo

Daewoo DWD-F1222 instruction manual

Bosch

Bosch WAS28461AU instruction manual

Miele

Miele PW 6080 Vario manual

Finlux

Finlux FLX108CF220 user manual

Whirlpool

Whirlpool 3LBR5132AN0 Use and care guide

Beko

Beko WKB 51231 PTMA manual
