Electrolux TDC 1000 W User manual

TUMBLE DRYER

INSTRUCTION BOOKLET

TDC 1000 W

125 995 840

Installation

nThis appliance is heavy. Care should be taken

when moving it.

nIt is dangerous to alter the specifications or

attempt to modify this product in any way.

nAny electrical work required to install this

appliance should be carried out by a qualified

electrician or competent person.

nCare must be taken to ensure that the appliance

does not stand on the electrical supply cable.

nIf the machine is situated on a carpeted floor,

please adjust the feet in order to allow air to

circulate freely.

nIf the tumble dryer is placed on top of a washing

machine, it is compulsory to use the stacking kit

(optional accessory).

Child Safety

nThis appliance is designed to be operated by

adults. Children should not be allowed to tamper

with the controls or play with the product.

nPets and children have been known to climb into

tumble dryers. Please check your drum before

use.

nKeep all packaging well away for children.

Use

nDo not overload the appliance (see programme

chart).

nClothes which are dripping wet should not be

placed in the dryer.

nAs some bulky items such as duvets and

eiderdowns should be dried in large commercial

machines because of their bulk, check with the

manufacturer of the item if it is suitable for drying

in a domestic machine, even if the dry weight of

the item is within the limit advised.

nDo not dry canvas shoes or sports shoes, as they

could get stuck between the door and the drum,

thus blocking this latter.

nPlease make sure that no gas lighters have

accidentally been left in pockets of garments to be

loaded into appliance.

nDanger of explosion: Never tumble dry items that

have been in contact with inflammable solvents

(petrol, methylated spirits, dry cleaning fluid and

the like). As these substance are volatile, they

could cause an explosion. Tumble dry only items

washed with water.

nIn order to avoid danger of fires caused by

excessive drying, do not use appliance to dry the

following items:

nCushions, quilts and the like (these items

accumulate heat).

nItems containing rubber foam or materials similar

to rubber foam.

nLeave the door slightly ajar when the appliance is

not being used. This will allow the seal to be

preserved.

nClean fluff filter after using tumble dryer. To

prevent fire risks, do not use the appliance if the

fluff filter is damaged or without filter.

nUnder no circumstances should you attempt to

repair the machine yourself. Repairs carried out

by inexperienced persons may cause injury or

serious malfunctioning. Contact your local

Electrolux Service Centre. Always insist on

genuine Electrolux spare parts.

Important Safety Information

It is most important that this instruction book should be retained with the appliance for

future reference. Should the appliance be sold or transferred to another owner, or should

you move house and leave the appliance, always ensure that the book is supplied with the

appliance in order that the new owner can get to know the functioning of the appliance

and the relevant warnings.

These warnings have been provided in the interest of safety. You MUST read them carefully

before installing or using the appliance.

For the User

Important Safety Information

nInstallation 2

nChild Safety 2

nUse 2

Your New Tumble Dryer

Description of the Appliance

The Control Panel

nWater full indicator light 5

nMains-on light 5

nTime selector dial/ON-OFF switch 5

Programme Chart

Operating Sequence

nLoad the laundry 7

nSelect the drying time 7

nWhen drying is completed 7

Hints & Tips on Drying

Maintenance and Cleaning

nExternal cleaning 9

nCleaning fluff filter 9

nCleaning the condenser unit 9

nEmptying the water reservoir 9

Something Not Working

Service and Spare Parts

Customer Care

Guarantee Conditions

Electrolux Service Centres

12-13

For the Installer

Installation Instructions

Technical Specifications

nPositioning 15

nStacking kit (optional accessory) 15

nDoor reversal 16

nElectrical connection 17

Contents

Guide to use the Instruction Book

The following symbols will be found in the text to guide you throughout the instructions:

Safety instructions

Hints and tips

Environmental information

Description of the Appliance

This tumble dryer will give your wash that soft, relaxed feel whatever

the weather.

Extremely high quality standards both during development and

manufacturing guarantee a long service life for your appliance.

Maximum economy in the operation of your dryer is achieved through

very frugal electricity consumption and short drying times.

Your New Tumble Dryer

In the interest

of the environment

nMaterials marked with the symbol are

recyclable.

nCheck with your local Council or Environmental

Health Office to see if there are facilities in your

area for re-cycling this appliance.

nWhen the appliance is to be scrapped, cut off the

power supply cable and make the door closing

device unusable to prevent young children from

being trapped inside.

nHelp to keep your country tidy - use authorised

disposal sites for your old appliance.

How do we help to protect the

environment? We use recycled paper!

Energy saving tips

To save energy we recommend that you follow these

hints:

nTry to load the maximum capacity of the machine

as small loads are uneconomical.

nAlways load well spun laundry. The higher the

spin speed, the lower the electricity consumption

and the shorter the drying times.

nDo not over-dry laundry, this avoids creasing and

saves energy.

nClean the filter regularly to avoid excessive drying

times and high electricity consumption.

nVentilate the room well. The room temperature

should not exceed +35°C during drying.

1 Worktop

2 Programme Chart

3 Full Tank Indicator Light

4 Mains-On Light

5 Door Open Button

6 Time Selector Dial-ON/OFF switch

07 Fluff Filter

08 Door Catch

09 Rating Plate

10 Ventilation Grille

11 Condenser Unit

12 Water Reservoir (Tank)

13 Adjustable Feet

234

DOOROPEN

IMPORTANT:PLEASE READ INSTRUCTION BOOK BEFORE USE

REVERSE

action

SYNTHETICS- MIXED FABRICS

COTTONS- LINENS

SPINSPEED STOREDRY

5.5lbs 650 rpm 55mins

3.3 lbs 650 rpm 35mins

2.2 lbs 650 rpm 30mins

1.5lbs 650 rpm 25mins

SPINSPEED STOREDRY IRON DRY

11 lbs 650rpm 100mins 90mins

11 lbs 800-1000rpm 90 mins 80mins

5.5lbs 650rpm 65mins 55mins

5.5lbs 800-1000rpm 60 mins 45mins

PROGRAMMES

MAINSFULLTANK

CondenserDryer

TDC1000W

1234 5

DOOR OPEN

IMPORTANT: PLEASE READ INSTRUCTION BOOK BEFORE USE

REVERSE

action

SYNTHETICS - MIXED FABRICS

COTTONS - LINENS

SPIN SPEED STORE DRY

5.5 lbs 650 rpm 55 mins

3.3 lbs 650 rpm 35 mins

2.2 lbs 650 rpm 30 mins

1.5 lbs 650 rpm 25 mins

SPIN SPEED STORE DRY IRON DRY

11 lbs 650 rpm 100 mins 90 mins

11 lbs 800-1000 rpm 90 mins 80 mins

5.5 lbs 650 rpm 65 mins 55 mins

5.5 lbs 800-1000 rpm 60 mins 45 mins

PROGRAMMES

MAINSFULL TANK

Condenser Dryer

TDC1000W

The Control Panel

1 Programme Chart

This will help you to select the correct time for

drying.

2 Full Tank Indicator Light

This light illuminates when the water reservoir is full

or improperly fitted.

The programme will be interrupted.

Attention: The time selector dial continues to turn

towards the “STOP” position, but the drying cycle is

stopped, that means that the laundry is not dried.

After having emptied the tank, you have to select the

drying programme again for the time required to

complete drying.

After this operation, the dryer can stay still for some

minutes before starting the programme and during

this period the FULL TANK light remains alight.

3 Mains-On Light

This light indicates operating status. It switches off at

the end of the programme.

4 Door Open Button

Depress this button to open the door.

Should the door be opened while appliance is

working, the tumble dryer will stop functioning but

the time selector dial continues to turn.

5 Time Selector Dial-On/Off

Switch

Turn the dial clockwise (to the right) to select the

time for drying (see Chart page 6). At the same time

the machine is switched on and the programme starts.

This dryer has two drying cycles of up to 120 and 80

minutes, giving a high or low heat temperature

according to the type of fabric.

When selecting the drying time you should remember

that it includes a 12 minute cooling phase (position

on the dial).

This phase should not be shortened, stopped or

avoided, as this could cause skin burns or damages to

the laundry.

Programme Chart

Cottons and linens

Selector dial up to 120 minutes (high temperature section)

Type of laundry:

Cotton

Towelling

Shirts

Sheets

Hand towels

Tablecloths

Table napkins

Degree of drying

Store dry

(wardrobe dry)

11 lbs

5.5 lbs

100

11 lbs

5.5 lbs

Iron dry

(not completely dry;

suitable for ironing)

Amount

of laundry

Drying time in minutes for

laundry spun at

800/1000 rpm 650 rpm

Synthetics

Selector dial up to 80 minutes (low temperature section)

Type of laundry:

Synthetics or mixed fabrics

which do not require

ironing.

Degree of drying

Store dry 5.5 lbs 55

3.3 lbs

2.2 lbs

1.5 lbs

Amount of laundry Drying time in minutes for laundry

spun at a minimum speed of 650 rpm

ATTENTION! Please follow the instructions on labels when drying mixed fabrics.

Before using your tumble dryer for the first time, we

recommend you place a few damp cloths inside the

appliance and dry for approximately 20 minutes.

There may be dust inside a brand new tumble dryer.

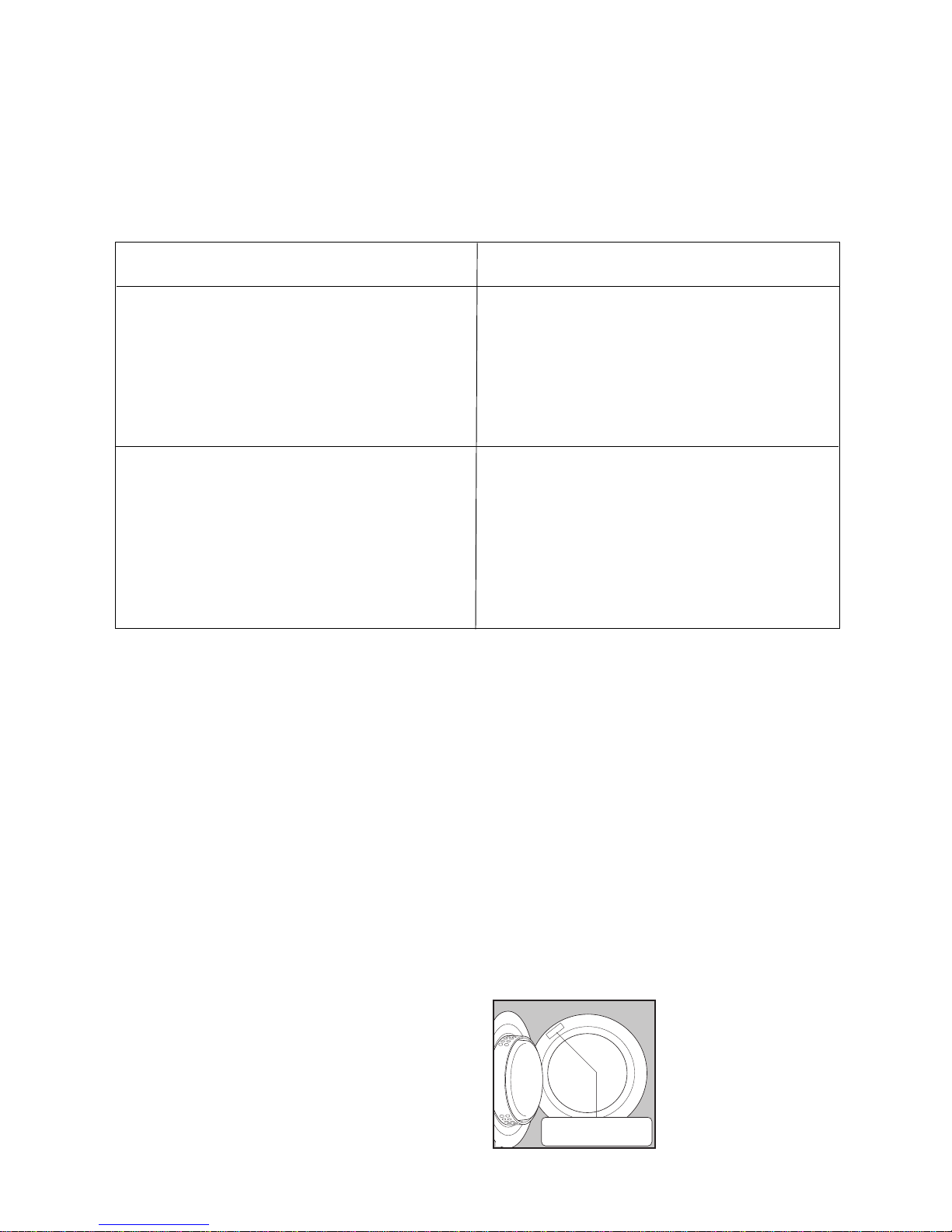

1. Load the laundry

Open the door by pressing the relevant button.

Load the items one at a time, shaking them out

loosely and close the door.

Please check the laundry does not get caught between

the door and filter.

2. Select the drying time

Turn the selector dial clockwise to the desired time

(in the high or low temperature section, according to

the fabric).

The mains-on light illuminates and the programme

starts.

3. When drying is completed

The machine stops automatically and the mains-on

light goes out.

Open the door and take out the laundry.

Clean the filter and empty the tank after every

drying programme.

A clean filter ensures correct functioning of the

appliance.

P0122S

P0871

Operating Sequence

Before placing articles of laundry in your tumble

dryer, check the care labels to ensure they are

recommended for tumble drying.

Care Labels you may find on your laundry

normal drying (high temperature)

delicate drying (low temperature)

do not tumble dry

Do not overload the appliance.

Here is a list of the approximate weight of some

common laundry items.

Sheet 700 to 1000 g

Pillowcase 100 to 200 g

Tablecloth 400 to 500 g

Table Napkin 50 to 100 g

Kitchen Towel 70 to 120 g

Linen Hand Towel 100 to 150 g

Hand Towel 150 to 250 g

Bath Towel 700 to 1000 g

Bathrobe 1000 to 1500 g

Shirt 200 to 300 g

Apron 150 to 200 g

nAlways load well spun laundry. The higher the

spin speed the lower the electricity consumption

and the shorter the drying time.

nDO NOT load dripping wet laundry into the dryer.

Roll the article in a towel or spin to remove

excess water.

nClose poppers and zips and fasten any buttons.

nSort the laundry. Separate synthetics from

cotton/linens, and dry separately.

nRemove the laundry immediately after the

programme has finished.

nUse a fabric conditioning sheet to reduce static.

We recommend the sheet is pinned to an article of

laundry (using a safety pin).

nMix the load i.e. large and small articles.

nWhen drying large items such as sheets, we

recommend you periodically stop the dryer to

redistribute the load.

DO NOT use the tumble dryer to dry the following:

nArticles contaminated with inflammable

substances e.g. petrol, cleaning solvents, cooking

oil, fats or hair lacquer.

nWoollen and synthetic/wool mixtures unless the

item is labelled as suitable for tumble drying.

nVery delicate articles such as silk.

nVery large and bulky items such as duvets or

sleeping bags.

Hints & Tips on Drying

You must disconnect the appliance from the

electricity supply, before you can carry out any

cleaning or maintenance work.

External cleaning

Use only soap and water and then dry thoroughly.

From time to time, apply a little wax furniture cream

with a soft cloth.

Important: do not use methylated spirit, diluents or

similar products.

Cleaning the filter

The tumble dryer cannot operate efficiently with a

clogged filter. The filter collects all the fluff which

forms during drying and it is therefore essential to

remove and clean this filter after each drying

programme before removing the laundry.

Remove the fluff around the filter too.

You should not be alarmed by the amount of fluff

which collects on the filter; this is due to normal

wearing of the fabrics dried and not to incorrect

operation of your machine. Rubbing of the fibres

during normal wear and washing forms fluff. If

laundry is dried on a line, this fluff simply flies away,

whereas inside the tumble dryer it collects together

and swells considerably as a result of the drying

action.

P0638S

Cleaning the condenser unit

Clean the air condenser periodically, 3 or 4 times a

year depending on how frequently the dryer is used.

Pull out the condenser, holding it at the top, and

remove all fluff. Clean it with a brush and rinse it

under the shower if necessary.

Also clean the outside, removing all fluff.

Clean the rubber seal round the porthole door and the

seal of the condenser in the inner door with a damp

cloth.

Emptying the water reservoir(tank)

Water extracted from the laundry condenses inside

the machine and is collected in a reservoir.

The reservoir must be emptied after each drying

cycle to ensure efficient operation when the machine

is next used.

If this is not done a safety device trips: pilot light

FULL TANK on the control panel comes on and the

programme stops, leaving the laundry damp.

The reservoir can be emptied even in the middle of a

programme.

The reservoir must be re-inserted correctly.

Important: When emptying the reservoir during the

drying cycle, the machine stops drying, but the

drying time selector dial will continue to step on.

Handy tip: The condensed water may be used in a

steam iron or to top up a battery, etc. In this case it

must be filtered (e.g. through a coffee filter).

P0637

P0639

P0636

Maintenance and Cleaning

The tumble dryer does not start nThe door has not been closed.

nThe plug is not properly inserted in the power

socket.

nThere is no current at the socket

nThe main fuse or the fuse in the plug has blown.

nA drying time has not been selected.

nThe water reservoir is full or not properly

inserted (the pilot light FULL TANK is on).

Drying takes too long or laundry is not

dry enough.

nThe laundry has not been spun properly.

nThe filter and/or air condenser are clogged up.

nThe water reservoir is full during operation.

nThe room temperature is too high.

nThe selected time or section was not suitable for

the laundry

nThere is too much laundry inside the appliance.

nThe dryer is not correctly installed.

Something Not Working

Symptom Possible causes

Certain problems are due to lack of simple maintenance or oversights, which can be solved easily without

calling out an engineer. Before contacting your local Service Centre, please carry out the checks listed below.

IMPORTANT: if you call out an engineer to a fault listed below, or to repair a fault caused by incorrect use or

installation, a charge will be made even if the appliance is under guarantee.

If after the above checks, there is still a fault, call

your local Electrolux Service Force Centre.

Service & Spare Parts

If you require an engineer or wish to purchase spare

parts contact your local Electrolux Service Force

Centre by telephoning:

0870 5 929929

Your telephone call will be routed to the Service

Centre covering your post code area.

The addresses are detailed in this instruction book on

the pages headed Electrolux Service Force Centres,

and can also be found in your local telephone

directory under “E”.

When you call the Service Force Centre please make

sure you give the model and serial number of the

appliance.

This information can be found on the rating plate

(see picture) or on the guarantee card.

In-guarantee customers should ensure that the

above checks have been made as the engineer will

make a charge if the fault is not a mechanical or

electrical breakdown. Please note that proof of

purchase is required for any in-guarantee service

calls.

Customer Care

For general enquiries concerning your Electrolux

appliance or for further information on Electrolux

products, please contact our Customer Care

Department by letter or telephone as follows:

Customer Care Department

Electrolux

55-57 High Street

Slough

Berkshire

SL1 1DZ

Tel 08705 950950

P0307

Mod. ...

Prod. No. ........ Ser. No. ............

Table of contents

Other Electrolux Dryer manuals

Electrolux

Electrolux EDC47130W User manual

Electrolux

Electrolux EDC 5340 User manual

Electrolux

Electrolux EIED55HIW - 8.0 cu. Ft. Electric Dryer User manual

Electrolux

Electrolux EDC78550W User manual

Electrolux

Electrolux EDH9000W3 User manual

Electrolux

Electrolux EDE1072PDW User manual

Electrolux

Electrolux EDH3786GDE User manual

Electrolux

Electrolux EDH903BEWA User manual

Electrolux

Electrolux EDV6051 User manual

Electrolux

Electrolux EDH 97941 W User manual

Electrolux

Electrolux ENV06 User manual

Electrolux

Electrolux EDP2074PDW User manual

Electrolux

Electrolux EDC 3250 User manual

Electrolux

Electrolux EIGD55HIW - 27" Gas Dryer Quick start guide

Electrolux

Electrolux EW7H558E2 User manual

Electrolux

Electrolux TWLEEV300 User manual

Electrolux

Electrolux EDC 77570 W User manual

Electrolux

Electrolux EWMED70J MB User manual

Electrolux

Electrolux TWSL6S7000 User manual

Electrolux

Electrolux TWSL4IE301 User manual

Electrolux

Electrolux EDE5100 User manual

Electrolux

Electrolux IQ-TOUCH EIMED55I RR/MB/IW User manual

Electrolux

Electrolux TW SL6 E User manual

Electrolux

Electrolux EDE 56160W User manual

Popular Dryer manuals by other brands

Bosch

Bosch WTA79200GB Installation and operating instructions

Amana

Amana W10233410A Use and care guide

Miele

Miele TWH 780 WP operating instructions

Asko

Asko T760 user guide

Alliance Laundry Systems

Alliance Laundry Systems 25 Series Original instructions

Bosch

Bosch Logixx 10 WTB76556GB Instruction manual and installation instructions

STIEBEL ELTRON

STIEBEL ELTRON Ultronic S Operation and installation

Beko

Beko DS8433RX1M user manual

Dawlance

Dawlance Spinner DS 6000 C owner's manual

AEG

AEG TR838P4OB user manual

Indesit

Indesit IDV 75 instruction manual

Infiniton

Infiniton SD-DG85C manual

BOMANN

BOMANN WT 5019 instruction manual

Alliance Laundry Systems

Alliance Laundry Systems TMB795C Installation

Asko

Asko T793C operating instructions

Kenmore

Kenmore 8041 - 5.8 cu. Ft. Capacity Electric Dryer installation instructions

Frigidaire

Frigidaire CAQE7077KW0 use & care

Bosch

Bosch WTX8HKM9SN User manual and installation instructions
