Tumble Dryer

electrolux 3

Welcome to the world of Electrolux

Thank you for choosing a first class product from

Electrolux, which hopefully will provide you with lots of

pleasure in the future. The Electrolux ambition is to

offer a wide variety of quality products that make your

life more comfortable. You find some examples on

the cover in this manual. Please take a few minutes

to study this manual so that you can take advantage

of the benefits of your new machine. We promise that

it will provide a superior User Experience delivering

Ease-of-Mind. Good luck!

4 contents electrolux

Contents

Safety information..............................5

Product description ...........................7

Control panel .....................................8

Use....................................................9

Drying hints .....................................13

Drying programme .....................15-16

Programme information ...................17

Care and cleaning ...........................18

Something not working....................20

Technical data .................................22

Consumption values ........................23

Installation .......................................24

Environment concerns .....................27

The following symbols are used in this manual:

Important information concerning your personal safety and information on how

to avoid damaging the appliance.

General information and tips

Environmental information

safety information electrolux 5

Safety Information

In the interest of your safety and to

ensure the correct use, before installing

and first using the appliance, read this

user manual carefully, including its hints

and warnings. To avoid unnecessary

mistakes and accidents, it is important

to ensure that all people using the

appliance are thoroughly familiar with

its operation and safety features. Save

these instructions and make sure that

they remain with the appliance if it is

moved or sold, so that everyone using it

through its life will be properly informed

on appliance use and safety.

General safety

• It is dangerous to alter the specifications

or attempt to modify this product in any

way.

• This appliance is not intended for use by

persons (including children) with reduced

physical, sensory or lack of experience

and knowledge, unless they have been

given supervision or instruction concern-

ing use of the appliance by a person

responsible for their safety.

• Make sure that small pets do not climb

into the drum. To avoid this, please check

into the drum before using.

• Any objects such as coins, safety pins,

nails, screws, stones or any other hard,

sharp material can cause extensive dam-

age and must not be placed into the

machine.

• In order to avoid danger of fires caused

by excessive drying, do not use appliance

to dry the following items: Cushions, quilts

and the like (these items accumulate

heat).

• Items such as foam rubber (latex foam),

shower caps, waterproof textiles, rubber

backed articles and clothes or pillows fit-

ted with foam rubber pads should not be

dried in the tumble dryer.

• Always unplug the appliance after use,

clean and maintenance.

• Under no circumstances should you

attempt to repair the machine yourself.

Repairs carried out by inexperienced per-

sons may cause injury or serious malfunc-

tioning. Contact your local Service Centre.

Always insist on genuine spare parts.

• Items that have been soiled with sub-

stances such as cooking oil acetone,

petrol, kerosene, spot removers, turpen-

tine, waxes and wax removers should be

washed in hot water with an extra amount

of detergent before being dried in the

tumble dryer.

• DDaannggeerrooffeexxpplloossiioonn: Never tumble dry

items that have been in contact with

inflammable solvents (petrol, methylated

spirits, dry cleaning fluid and the like). As

these substance are volatile, they could

cause an explosion. Only tumble dry items

washed with water.

• RRiisskkooffffiirree: items that have been spotted

or soaked with vegetable or cooking oil

constitute a fire hazard and should not be

placed in the tumble dryer.

• If you have washed your laundry with

stain remover you must execute an extra

rinse cycle before loading your tumble

dryer.

• Please make sure that no gas lighters or

matches have accidentally been left in

pockets of garments to be loaded into

appliance

WWAARRNNIINNGG!!

NNeevveerrssttooppaattuummbblleeddrryybbeeffoorreetthheeeennddoof

tthheeddrryyiinnggccyycclleeuunnlleessssaalllliitteemmssaarreeqquuiicckkllyy

rreemmoovveeddaannddsspprreeaaddoouuttssootthhaatttthheehheeaattiiss

ddiissssiippaatteed

d..

RRIISSKKOOFFFFIIRREE!!

IInnssttaallllaattiioonn

• This appliance is heavy. Care should be

taken when moving it.

• When unpacking the appliance, check

6electrolux safety information

that it is not damaged. If in doubt, do not

use it and contact the Service Centre.

• All packing and transit bolts must be

removed before use. Serious damage can

occur to the product and to property if

this is not adhered to. See relevant sec-

tion in the user manual.

• The final part of a tumble dryer cycle

occurs without heat ( cool down cycle ) to

ensure that the items are left at a temper-

ature that ensures that items will not be

damaged.

• Any electrical work required to install this

appliance should be carried out by a qual-

ified electrician or competent person.

• Care must be taken to ensure that the

appliance does not stand on the electrical

supply cable.

• If the machine is situated on a carpeted

floor, please adjust the feet in order to

allow air to circulate freely.

• After having installed the appliance, check

that it is not pressing or standing on its

electrical supply cable, drain hose.

• If the tumble dryer is placed on top of a

washing machine, it is compulsory touse

the stacking kit (optional accessory).

UUssee

• This appliance is designed for domestic

use. It must not be used for purposes

other than those for which it was

designed.

• Only wash fabrics which are designed to

be machine dried. Follow the instructions

on each garment label.

• Do not dry unwashed items in the tumble

dryer.

• Do not overload the appliance. See the

relevant section in the user manual.

• Clothes which are dripping wet should

not be placed in the dryer.

• Garments which have been in contact

with volatile petroleum products should

not be machine dried. If volatile cleaning

fluids are used, care should be taken to

ensure that the fluid is removed from the

garment before placing in the machine.

• Never pull the power supply cable to

remove the plug from the socket; always

take hold of the plug itself.

• Never use the tumble dryer if the power

supply cable, the control panel, the work-

ing surface or the base are damaged so

that the inside of the tumble dryer is

accessible.

• Fabric softeners, or similar products

should be used as specified by the fabric

softener instructions.

CChhiillddssaaffeettyy

• This machine is not intended for use by

young children or infirm persons without

supervision.

• Children should be supervised to ensure

that they do not play with the appliance.

• The packaging components (e.g. plastic

film, polystyrene) can be dangerous to

children - danger of suffocation! Keep

them out of children’s reach.

• Keep all detergents in a safe place out of

children’s reach.

• Make sure that children or pets do not

climb into the drum.

product description electrolux 7

Product description

Control panel

Fluff filters

Rating Plate

Adjustable feet

Side vent outlets

Ring nut

Rear vent outlet

8electrolux control panel

Control panel

Buzzer button

Quick button

Delicate button

Delay start button

1Start/Pause button

Indicator lights:

- Drying

- Cooling

-End

- Filtres

Programme selector dial

1 2 3 4 5 6 7

use electrolux 9

Use

First Use

●Ensure that the electrical connections

comply with the installation instructions.

●Remove the polystryrene block and

any material from the drum.

●Before using your tumble dryer for

the first time, werecommend that you

to place a few damp clothsinside the

appliance and dry for 30 minutes.

There may be dust inside a brand

new tumble dryer.

Daily Use

Connect the appliance.

Open the door (see picture).

Place the laundry in the drum, one item

at a time, shaking them out as much

as possible. Close the door. Please check

the laundry does not get caught

between the door and filter.

P1108

P1104

Select the required programme

Turn the programme selector dial to the

required programme.

The light Start/Pause starts to flash.

The selector dial is divided into following

sections:

Cottons

Synthetics

Time

Special

Allows you to select electronically

controlled or time controlled drying. Turn

the dial to the required programme or time.

EElleeccttrroonniiccaallllyyccoonnttrroolllleeddddrryyiinngg((aauuttoommaattiicc))

The appliance runs these programmes

with the help of probes which detect the

degree of dampness of the laundry.

Simply select the programme according

to the type of laundry and degree of

drying required.

TTiimmeeccoonnttrroolllleeddddrryyiinngg

Can be used to finish off drying if necessary.

Select the 90 or 60 minute programme for

cottons or the 30 minute programme for

synthetics. To cancel a programme which is

running, turn the programme selector dial to

“0”. At the end of drying, turn the selector

dial to “0” to switch the machine off before

removing the laundry.

10 electrolux use

Programme Option buttons

Depending on the programme, different

functions can be combined. These must

be selected after choosing the desired

programme and before depressing the

Start/Pause button. When these buttons

are pressed, the corresponding pilot lights

come on. When they are pressed again, the

pilot lights go out.pilot lights go out.

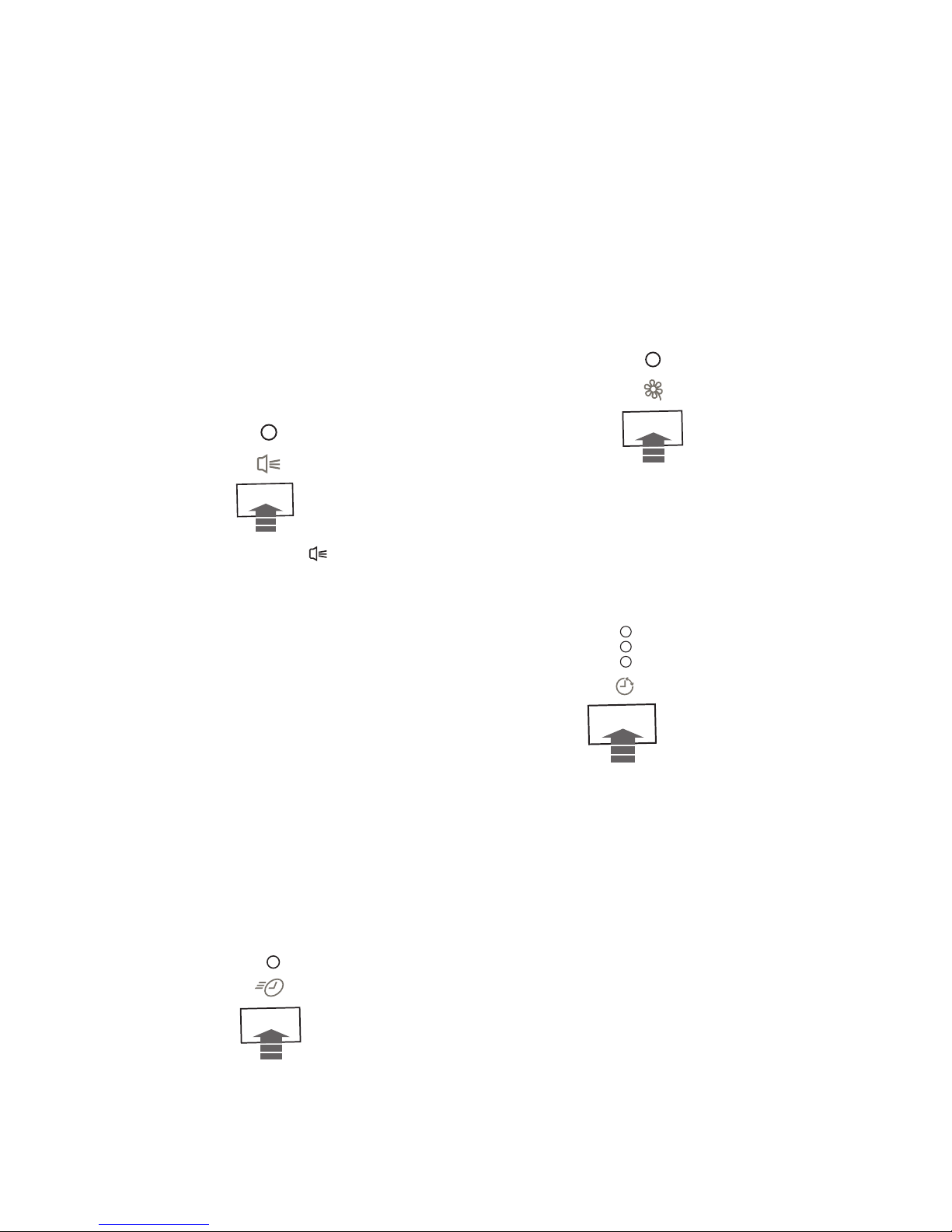

Select the Buzzer

When the drying cycle has finished, an

intermittent audible signal will sound.

By depressing button the acoustic

signal is switched off in the following cases:

• when selecting the programme

• when depressing the buttons

• when the programme selector dial is

turned to another position during the

programme or when you depress an

option button during the cycle

• at the end of the programme.

The corresponding light comes on

Select the Quick button

By depressing this button the drying

time is reduced in the following COT-

TON programmes:

• extra dry

• strong dry

• cupboard dry

The corresponding light illuminates.

This option cannot be selected togeth-

er with “low temperature” function .

Select Delicate

Pressing this button allows drying to be

performed at a lower temperature, for

delicate items.

The corresponding pilot light comes

on. This option can also be used for

time controlled drying.

This function cannot be used with

QUICK DRYING.

Select Delay start

This button allows you to delay the

starting of the programme by 3, 6 or 9

hours.

Press the button until the light relevant

to the desired delay lights up.

This option must be selected after hav

ing selected the programme and

before pressing START/PAUSE to start

the programme.

The machine begins the countdown,

which is shown by the pilot lights. For

example, if you have chosen a 9-hour

delay (pilot light 9h lit), after 3 hours, 9h

goes out and 6h lights up; after 3 more

hours, 6h goes out and 3h lights up.

When the 9 hours are over (pilot light

3h off), the drying cycle begins.

Table of contents

Other Electrolux Dryer manuals

Electrolux

Electrolux EWMED70J MB User manual

Electrolux

Electrolux EDE 57160W User manual

Electrolux

Electrolux T5130 User manual

Electrolux

Electrolux EDV705G User manual

Electrolux

Electrolux IQ-TOUCH EIMED55I RR/MB/IW User manual

Electrolux

Electrolux Frigidaire CAQE7021LW Owner's manual

Electrolux

Electrolux EDH803BEWN User manual

Electrolux

Electrolux EDC 504M User manual

Electrolux

Electrolux EDE 425 M User manual

Electrolux

Electrolux Zanussi TCE 7127 W User manual

Electrolux

Electrolux TW L4 E User manual

Electrolux

Electrolux Compass Pro TD6-10 User manual

Electrolux

Electrolux EDP2074GDW User manual

Electrolux

Electrolux TW SL4 E User manual

Electrolux

Electrolux EW8H259ST User manual

Electrolux

Electrolux FEQ332ES User manual

Electrolux

Electrolux T4290 User manual

Electrolux

Electrolux T4190 User manual

Electrolux

Electrolux EDE1071PDW User manual

Electrolux

Electrolux EFLS210TIW User manual

Electrolux

Electrolux EDI 96150 W User manual

Electrolux

Electrolux EIED55HIW - 8.0 cu. Ft. Electric Dryer Quick start guide

Electrolux

Electrolux EDP2074PDW User manual

Electrolux

Electrolux EDC804Q5WB User manual

Popular Dryer manuals by other brands

Bosch

Bosch WTA79200GB Installation and operating instructions

Amana

Amana W10233410A Use and care guide

Miele

Miele TWH 780 WP operating instructions

Asko

Asko T760 user guide

Alliance Laundry Systems

Alliance Laundry Systems 25 Series Original instructions

Bosch

Bosch Logixx 10 WTB76556GB Instruction manual and installation instructions

STIEBEL ELTRON

STIEBEL ELTRON Ultronic S Operation and installation

Beko

Beko DS8433RX1M user manual

Dawlance

Dawlance Spinner DS 6000 C owner's manual

AEG

AEG TR838P4OB user manual

Indesit

Indesit IDV 75 instruction manual

Infiniton

Infiniton SD-DG85C manual

BOMANN

BOMANN WT 5019 instruction manual

Alliance Laundry Systems

Alliance Laundry Systems TMB795C Installation

Asko

Asko T793C operating instructions

Kenmore

Kenmore 8041 - 5.8 cu. Ft. Capacity Electric Dryer installation instructions

Frigidaire

Frigidaire CAQE7077KW0 use & care

Bosch

Bosch WTX8HKM9SN User manual and installation instructions
