SDM630Pulse

DIN Rail Smart Meter for Single and Three Phase Electrical Systems

Measures kWh Kvarh, KW, Kvar, KVA, P,

F, PF, Hz, dmd, V, A, etc.

Bi-directional measurement IMP & EXP

Two pulse outputs

Din rail mounting 35mm

100A direct connection



Better than Class 1 / B accuracy

USER MANUAL

2014 V1.0

EASTRON SDM630Pulse User Manual

Address: No.1369 Chengnan Road, Jiaxing, Zhejiang, 314001, China.

Tel: 0086-573-83698881/83698882 Fax: 0086-573-83698883 Web: www.eastron.com.cn

Introduction

This document provides operating, maintenance and installation instructions . The unit measures

and displays the characteristics of single phase two wires(1p2w) , three phase three wires(3p3w,)

and three phase four wires(3p4w) supplies, including voltage, frequency, current, power ,active

and reactive energy, imported or exported. Energy is measured in terms of kWh, kVArh.

Maximum demand current can be measured over preset periods of up to 60 minutes. In order to

measure energy,the unit requires voltage and current inputs in addition tot he supply required to

power the product.

SDM630Pulse supports max. 100A direct connection,saves the cost and avoid the trouble to

connect external CTs,giving the unit a cost-effective and easy operation.Built-in interfaces

provides pulse.Configuration is password protected.

Unit Characteristics

The Unit can measure and display:

Line voltage and THD% (total harmonic distortion) of all phases

Line Frequency

Currents, Current demands and current THD% of all phases

Power, maximum power demand and power factor

Active energy imported and exported

Reactive energy imported and exported

The unit has password-protected set-up screens for:

Changing password

Supply system selection 1p2w, 3p3w,3p4w

Demand Interval Time(DIT)

Reset for demand measurements

Pulse output duration

Two pulse output indicates real-time energy measurement.

Pulse output

This provides two pulse outputs that clock up measured active and reactive energy. The constant

of pulse output 2 for active energy is 400imp/kWh(unconfigurable),its width is fixed at 100ms.

The default constant of configurable pulse output 1 is 400imp/kWh,default pulse width is

100ms.The configurable pulse output 1 can be set from the set-up menu.

EASTRON SDM630Pulse User Manual

Address: No.1369 Chengnan Road, Jiaxing, Zhejiang, 314001, China.

Tel: 0086-573-83698881/83698882 Fax: 0086-573-83698883 Web: www.eastron.com.cn

Start-up Screens

1 The first screen lights up all display

segments and can be used as a display

check

2 The second screen indicates the

firmware installed in the unit and its

build number.

3 The interface performs a self-test and

indicates the result if the test passes.

After a short delay, the screen will display active energy measurements.

Measurements

The buttons operate as follows:

1 Selects the Voltage and Current display screens

In Set-up Mode, this is the “Left” or “Back” button.

2 Select the Frequency and Power factor display

screens

In Set-up Mode, this is the “Up” button

3 Select the Power display screens

In Set-up Mode, this is the “Down” button

4 Select the Energy display screens

In Set-up mode, this is the “Enter” or “Right” button

Voltage and Current

Each successive pressing of the button selects a new range:

EASTRON SDM630Pulse User Manual

Address: No.1369 Chengnan Road, Jiaxing, Zhejiang, 314001, China.

Tel: 0086-573-83698881/83698882 Fax: 0086-573-83698883 Web: www.eastron.com.cn

1-1 Phase to neutral voltages(3p4w)

1-2 Phase to neutral voltages(3p3w)

2 Current on each phase

3-1 Phase to neutral voltage THD%(3p4w)

3-2 Phase to neutral voltage THD%(3p3w)

4 Current THD% for each phase

EASTRON SDM630Pulse User Manual

Address: No.1369 Chengnan Road, Jiaxing, Zhejiang, 314001, China.

Tel: 0086-573-83698881/83698882 Fax: 0086-573-83698883 Web: www.eastron.com.cn

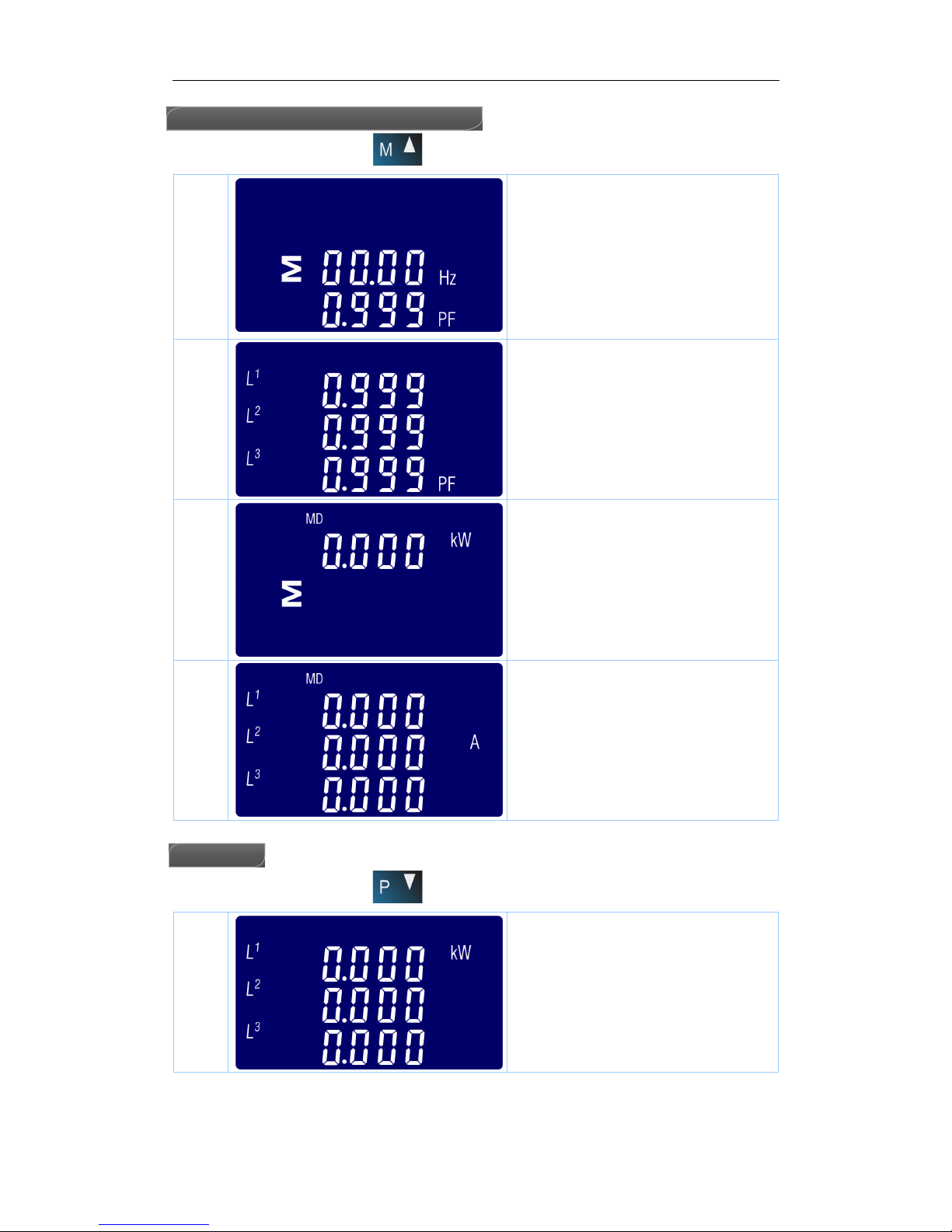

Frequency and Power factor and Demand

Each successive pressing of the button selects a new range:

1 Frequency and Power Factor (total)

2 Power Factor of each phase

3 Maximum Power Demand

4 Maximum Current Demand

Power

Each successive pressing of the button select a new range:

1 Instantaneous Active Power in kW

EASTRON SDM630Pulse User Manual

Address: No.1369 Chengnan Road, Jiaxing, Zhejiang, 314001, China.

Tel: 0086-573-83698881/83698882 Fax: 0086-573-83698883 Web: www.eastron.com.cn

2 Instantaneous Reactive Power in kVAr

3 Instantaneous Volt-amps in KVA

4 Total kW, kVArh, kVA

Energy Measurements

Each successive pressing of the button selects a new range:

1-1 Imported active energy in kWh

1-2 Exported active energy in kWh

EASTRON SDM630Pulse User Manual

Address: No.1369 Chengnan Road, Jiaxing, Zhejiang, 314001, China.

Tel: 0086-573-83698881/83698882 Fax: 0086-573-83698883 Web: www.eastron.com.cn

2-1 Imported reactive energy in kVArh

2-2 Exported reactive energy in kVArh

3-1 Total active energy in kWh

3-2 Total reactive energy in kVArh

Set-up

To enter set-up mode, pressing the button for 3 seconds, until the password screen

appears.

Setting up is password-protected so you must enter the correct password (default ‘1000’) before

processing. If an incorrect password is entered, the display will show: Err

EASTRON SDM630Pulse User Manual

Address: No.1369 Chengnan Road, Jiaxing, Zhejiang, 314001, China.

Tel: 0086-573-83698881/83698882 Fax: 0086-573-83698883 Web: www.eastron.com.cn

To exit setting-up mode, press repeatedly until the measurement screen is restored.

Set-up Entry Methods

Some menu items, such as password,require a four-digit number entry while others, such as

supply system, require selection from a number of menu options.

Menu Option Selection

1) Use the and buttons to select the required item from the menu shown in

section 4.1. selection does not roll over between bottom and top of list

2) Press to confirm your selection

3) If an item flashes, then it can be adjusted by the and buttons. If not, there

maybe a further layer.

4) Having selected an option from the current layer, press to confirm your selection.

The SET indicator will appear.

5) Having completed a parameter setting, press to return to a higher menu level. The

SET indicator will be removed and you will be able to use the and buttons for

further menu selection.

6) On completion of all set-up, press repeatedly until the measurement screen is

restored.

Number Entry Procedure

When setting up the unit , some screens require the entering of a number. In particular, on entry

to the setting up section, a password must be entered. Digits are set individually, from left to

right. The procedure is as follows:

1) The current digit to be set flashes and is set using the and buttons

2) Press to confirm each digit setting. The SET indicator appears after the last digit has

been set.

EASTRON SDM630Pulse User Manual

Address: No.1369 Chengnan Road, Jiaxing, Zhejiang, 314001, China.

Tel: 0086-573-83698881/83698882 Fax: 0086-573-83698883 Web: www.eastron.com.cn

3) After setting the last digit, press to exit the number setting routine. The SET indicator

will be removed.

Change password

Use the and to choose

the change password option

2-1

Press the to enter the change

password routine. The new password

screen will appear with the first digit

flashing

2-2

Use and to set the first

digit and press to confirm your

selection. The next digit will flash.

2-3 Repeat the procedure for the remaining

three digits

2-4 After setting the last digit, SET will show.

EASTRON SDM630Pulse User Manual

Address: No.1369 Chengnan Road, Jiaxing, Zhejiang, 314001, China.

Tel: 0086-573-83698881/83698882 Fax: 0086-573-83698883 Web: www.eastron.com.cn

Press to exit the number setting routine and return to the Set-up menu. SET will be

removed

DIT Demand Integration Time

This sets the period in minutes over which the current and power readings are integrated for

maximum demand measurement. The options are: off, 5, 8,10,15 30,60 minutes

From the set-up menu, use and

buttons to select the DIT option.

The screen will show the currently

selected integration time.

2-1

Press to enter the selection

routine.

The current time interval will flash

2-2

Use and buttons to

select the time required.

2-3

Press to confirm the selection.

SET indicator will appear.

Press to exit the DIT selection routine and return to the menu.
