E-Lead EL-451R User manual
Tire Pressure Monitoring System
(TPMS)
User Manual
Standalone Display Unit Type
0RGHO(/5
Content
01.Notice .........................................................................................................................
02.Accessory Line Up .....................................................................................................
03.Display Module Functions, Operations & Settings .....................................................
Appendix ........................................................................................................................
1. Signal Description .......................................................................................................
2. UnitConversion ..............................................................................................................
3. Trouble Shooting .........................................................................................................
4. FederalCommunicationCommissionInterferenceStatement...................................................
2
3
4
16
16
16
16
18
1
Notice
System Scope of Use and Warnings
Ɏ
System Installation and Usage
Use of the TPMS requires that qualified personnel according to the instructions here have properly installed it.
This system is suitable for use on a passenger car, SUV and 4X4 tires.
TPMS can monitor and provide tire pressure and tire temperature in real time to help the driver control and keep
the n
ormal tire
pressure in order to reduce the fuel consumption and extend the tire life, and also reduce the
possibility of vehicle breakdown on the road or heavy incident or crash to occur.
Ɏ
Reacting to Alerts
When an alert or warning is received, reduce vehicle’s speed and proceed to a safe location to stop where the tire
can be inspected and /or serviced.
The low-pressure alert indicates that the air pressure has dropped to a selected minimum and a high-temperature
alert indicates that the temperature of the tire content has surpassed the threshold value set.
Caution
The system is a wireless RF product; therefore, it may not receive a signal due to poor environmental conditions or
incorrect installation. When the system continuously cannot receive any signal from any tire sensor for more than 10
minutes since the system has been switch on, the display will show “ERROR” and activate the alert sound. In this case,
a RF interference environment may have caused it; a driver will need to drive the vehicle to a different location.
If the display is still unable to receive any correct signal from tire sensor, the driver will need to find a nearby qualified
tire maintenance service to check or carry out maintenance. This abnormality may be caused by a damaged tire sensor
or excessive battery power consumption.
2
Accessory Line Up
Accessories Pictures QTY Accessories Picture QT
Y
Receiver
Module 1 Display
Module 1
Tire Sensor 4 Aluminum
Valve 4
Nylok Screw 4 User Manual 1
3
Display Module Functions, Operations & Settings
Display module operation introduction / Key press timeouts
Note:Note you are not allowed to:turn off the keypad touch sound .
(1)Display Screen: shows tire pressure, temperature and warning information etc.
(2)Touch Key:short press to select tire pressure/temperature information.
(3)Touch Key: long press to go to pair mode or setting mode. Short press to
change page,confirm or cancel alarm.
Touch Key Instructions:
1.Short press(0.5sec~2sec):change page.
2.long press(2sec):confirm.
3.long press(over 5sec):
(1)go back to the main page
(2)Turn off the alarm on warning page. (If you would like to turn on the alarm,
touch and hold the key over 5 seconds again or turn off and on the ACC
to go back to the default set.)
4.Not touch any key for 10 seconds:go back to the main page.(It does not work
on pair and swap pages. )
4
Tire Pressure Display
(1)TPMS system would detect 4 vehicle tires’pressure and show on the
display screen, pressure unit could be switched to psi/bar/kPa.
(refer to TIRE UNIT setting)
(2)Short press to switch to tire temperature mode.
Tire Temperature Display
Warning Display
[1] Tire Pressure Abnormal
[2] Rapid Tire Leakage
(1)TPMS system would detect 4 vehicle tires’temperatu
re and show on
the display
screen, temperature unit could be switched to degree C /
degree F
( refer to TEMP UNIT setting)
(2)Short press to switch to tire pressure mode.
(1)The display would show warning message with sound alarm if tire
pressure is lower than 75% or higher than 125% of tire pressure value
setting (refer to TIRE SET setting)
(1)When tire pressure lost 2psi (2 psi=0.1 bar=10kPa) within 30 sec.,
system would show warning screen with sound alarm.
5
[3] Tire Temperature Abnormal
[4] Tire Sensor Signal Abnormal
(1)When tire temperature reaches 85 degree C or higher than 85 degree
C (185 degree F),system would show warning screen with sound alarm.
(1)When receiver module didn’t receive the signal of any of the tire sensors over 10
minutes, system would show warning screen with sound alarm.
[5] Tire Sensor Low Battery
[6] TPMS System Abnormal
(1) When TPMS sensor battery voltage is lower than required supply level,system
would show warning screen with sound alarm.
(1)When power on, receiver module initial process error and could not obtain signal
from tire sensors, system would show warning screen with sound alarm.
Note:Long press for 5 seconds to cancel sound alarm. If it is done, the system will have continuous
triple Beep Sound.
6
(1)Long press to enter main menu on temperature/pressure page.
(2)Short press to switch to setting page and long press to enter setting page.
(3)Short press to Tire Pressure Unit page and long press to enter setting mode of tire pressure unit
on setting page.
(4)Short press to change psi,bar and kPa.
After selecting desired tire pressure unit,
you can touch and hold the key to put the
tick on the box to confirm the setting.
(5)Return:
a. Short press to go to return page and long
press to go back to setting page.
b. Long press for 5 seconds to go to the main
menu.
Settings
[1]TIRE UNIT: change tire pressure display format, psi/bar/kPa.
7
(1)Long press to enter main menu on temperature/pressure page.
(2)Short press to switch to setting page and long press to enter setting page.
(3)Short press to Tire Temperature Unit page and long press to enter setting mode of tire
temperature on setting page.
(4)Short press to change between degree C and degree F.
After selecting desired tire temperature format, you can
touch and hold the key to put the tick on the box to
confirm the setting.
(5)Return:
a. Short press to go to return page and long press to go
back to setting page.
b. Long press for 5 seconds to go to the main menu.
[2]TEMPUNIT: change tire temperature display format, degree C/ degree F.
8
(1)Long press to enter main menu on temperature/pressure page.
(2)Short press to switch to setting page and long press to enter setting page.
(3)Short press to Tire Set page and long press to enter setting mode of Tire Set on setting page.
(4) Short press to change between front tire, rear tire and back.
After selecting desired option, you can touch and hold the key to enter
the setting of standard tire pressure value. At that time, the number area
will be highlighted and you can touch the key to add up the 1 psi(0.1 bar
,10 kPa).Once number is selected, long press to confirm and highlight
will disappear.
(5)a. Short press to go to return page and long press to go back to setting
page. b. Long press for 5 seconds to go to the main menu.

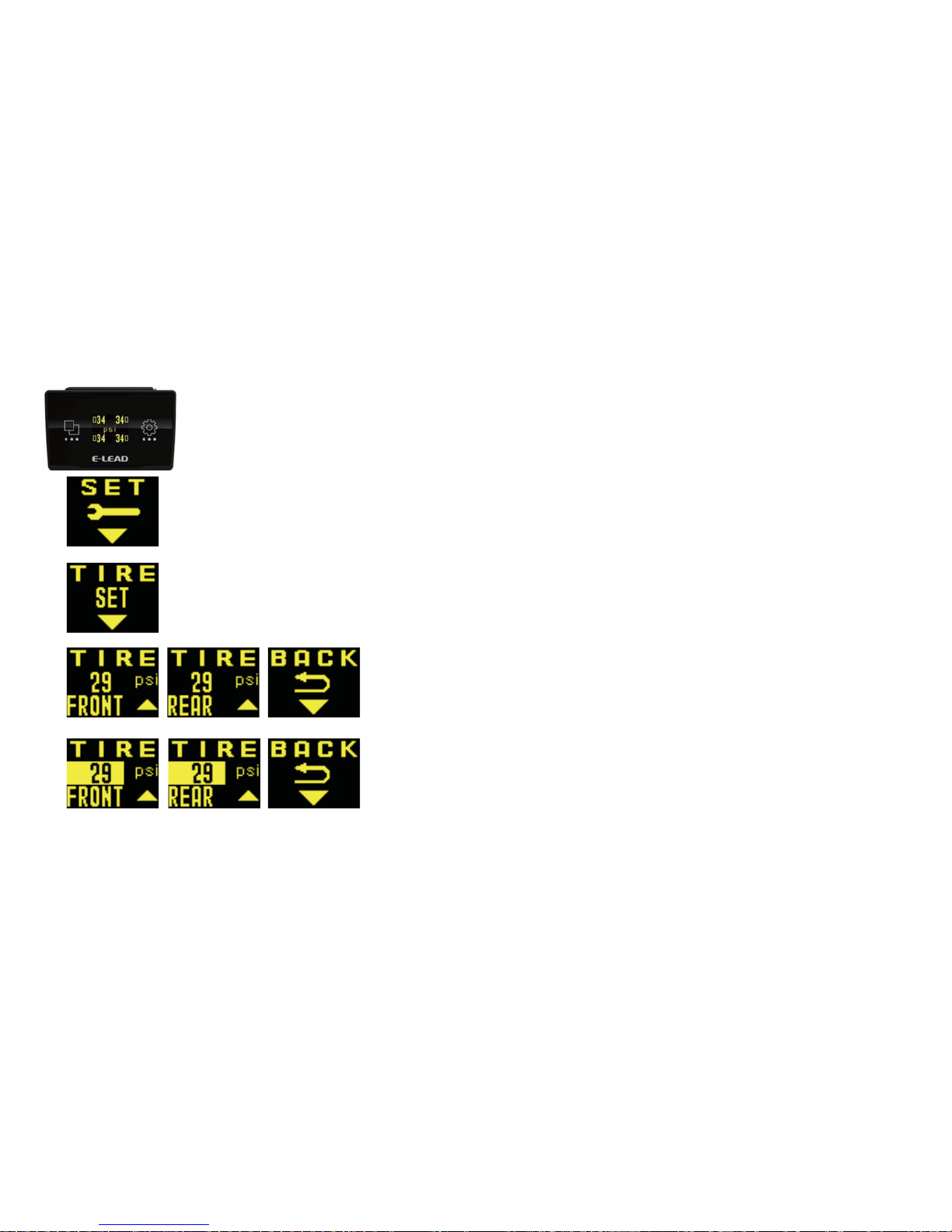

[3]TIRE SET:
Setting standard tire pressure value, so if actual tire pressure is lower than 75% or higher 125%
of it, system will alarm.
Ɂ!
Standard tire pressure setting value adjustable range.24~66 psi / 1.7~4.5bar / 170~450 kpa
Ɂ!Tire temperature setting value is 85 degree C (185 degree F), and this value is not adjustable by user.
