Dwyer Instruments DPMP-5 Series User manual

Series DPMP-5 LCD Digital Panel Meters

Specifications - Installation an Operating Instructions

Bulletin G-61-P5

DWYER INSTRUMENTS, INC.

Phone: 219/879-8000 www.dwyer-inst.com

P.O. BOX 373 • MICHIGAN CITY, INDIANA 46360, U.S.A. Fax: 219/872-9057 e-mail: [email protected]

SPECIFICATIONS

Inputs: 0 to 200 mVDC, 0 to 5 VDC, or 0 to 10 VDC.

Input Impe ance: 390KΩ nominal.

Accuracy: ±(0.1% FS +2 count).

Power Supply: 12 VDC or 24 VDC.

Backlight Power Supply: 24 VDC @ 35 mA typical.

Span an Zero: Adjustable (±1999 counts).

Display: 3-1/2 digits, 7 segments, 0.45˝ (11.4 mm) H.

Decimal Points: 3-position, user selectable.

Engineering Units: DPMP-XXX: ºF, ºC, PSI; DPMP-XXXP: V, A, KW,

PF.

Polarity: Automatic, “-” displayed.

Operating Temperature: 32 to 122ºF (0 to 50ºC).

Storage Temperature: -4 to 158ºF (-20 to 70ºC).

Mounting: Snap-in bezel mounts.

Connection: Screw terminal.

Conversion Rate: 3 per second.

Warm-Up: 10 minutes typical.

Weight: 2 oz (56.7 g).

Agency Approvals: RoHS.

The DPMP-5 LCD Digital Panel Meter provides easy viewing on the 3-

1/2 digit display. The display segments are available in a choice of

amber, green or red. The meter features user selectable engineering

units, adjustable zero and span, and field selectable decimal point

position. The snap-in bezel mount eliminates mounting hardware.

INSTALLATION

The Series DPMP-5 is designed for panel mounting in a 2.4” x 1” (61 mm

x 25.1 mm) H panel cutout.

WIRING

The unit is powered by 12 or 24 VDC and the screw terminals for wiring

are located on the back of the adder board marked with “+ PWR -”. Move

the power select jumper for the appropriate power supply value (see

Figure 2). The backlighting requires a 24 VDC power supply and should

be connected to terminals identified with “+ B/ -”.

P Models

°F

°C

PSI

1/8

[3]

1-5/8

[41.1]

63/64

[25.1]

2-35/64

[64.5]

1-9/64

[29]

2-13/32

[61]

2.390 REAR HOUSING

[60.6]

[25.4]

PANEL CUTOUT FOR

WINDOW MOUNTING

Figure 1

Figure 2

The unit accepts 200 mVDC, 5 VDC or 10 VDC. Wire input according to

the figure below. Set the signal select jumper for the appropriate input.

Figure 3

DWYER INSTRUMENTS, INC.

Phone: 219/879-8000 www.dwyer-inst.com

P.O. BOX 373 • MICHIGAN CITY, INDIANA 46360, U.S.A. Fax: 219/872-9057 e-mail: [email protected]

OPERATION

Selecting Engineering Units

Four sets of jumper pins are located in the back of the meter, between the

meter and the adder board. Move the jumper to fit over the appropriate pins

which correspond to the desired engineering units (see Figure 4).

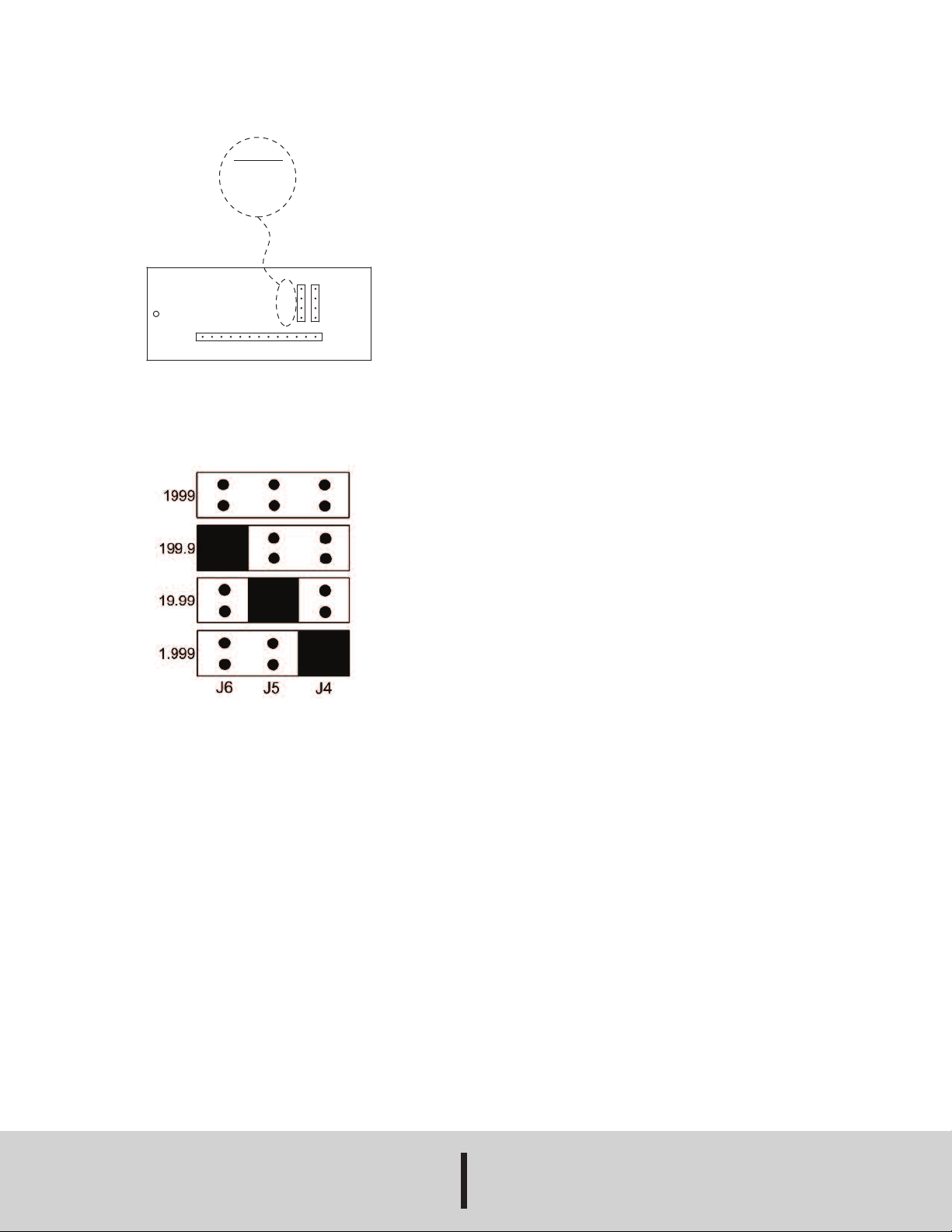

Selecting Decimal Point Position

Four decimal point positions are available on the digital panel meter. Move

the jumper to correspond to the desired decimal point location (see Figure

5).

MAINTENANCE/REPAIR

Upon final installation of the Series DPMP-5 CD, no routine maintenance

is required. The Series DPMP-5 CD is not field serviceable and should be

returned if repair is needed. Field repair should not be attempted and may

void warranty.

WARRANTY/RETURN

Refer to “Terms and Conditions of Sale” in our catalog and on our website.

Contact customer service to receive a Return Goods Authorization number

before shipping the product back for repair. Be sure to include a brief

description of the problem plus any additional application notes.

Figure 5

Figure 4

P Models

113

°F

°C

PSI
