Dwyer Instruments DPGW series Installation and operating instructions

DWYER INSTRUMENTS, INC.

Phone: 219/879-8000 www.dwyer-inst.com

P.O. Box 373 • Michigan City, IN 46361-0373, U.S.A. Fax: 219/872-9057 e-mail: [email protected]

The Series DPGA & DPGW Digital Pressure Gages have a

precise +/- 1.0% full scale accuracy. The 4 digit digital display

will reduce the potential for errors in readings by eliminating

parallax error commonly produced with analog gages.

The DPGA & DPGW are packaged in an ABS plastic case. The

unit is battery powered and has an auto-shut off to conserve

battery life. A two button key pad allows easy access to features

without the need to work through complex menus. These

features include, auto zero and conversion of the pressure units.

Readings may be converted to various engineering units. See

reverse page for available units.

OPERATING INSTRUCTIONS

For complete instructions on the two button operation see the

flow chart provided on back.

On/Off: Press ON/OFF to toggle on and off. Device will

automatically shut off after 20 minutes if not used.

Zero: Zeros the display - Push & hold for 2 seconds to zero the

display. If after pressing zero the display does not re-zero, the

unit is no longer meeting specified accuracy and should be sent

back to the factory for calibration. Do not use the zero button

when pressure is applied.

Units: To change units, press both On/Off and Zero buttons

simultaneously.

Overpressure Indicator: The LCD will flash “OFL”, if the

pressure applied is over 105% F.S.

INSTALLATION

When installing gage always use 1˝ hex at the base of the

housing to tighten the gage to a mating fitting. Do not apply

wrench to housing.

MAINTENANCE

Battery Removal: Remove the screw on backplate. Lift

backplate off by hand. To reassemble replace backplate and

screw.

Replace batteries per polarity indicators.

A “LOW BAT” descriptor indication will appear on the display

when batteries need to be replaced.

Series DPGA & DPGW Digital Pressure Gages

Specifications - Installation and Operating Instructions

Bulletin A-34C

ø2-43/64

[67.87]

3-11/16

[93.66]

STANDARD RANGES

CERAMIC RANGES

4-9/64

[105.17]

1-1/2 [38.10] 1-1/4 NPT

SPECIFICATIONS

Service: DPGA: Air and compatible gases; DPGW: Liquids

and compatible gases.

Wetted Materials:

DPGA: 316L SS, Silicone sensor;

DPGW: Type 316L SS; Ceramic Ranges: Type 316L SS,

ceramic, fluoroelastomer.

Housing Materials: ABS plastic.

Accuracy: ±1.0% F.S. (Includes linearity, hysteresis,

repeatability).

Pressure Limits: 2X pressure range. Vacuum range max.

pressure is 30 psig.

Temperature Limits: 30 to 120°F (-1 to 49°C).

Thermal Effect: 0.05% FS/°F.

Size: 2.62˝ O.D. x 1.52˝ deep.

Process Connections: 1/4˝ male NPT.

Display: 4-digit LCD (.425˝ H x .234˝ W digits).

Power Requirements: 9 volt alkaline battery. Battery included

but not connected.

Auto Shut-off: 20 minute auto shut-off.

Weight: 5.6 oz (160 g).

A-34C:A34B Bulletin 8/19/09 3:17 PM Page 1

To Turn On & Off:

Press to turn unit on.

Press again to turn unit off.

To Zero Display:

To zero display, disconnect gage from any pressure source. Press and hold zero button until the LCD displays

“- - -”, then release.

To Change Units:

To change units, disconnect gage from any pressure source. Press both & buttons simultaneously

until desired units are displayed.

DWYER INSTRUMENTS, INC.

Phone: 219/879-8000 www.dwyer-inst.com

P.O. Box 373 • Michigan City, IN 46361-0373, U.S.A. Fax: 219/872-9057 e-mail: [email protected]

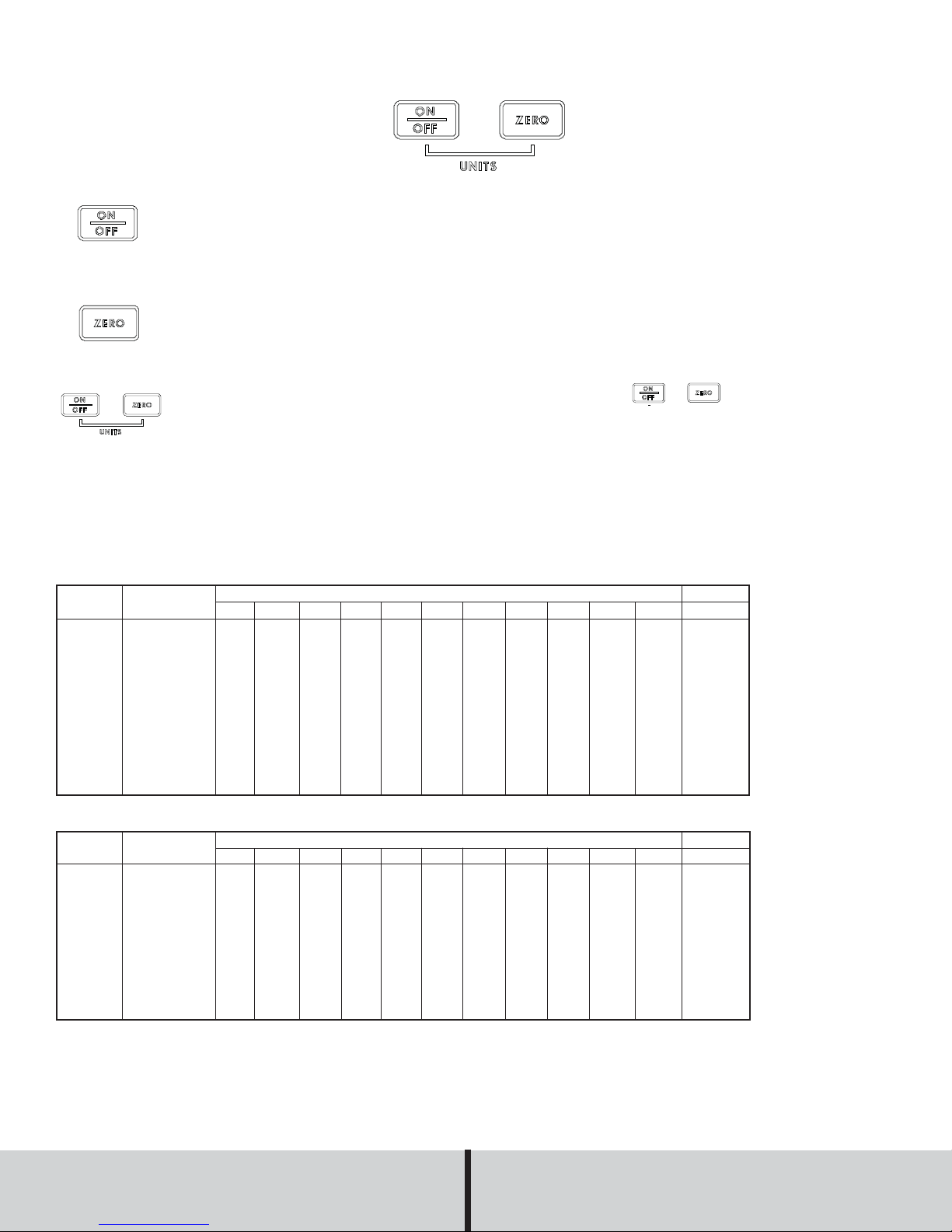

DPGA & DPGW BUTTON OPERATION

Model

DPGA-00

DPGA-01

DPGA-02

DPGA-03

DPGA-04

DPGA-05

DPGA-06

DPGA-07

DPGA-08

DPGA-09

DPGA-10

DPGA-11

bar

-1.013

.0498

.0689

.1379

.3447

1.034

2.068

3.447

6.89

13.79

20.68

34.47

in Hg

-29.93

1.471

2.036

4.072

10.18

30.54

61.1

101.8

203.6

407.2

611

1018

ft wc

-33.94

1.667

2.307

4.614

11.53

34.60

69.2

115.3

230.7

461.3

692

1153

kPa

-101.4

4.980

6.89

13.79

34.47

103.4

206.8

344.7

689

1379

2068

3447

oz/in2

-235.2

11.55

16.00

32.00

80.0

240.0

480.0

800

1600

3200

4800

in wc

-407.3

20.00

27.68

55.4

138.4

415.2

830

1384

2768

mm Hg

-761

37.37

51.7

103.4

258.6

776

1551

2586

mbar

-1013

49.80

68.9

137.9

344.7

1034

2068

3447

cm wc

-1034

50.8

70.3

140.6

351.5

1055

2109

3515

Pressure Ranges

Range

30˝ Hg to 0 (vac)

0 to 20˝ w.c.

0 to 1 psi

0 to 2 psi

0 to 5 psi

0 to 15 psi

0 to 30 psi

0 to 50 psi

0 to 100 psi

0 to 200 psi

0 to 300 psi

0 to 500 psi

psi

-14.70

0.722

1.000

2.000

5.000

15.00

30.00

50.00

100.0

200.0

300.0

500.0

Resolution

psi

0.01

0.001

0.002

0.01

0.02

0.1

0.2

Model

DPGW-00

DPGW-00C

DPGW-04

DPGW-05

DPGW-06

DPGW-07

DPGW-08

DPGW-09

DPGW-10

DPGW-11

bar

-1.013

.3447

1.034

2.068

3.447

6.89

13.79

20.68

34.47

in Hg

-29.93

10.18

30.54

61.1

101.8

203.6

407.2

611

1018

ft wc

-33.94

11.53

34.60

69.2

115.3

230.7

461.3

692

1153

kPa

-101.4

34.47

103.4

206.8

344.7

689

1379

2068

3447

oz/in2

-235.2

80.0

240.0

480.0

800

1600

3200

4800

in wc

-407.3

138.4

415.2

830

1384

2768

mm Hg

-761

258.6

776

1551

2586

mbar

-1013

344.7

1034

2068

3447

cm wc

-1034

351.5

1055

2109

3515

Pressure Ranges

Range

30˝ Hg to 0 (vac)

0 to 5 psi

0 to 15 psi

0 to 30 psi

0 to 50 psi

0 to 100 psi

0 to 200 psi

0 to 300 psi

0 to 500 psi

psi

-14.70

5.000

15.00

30.00

50.00

100.0

200.0

300.0

500.0

Resolution

psi

0.01

0.002

0.01

0.02

0.1

0.2

Note: Gages with a “C” in the range have a ceramic sensor.

DPGA Models

DPGW Models

kg/cm2

-1.033

.3515

1.055

2.109

3.515

7.03

14.06

21.09

35.15

kg/cm2

-1.033

.0508

.0703

.1406

.3515

1.055

2.109

3.515

7.03

14.06

21.09

35.15

A-34C:A34B Bulletin 8/19/09 3:17 PM Page 2
