Duratuf Havelock User manual
Havelock
Base size:4800 x 4200
Assembly Instructions
Dura ®
LIFESTYLELIFESTYLE
Page 1
Dura ®
LIFESTYLELIFESTYLE
Havelock
Contents
Required tools 2
Before you start 3
Safety precautions 3
Select your site 3
Warranty requirements 3
Parts list 4
Hardware list 6
Base specifications 7
1. Timber frame assembly 8
1.1 Back wall assembly 9
1.2 Side walls assembly 10
1.3 Front wall assembly 11
1.4 DPC attachment to bottom plate 12
1.5 Joining walls to each other 13
1.6 Ridge beam and door head flashing attachment 14
1.7 Timber frame to base securement 15
1.8 DPC attachment to studs 17
2. Cladding attachment 18
2.1 Side and back walls cladding attachment 19
2.2 Front wall cladding attachment 21
3. Flashing attachment 23
3.1 Top plate and door flashing attachment 23
3.2 Corner flashings attachment 24
3.3 Back spouting assembly 25
3.4 Back spouting attachment 26
4.Roof sheets attachment 27
4.1 Layout for fastening roof sheets 27
4.2 Optional clear roof sheet attachment 27
4.3 Roof sheets fastening 28
5. Front spouting and barges attachment 31
5.1 Barge support attachment 31
5.2 Barge flashings and front spouting attachment 32
6. Roller door installation 34
6.1 Brackets installation 35
6.2 Door placement on brackets 35
6.3 Door positioning 36
6.4 Springs tensioning 36
6.5 Bottom rail stop attachment 37
6.6 Guides installation 37
6.7 Handle fitment 38
6.8 Lift lock centring 38
6.9 Clean-up 38
6.10 Troubleshooting 39
6.11 Spring tension adjustment 40
Page 2
Dura ®
LIFESTYLELIFESTYLE
Havelock

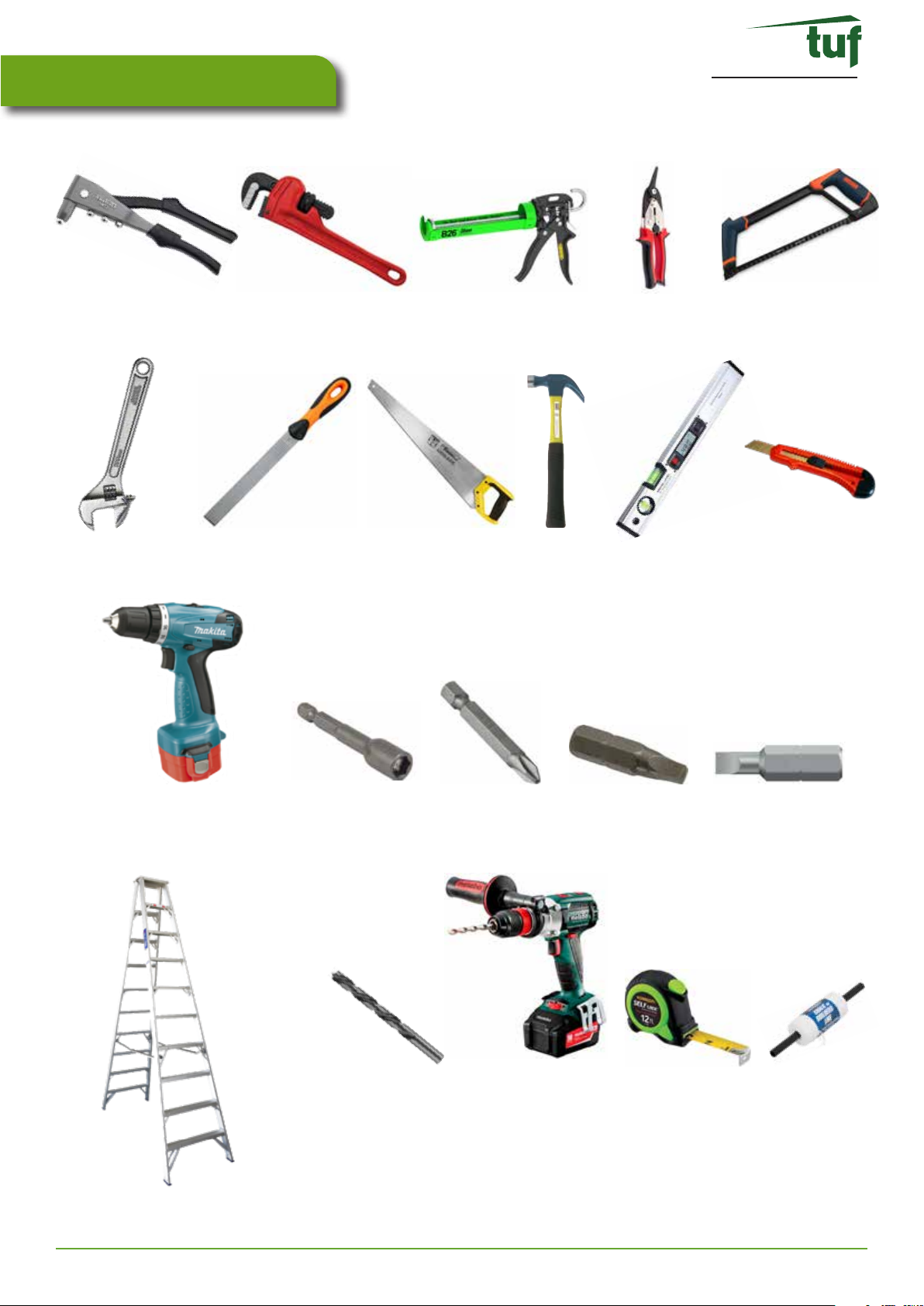

Required tools
Ladder
Cordless drill screwdriver
Adjustable spanner HammerHand saw Level
Flat file
Tape measure String line
Riveter Pipe wrench Caulking gun Tin snips (left
& right hand)
• Hex drive 5/16
• Hex drive 3/8 Philips drill bit Square drive drill bit Slotted drill bit
• Drill bit 3.5mm
• Drill bit 7mm
Hammer drill and
10mm and 12mm
masonry bits
Hacksaw
Utility knife
Page 3
Dura ®
LIFESTYLELIFESTYLE
Havelock
• Read all instructions carefully.
• All dimensions are in millimetres.
• 2 people are required for shed install.
• Ensure all parts are included and you have access to all required tools.
• Do not attempt to build your shed in high winds.
• Wear work gloves, and ear and eye protection when assembling.
• Be cautious of sharp edges when handling parts.
• Use electric tools with care. Use a Safety Trip Switch.
• Ensure safety requirements are met when working with ladder. For more information visit:
Before you start
Safety precautions
Select your site
• Site must be level, with appropriate access around shed for installation.
Warranty requirements
The following maintenance process needs to be adhered to, to qualify for the steel warranty of your shed:
• Using water and soft nylon brush wash all surfaces annually.
• Within 2km of coast, wash every 3 months as above. After a storm, wash the cladding and the gutters
as soon as possible, to remove any highly corrosive salt deposits.
• Volcanic ash fallout: wash as soon as possible, removing fallout from roof and gutters.
• Do not allow manures, chemicals or other corrosive materials to have direct contact with cladding.
• Force majeure or other causes are beyond the control of Riverlea Group.
• All metal filings (swarf) must be removed immediately after assembly.
• Avoid contacting steel with sunscreen or pencil, as this could damage the steel cladding.
https://www.worksafe.govt.nz/topic-and-industry/working-at-height/safe-working-with-lad-
ders-and-stepladders-construction/.
Page 4
Dura ®
LIFESTYLELIFESTYLE
Havelock

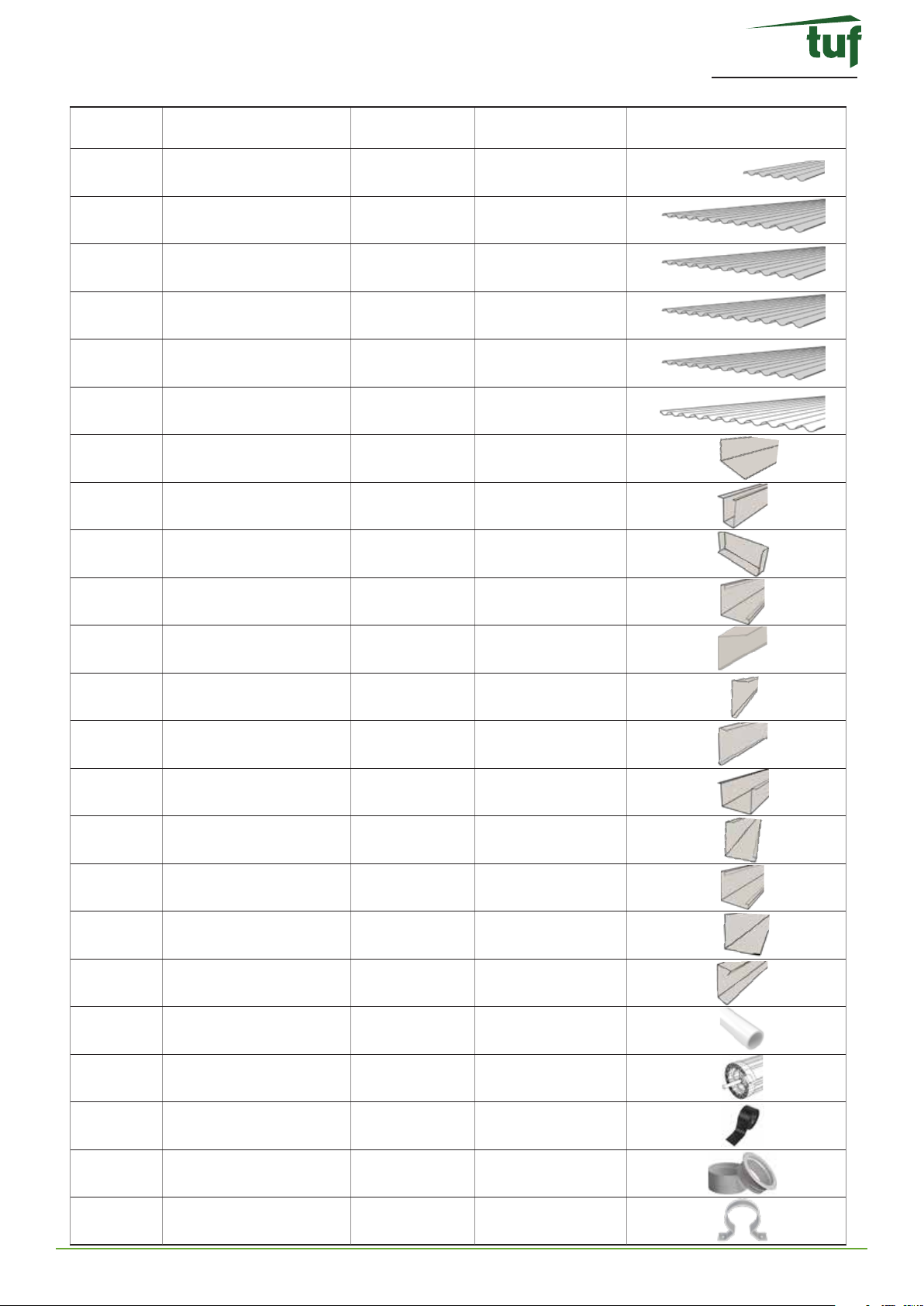

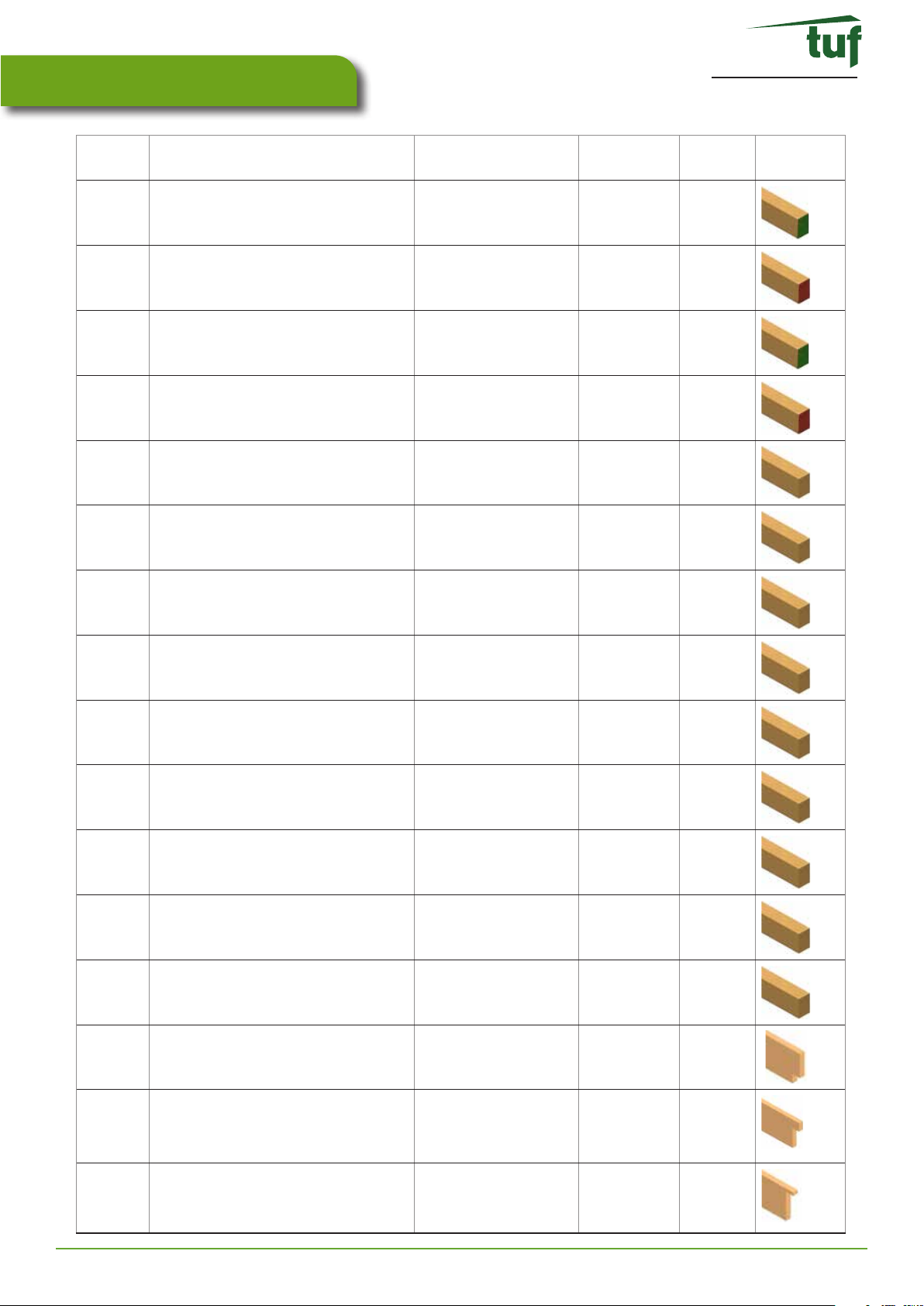

Parts list
Part ID Part name Timber size (mm) Quantity Length
(mm)
Diagram
TB006 Bottom plate-6 (Side) 90x45 2 4020
TT006 Top plate-6 (Side) 90x45 2 4020
TB004 Bottom plate-4 (Front+Back) 90x45 2 4800
TT004 Top plate-4 (Front+Back) 90x45 2 4800
TN003 Nog-3 (Back) 90x45 2 1131
TN004 Nog-4 (Back+Side) 90x45 6 1154
TN005 Nog-5 (Front) 90x45 2 1061
TN006 Nog-6 90x45 4 740
TS001 Stud-1 90x45 3 310
TS003 Stud-3 (Back+Side) 90x45 15 2250
TS005 Stud-5 (Front) 90x45 4 2399
TS006 Stud-6 90x45 2 2044
TL001 Lintel-1 90x45 1 2490
TR013 Ridge beam (71mm Notch) 190x45 1 4800
TR014 Ridge beam (115mm Notch) 190x45 1 4800
TR015 Ridge beam (158mm Notch) 190x45 1 4800
Page 5
Dura ®
LIFESTYLELIFESTYLE
Havelock
Part ID Part name Quantity Length (mm) Diagram
Front wall half sheet-2 1 4800
Front wall sheet-2 6 1200
Side wall sheet-1 6 4200
Back wall sheet-2 3 4800
Roof sheet-1 7 4790
Optional clear roof sheet 4790
FDH001 Door head flashing-1 1 2400
FBS003 Back spouting-3 1 2525
FS001 Spouting end cap 2
FBC001 Back corner flashing 2 2365
FB007 Barge flashing-4 2 4860
FB008 Barge support-4 2 4060
FFS002 Front spouting-2 1 4925
FDP001 Downpipe cover flashing 1 2170
FDJ002 Door jamb flashing-2 2 2115
FFC002 Front corner flashing-2 2 2515
FFT002 Front top plate flashing-2 1 4800
FDF001 Door top flashing-1 1 2595
PVC downpipe 1 3000
Steel roller door 1 2400
Damp proof course (DPC) 1
Dropper and sleeve 1
Downpipe bracket 2
Page 6
Dura ®
LIFESTYLELIFESTYLE
Havelock
Part name Quantity Diagram
30mm clout nails (cladding) 80 pcs
90mm nails (framing) 200 pcs
Rivets 80 pcs
25mm Tek Screw (coloured/zinc) 240 pcs
55mm Tek Screw (coloured/zinc) 220 pcs
100mm Tek Screw (coloured/zinc) 20 pcs
“L” bracket 4 pcs
M10 x 140 screw bolts (blue head) 4 pcs
M12 X 135 through bolt 15 pcs
Purlin concealed cleats 86x40mm 18 pcs
Brace strapping 1 roll
Dome washer (for clear roof sheet) 20 per clear
sheet
Silicone tube 1

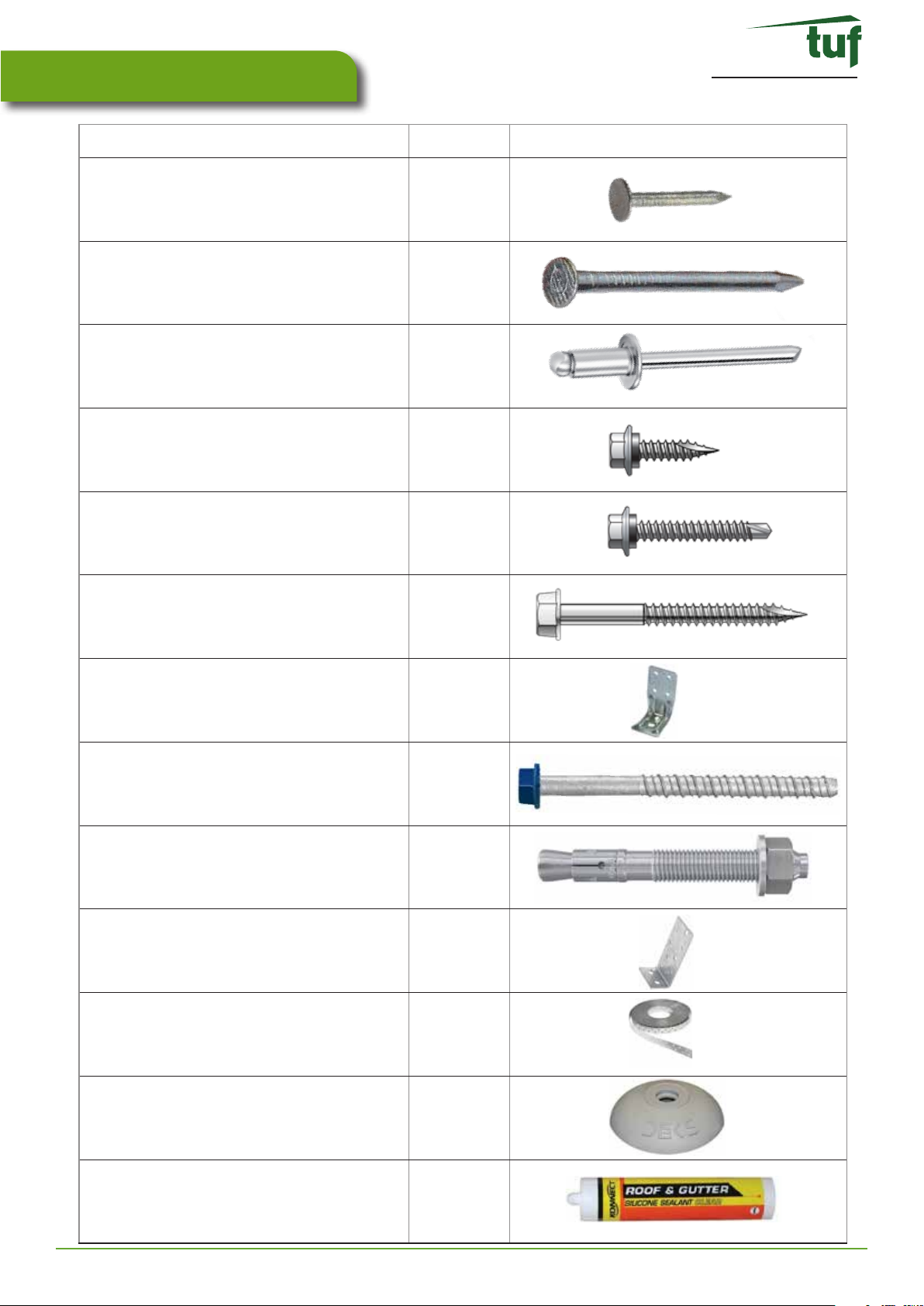

Hardware list
Page 7
Dura ®
LIFESTYLELIFESTYLE
Havelock

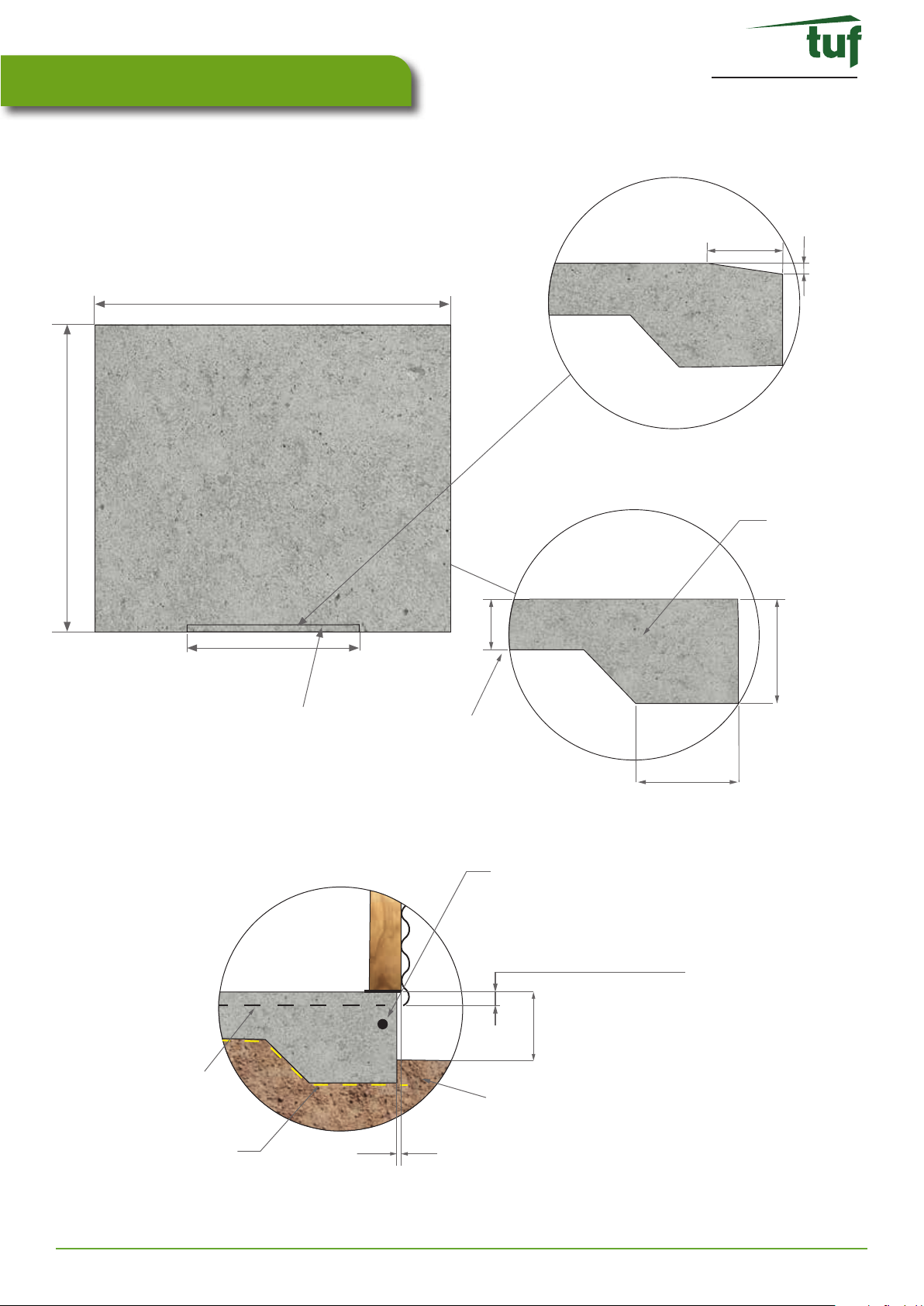

Base specifications
Use the below specifications to build a concrete base for shed:
4180
4780
2400
200
100
150
20
•Concrete to NZS 3101
200
100
150
20
•Concrete to NZS 3101
200
100
150
20
•Concrete to NZS 3101
Door slope to be centred
Page 8
Dura ®
LIFESTYLELIFESTYLE
Havelock

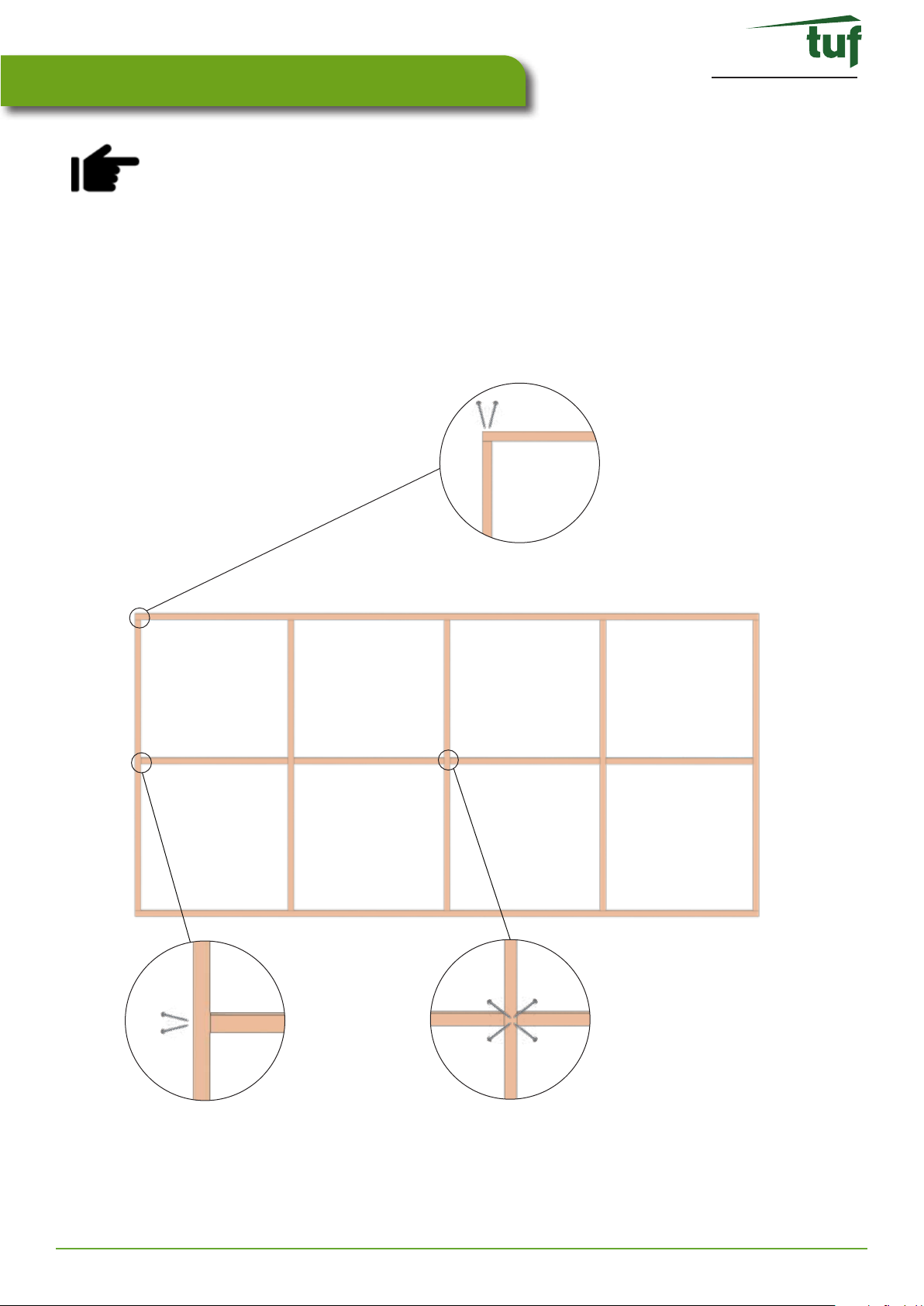

1. Timber frame assembly
• Arrange the parts specified in the following steps on a flat surface and attach them
together using two 90mm nails at each join.
• Studs should be positioned between top and bottom plates.
Table of contents
