Dräger JM-105 User manual
User Quick Reference Guide
JM-105 Jaundice Meter
© Drägerwerk AG & Co. KGaA
WARNING!
This quick guide is intended for informational purposes only. It is not a
replacement or substitute for the Instructions for Use. Any use of this medical device
requires a full understanding and strict observation of the Instructions For Use.
SCAN QR code
for FAQs, product and application information, usage and reprocessing of
the Dräger medical device.
CONTACT
your local representative for further information
Device Operation
Page | 2
JM-105 Jaundice Meter
Device Operation
Description and Intended Use
The Dräger Jaundice Meter JM-105 is intended for use as a screening device for
jaundice in the newborn and can be used
before, during and after phototherapy.
The
Jaundice Meter JM-105 provides a transcutaneous measurement of bilirubin in μmol/L,
identifying neonates who require a serum bilirubin measurement. The Jaundice Meter
JM-105 is appropriate for use on neonates who are:
The Jaundice Meter JM-105 is appropriate for use on neonates who are:
omore than 24 hours of age
oless than 14 days of age
o> 24 weeks gestational age at birth
onot undergone exchange transfusion.
Taking a TcB Measurement
1.

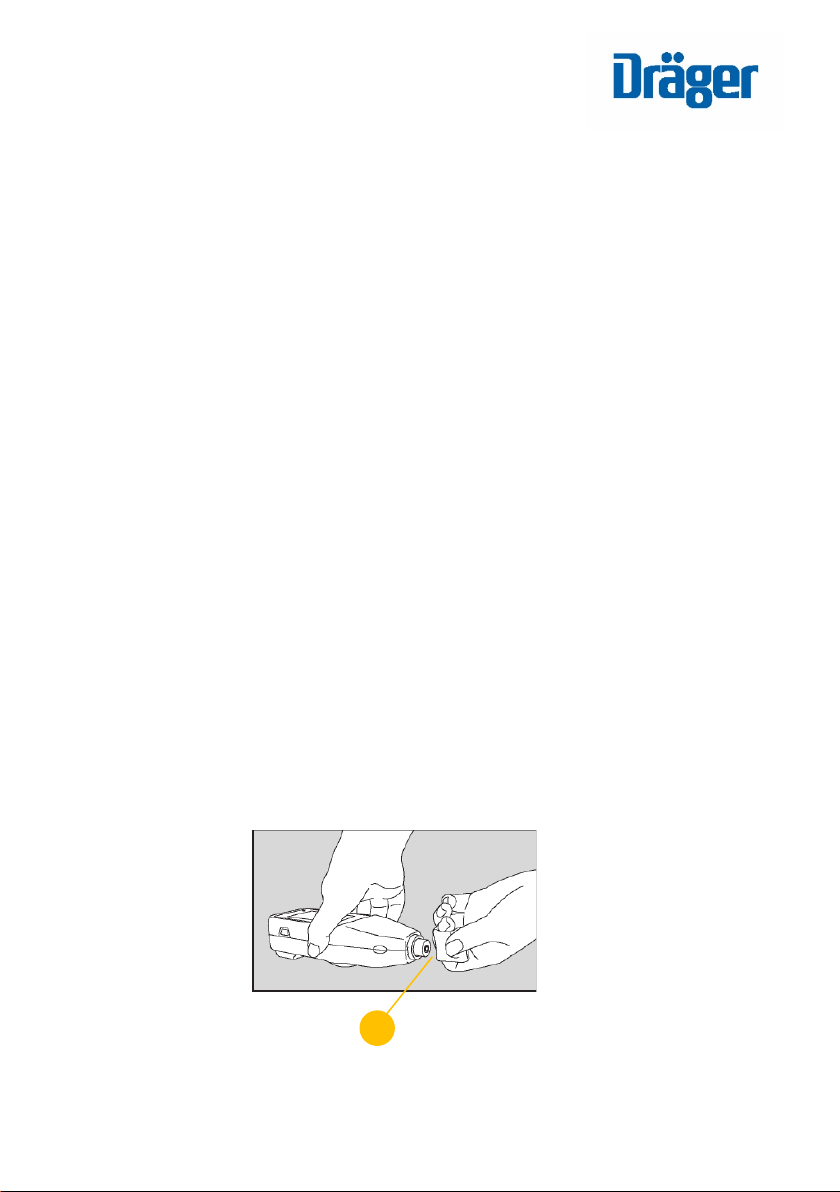

Clean the measuring probe with an alcohol swab
oIf the green
Ready LED
is on, the measurement can
be taken
1
Page | 3
JM-105 Jaundice Meter
Description and Operation

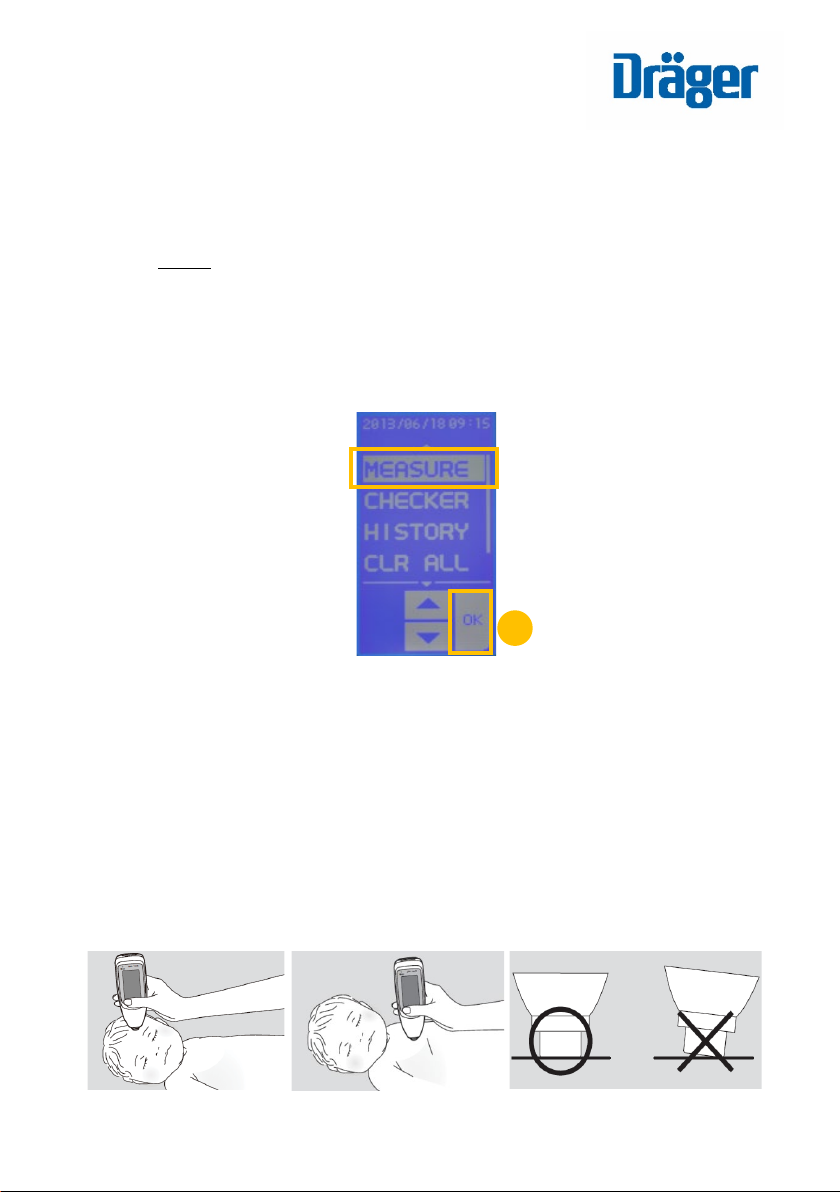

Select MENU
2.
Select MEASURE
oPress OK
oThe letters AVE with the number of measurements selected will
appear in the display
(N-3)
.
3. Place measuring probe perpendicular to measuring point
oForehead (inpatient) or sternum (outpatient)
oPlace probe tip flat against the baby’s skin,
not at an angle
, and
press lightly until you hear a click.
oLift the Jaundice Meter JM-105 from the skin between
measurements and pause until the green READY light illuminates
again.
oRepeat the testing procedure until the required number of
measurements (
3TIMES
).
2
Page | 4
JM-105 Jaundice Meter
Device Operation
Light Source Checker
Recommended the
light source checker
is performed once a day
1.
Select CHECKER
oRemove the Jaundice Meter JM-105 from the docking station.
oPress the power switch on.
oSelect MENU, select CHECKER, and press OK.
oOpen the checker lid on the charging unit.
2. Display screen will show the Long (L) and Short (S) Values
oGreen READY light illuminates, place the tip of the Jaundice Meter
perpendicular
oPress down till you hear a click.
1
Page | 5
JM-105 Jaundice Meter
Device Operation
o
The meter must read within the reference values posted under
the checker lid.
oIf so, the unit is ready to use. If not, clean the tip and repeat.
oIf values are still out of range, do not use the device.
(contact the Draeger Service department).
Measurement Range
The Jaundice Meter JM-105 has a measurement range of 0.0 μmol/L to
340 μmol/L.
1.
Display Range
oIf
- >340
-
blinks in the measured value field, the measured value
is outside the display range.
1
06.20
I
Subject to modifications
I © 2020 Drägerwerk AG & Co. KGaA
