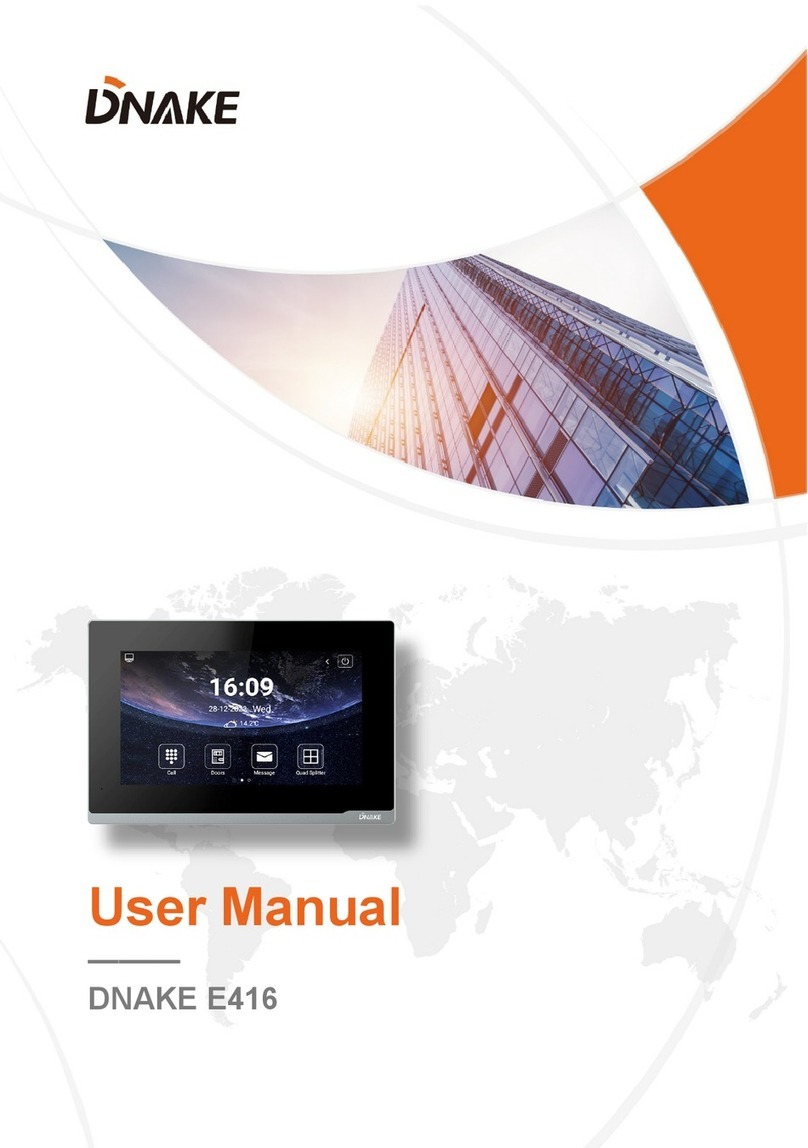

Dnake E416 User manual
User Manual
———
DNAKE E416
REMARK
Please follow the user manual for correct installation and testing. If there is any
doubt please call our tech-supporting and customer center.
Our company applies ourselves to reformation and innovation of our products. No
extra notice for any change. The illustration shown here is only for reference. If
there is any difference, please take the actual product as the standard.
The product and batteries must be handled separately from household waste.
When the product reaches the end of service life and needs to be discarded,
please contact the local administrative department and put it in the designated
collection points in order to avoid the damage to the environment and human
health caused by any disposal. We encourage recycling and reusing the material
resources.
CATALOG
PRODUCT FEATURE ............................................. 1
TECHNICAL PARAMETER ..................................... 1
PACKAGE CONTENT ............................................. 2
OVERVIEW.............................................................. 3
BASIC OPERATION ................................................ 4
DEVICE SETTING ................................................. 11
WEB SETTING ...................................................... 17
SYSTEM DIAGRAM .............................................. 24
DEVICE WIRING ................................................... 25
INSTALLATION...................................................... 27
TROUBLESHOOTING........................................... 29
SAFETY INSTRUCTION ....................................... 30
1
PRODUCT FEATURE
1. Android 10 System
2. Powered by PoE or power adapter (DC12V/2A)
3. Support SIP 2.0 protocol, easy integration with other SIP devices
4. Compatible with 3rd party application
5. Support monitoring 16 IP cameras
TECHNICAL PARAMETER
System: Android 10
RAM: 1 GB
ROM: 8 GB
Front Panel: Plastic
Power Supply: PoE (802.3af) or DC 12V/2A
Standby Power: 3 W
Rated Power: 10 W
Wi-Fi: IEEE802.11 b/g/n,@2.4GHz (Optional)
TF Card Slot: 1
Ethernet Port: 1 x RJ45, 10/100 Mbps adaptive
Resolution: 1024 x 600
Working Temperature: -10℃to +55℃
Storage Temperature: -40℃to +70℃
Working Humidity: 10% to 90% (non-condensing)
2
PACKAGE CONTENT
MODEL: E416
E416 Wiring Cover PM4×20 (2 pcs) Diode (3 pcs) Quick Start Guide
Desktop Stand
(Optional)
3
OVERVIEW
4
BASIC OPERATION
1. Call
Go to Call > Dial and enter Building number + Building + Riser number + Riser +
Room number + dial icon to call Indoor Monitor (such as 1 + Building + 1 + Riser
+ 1111 + Dial button).
2. Monitor
Click Monitor icon on Indoor Monitor’s homepage to monitor Door Station. You
can unlock by clicking door icon or switch to monitor other devices by clicking left
and right arrows or the name above.
3. Message
Indoor monitor can only receive the message sent by the CMS or Master Station.
Up to 64 records can be received in SMS.
5
4. DND
Click DND icon to enable do not disturb function. No calls can call in.
5. Quad Splitter
On the 2nd homepage, click Quad Splitter. Click any screen of IPC to make it full
screen. Click left or right arrow to check other pages. Up to 16 IPC can be added.
6. Phonebook
Slide from left to right near the left edge of the screen to wake up phonebook
page.
6
Or go to Call > Phonebook. Select the name on the phonebook and press dial
button to call.
7. QR Code
Click QR Code and scan by Smart Life app to add this Indoor Monitor to your
phone. Only when the license is filled in Internet-connected Indoor Monitor, QR
code will be available.
8. Security
Security is for sensors. The default password is 1234.
