7
MIN/MAX STORED
LIST POS: x
STORING MEASUREMENT RESULTS
You can store the measured results by long pressing the „MODE” button. After this a
notication can be seen on the display for 3 seconds. If there is still an empty space in
the measurement list, a text similar to the following appears on the display:
The value „x” indicates the position in the measurement list where the measured
peak values are stored. This list can hold up to 20 measurements. When it is full, it is
not possible to store any more measurement results and the following message is
displayed after a long press of the „MODE” button:
LIST FULL
When the list is full, it is only possible to store new measurement results after deleting
the list, which can only be done by a computer.
MANAGEMENT OF MEASUREMENT RESULTS ON
COMPUTER
An AIJGO-60 can be connected to a computer with a USB-A – mini USB-B cable.
For the management of measurement results on a computer, you need to install the
driver program supplied on pendrive with the device, which assigns a virtual serial
port to the tester. To do this, run the „CDM v2.08.30 WHQL Certied.exe” application
as administrator (Right mouse button -> Run as administrator). If the installation is

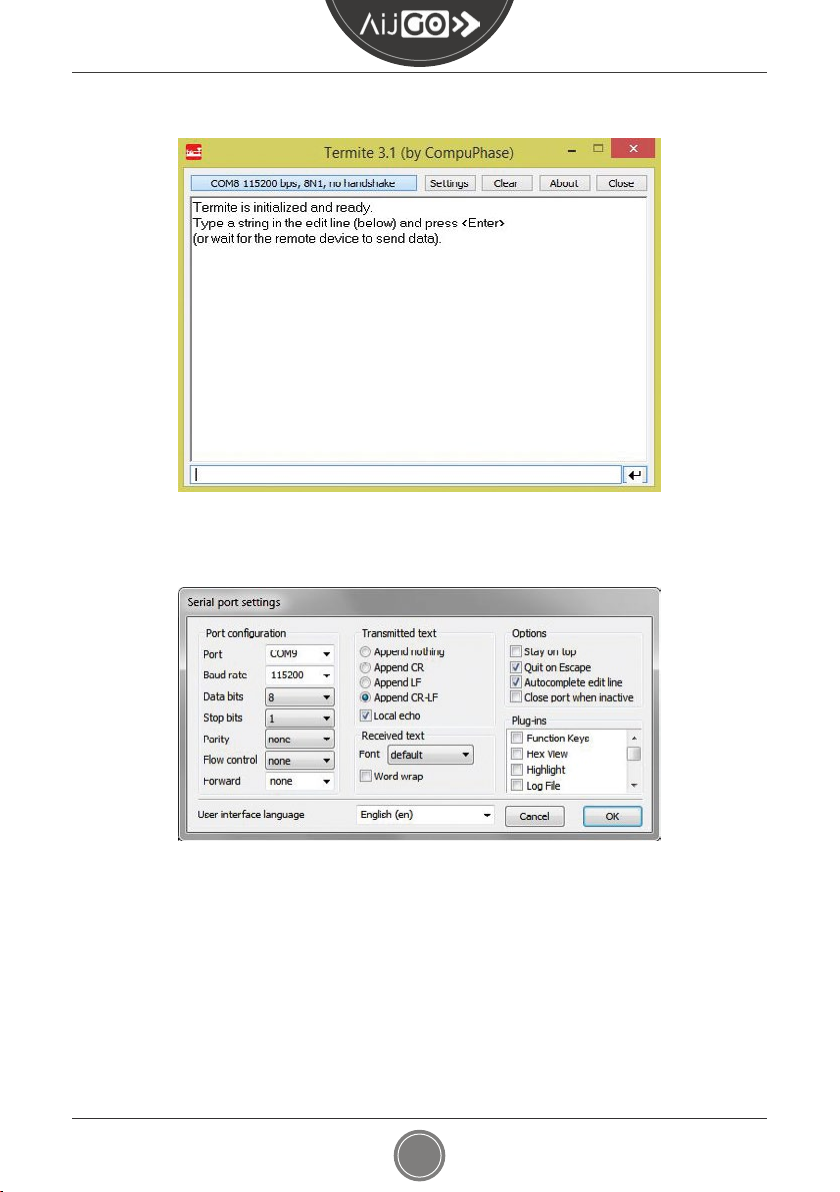

done, run the supplied terminal program (termite-3.1.exe). The program is running
immediately after the installation is done, later you can use the shortcut in the Start
menu (look for “Termite”).
