Dimplex BLF50 User manual

Owner’s Manual

Model

BLF50

7210380100rev00

IMPORTANT SAFETY INFORMATION: Always read this manual ﬁrst

before attempting to install or use this ﬁreplace. For your safety, always

comply with all warnings and safety instructions contained in this manual

to prevent personal injury or property damage.

To view the full line of Dimplex products, please visit

www.dimplex.com

2 www.dimplex.com

Welcome & Congratulations . . . . . . . . . . . . . . . . . . . . . . . . 3

Quick Reference Guide ............................4

ImportantInstructions .............................6

Fireplace Installation ..............................8

Operation ......................................18

Maintenance ...................................21

Warranty ......................................22

Accessories ....................................24

ReplacementParts ..............................25

Table of Contents

Always use a qualiﬁed technician

or service agency to repair

this ﬁreplace.

!NOTE: Procedures and

techniques that are considered

important enough to

emphasize.

CAUTION: Procedures

and techniques which, if not

carefully followed, will result in

damage to the equipment.

WARNING: Procedures

and techniques which, if not

carefully followed, will expose

the user to the risk of ﬁre,

serious injury, or death.

Welcome & Congratulations

Thank you and congratulations for

choosing to purchase an electric

ﬁreplace from Dimplex, the world

leader in electric ﬁreplaces.

Please carefully read and save

these instructions.

CAUTION: Read all

instructions and warnings

carefully before starting

installation. Failure to follow

these instructions may result

in a possible electric shock,

ﬁre hazard and will void

the warranty.

NO NEED TO RETURN

TO THE STORE

Questions With the Assembly?

Require Parts Information?

Product Under Manufacturer’s

Warranty?

Call Toll-Free

1-888-346-7539

Monday to Friday

8:00 a.m. to 4:30 p.m. EST

Please have your model

number and product serial

number ready. (See page 4)

!NOTE: This equipment has been tested and found to comply with the limits for Class

B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to

provide reasonable protection against harmful interference in a residential installation.

This equipment generates, uses and can radiate radio frequency energy and, if

not installed and used in accordance with the instructions, may cause harmful

interference to radio or television reception, which can be determined by turning the

equipment off and on, the user is encouraged to try to correct the interference by one

or more of the following measures:

· Increase the separation between the equipment and the receiver.

· Connect the equipment into an outlet on a circuit different from that to which the

receiver is connected.

· Consult the dealer or an experienced radio/TV technician for help.

Operation is subject to the following two conditions: (1) this device may not cause

interference and (2) this device must accept any interference, including interference that

may cause undesired operation of the device.

4 www.dimplex.com

Quick Reference Guide

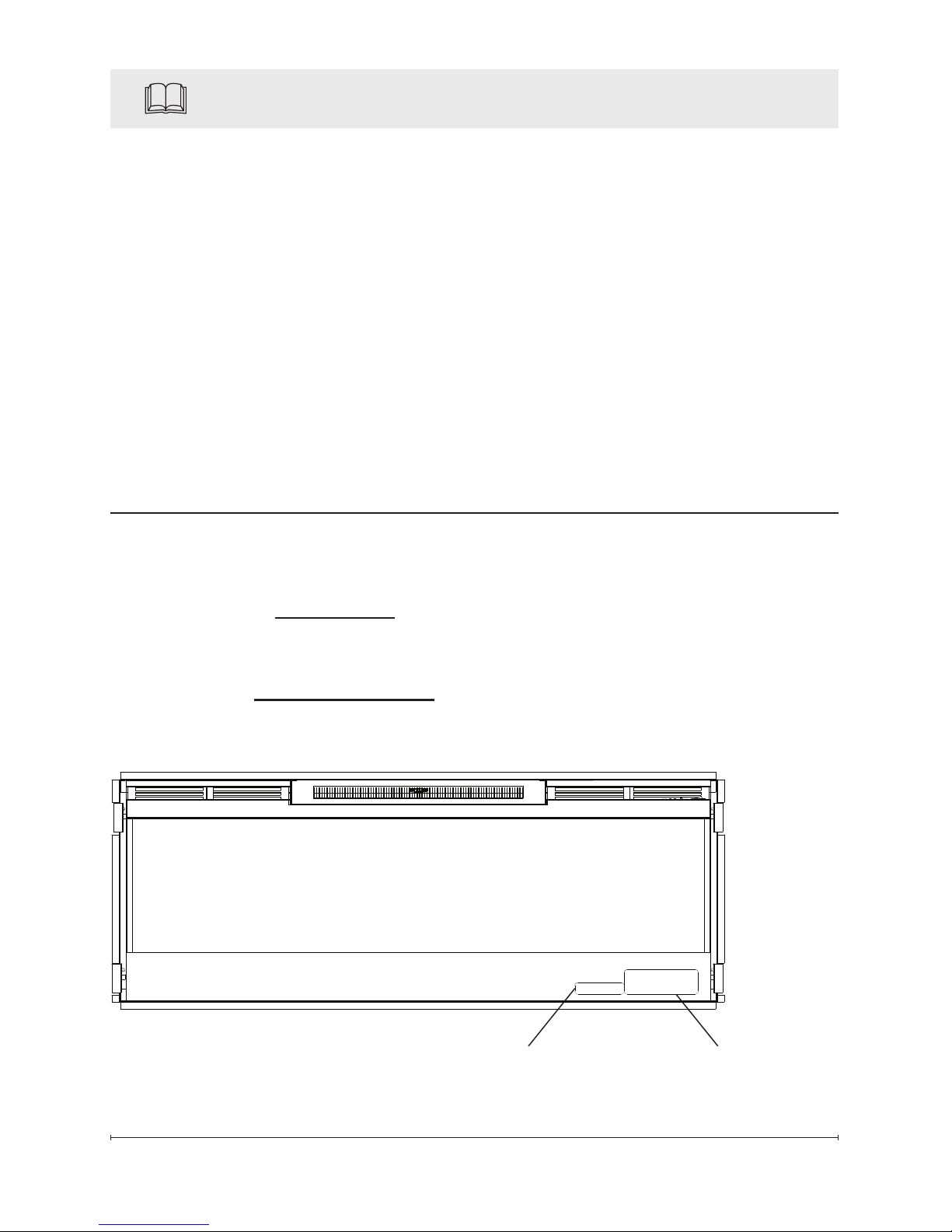

①The electrical information

regarding your electric ﬁreplace

can be found on the rating label

located on the front of the unit,

behind the glass.

Before installation, please record

your ﬁreplace's serial number

below for future reference. The

serial number can be found on

the Serial Number Label of your

ﬁreplace (see below).

Serial Number

Label

②If you have any technical

questions or concerns regarding

the operation of your electric

ﬁreplace, or require service

contact customer service.

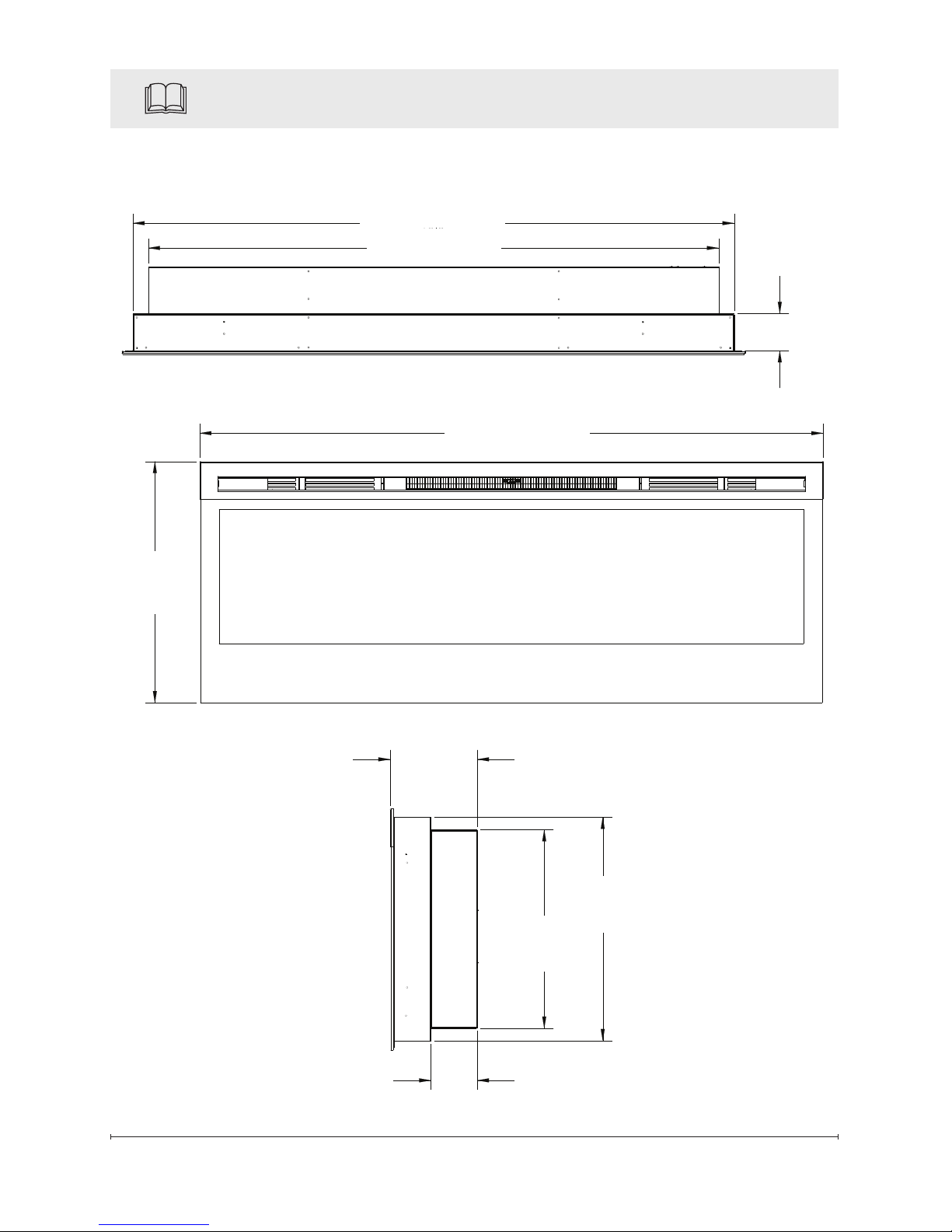

③For dimensions of your

ﬁreplace, refer to Figure 1.

Model Number: BLF50

Serial Number: ______________

Part Number: 6906780100

Rating Label

Quick Reference Guide

Figure 1

48½" (123cm)

46" (117cm)

505/16" (128cm)

19½"

(49.5cm)

(7.6cm)

(17.8cm)

16"

(40.6cm)

18"

(45.7cm)

313/16"

(9.7cm)

6 www.dimplex.com

①Read all instructions before

using the electric ﬁreplace.

②This ﬁreplace is hot when in

use. To avoid burns, do not let

bare skin touch hot surfaces.

The trim around the heater outlet

becomes hot during heater

operation.

③Extreme caution is necessary

when any heater is used by or

near children or invalids and

whenever the unit is left operating

and unattended.

④Young children should be

supervised to ensure that they do

not play with the appliance.

⑤The appliance is not intended

for use by young children

or inﬁrmed persons without

supervision.

⑥If the supply cord is damaged,

it must be replaced by the

manufacturer, or its service agent,

or a qualiﬁed person in order to

avoid a hazard.

⑦Do not operate any unit with

a damaged cord or plug, or if

the heater has malfunctioned,

or if the electric ﬁreplace has

been dropped or damaged in

IMPORTANT INSTRUCTIONS

any manner, contact Dimplex

Technical Service at

1-888-346-7539.

⑧Do not use outdoors.

⑨Never locate ﬁreplace where

it may fall into a bathtub or other

water container.

⑩Keep combustible materials

such as furniture, pillows,

bedding, papers, clothes and

curtains at least three (3) feet

(0.9 m) from the front of the unit.

⑪Do not run the cord under

carpeting. Do not cover cord with

throw rugs, runners, or the like.

Arrange cord away from trafﬁc

area and where it will not be

tripped over.

⑫Do not locate the heater

immediately below a ﬁxed socket-

outlet.

⑬To disconnect the ﬁreplace,

turn the controls off, then remove

the plug from the outlet.

⑭Do not insert or allow foreign

objects to enter any ventilation

or exhaust opening as this may

cause an electric shock or ﬁre, or

damage to the heater.

SAVE THESE INSTRUCTIONS

⑮Do not block air intake or

exhaust in any manner. Do not

use on soft surfaces, like a bed,

where openings may become

blocked.

⑯All electrical heaters have

hot and arcing or sparking parts

inside. Do not use in areas where

gasoline, paint, or ﬂammable

liquids are used or stored or

where the unit will be exposed to

ﬂammable vapors.

⑰Do not modify the electric

ﬁreplace. Use it only as described

in this manual. Any other use

not recommended by the

manufacturer may cause ﬁre,

electric shock or injury to persons.

⑱Avoid the use of an extension

cord. Extension cords may

overheat and cause a risk of ﬁre.

If you must use an extension

cord, the cord shall be No.

14 AWG minimum size and rated

not less then 1875 Watts.

⑲Do not burn wood or other

materials in the electric ﬁreplace.

⑳Do not strike the ﬁreplace

glass.

Always use a certiﬁed

electrician should new circuits or

outlets be required.

Always use properly

grounded, fused and polarized

outlets.

Disconnect all power supply

before performing any cleaning,

maintenance or relocation of the

unit.

When transporting or storing

the unit and cord, keep in a

dry place, free from excessive

vibration and store so as to avoid

damage.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

NO USER-SERVICABLE PARTS INSIDE

IMPORTANT INSTRUCTIONS

8 www.dimplex.com

Site Selection

Review and consider all of the

following conditions for installation:

Dimensions of the unit: 50• 5/16

inches (128cm) x 19½inches

(49.5cm)

Unit requires a minimum of two•

(2) wall studs in order to ensure

a secure installation

Three possible installation

methods:

Installation method: Surface•

mount (pg. 12); In-wall

Recessed (pg. 13); or Flush

mount (pg. 15)

Hardwired or plug-in method•

!NOTE 1: A 15 Amp, 120 Volt

circuit is required. A dedicated

circuit is preferred but not

essential in all cases. A

dedicated circuit will be

required if, after installation,

the circuit breaker trips or

fuse blows on a regular basis

when the heater is operating.

Additional appliances on the

same circuit may exceed the

current rating of the circuit

breaker.

Fireplace Installation

WARNING: Ensure the power

cord is not installed so that it

is pinched or against a sharp

edge and ensure that the

power cord is stored or secured

to avoid tripping or snagging to

reduce the risk of ﬁre, electric

shock or injury to persons.

Construction and electrical

outlet wiring must comply

with local building codes and

other applicable regulations to

reduce the risk of ﬁre, electric

shock and injury to persons.

①Select a location that is not

susceptible to moisture and is

away from drapes, furniture and

high trafﬁc.

②For ease of electrical hook

up you may wish to locate the

ﬁreplace near an existing outlet

(for plug-in convenience) (refer to

NOTE 1).

③Remove ﬁreplace, front glass

and hardware from box and

remove all packaging materials

before installation.

④Store the ﬁreplace in a

safe, dry and dust free location

until you are ready to install the

ﬁreplace.

Fireplace Installation

Hardwire Installation

The ﬁreplace is packaged with a

two prong plug installed for plug-

in convenience. Hard wiring the

ﬁreplace is also an option for any

installation.

WARNING: Do not attempt to

wire your own new outlets or

circuits. To reduce the risk of

ﬁre, electric shock or injury to

persons, always use a licensed

electrician.

WARNING: Ensure that the

Main On/Off Switch is set to the

Off position (refer to Operation

section) and that the circuit

on which the ﬁreplace is to be

installed has the power cut

off at the service panel until

installation is complete.

①Remove the mirror from the

ﬁreplace:

Lay ﬁreplace on its back.•

Remove two (2) Phillips screws•

from each of the two (2) mirror

brackets (Figure 2).

Remove mirror brackets.•

With one hand keeping•

pressure on the mirror, tilt the

Figure 2

Mirror

Mirror bracket

Bracket screws

ﬁreplace upright and slightly

forward to allow the mirror to

fall out of the inside framing.

CAUTION: Mirror is not

tempered. Do not bump

or drop the mirror to avoid

breakage and personal injury.

Remove mirror from ﬁreplace.•

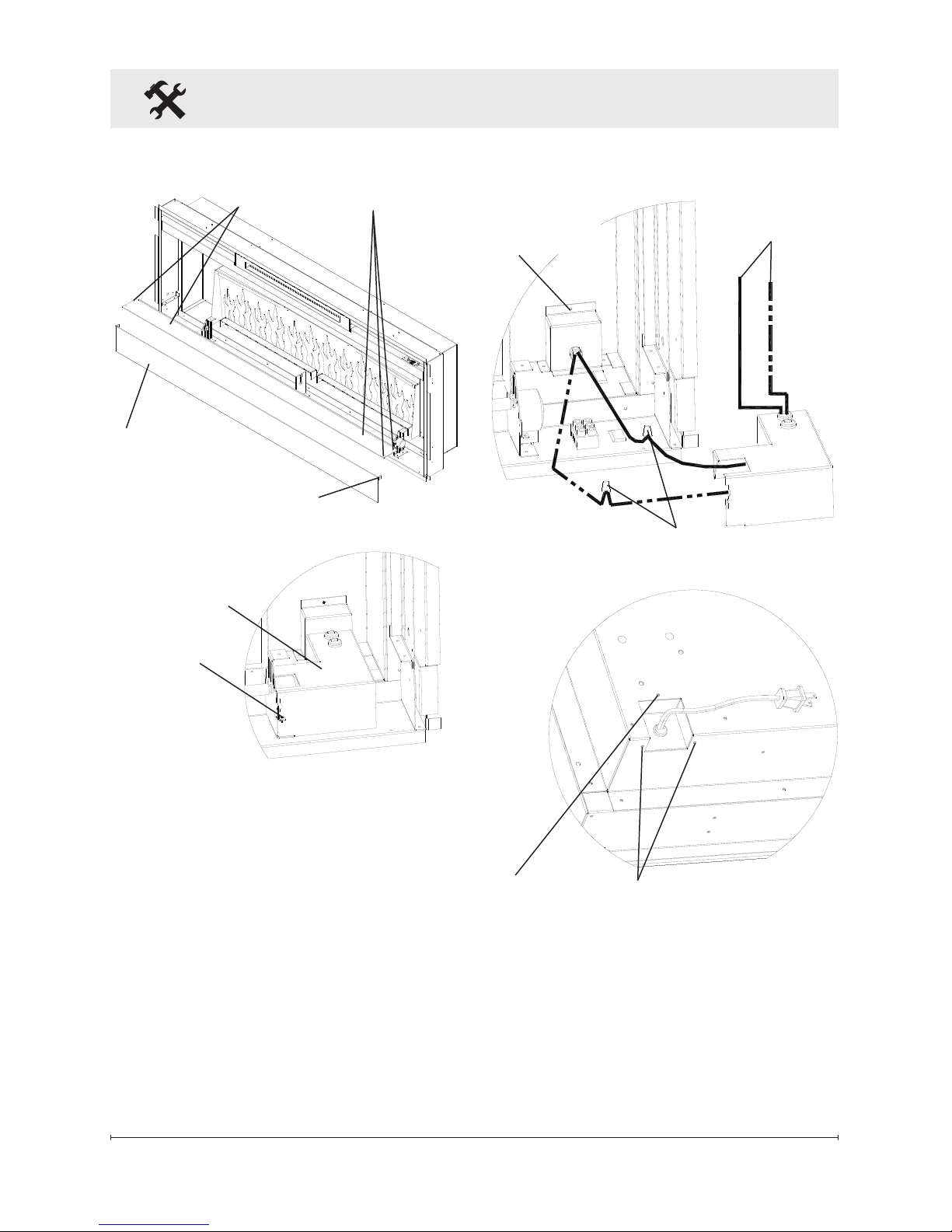

②Remove six (6) Phillips

screws that fasten the media

tray and two (2) screws that

fasten the front panel tabs

(Figure 3). Carefully remove both

components.

③Remove one (1) Phillips

screw to release the electrical box

10 www.dimplex.com

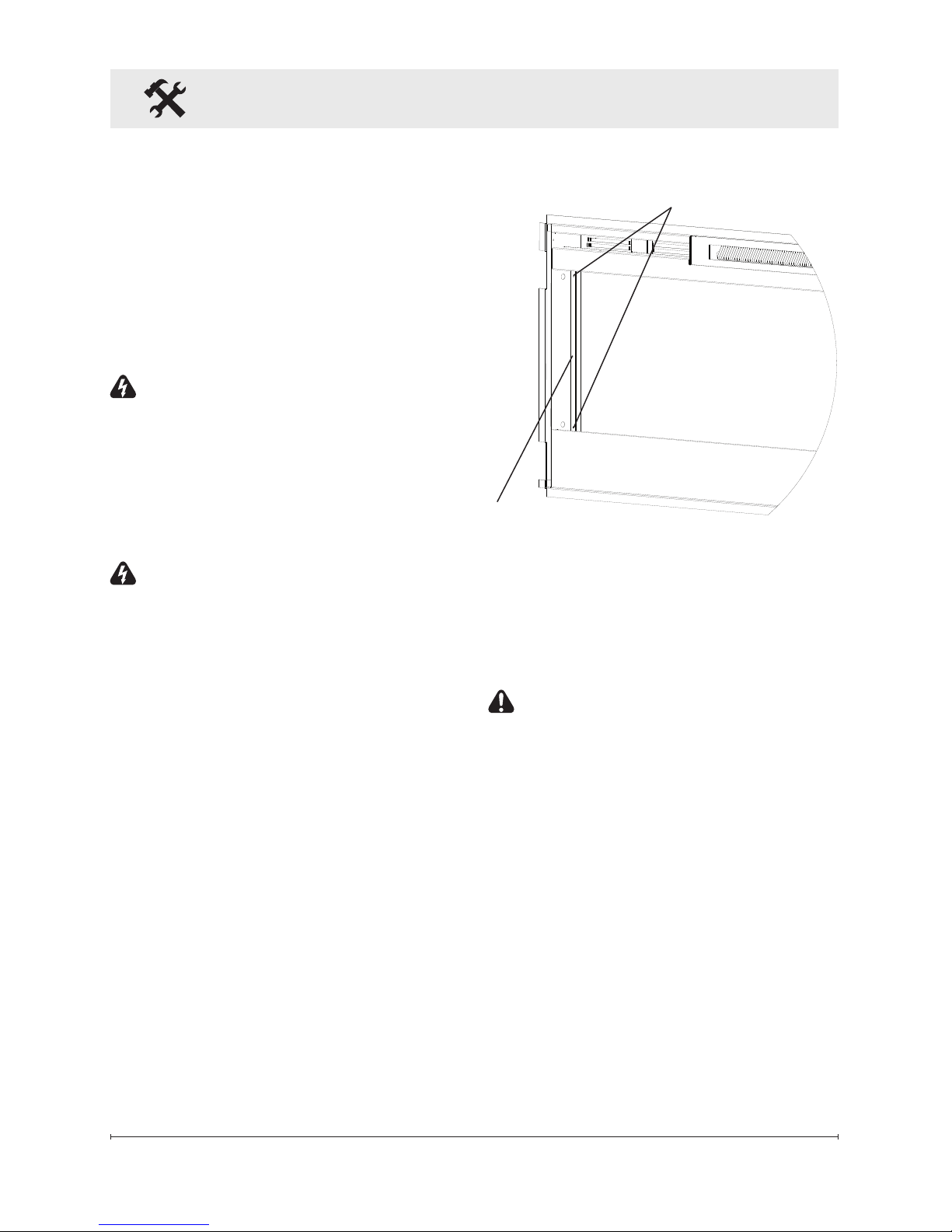

⑥Remove the one (1) Phillips

screw that attaches the junction

box cover to the ﬁreplace chassis

(Figure 5) from inside.

⑦From the back of the

ﬁreplace, remove the remaining

cover in the bottom, right corner

of the ﬁreplace (Figure 4).

④Carefully remove the electrical

box cover from the ﬁreplace as

wires are fed through the strain

reliefs on the cover and are

connected within.

⑤Unscrew the two (2) wire

connectors inside the electrical

box and separate the wires

(Figure 5).

Fireplace Installation

Figure 5

Wires to

controls

Wire connectors

Junction

Box screw

Figure 6

Junction Box screws (3)

Figure 4

Electrical box

Screw

Figure 3

Front Panel

Front Panel tabs (2)

Media Tray screws (2)

Other manuals for BLF50

Table of contents

Other Dimplex Indoor Fireplace manuals

Dimplex

Dimplex IN-STUD V1525BT User manual

Dimplex

Dimplex RILEY RLY20-AU User manual

Dimplex

Dimplex 7206560100R00 Installation guide

Dimplex

Dimplex MOZART MZT20 User manual

Dimplex

Dimplex EWM-COPPER User manual

Dimplex

Dimplex Chadwick Suite CDW15WW User manual

Dimplex

Dimplex OAKHURST OKT20 User manual

Dimplex

Dimplex BF9000 User manual

Dimplex

Dimplex Piccolo PCO20 User manual

Dimplex

Dimplex Cadogan CGN20 User manual

Dimplex

Dimplex IN-STUD V1525BT User manual

Dimplex

Dimplex DWF5252B User manual

Dimplex

Dimplex RLG20BR User manual

Dimplex

Dimplex DF2010-EU User manual

Dimplex

Dimplex SCANDIC DELUXE SDC20RC User manual

Dimplex

Dimplex LKD20-AU User manual

Dimplex

Dimplex Revillusion RBF30-FG User manual

Dimplex

Dimplex DWF36 User manual

Dimplex

Dimplex Optiflame Gorstan GST20 Instruction Manual

Dimplex

Dimplex BF362SD User manual

Dimplex

Dimplex Elda Fire ELD20 User manual

Dimplex

Dimplex 6908760100 User manual

Dimplex

Dimplex DF1136L User manual

Dimplex

Dimplex CAMBRIDGE STANDARD User manual

Popular Indoor Fireplace manuals by other brands

Brigantia

Brigantia 35-DVRS31N-2 User's installation, operation and maintenance manual

Nordpeis

Nordpeis Bergen Installation and user manual

Superior

Superior BCT2536TMN Installation and operation instructions

Quadra-Fire

Quadra-Fire 5100I-GD-B owner's manual

Renaissance

Renaissance RUMFORD 1000 user manual

Lacunza

Lacunza IV-800 Instruction book

Baxi

Baxi 940 Installer and owner guide

Dru

Dru Maestro 60/2 Tall RCH installation manual

Diamond Fireglass

Diamond Fireglass SS-O22 General assembly, installation, and operation instructions

HearthStone

HearthStone Windsor Bay 8830 Owner's manual and installation guide

Napoleon

Napoleon ASCENT B42 quick start guide

Enviro

Enviro E33GI owner's manual

Smeg

Smeg L30 FABE Installation & user's instructions

KEDDY

KEDDY K700 Installation instructions care and firing instructions

Godin

Godin 3451 manual

Jøtul

Jøtul Jotul GI 535 DV IPI New Harbor Installation and operation instructions

Austro Flamm

Austro Flamm Heidi Back 2.0 945048 operating manual

Desa

Desa CCFPDFT Owner's operating & installation manual
