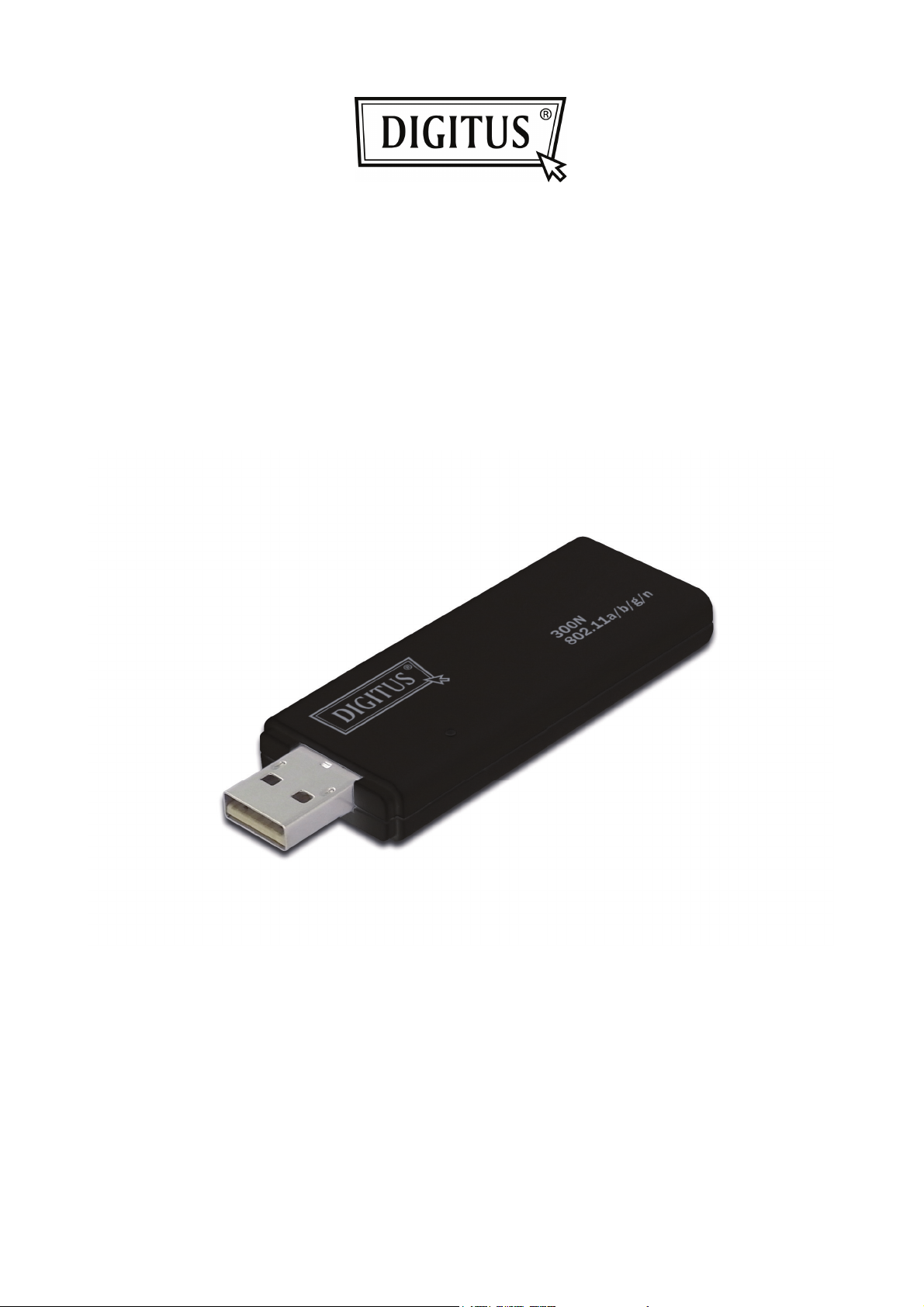

Digitus DN-70550 User manual
WIRELESS 300N
DUAL BAND USB 2.0 ADAPTER
Quick Installation Guide
DN-70550
1
Table of Contents
Package Contents.............................................................................. Page 1
Network Card Installation.................................................................. Page 2
Connect to Wireless Access Point................................................... Page 5
Package Contents
Before you starting to use this wireless network card, please check if there’s anything missing in the
package, and contact your dealer of purchase to claim for missing items:
USB Wireless Network Card (1 pcs) 1
Protection Cap (1 pcs) 2
Driver/Utility/User Manual CD-ROM (1 pcs) 3
1
2
3
2
Network Card Installation
Please follow the following instructions to install your new USB wireless network card.
1. Insert the USB wireless network card into
an empty USB 2.0 port of your computer
when computer is switched on.
Never use force to insert the card, if you
feel it’s stuck, flip the card over and try
again.
2. The following message will appear on
your computer, click ‘Cancel’.
3. Insert device driver CDROM into the
CD/DVD ROM drive of your computer, and
execute ‘Setup.exe’ program. Please read
the end user license agreement and click ‘I
accept the terms of the license agreement’
and ‘Next’ to accept license agreement.
3
4. It is recommend installing driver and
utility if the network card is installing the first
time. If you want to update the driver only,
choose ’Install driver only’. Click ‘Next’ to
continue.
5. You can choose the configuration tool
used to configure the wireless network card
here. It’s recommended to select ‘Ralink
Configuration Tool’, which provides fully
access to all functions of this wireless
network card. If you prefer to use the
wireless configuration tool provided by
Windows XP, Vista or 7, please select
‘Microsoft Zero Configuration Tool’ then
click ‘Next’.
6. Now you’ll see the following message,
please click ‘Install’ to begin the installation.
If you see ‘Found New Hardware’
message again, please ignore it and
wait.
4
7. Please wait while the install procedure is
running. When you see this message,
please click ‘Finish’ to complete the
installation process.
5
Connect to Wireless Access Point
Using Configuration Utility to Connect to Wireless Access Point:
1. After installation is complete,
wireless configuration utility will be
shown in the desktop of your computer
automatically. You will also see an icon
at the lower-right corner of your
windows system. You can click the icon
by right mouse key, and select the
configuration utility you want to use or
switch the network card to AP mode.
2. Configuration utility will scan for
wireless access points and access to
any unencrypted wireless access point
automatically. If you wish to connect to
another access point, select the
access point and click ‘Connect’.
If the wireless access point you want to
connect does not show here, please
click ‘Rescan’.
NOTE: In Vista, the network card will
not connect to any unencrypted
wireless access point automatically.
3. If the wireless access point uses
encryption, you have to input WEP key
or WPA preshared key. Please ask the
owner of the wireless access point you
want to connect and input the correct
key here, and then click ‘OK’. If the
value you inputted here is wrong, you
will not be able to connect to wireless
access point.
6
4. If the wireless access point is
successfully connected, you’ll see a
symbol appears in front of the name of
wireless device.
For advanced settings and other features of this USB wireless network card, please refer to user manual
enclosed in supplied CD-ROM.
