Digi-Pas DWL9000XY User manual
Digi-Pas®
USER MANUAL
Rev. 1.11
www.digipas.com
2-Axis Ultra Precision Inclinometer
Model: DWL9000XY
Note: Contents in this instruction manual is continuously updated, please check Digi-Pas website for latest version.
Digi-Pas®
© 2021 Digipas Technologies Inc. All Rights Reserved.
www.digipas.com
TOC 1
DWL-9000XY Instruction Manual
1. Device Overview....................................................................................................................... 1
1.1. Technical Specication......................................................................................................1
1.2. Dimension of the Tilt Sensor Module .................................................................................2
1.3. Overview..............................................................................................................................3
1.4. List of items included in DWL-9000XY product package................................................4
2. Setting Up....................................................................................................................................4
2.1. Operation Procedure .........................................................................................................4
2.2. Mounting Device On Fixture or Work Piece.....................................................................4
3. User Interface .............................................................................................................................5
3.1. Single Axis Mode Interface ................................................................................................5
3.2. Single Axis Mode Display Screen and Button Function ..................................................5
3.3. Single Axis Mode Operation ..............................................................................................6
3.4. Dual-Axis Mode Display Screen and Button Function ....................................................6
3.5. Main Menu Icon Screen Display and Button Function ...................................................7
3.6. Main Menu Icon Features ..................................................................................................7
4. Features & Setting ......................................................................................................................8
4.1. Absolute Level Screen Display and Button Function ......................................................8
4.2. Alternate Zero Screen Display and Button Function.......................................................9
4.3. Sync Menu Screen Display and Button Function ..........................................................10
4.4. Angle Meter Screen Display and Button Function........................................................11
4.5. Vibro Meter Screen Display and Button Function .........................................................11
4.6. Setting Menu Display Screen and Button Function.......................................................12
5. Storage & Cleaning ................................................................................................................13
6. Warranty ...................................................................................................................................13
APPENDIX 1: User Calibration .......................................................................................................15
CONTENT
Digi-Pas®
© 2021 Digipas Technologies Inc. All Rights Reserved.
www.digipas.com
TOC 2
DWL-9000XY Instruction Manual
Digi-Pas®
© 2021 Digipas Technologies Inc. All Rights Reserved.
www.digipas.com
DWL-9000XY Instruction Manual
INTELLECTUAL PROPERTY
This manual contains propriety information, which is protected by copyrights. All rights are re-
served. No part of this manual may be photocopied, reproduced, redistributed or translated to
another language without the prior written consent of Digipas Technologies Inc.
The information in this manual was correct at the time of printing, stored in CD or uploaded in the
Company website. However, Digipas Technologies Inc. will continue to improve products and
reserves the rights to change specication and maintenance procedures at any time without prior
notice.
Digi-Pas® Products were manufactured under ISO9001 & ISO14001 standards, tested to comply by
the followings certication bodies:
Digi-Pas®
© 2021 Digipas Technologies Inc. All Rights Reserved.
www.digipas.com
Page 1
DWL-9000XY Instruction Manual
1. DEVICE OVERVIEW
1.1. Technical Specication
Measuring Range
(Single Axis Mode)
0 to 7200 arcsec.
(0.0000° to ± 2.0000°)
Measuring Range
(2-Axis Mode)
0 to 3600 arcsec.
(0.0000° to ± 1.0000°)
Resolution 0.2 arcsec. (≤ 1μm/M)
Accuracy ± 0.6 arcsec at 0 to ±100 arcsec.
± 1.2 arcsec at other angles
Repeatability 0.2 arcsec. (≤ 1μm/M)
Measurement Speed ≤ 25 Sec.
Vibrometer 2.0g
Display Colour TFT LCD
Power Supply 4 x AAA 1.5V Batteries / USB Power source
Material PC ABS / Alloy Steel
Connectivity USB 2.0 Cable (≤ 5 metre)
Bluetooth (≤30 metre)
PC SYNC Software Professional Edition (Included)
Operating Temperature +10°C to +40°C
(Calibrated for the entire temperature range)
Storage Temperature -20°C to +60°C
Dimension (mm) 188 x 62 x 37
Nett Weight (Approx.) 1150 gram
Table 1. Technical specication of DWL-9000XY Ultra Precision Inclinometer
Notes:
-Product performance to specication complies with accredited Calibration & Test Providers in USA, Japan, UK,
and Germany to conform with NIST, JIS, UKAS & DIN under the International Laboratory Accreditation Cooperation
(ILAC) and American Association for Laboratory Accreditation (A2LA). For more information, please visit
“www.digipas.com”.
Digi-Pas®
© 2021 Digipas Technologies Inc. All Rights Reserved.
www.digipas.com
Page 2
DWL-9000XY Instruction Manual
1.2. Dimension of the Tilt Sensor Module
Figure 1. DWL-9000XY Device Dimension
134
12.5
50
15.6
M5 X
7mm X 3 holes
100
188.4
60.5
92
M5 X
16mmx 2 holes
5.3
62.4
36.9
11
36
90°
6
39
29
37
153
62
57 55
30
Digi-Pas®
© 2021 Digipas Technologies Inc. All Rights Reserved.
www.digipas.com
Page 3
DWL-9000XY Instruction Manual
1.3. Overview
Digi-Pas®
© 2021 Digipas Technologies Inc. All Rights Reserved.
www.digipas.com
Page 4
DWL-9000XY Instruction Manual
1.4. List of items included in DWL-9000XY product package
Item No. Description Quantity
1DWL 9000XY Ultra Precision Inclinom-
eter 1 unit
2Certicate of Calibration 1 set
3 AAA batteries 4 pcs
4 USB 2.0 cable (3 Meters) 1 pc
5 Security dongle 1 pc
6 M5 Button head screws 3 pcs
Table 1. Packaging content
2. SETTING UP
2.1. Operation Procedure
1. Insert 4 pieces of “AAA” batteries into the battery compartment and press ON/OFF but-
ton. Alternatively, insert USB power source to the USB Port to power up the device. Take
note that the device performance might be affected when poorly regulated USB power
source is used.
2. Initial Setup screen pops up. Press ON/OFF button to scroll up or MODE button to scroll
down for selecting “Default Units” or “Current Device Location”. Press “UNITS” or “HOLD”
button to input the selected option. Select the nearest option when your location is not
available in the default list. Scroll to select “Done” to continue.
3. Allow sufcient time for the device to stabilize during initial power-up. When the thermom-
eter on the screen turns green, the device is ready to use.
Note: For maximum accuracy, perform calibration (refer to APPENDIX: User Calibration) or Absolute Level
(refer to Chapter 4: Absolute Level for more details) before measurement.
2.2. Mounting Device On Fixture or Work Piece
The two threaded holes are provided for mounting the device onto user-dened xtures/machin-
ery.
Digi-Pas®
© 2021 Digipas Technologies Inc. All Rights Reserved.
www.digipas.com
Page 5
DWL-9000XY Instruction Manual
To mount the device onto user’s dened xture or workpiece. Remove both the set screw (M5),
then replace with the appropriate type of screws specied by the user.
3. USER INTERFACE
3.1. Single Axis Mode Interface
3.2. Single Axis Mode Display Screen and Button Function
3.3. Single Axis Mode Operation
562.2Arcsec
Place the digital level on the surface to be measured.
Please ensure the contact surfaces of the device and measuring plane are clean
and free from dust particles.
562.2Arcsec
BATTERY
LEVEL
MEASUREMENT
UNITS
THERMOMETER
DIGITAL READING
MEASUREMENT
UNITS HOLD
MAIN MENU
OFF
Digi-Pas®
© 2021 Digipas Technologies Inc. All Rights Reserved.
www.digipas.com
Page 6
DWL-9000XY Instruction Manual

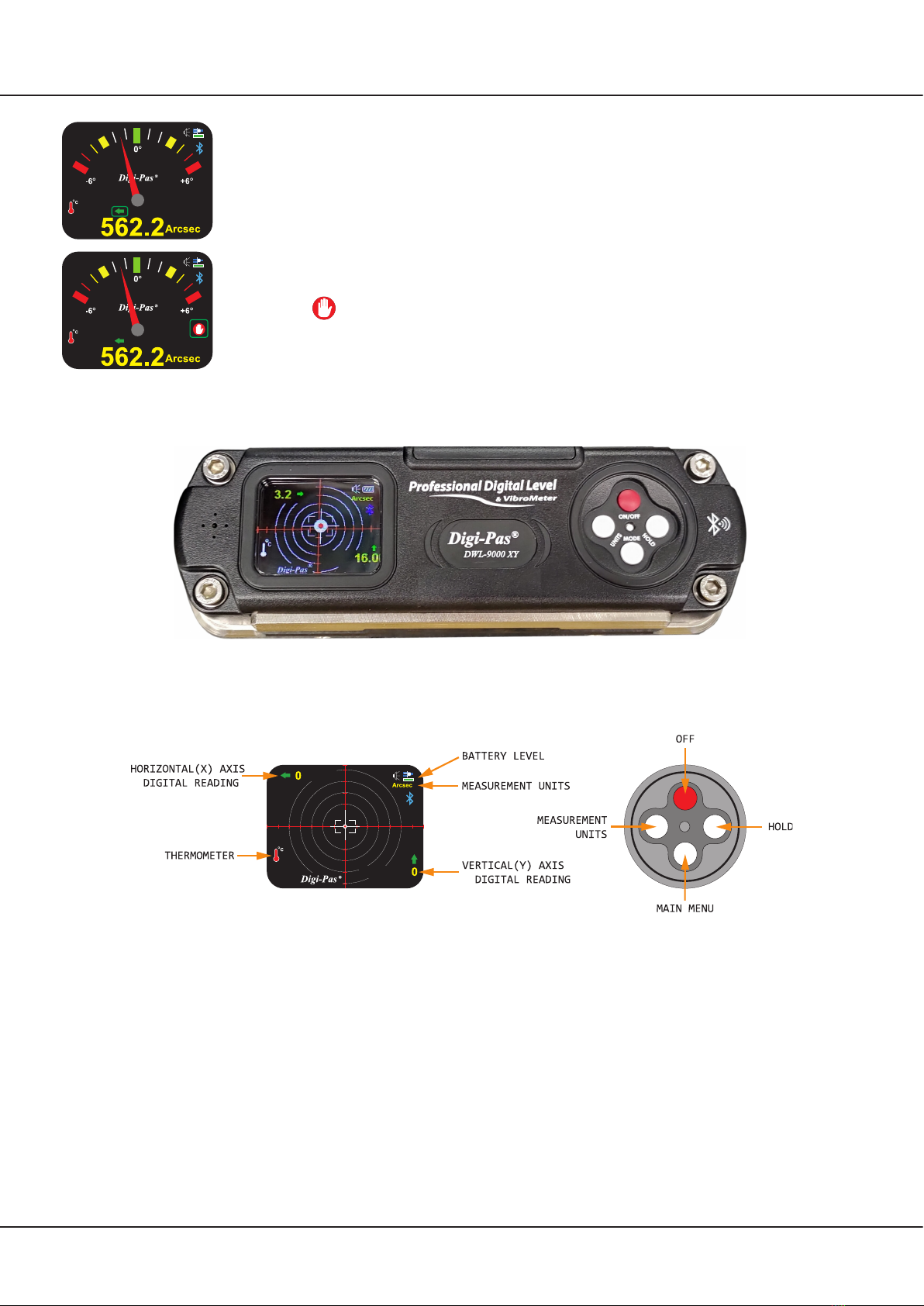

The green arrow sign on display indicates the higher side.
User may “freeze” the screen by pressing the HOLD button.
The icon pops up to indicate the screen is paused. To
resume operation, press the hold button once.
Dual-Axis Mode Interface
3.4. Dual-Axis Mode Display Screen and Button Function
