Dell Precision Workstation T1500 Owner's manual
About Warnings
WARNING: A WARNING indicates a potential for property damage, personal injury, or death.
Dell Precision™ Workstation T1500
Setup and Features Information Tech Sheet

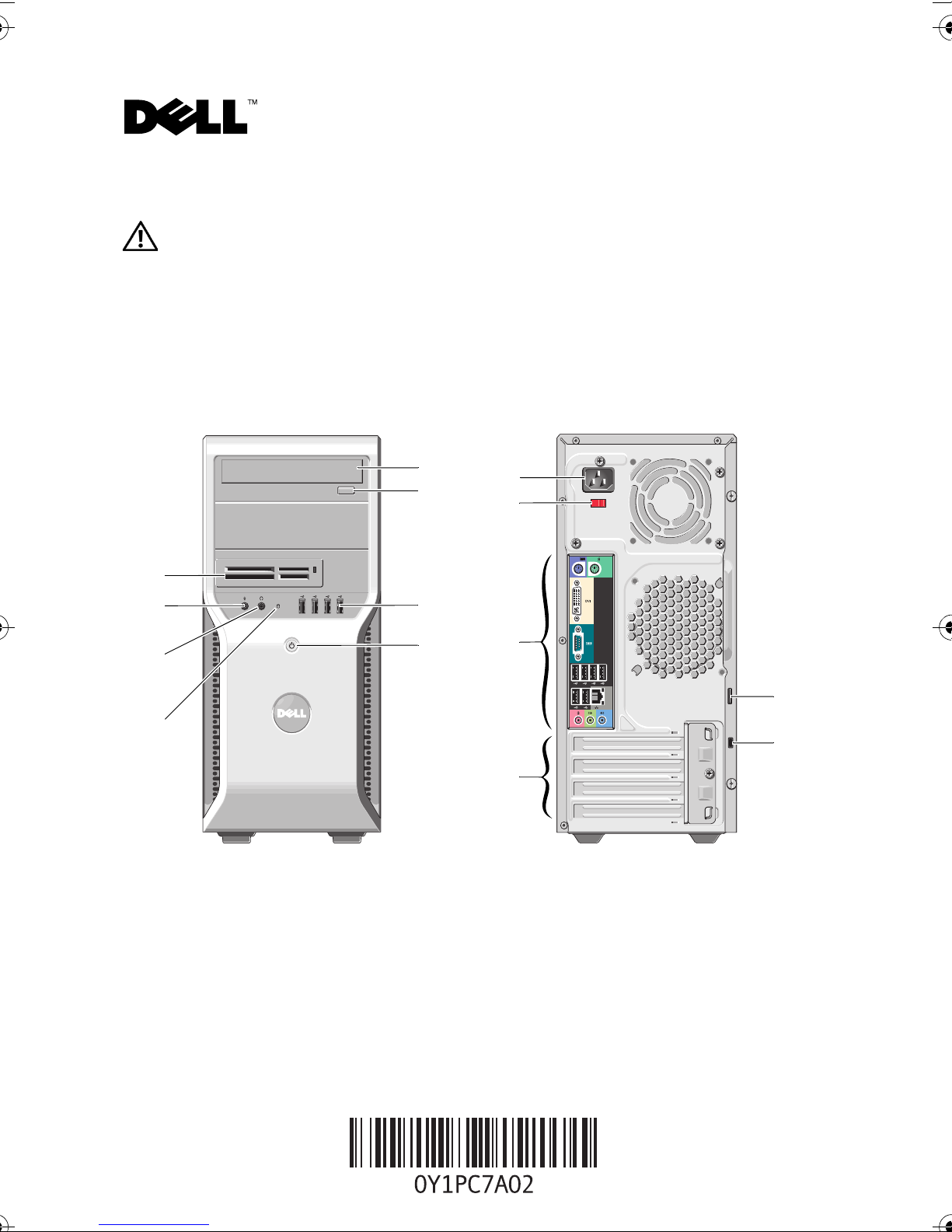

Front and Back View
1optical drive 2optical drive eject button
3USB 2.0 connectors (4) 4power button
5drive access light 6headphone connector
7microphone connector 8media card reader (optional)
9padlock ring 10 security cable slot
11 expansion card slots (4) 12 back panel connectors
13 voltage selector switch 14 power connector
1
8
7
6
4
3
214
12
9
11
5
13
10
June 2010 Regulatory Model: D02M series
Regulatory Type: D02M001
Y1PC7Aam2.fm Page 1 Friday, July 2, 2010 3:50 PM
Back Panel
NOTE: The DVI–I connector is only available with Intel®H57 Express Chipset.
1link integrity light 2network adapter connector
3network activity light 4line-in connector / rear L/R connector
5line-out connector / front L/R connector 6microphone connector / center /
subwoofer connector
7USB 2.0 connectors (6) 8serial port
9DVI-I connector 10 PS/2 connector – keyboard
11 PS/2 connector – mouse
123
4
5
6
87
11
10
9
Y1PC7Aam2.fm Page 2 Friday, July 2, 2010 3:50 PM
Quick Setup
WARNING: Before you begin any of the procedures in this section, read the safety
information that shipped with your computer. For additional best practices information,
see www.dell.com/regulatory_compliance.
NOTE: Some devices may not be included if you did not order them.
1
Connect the monitor using only one of the following cables:
a
The white DVI cable
b
The DisplayPort cable
c
The VGA cable to DVI adapter
d
The DVI cable to DisplayPort adapter
e
The VGA cable to DisplayPort adapter
Y1PC7Aam2.fm Page 3 Friday, July 2, 2010 3:50 PM
2
Connect the USB keyboard or mouse
(optional).
3
Connect the network cable (optional).
4
Connect the modem (optional).
5
Connect the power cable(s).
6
Press the power buttons on the monitor and
the computer.
Y1PC7Aam2.fm Page 4 Friday, July 2, 2010 3:50 PM
Specifications
NOTE: The following specifications are only those required by law to ship with your computer.
For a complete and current listing of the specifications for your computer, go to support.dell.com.
System Information
Chipset Intel P55 Express Chipset / Intel H57 Express Chipset
Processor
Processor • Intel Core™ i3 series processor with Intel Graphics Media
Accelerator HD
• Intel Core i5 series processor with Intel Graphics Media
Accelerator HD
• Intel Core i7 series processor
Video
Video type:
Integrated
Integrated on Intel Core i3/i5 series processors
(Intel H57 Express Chipset only)
NOTE: i7-880, i7-870, i7-860, i7-860S, i5-750, and i5-750S processor
types do not support integrated video.
Discrete
PCI-E x16 graphics card
• ATI FirePro V3750 — 256 MB GDDR3
• ATI FireMV 2260 — 256 MB DDR3
• NVIDIA Quadro NVS 295 — 256 MB DDR3
• NVIDIA Quadro FX 580 — 512 MB GDDR3
Video memory 256 MB, 512 MB
Memory
Memory module connector 4 DIMM slots
Memory module capacity 1 GB, 2 GB, or 4 GB
Type 1066 MHz, 1333 MHz DDR3
Minimum memory 1 GB
Maximum memory 16 GB
Y1PC7Aam2.fm Page 5 Friday, July 2, 2010 3:50 PM
Drives
Externally accessible:
5.25 inch drive bays
Two
3.5 inch drive bays
One
Internally accessible:
3.5 inch SATA drive bays
Two
Available devices:
3.5 inch SATA hard drives
Two
5.25 inch SATA DVD-ROM,
DVD+/-RW, or Blu-ray Disc™
drive
Two
Control Lights and Diagnostic Lights
Power light off — system is either turned off or is not receiving power.
Blue— system is fully functional and in the On state.
Blinking blue indicates sleep state of the computer.
amber — solid amber light when the computer does not start
indicates a problem with the system board or power supply.
Blinking amber light indicates a problem with one of the
devices in the system.
Drive access light displays the SATA hard drive or CD/DVD activity.
blue light — blinking blue light indicates that the computer
is reading data from or writing data to the drive(s).
Link integrity light off — system is off or is not detecting a physical connection
to the network.
green — A 10 or 100 mbps connection exists between
the network and the computer.
orange — A 1000 mbps connection exists between the
network and the computer.
Y1PC7Aam2.fm Page 6 Friday, July 2, 2010 3:50 PM
Power
Wattage 350 W
Maximum heat dissipation 1837 BTUs/h (350 W power supply)
NOTE: Heat dissipation is calculated using the power supply wattage rating.
Voltage 100 V – 127 V/200 V – 240 V, 50 Hz – 60 Hz, 10/5 A
(see the safety information that shipped with your computer for important voltage setting information)
Coin-cell battery 3 V CR2032 lithium coin cell
Physical
Height 370.40 mm (14.58 inches)
Width 170.00 mm (6.69 inches)
Depth 433.78 mm (17.08 inches)
Weight 7.95 kg – 10.50 kg (17.53 lb – 23.15 lb)
Environmental
Temperature:
Operating
10 °C to 35 °C (50 °F to 95 °F)
Storage
–40 °C to 65 °C (–40 °F to 149 °F)
Relative humidity 20% to 80% (noncondensing)
Altitude:
Operating
–15.2 m to 3048 m (–50 ft to 10,000 ft)
Storage
–15.2 m to 10,668 m (–50 ft to 35,000 ft)
Airborne contaminant level G2 or lower as defined by ISA-S71.04-1985
Y1PC7Aam2.fm Page 7 Friday, July 2, 2010 3:50 PM
Finding More Information and Resources
____________________
Information in this document is subject to change without notice.
© 2009–2010 Dell Inc. All rights reserved. Printed in the U.S.A.
Reproduction of these materials in any manner whatsoever without the written permission of Dell Inc.
is strictly forbidden.
Trademarks used in this text: Dell,the DELL logo, and Dell Precision are trademarks of Dell Inc.;
Blu-ray Disc is a trademark of the Blu-ray Disc Association; Intel is a registered trademark and Core is
a trademark of Intel Corporation in the U.S. and other countries.
Other trademarks and trade names may be used in this document to refer to either the entities claiming the
marks and names or their products. Dell Inc. disclaims any proprietary interest in trademarks and trade
names other than its own.
If you need to: See:
Find safety best practices information for
your computer, review Warranty information,
Terms and Conditions(U.S only),
Safety instructions, Regulatory information,
Ergonomics information, and End User
License Agreement.
The safety and regulatory documents
that shipped with your computer and the
Regulatory Compliance Homepage at
www.dell.com/regulatory_compliance.
Y1PC7Aam2.fm Page 8 Friday, July 2, 2010 3:50 PM
