Dell OPTIPLEX 9010 ALL-IN-ONE User manual
TECHNICAL GUIDEBOOK
INSIDE THE OPTIPLEX 9010 ALL-IN-ONE
DELL
OPTIPLEX 9010
ALL-IN-ONE
TM
TM
TABLE OF CONTENTS
OVERVIEW
Left / Right View 3
Rear View 4
System Components 5
SYSTEM CONFIGURATIONS 6
Operating System, Chipset 6
Processor 7
Memory, Panel 8
Drives and Removable Storage, System Board Connectors 9
Graphics/Video Controller, External Ports/Connectors 10
Communications (Network Adapter [NIC], Wireless), Audio and Speakers, Keyboard and Mouse 11
Security, Software, Environmental, Stands, Service and Support 12
DETAILED ENGINEERING SPECIFICATIONS 13
System Dimensions (Physical), System Board Connector Maximum Allowable Dimensions 13
System Level Environmental and Operating Conditions 14
Power 15-16
Audio 16
Communications 17-18
Graphics/Video Controller 19
Hard Drives 20-25
Optical Drive 26-28
Media Card Reader 29
BIOS Defaults 31
Chassis Enclosure and Ventilation Requirements 33
Webcam 30
DELL™ OPTIPLEX™ 9010 ALL-IN-ONE TECHNICAL GUIDEBOOK
3
OVERVIEW

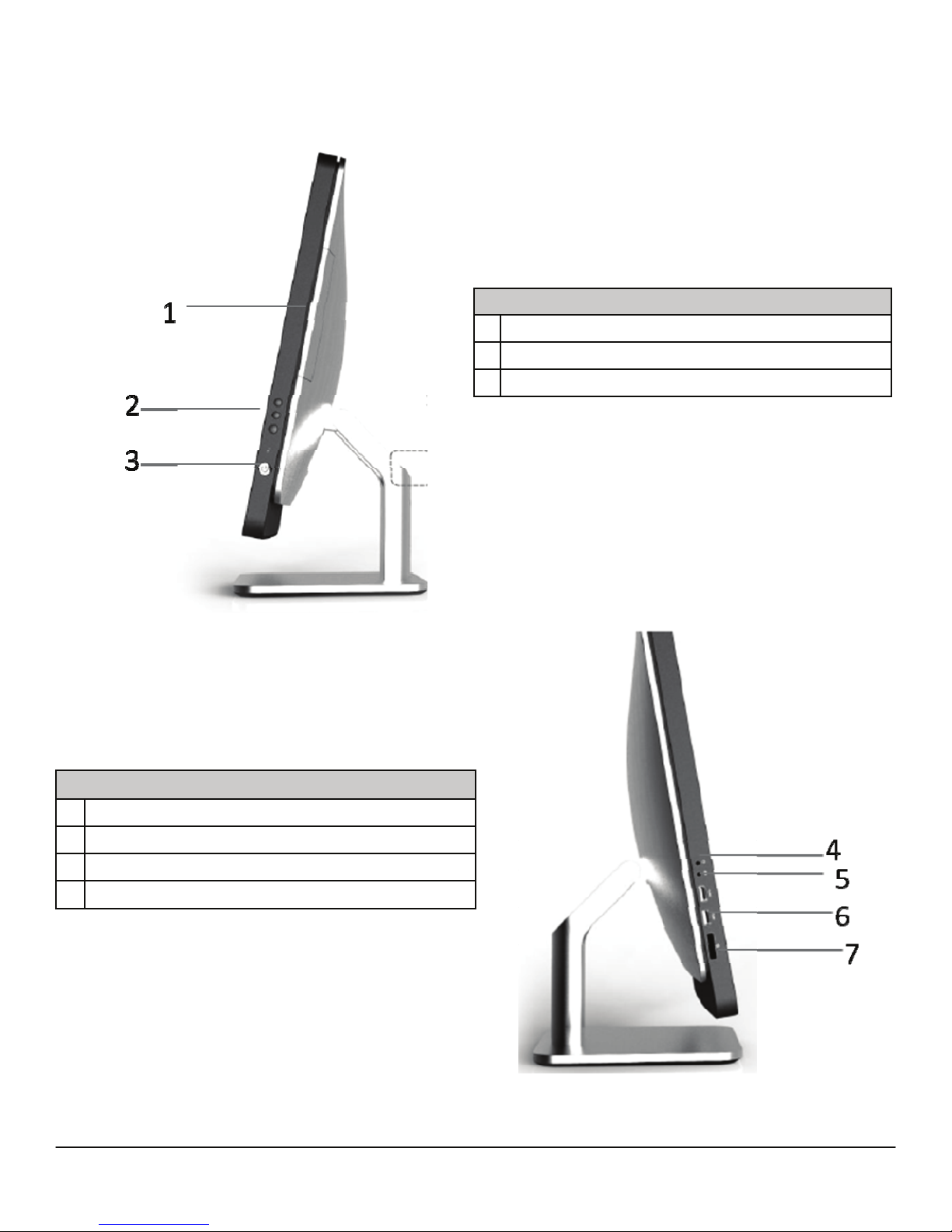

1 Optical Drive Bay (optional)
2 Side key Button (up, down, mode)
3 Power Button, Power Light
RIGHT VIEW
4 Headphone Connector
5 Microphone Connector
6 USB3.0 Connectors (2)
LEFT VIEW
7 8-in-1 Media Card Reader
DELL™ OPTIPLEX™ 9010 ALL-IN-ONE TECHNICAL GUIDEBOOK
4
AIO VIEW

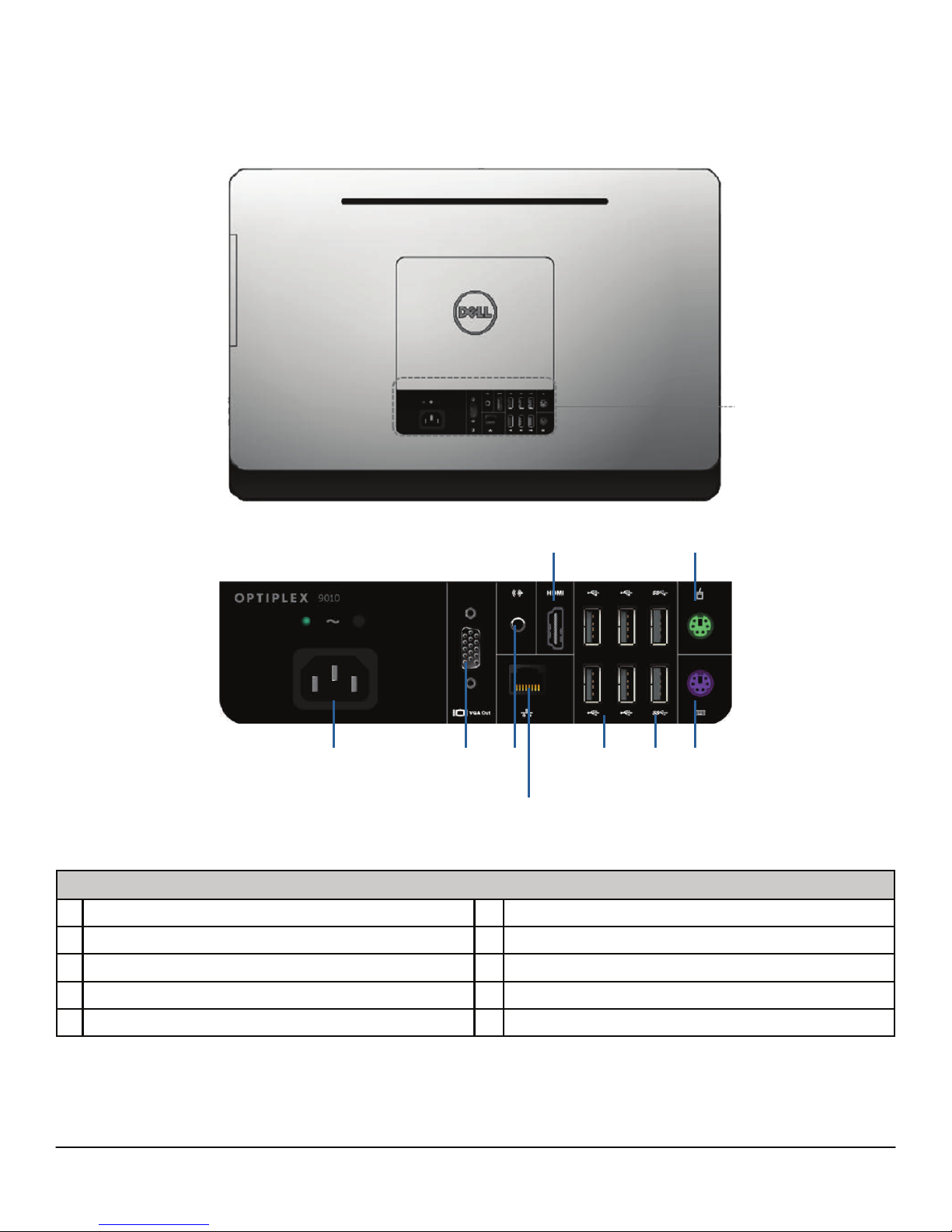

1 Power Connector 6 USB3.0 Connectors (2)
2 VGA Connector 7 PS/2 Keyboard Connector
3 Line-out Connector 8 PS/2 Mouse Connector
4 Network Connector 9 HDMI Connector
5 USB2.0 Connectors (4)
REAR VIEW
1 2 3
4
5 6 7
8
9
DELL™ OPTIPLEX™ 9010 ALL-IN-ONE TECHNICAL GUIDEBOOK
5
1 Processor Socket 11 SATA HDD Power Connector
2 Memory Connector (SO-DIMM Socket B) 12 SATA HDD Connector
3 Memory Connector (SO-DIMM Socket A) 13 SATA ODD Connector
4 Intrusion Switch Connector 14 LVDS Connector
5 Mini-PCI Socket 15 Side Key Board Connector
6 Battery Connector 16 Touch Panel Connector
7 Internal Speaker Connector 17 PSU Fan Connector
8 12V CPU PWR Connector 18 Converter Connector
9 CPU Fan Connector 19 PSU Connector
10 SATA ODD Power Connector
BOARD COMPONENTS
AIO SYSTEM BOARD COMPONENTS
DELL™ OPTIPLEX™ 9010 ALL-IN-ONE TECHNICAL GUIDEBOOK
6
SYSTEM CONFIGURATIONS
NOTE: Oerings may vary by country. For more information regarding the configuration of your computer, click
Start>Help and Support and select the option to view information about your computer.
OPERATING SYSTEM
Windows operating system
Microsoft® Windows 7® Home Basic SP1 (32 and 64 bit),
Microsoft® Windows 7® Home Premium SP1 (32 and 64 bit),
Microsoft® Windows 7® Home Premium w/MUI SP1 (32 and
64 bit),
Microsoft® Windows 7® Professional w/MUI SP1 (32 and 64
bit),
Microsoft® Windows 7® Professional SP1 (32 and 64 bit),
Microsoft® Windows 7® Ultimate SPI (32 and 64 bit),
Other Ubuntu (N-Series DIB) (32bit)
Ubuntu (32bit)
OS Media Support (optional) Optional
AIO
CHIPSET
AIO
Chipset Intel Q77 Express Chipset
BIOS Configuration SPI (Serial Peripheral Interface) 64Mbit (8MB) &32Mbit(4MB)located at SPI_FLASH on chipset
TPM 1.2 Security Device (Trusted Platform Module)14KB located at TPM1.2 on chipset
Non-TPM Available in select countries
NIC EEPROM LOM configuration contained within SPI_FLASH
– no dedicated LOM EEPROM
Non-volatile memory on chipset
DELL™ OPTIPLEX™ 9010 ALL-IN-ONE TECHNICAL GUIDEBOOK
7
PROCESSOR
NOTE: Global Standard Products (GSP) are a subset of Dell’s relationship products that are managed for availability and synchro-
nized transitions on a worldwide basis. They ensure the same platform is available for purchase globally. This allows customers to
reduce the number of configurations managed on a worldwide basis, thereby reducing their costs. They also enable companies
to implement global IT standards by locking in specific product configurations worldwide. The following GSP processors identi-
fied below will be made available to Dell customers.
NOTE: Processor numbers are not a measure of performance. Processor availability subject to change and may vary by region/
country.
AIO
Intel® Quad Core Processors
Intel® Core™ i7 3770S / 3.40GHz, 8M, VT-x, VT-d, TXT (vPro™), 65W GSP
Intel® Core™ i5 3550S / 3.00GHz, 6M, VT-x, VT-d, TXT (vPro™), 65W X
Intel® Core™ i5 3450S / 2.80GHz, 6M, VT-x, VT-d, TXT (vPro™), 65W X
Intel® Dual Core Processors
Intel® Core™ i3 2130 / 3.40GHz, 3M, VT-x, 65W X
Intel® Core™ i3 2125 / 3.30GHz, 3M, VT-x, 65W X
Intel® Core™ i3 2120 / 3.30GHz, 3M, VT-x, 65W X
Intel® Core™ G850 / 2.9GHz, 3M, VT-x, 65W X
Intel® Core™ G630 / 2.7GHz, 3M, VT-x, 65W X
DELL™ OPTIPLEX™ 9010 ALL-IN-ONE TECHNICAL GUIDEBOOK
8
MEMORY
NOTE: Memory modules should be installed in pairs of matched memory size, speed, and technology. If the memory modules
are not installed in matched pairs, the computer will continue to operate, but with a slight reduction in performance. The entire
memory range is available to 64-bit operating systems.
1 To fully utilize 4GB or more of memory requires a 64-bit enabled processor and 64-bit operating system. With 32-bit OS, the total amount of
available memory will be less than 4GB. The amount less depends on the actual system configuration.
21600MHz memory will only perform as 1600MHz memory when 3rd generation CPUs are used. It will perform as 1333MHz memory if 2nd gen-
eration i3-2130, i3-2125, i3-2120, G860 or G850 CPUs are installed in the system. It will perform as 1066MHz memory if 2nd generation G640 or
G630 CPUs are installed in the system.
AIO
Type: DDR3 Synch DRAM Non-ECC Memory 1600 MHz
SODIMM Slots 2
SODIMM Capacities Up to 8GB
Minimum Memory 2GB
Maximum System Memory 16GB1
16GB1DDR3, 1600MHz2(2 x 8 GB) X
Memory configurations
8GB1DDR3, 1600MHz2(2 x 4GB) X
6GB1DDR3, 1600MHz2( 2GB + 4GB) X
4GB1DDR3, 1600MHz2(2 x 2GB) X
4GB1DDR3, 1600MHz2(1 x 4GB) X
2GB DDR3, 1600MHz2(1 x 2GB) X
PANEL
Size 23"
Resolution FHD (1920 x 1080)
Color Gamut 72%
Technology TN
Contrast Ratio 1000:1
Brightness (Typical) 250nits
Refresh Rate 60Hz
Viewing Angle (Typical) 85/85/80/80
Coating/Treatment Anti-Glare
AIO
DELL™ OPTIPLEX™ 9010 ALL-IN-ONE TECHNICAL GUIDEBOOK
9
DRIVES AND REMOVABLE STORAGE
SYSTEM BOARD CONNECTORS
NOTE: See Detailed Engineering Specifications for maximum card dimensions.
1For hard drives, GB means 1 billion bytes; actual capacity varies with preloaded material and operating environment and will be less.
2Discs burned with this drive may not be compatible with some existing drives and players; using DVD+R media provides maximum compatibility.
3DVD-ROM drives may have write-capable hardware that has been disabled via firmware modifications.
4 miniPCIe (Support Standard Rev 2.0)
5 Serial ATA ( 2 ports Support Standard Rev 3.0, the rest of ports Support Standard Rev 2.0)
AIO
Bays:
5.25-inch Optical Bay Supported (External) 0
Optical Drives Supported (maximum) 1
Hard Drive Bay Supported (Internal) 1
Hard Drives Supported 3.5”/2.5” (maximum) 1/1
Interface:
SATA 2.0 0
SATA 3.0 2
3.5” Hard Drives:
1TB1SATA 7200 RPM HDD X
500GB1SATA 7200 RPM HDD X
250GB1SATA 7200 RPM HDD X
2.5” Hard Drives:
128GB1SATA Solid State drive X
320GB1SATA 7200 RPM SED HDD X
500GB1SATA 7200 RPM Hybrid HDD 16MB cache X
Optical Drive:
Blu-ray Writer SATA X
DVD+/-RW2 SATA X
DVD-ROM3 SATA X
Media Card Reader:
Dell 8 in 1 Media Card Reader X
AIO
Mini PCIe connector4 1
Serial ATA (SATA) connector5 2
DELL™ OPTIPLEX™ 9010 ALL-IN-ONE TECHNICAL GUIDEBOOK
10
GRAPHICS/VIDEO CONTROLLER
EXTERNAL PORTS/CONNECTORS
AIO
Integrated Intel® HD Graphics 2500/4000 (3rd generation Core i3/i5/i7 CPUs);
Integrated Intel® HD Graphics 2000/3000 (2nd generation Core i3 CPUs);
Integrated Intel® HD Graphics (Pentium® Dual Core CPU)
Integrated on CPU
AIO
USB 2.0 (Side/Rear/Internal) 0/4/3
USB 3.0 (Side/Rear/Internal) 2 (side)/2/0
Network Connector (RJ-45) 1 Rear
PS/2 2 Rear
Video:
VGA 1 Rear
HDMI 1 Rear
Audio:
Line in for microphone 1 Side
Line in for microphone or stereo 0
Line out for headphones or speakers 1 Side, 1 Rear
Data:
