Dell OptiPlex 7010 Owner's manual

Dell OptiPlex 7010

Setup and Features Information

About Warnings

WARNING: A WARNING indicates a potential for property damage, personal injury,

or death.

Mini-Tower — Front and Back View

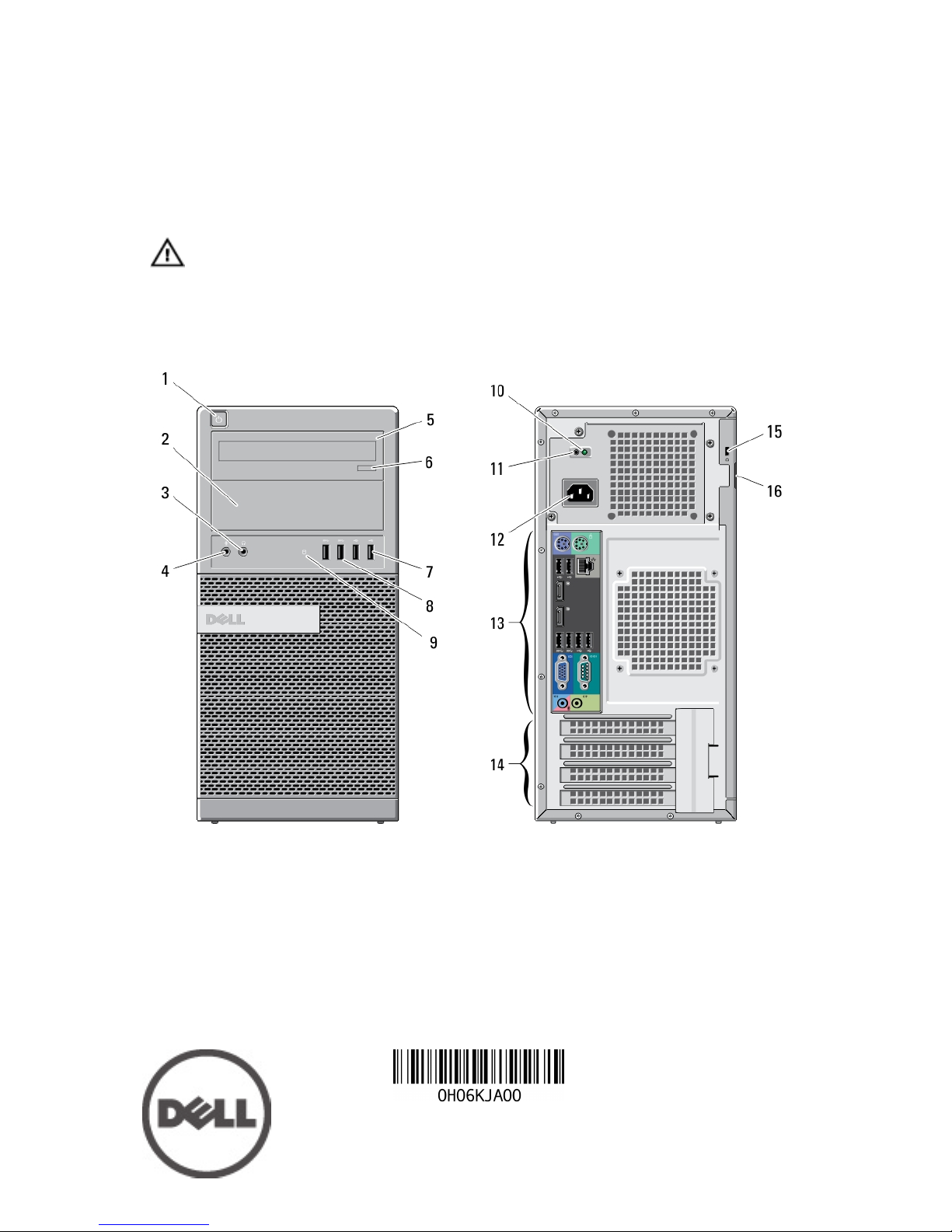

Figure 1. Front and Back View Of Mini-Tower

1. power button, power light

2. optical-drive bay (optional)

3. headphone connector

4. microphone connector

5. optical drive (optional)

6. optical-drive eject button

7. USB 2.0 connectors (2)

8. USB 3.0 connectors (2)

9. drive activity light

10. power supply diagnostic light

Regulatory Model: D05D, D09M, D03S, D01U

Regulatory Type: D05D002, D09M003,

D03S002, D01U003

2011 - 12

11. power supply diagnostic button

12. power connector

13. back panel connectors

14. expansion-card slots (4)

15. security-cable slot

16. padlock ring

Desktop — Front and Back View

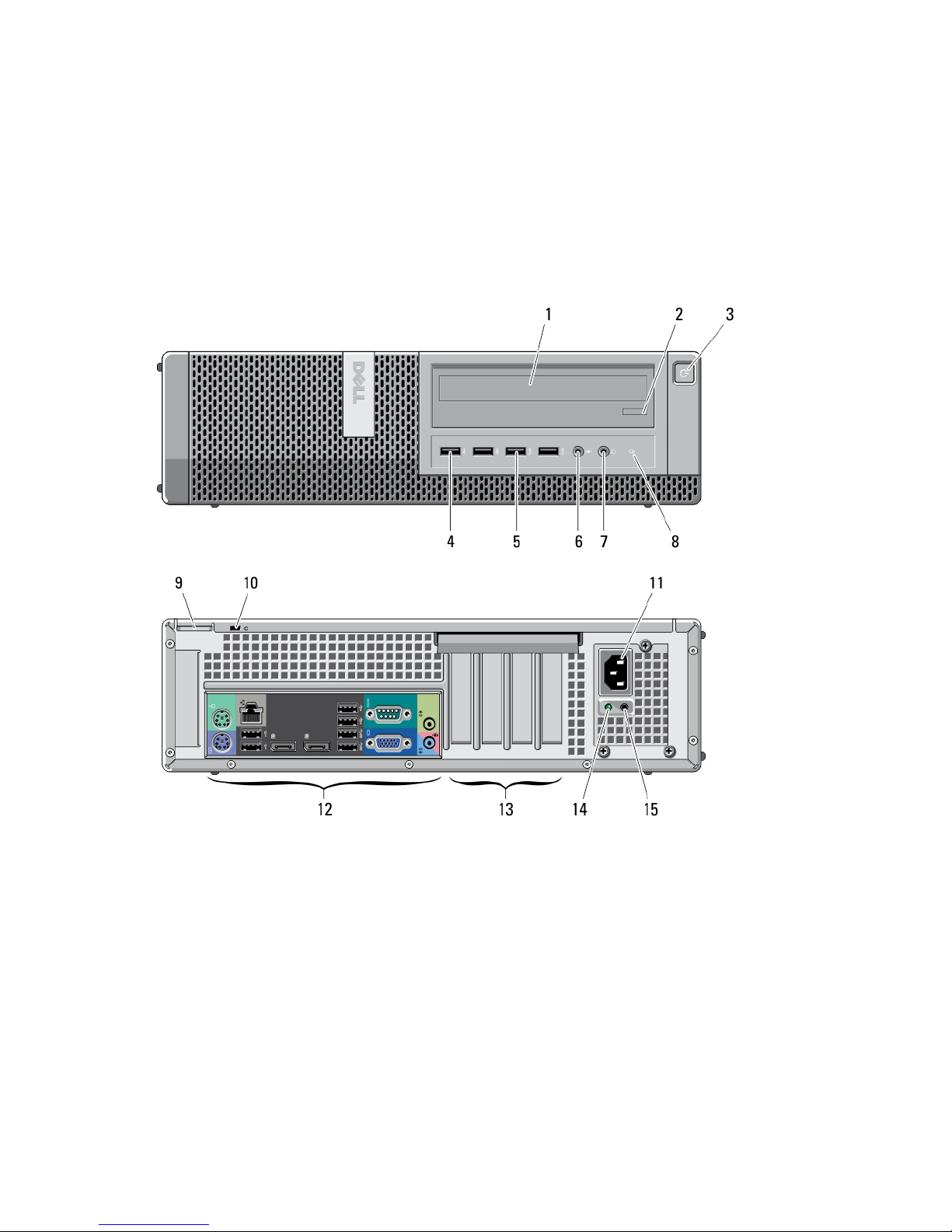

Figure 2. Front and Back View Of Desktop

1. optical drive

2. optical-drive eject button

3. power button, power light

4. USB 2.0 connectors (2)

5. USB 3.0 connectors (2)

6. microphone connector

7. headphone connector

8. drive activity light

9. padlock ring

10. security-cable slot

11. power connector

12. back panel connectors

13. expansion-card slots (4)

14. power supply diagnostic light

15. power supply diagnostic button

Mini–Tower and Desktop — Back Panel View

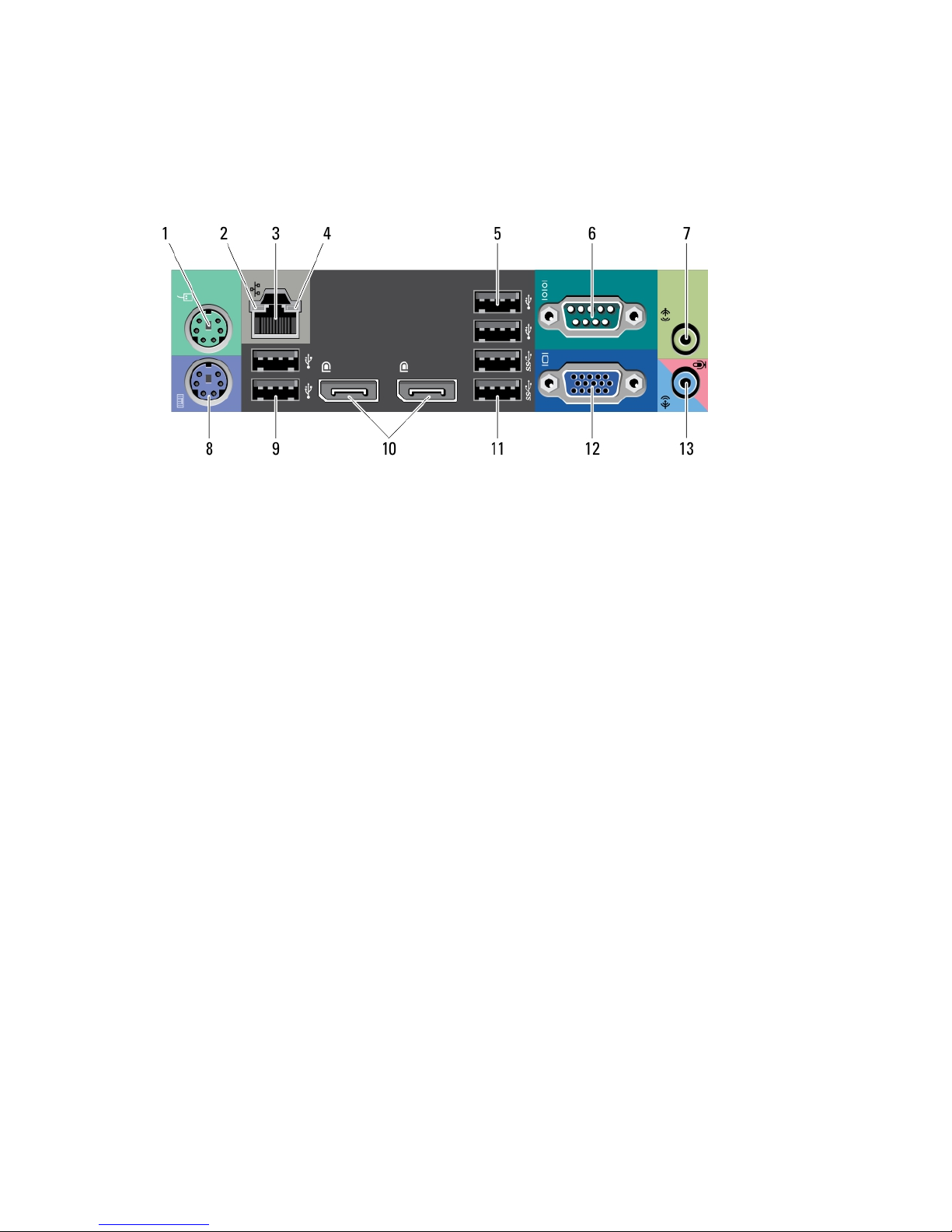

Figure 3. Back Panel View of Mini-Tower And Desktop

1. mouse connector

2. network link integrity light

3. network connector

4. network activity light

5. USB 2.0 connectors (2)

6. serial connector

7. line-out connector

8. keyboard connector

9. USB 2.0 connectors (2)

10. DisplayPort connectors (2)

11. USB 3.0 connectors (2)

12. VGA connector

13. line-in/microphone connector

Small Form Factor — Front and Back View

Figure 4. Front and Back View Of Small Form Factor

1. optical drive

2. optical-drive eject button

3. power button, power light

4. USB 2.0 connectors (2)

5. USB 3.0 connectors (2)

6. microphone connector

7. headphone connector

8. drive activity light

9. padlock ring

10. security-cable slot

11. power connector

12. power supply diagnostic button

13. power supply diagnostic light

14. back panel connectors

15. expansion-card slots (2)

Small Form Factor — Back Panel View

Figure 5. Back Panel View Of Small Form Factor

1. mouse connector

2. serial connector

3. link integrity light

4. network connector

5. network activity light

6. USB 2.0 connectors (2)

7. line-out connector

8. keyboard connector

9. VGA connector

10. DisplayPort connectors (2)

11. USB 2.0 connectors (2)

12. USB 3.0 connectors (2)

13. line-in/microphone connector

Ultra Small Form Factor — Front and Back View

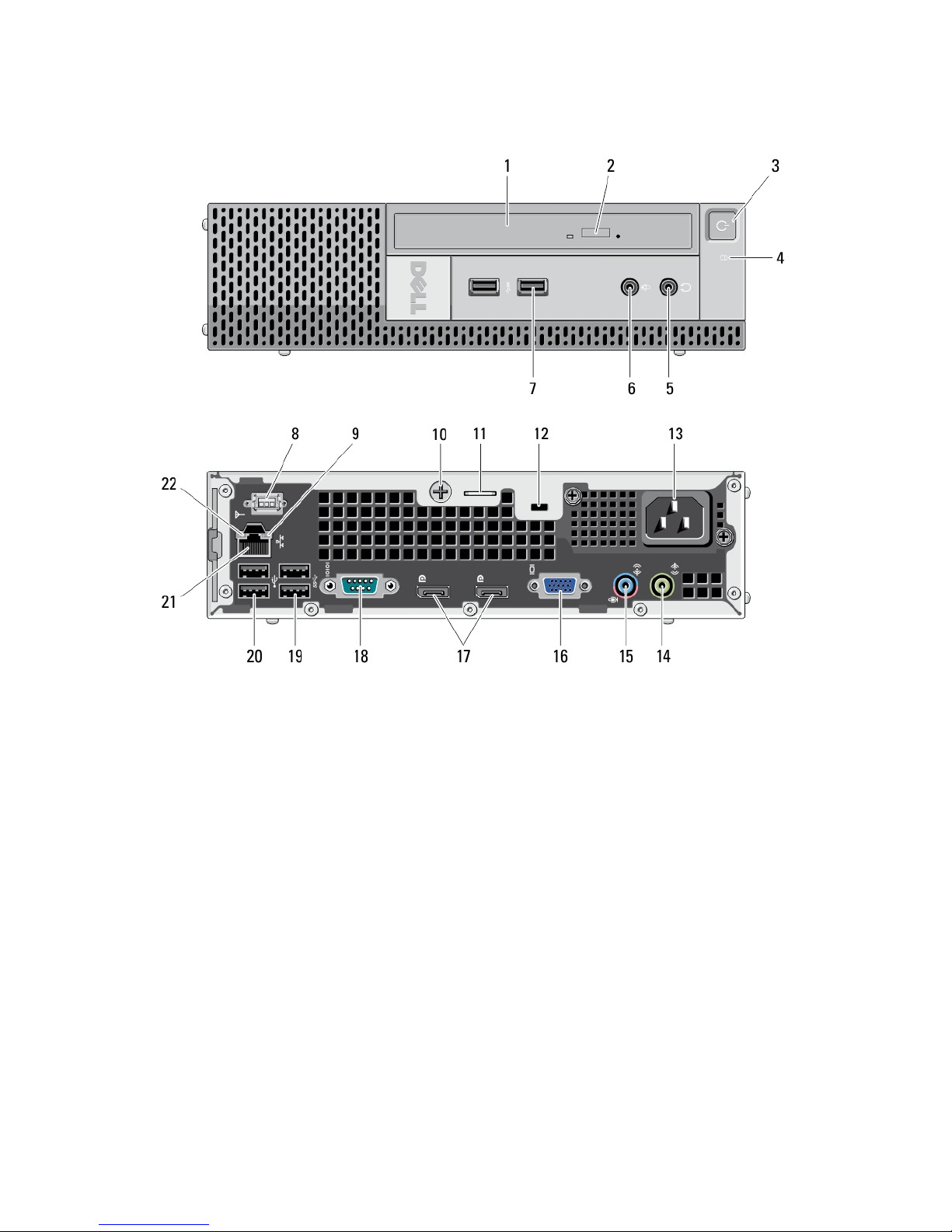

Figure 6. Front and Back View Of Ultra Small Form Factor

1. optical drive

2. optical-drive eject button

3. power button, power light

4. drive activity light

5. headphone connector

6. microphone connector

7. USB 3.0 connectors (2)

8. Wi-Fi antenna (optional)

9. network activity light

10. captive thumbscrew

11. padlock ring

12. security-cable slot

13. power connector

14. line-out connector

15. line-in/microphone connector

16. VGA connector

17. DisplayPort connectors (2)

18. serial connector

19. USB 3.0 connectors (2)

20. USB 2.0 connectors (2)

21. network connector

22. link integrity light

Quick Setup

WARNING: Before you begin any of the procedures in this section, read the safety

information that shipped with your computer. For additional best practices

information, see www.dell.com/regulatory_compliance.

NOTE: Some devices may not be included if you did not order them.

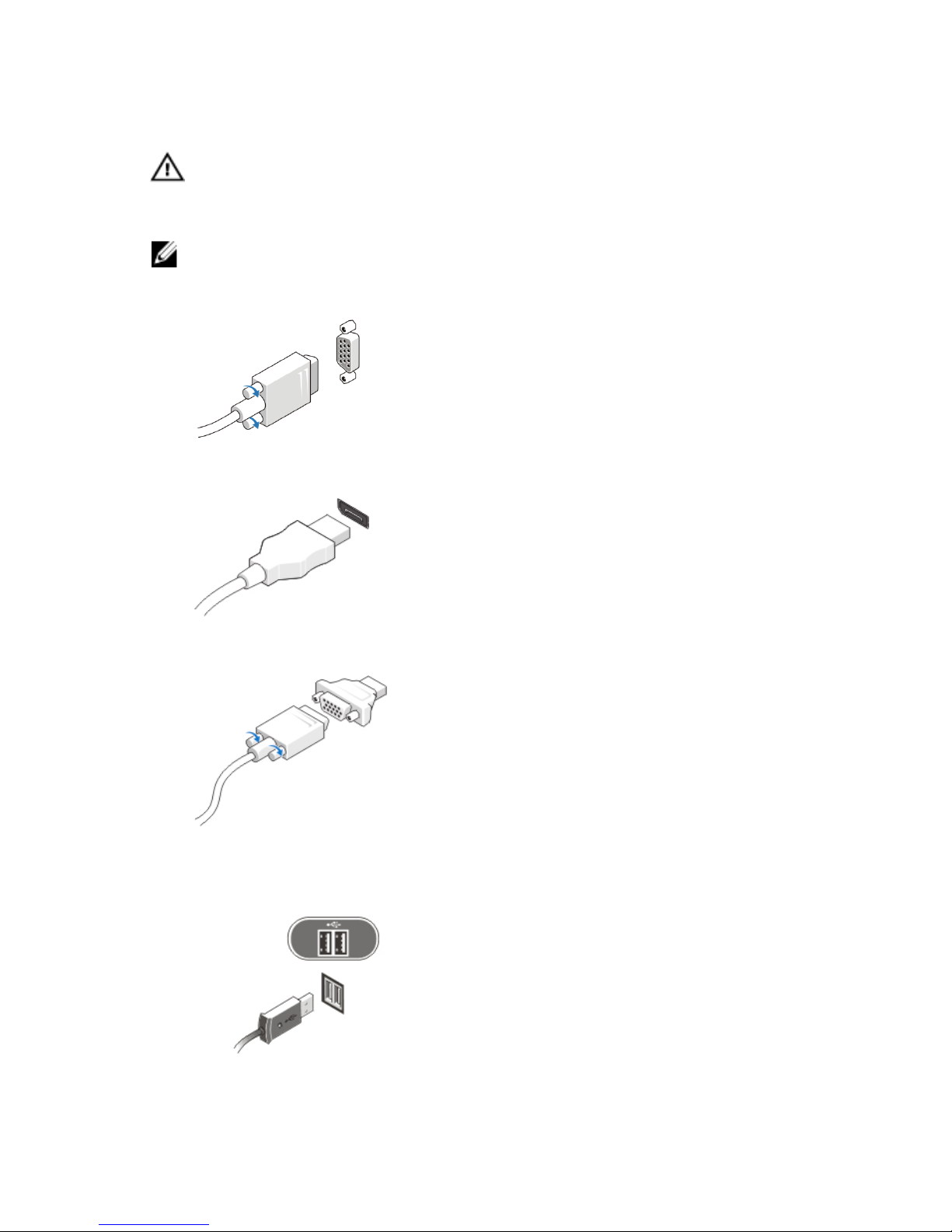

1. Connect the monitor using only one of the following cables:

Figure 7. VGA Adapter

Figure 8. DisplayPort Cable

Figure 9. VGA To DisplayPort Adapter

2. Connect the USB keyboard or mouse (optional).

Figure 10. USB Connection

3. Connect the network cable (optional).

Figure 11. Network Connection

4. Connect the power cable(s).

Figure 12. Connecting Power

5. Press the power buttons on the monitor and the computer.

Figure 13. Turning On Power

Specifications

NOTE: Offerings may vary by region. The following specifications are only those

required by law to ship with your computer. For more information regarding the

configuration of your computer, click Start → Help and Support and select the

option to view information about your computer.

Power Mini-Tower Desktop Small Form

Factor

Ultra Small

Form Factor

Voltage 100 VAC to 240 VAC

Coin-cell battery 3 V CR2032 lithium coin cell

Wattage 275 W 250 W 240 W 200 W

Maximum heat

dissipation

938.30 BTU/hr 853.00 BTU/hr 818.89 BTU/hr 682.40 BTU/hr

NOTE: Heat dissipation is calculated by using the power supply wattage rating.

Physical Mini-Tower Desktop Small Form

Factor

Ultra Small

Form Factor

Height 360 mm (14.17

inches)

360 mm (14.17

inches)

290 mm (11.42

inches)

237 mm (9.33

inches)

Width 175 mm (6.89

inches)

102 mm (4.02

inches)

93 mm (3.66

inches)

65 mm (2.56

inches)

Depth 417 mm (16.42

inches)

410 mm (16.14

inches)

312 mm (12.28

inches)

240 mm (9.44

inches)

Weight

(minimum)

9.40 kg (20.72

lb)

7.90 kg (17.42

lb)

6.00 kg (13.22 lb) 3.30 kg (7.28 lb)

Environmental

Operating Temperature: 10 °C to 35 °C (50 °F to 95 °F)

Information para NOM (únicamente para México)

Voltaje de alimentación 100 V CA – 240 V CA

Frecuencia 50 Hz / 60 Hz

Consumo eléctrico 5,00 A / 4,40 A / 3,60 A / 2,90 A

Finding More Information and Resources

See the safety and regulatory documents that shipped with your computer and the

regulatory compliance website at www.dell.com/regulatory_compliance for more

information on:

• Safety best practices

• Regulatory certification

• Ergonomics

See www.dell.com for additional information on:

• Warranty

• Terms and Conditions (U.S. only)

• End User License Agreement

Additional information on your product is available at support.dell.com/manuals.

Information in this publication is subject to change without notice.
