Dell OptiPlex 390 Owner's manual

Dell Optiplex 390

Setup And Features Information

About Warnings

WARNING: A WARNING indicates a potential for property damage, personal injury,

or death.

Mini-Tower — Front And Back View

Figure 1. Front And Back View Of Mini-Tower

1. power button

2. optical drive bay

3. headphone connector

4. microphone connector

5. diagnostic lights (4)

6. optical drive

7. optical drive eject button

8. USB 2.0 connectors (2)

9. hard-drive activity light

10. power-supply diagnostic light

11. power-supply diagnostic button

12. power cable connector

Regulatory Model :D12M, D07D, D04S

Regulatory Type :D12M001, D07D001,

D04S001

2011 – 05

13. back panel connectors

14. expansion card slots (4)

15. security cable slot

16. padlock ring

Desktop — Front And Back View

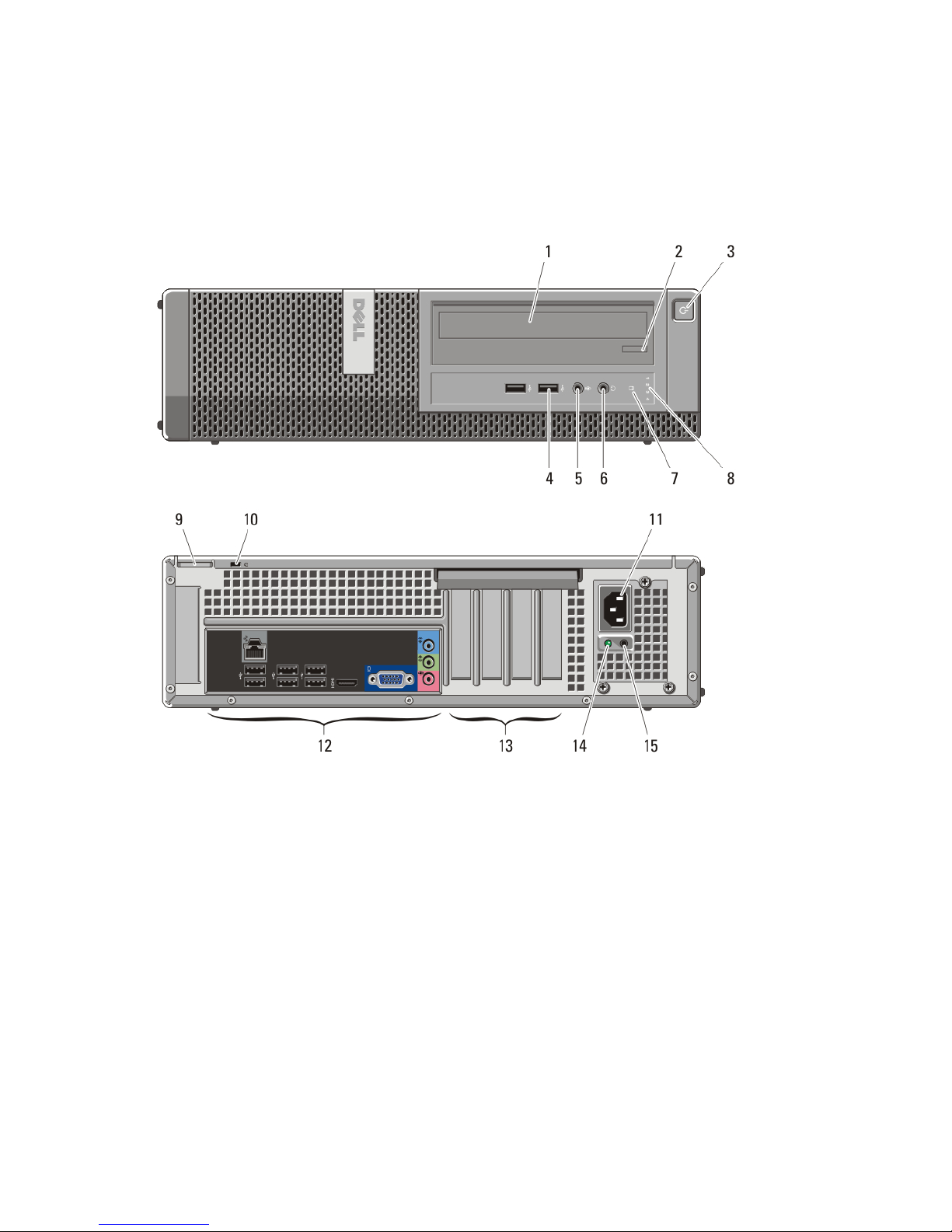

Figure 2. Front And Back View Of Desktop

1. optical drive

2. optical drive eject button

3. power button

4. USB 2.0 connectors (2)

5. microphone connector

6. headphone connector

7. hard-drive activity light

8. diagnostic lights (4)

9. padlock ring

10. security cable slot

11. power cable connector

12. back panel connectors

13. expansion card slots (4)

14. power-supply diagnostic light

15. power-supply diagnostic button

Mini-Tower And Desktop — Back Panel

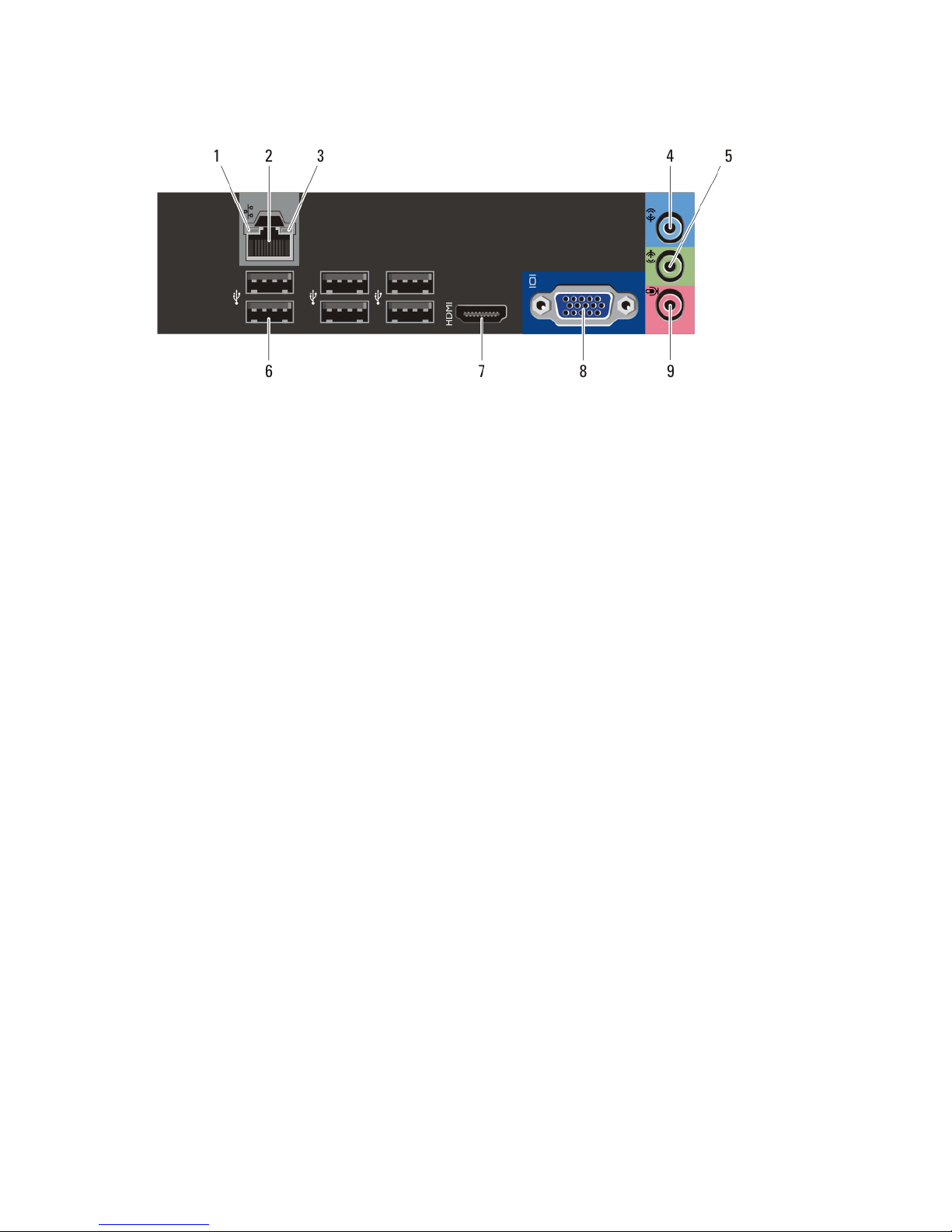

Figure 3. Back Panel View of Mini-Tower And Desktop

1. link integrity light

2. network connector

3. network activity light

4. line-in connector

5. line-out connector

6. USB 2.0 connectors (6)

7. HDMI connector

8. VGA connector

9. microphone connector

Small Form Factor — Front And Back View

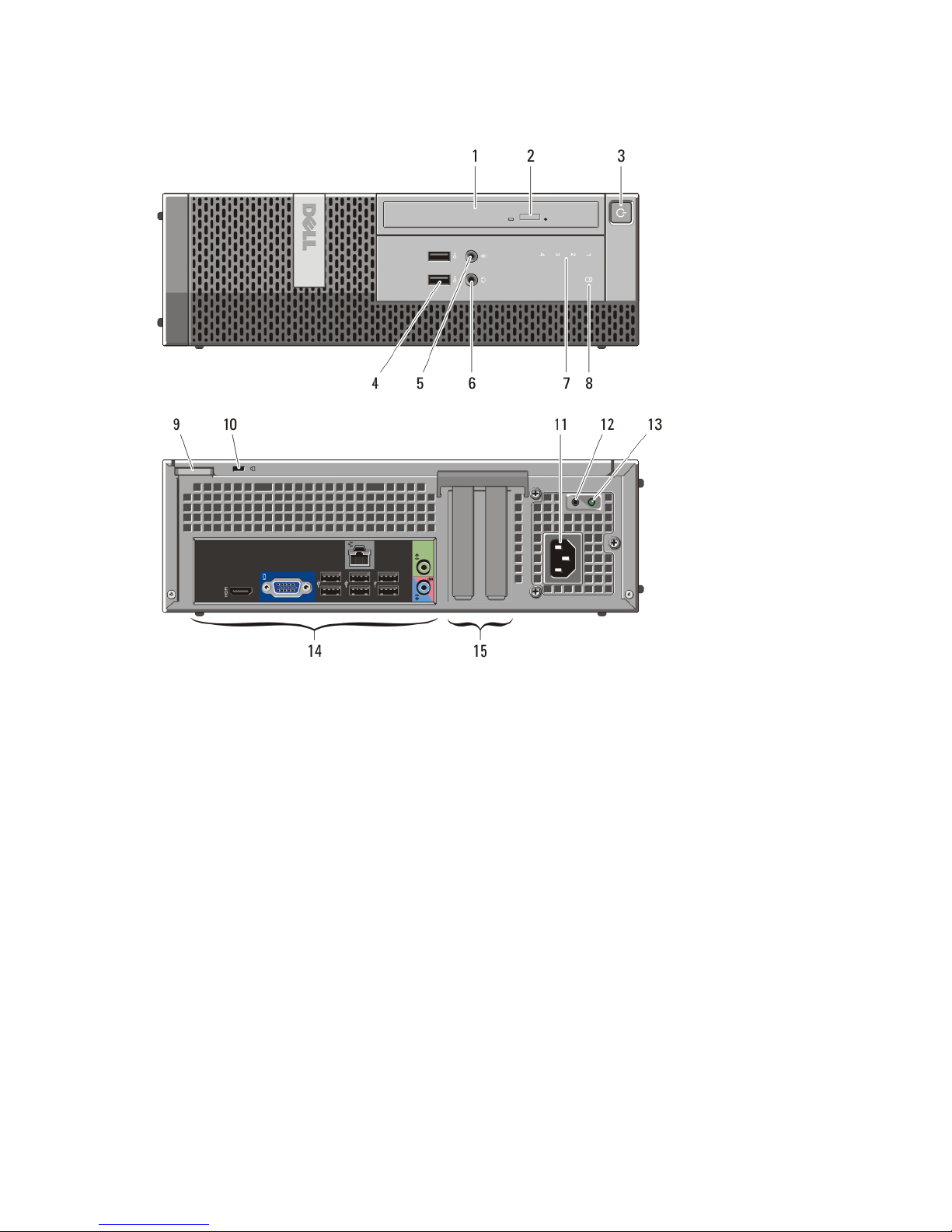

Figure 4. Front And Back View Of Small Form Factor

1. optical drive

2. optical drive eject button

3. power button

4. USB 2.0 connectors (2)

5. microphone connector

6. headphone connector

7. diagnostic lights (4)

8. hard-drive activity light

9. padlock ring

10. security cable slot

11. power cable connector

12. power-supply diagnostic button

13. power-supply diagnostic light

14. back panel connectors

15. expansion card slots (2)

Small Form Factor — Back Panel

Figure 5. Back Panel View of Small Form Factor

1. link integrity light

2. network connector

3. network activity light

4. line-out connector

5. HDMI connector

6. VGA connector

7. USB 2.0 connectors (6)

8. line-in/microphone connector

Quick Setup

WARNING: Before you begin any of the procedures in this section, read the safety

information that shipped with your computer. For additional best practices

information, see www.dell.com/regulatory_compliance.

NOTE: Some devices may not be included if you did not order them.

1. Connect the monitor using only one of the following cables:

Figure 6. HDMI Connector

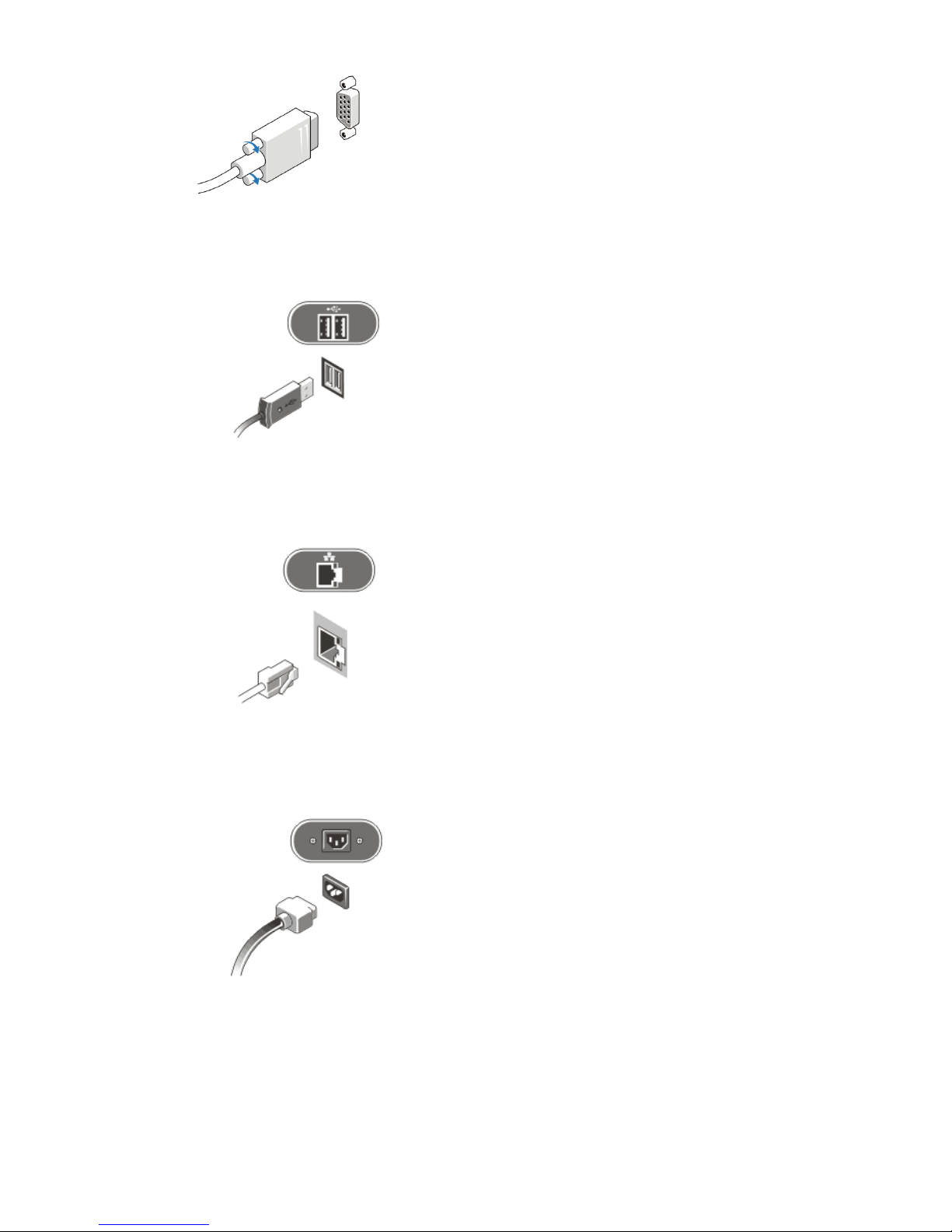

Figure 7. VGA Connector

2. Connect the USB keyboard or mouse (optional).

Figure 8. USB Connection

3. Connect the network cable (optional).

Figure 9. Network Connection

4. Connect the power cable(s).

Figure 10. Connecting Power

5. Press the power buttons on the monitor and the computer.

Figure 11. Power Button

Specifications

NOTE: The following specifications are only those required by law to ship with your

computer. For a complete and current listing of the specifications for your

computer, go to support.dell.com.

System Information

Chipset Intel H61 Express Chipset

Processor • Intel Core i3 Series

• Intel Core i5 Series

Video

Video type:

Integrated Intel HD graphics 2000

Discrete • AMD Radeon HD 6350

• AMD Radeon HD 6450

Video memory:

Integrated up to 1.7 GB shared video memory

(Microsoft Windows Vista and Windows 7)

Discrete up to 1 GB

Memory

Memory module

connector

two DIMM slots

Memory module capacity 1 GB, 2 GB, and 4 GB

Memory type DDR3 with 1333 MHz

Memory

Minimum memory 1 GB

Maximum memory 8 GB

Drives Mini-Tower Desktop Small Form Factor

Externally accessible:

5.25 inch drive bays two one one (slimline)

Internally accessible:

3.5 inch drive bays two one one

Control Lights And Diagnostic Lights

Front of computer:

Power button light Blue light — Solid blue light indicates power-on state;

blinking blue light indicates sleep state of the

computer.

Amber light — Solid amber light when the computer

does not start, indicates a problem with the system

board or power supply. Blinking amber light indicates a

problem with the system board.

Drive activity light Blue light — Blinking blue light indicates that the

computer is reading data from or writing data to the

hard drive.

Diagnostic lights Four lights located on the front panel of the computer.

For more information on the diagnostic lights, see the

Service Manual at support.dell.com/manuals.

Back of computer:

Power supply light Green light — The power supply is turned on and is

functional. The power cable must be connected to the

power connector (at the back of the computer) and the

electrical outlet.

NOTE: You can test the health of the power system by pressing the power-supply

diagnostic button. When the system power supply voltage is within specification,

the power-supply diagnostic light comes on. If the LED does not light up, the power

supply may be defective. AC power must be connected during this test.

Power

Coin-cell battery 3 V CR2032 lithium coin cell

Voltage

Mini-Tower 100 VAC to 240 VAC, 50 Hz to 60 Hz, 5.0 A

Desktop 100 VAC to 240 VAC, 50 Hz to 60 Hz, 4.4 A

Small Form Factor 100 VAC to 240 VAC, 50 Hz to 60 Hz, 3.6 A/4.0 A

Wattage

Mini-Tower 265 W

Desktop 250 W

Small Form Factor 240 W

Maximum heat dissipation

Mini-Tower 1390 BTU/hr

Desktop 1312 BTU/hr

Small Form Factor 1259 BTU/hr

NOTE: Heat dissipation is calculated by using the power supply wattage rating.

NOTE: The voltage selector switch is available only on non-EPA power supplies.

NOTE: See the safety information that shipped with your computer for important

voltage-setting information.

Physical Mini-Tower Desktop Small Form Factor

Height 360.00 mm 360.00 mm 290.00 mm

(14.17 inches) (14.17 inches) (11.42 inches)

Width 175.00 mm 102.00 mm 92.60 mm

(6.89 inches) (4.01 inches) (3.64 inches)

Depth 417.00 mm 410.00 mm 312.00 mm

(16.42 inches) (16.14 inches) (12.28 inches)

Weight (Minimum) 8.87 kg 7.56 kg 5.70 kg

(19.55 lb) (16.67 lb) (12.57 lb)

Environmental

Temperature:

Operating 10 °C to 35 °C (50 °F to 95 °F)

Storage -40 °C to 65 °C (-40 °F to 149 °F)

Relative humidity 20% to 80% (noncondensing)

Altitude:

Operating -15.20 m to 3048 m (-50 ft to 10,000 ft)

Storage -15.20 m to 10,668 m (-50 ft to 35,000 ft)

Airborne contaminant

level

G1 as defined by ISA-S71.04–1985

Finding More Information and Resources

See the safety and regulatory documents that shipped with your computer

and the regulatory compliance website at www.dell.com/

regulatory_compliance for more information on:

• Safety best practices

• Regulatory certification

• Ergonomics

See www.dell.com for additional information on:

• Warranty

• Terms and Conditions (U.S. only)

• End User License Agreement

Information in this publication is subject to change without notice.

Reproduction of these materials in any manner whatsoever without the written permission of

Dell Inc. is strictly forbidden.

Trademarks used in this text: Dell™, the DELL logo, Dell Precision™, Precision ON™,

ExpressCharge™, Latitude™, Latitude ON™, OptiPlex™, Vostro™, and Wi-Fi Catcher™ are

trademarks of Dell Inc. Intel®, Pentium®, Xeon®, Core™, Atom™, Centrino®, and Celeron® are

registered trademarks or trademarks of Intel Corporation in the U.S. and other countries. AMD®

is a registered trademark and AMD Opteron™, AMD Phenom™, AMD Sempron™,

AMD Athlon™, ATI Radeon™, and ATI FirePro™ are trademarks of Advanced Micro Devices,

Inc. Microsoft®, Windows®, MS-DOS®, Windows Vista®, the Windows Vista start button, and
