Dell OptiPlex ARAIO User manual

1/15

DellTM OptiPlexTM 780-USFF All In One (AIO) Stand

The Dell OptiPlex 780-USFF All-in-One Stand is a unique

mounting solution with integrated cable management

designed to adapt to your unique environment.

User's Guide

dell.com/regulatory_compliance

2/15

Hazard Symbols Review

These symbols alert the user about a safety condition that demands attention. All users of the

product should be able to recognize and understand the significance of the following safety

hazards if encountered on the product or within product documentation.

NOTE A NOTE indicates important information that helps you make

better use of your Dell AIO Stand.

CAUTION A CAUTION indicates potential damage to hardware or loss of

data and tells you how to avoid the problem.

WARNING

WARNING indicates a potential for property damage, personal

injury, or death.

ELECTRICAL An ELECTRICAL indicates an impending electrical hazard

which, if not avoided, may result in personal injury, fire and/or

death.

____________________________________________________________________________________________________________________________________________________

Information in this document is subject to change without notice.

Reproduction of these materials in any manner whatsoever without the written permission of Dell Inc. is strictly forbidden.

Trademarks used in this text: Dell, the DELL logo, and OptiPlex are trademarks of Dell Inc.

Other trademarks and trade names may be used in this document to refer to either the entities claiming the marks and names or

their products. Dell Inc. disclaims any proprietary interest in trademarks and trade names other than its own.

____________________________________________________________________________________________________________________________________________________

Model ARAIO

October 2009 Rev. A00

Symbol Signal Word Level of Hazard

WARNING：Risk of electric

shock. Do not expose

electric parts to liquids.

WARNING：To reduce risk of injury

and/or equipment damage, theAIO

Stand must be placed on a level,

stable surface.

3/15

Contents

1 About your Dell OptiPlex 780-USFF AIO Stand ……………………………………………….. 4

2 Setting up the Dell OptiPlex 780-USFF AIO Stand ……………………………………………. 6

3 Specifications …………………………………………………………………………................... 15

4 Finding Information ……………………………………………………………………................. 15

4/15

About your Dell OptiPlex 780-USFF AIO Stand

1 DELL Monitor: P190S/1909W/P2210

2 DELL Quick Release Monitor Mounting Plate

3 System Sleeve

4 System Chassis: Dell OptiPlex 780-USFF

5 Cable Tray

6 Cable Channels

7 Swiveling Base - 360oPan

8 Front Cable Cover

9 Provided Cables: VGA and USB

5/15

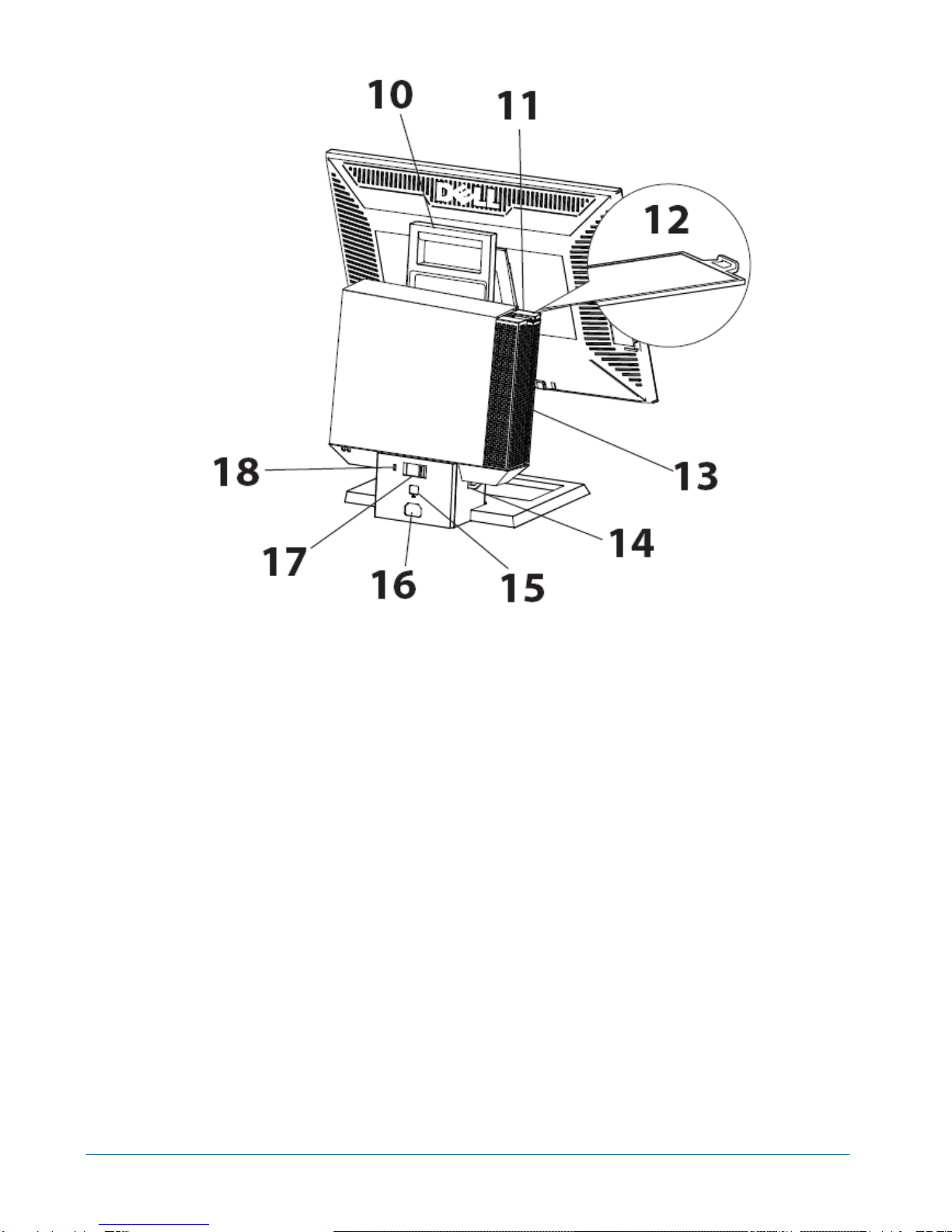

10 Handle

11 System Cable Cover Lock Switch

12 System Label Carrier

13 System Cable Cover

14 Padlock Ring

15 Network Cable Slot

16 Wall Power Cord Slot

17 System Lock Switch

18 Kensington Security Slot

6/15

Setting up the Dell OptiPlex 780-USFF AIO Stand

Components

AIO Stand, Cable Cover, System Sleeve, VGA / USB Cable

NOTE：Refer to the Monitor and System Instruction Guides, packaged separately.

______________________________________________________________________________________

Place the AIO Stand on a level, stable surface.

WARNING：To reduce risk of injury and/or

equipment damage, theAIO Stand must be

placed on a level, stable surface.

7/15

Determine which monitor cable will be used (VGA or DisplayPort), and follow appropriate

instructions.

Locate the provided VGA cable.

Route the VGA cable through the cable tray.

Locate the system-end of the cable in the cable tray.

Remove the front cable cover to locate the monitor-end of the cable.

VGA

DisplayPort

8/15

Attach the monitor to theAIO stand.

Connect the power plug, the monitor cable (VGA or DisplayPort), and the USB cable to the

monitor.

DisplayPort

9/15

Route the accessory cable (keyboard, mouse, speakers, etc.) through the cable tray.

Ensure the system sleeve is unlocked (orange tab will show).

10/15

Extend the system label carrier.

If applicable, remove mylar from front surface(s) of chassis prior to sleeve installation.

Insert the system into the system sleeve in the orientation illustrated below.

Slide the switch to lock the system sleeve.

CAUTION：

Do not reverse the

insertion orientation! NOTE：When inserted

properly, the CD end of

the system will reach

the end of the system

sleeve.
