Decon wheel MED3044 User manual

2019-09-06

Assembly instructions for Rea Spirea 3 med e-Drive

MED3044

1. Remove wheel, sleeve and anti-tip device on both sides.

2. Check the correct placement for the stop pin.

2019-09-06

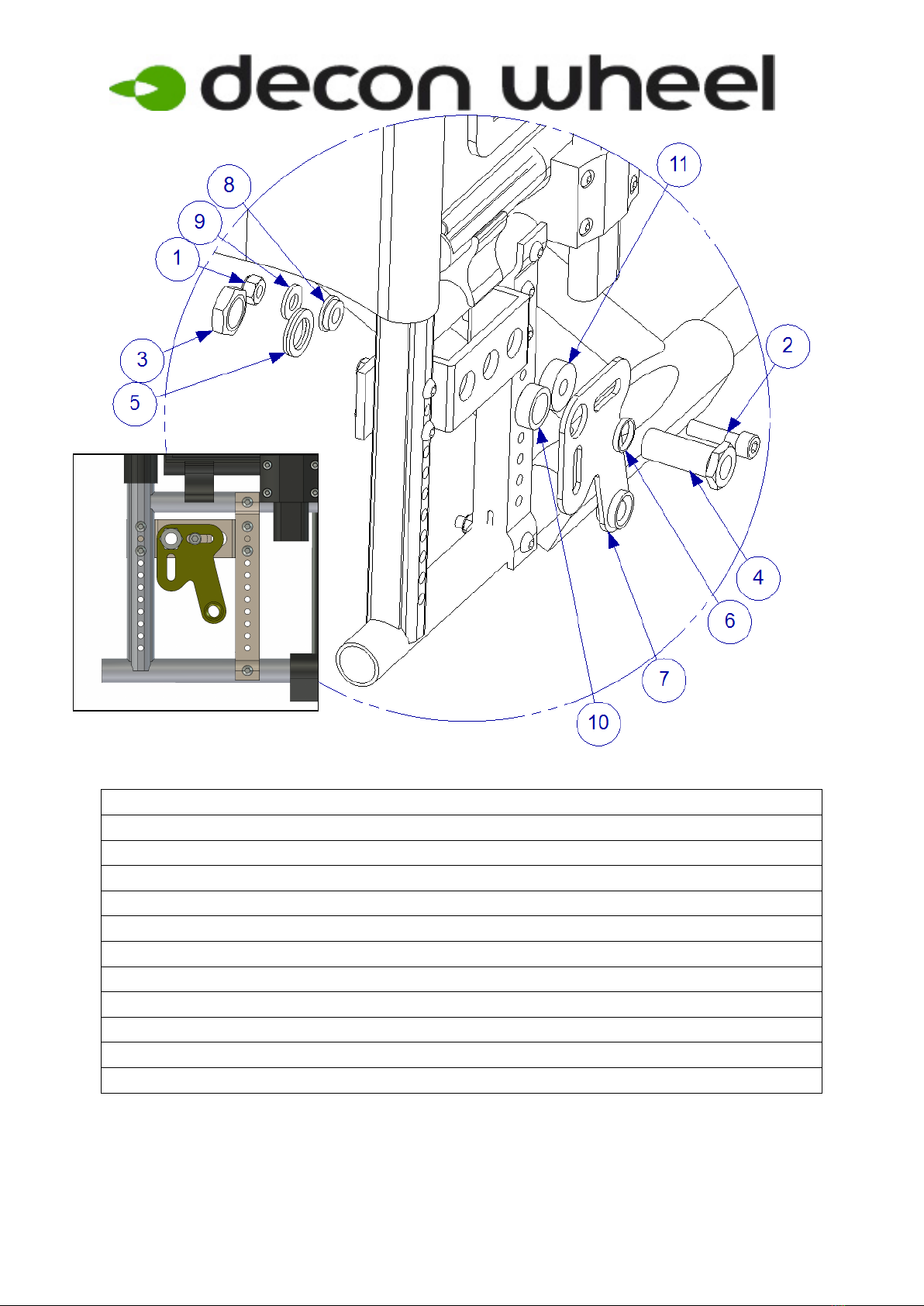

3. Assembly the plate (right side) according to picture.

Item No. Part Number Qty Description

1 XSM8ML 1 Nut : Self-Locking - M8

2 XSM8X30 1 Screw : Socket - M8 x 30

3 XSM16M 1 Nut M16X1 Low

4 HW069 1 Hubsleever M16x1/12,7

5 405239 1 Nordlock Washer M16

6 100 400 017 1 Spacer

7 MED2000 1 Bracket

8 100 400 007 1 Spacer

9 XSM8BR 1 Plain Washer 8,4

10 100 400 006 1 Spacer

11 100 400 013 1 Spacer

4. Adjust the parking brakes.

5. Mount the back placed battery bag.

2019-09-06

6. Loose the screws until you are able to place the bracket (MED1500) between, then

you assemble them again.

MED1201

Item No Part Number Qty Description

1 XSM6TG 1 External Teeth Washer 6,4

2 X-klamma2 1 Clamp2

3 XSM6X16 1 Screw M6 x 16

4 XSM6BR 1 Plain Washer 6,4

5 MED1200 1 Attendant Control

7. Assemble the attendant control.

2019-09-06

MED1356

Item No. Part Number Qty Description

1 MED1317 1 Bracket

2 MC6SM6X35 1 Screw M6 x 35

3 XSM6X16 2 Screw M6 x 16

4 XSM6BR 3 Plain Washer M6

5 XSM6ML 2 Locknut M6

6 MED1316 1 Plate with pin

7 XA2-2612K-00 1 Clamp with thread

8 XA2-2612E-00 1 Clamp with hole

8. Assemble the attendant control with the joystick unit, see the pictures.

A
