Decon wheel Impera User manual

2020-06-26

Assembly instructions for Impera, Impera Short, Kid, S, VR

MEM6251 and MEM6252

1. Remove wheel and hub sleeve on both sides.

2. Check the correct placement for the eMove with axle Ø12,0 x 51 with

Part number: XOE-2530E-B0 and Spacers with Part number: XOE-25383-00

13

14

2020-06-26

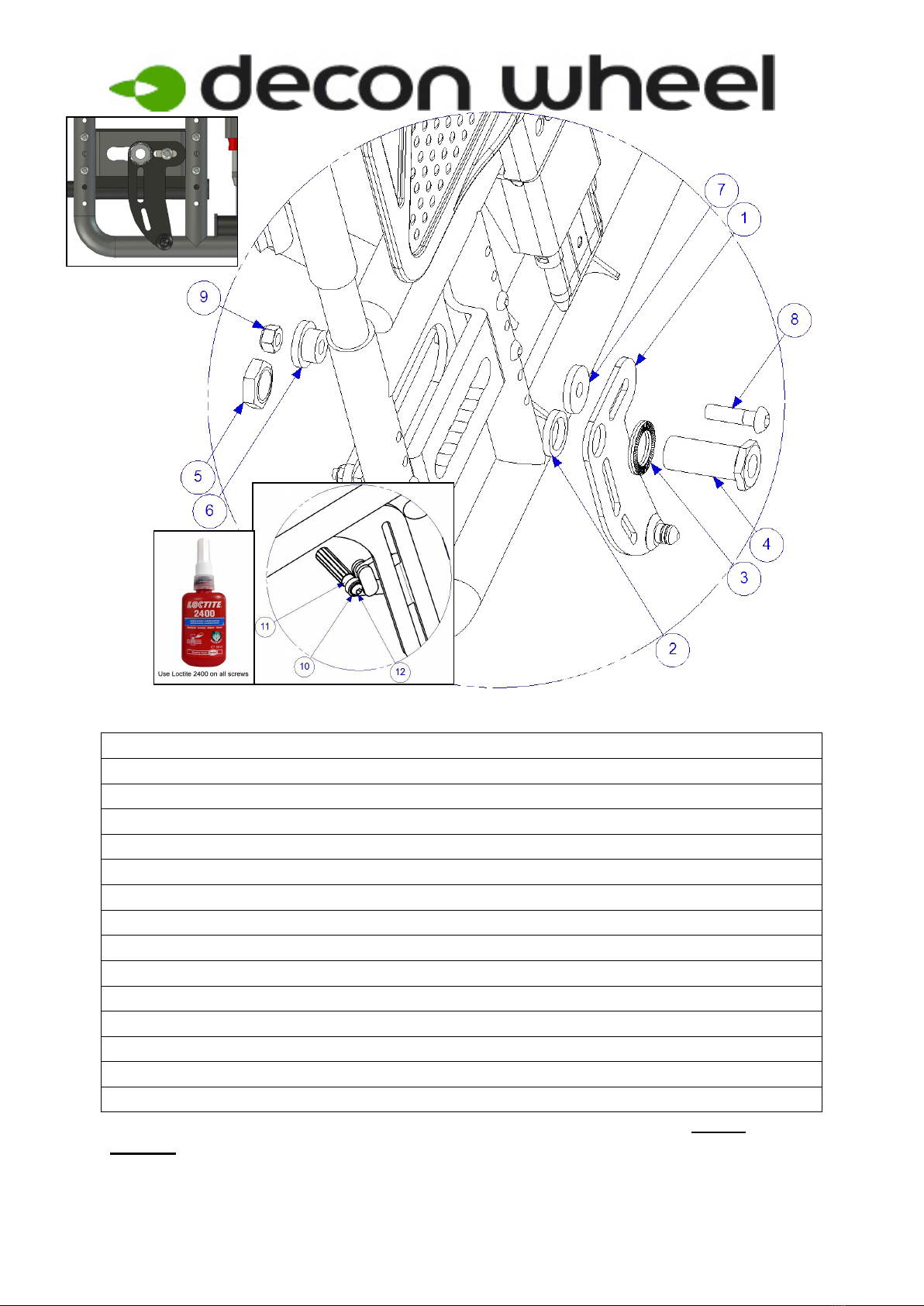

3. Assembly of the plate (right side) and the brake extender according to pictures.

Parts for right side mounting:

Item No. Part Number Qty Description

1 XOE-22294-1O 1 Right Bracket Hole 18

2 100 400 014 1 Spacer

3 405241 1 Nordlock M18 Washer

4 HW090 1 Sleeve

5 XSM18M 1 Nut M18 x1 low

6 100 400 079 1 Spacer

7 100 400 011 1 Spacer

8 XSM8X30 1 Screw Round M8 x 30

9 XSM8ML 1 Nut Self-Locking M8

10 XSM6BR 1 Plain Washer M6

11 100 400 039 1 Spacer

12 XSM6X30 1 Screw Round M6 x 30

13 XOE-25383-00 1 Spacer 12,0

14 93440-120520 1 Circlip

Note! If you only order the mounting set, the axle, axle spacer and the circlip are not

included, for replacement see the service manual

4. Assemble the back placed battery bag.

2020-06-26

Åtdragningsmoment / Tightening torque

Metriska grovgängor, stål.

Metric coarse threads, steel.

Gänga / Thread

Åtdragningsmoment / Tightening

torque

M3

1,2 Nm

M4

3 Nm

M5

6 Nm

M6

10 Nm

M8

25 Nm

M10

50 Nm

M12

85 Nm

Navhylsor.

Hubsleever.

Gänga / Thread

Åtdragningsmoment / Tightening

torque

M16x1

30 Nm

M18x1

40 Nm
