Decon wheel MEM6419P User manual

2021-03-31

Assembly instructions for Trigo T

MEM6419P and MEM6420P

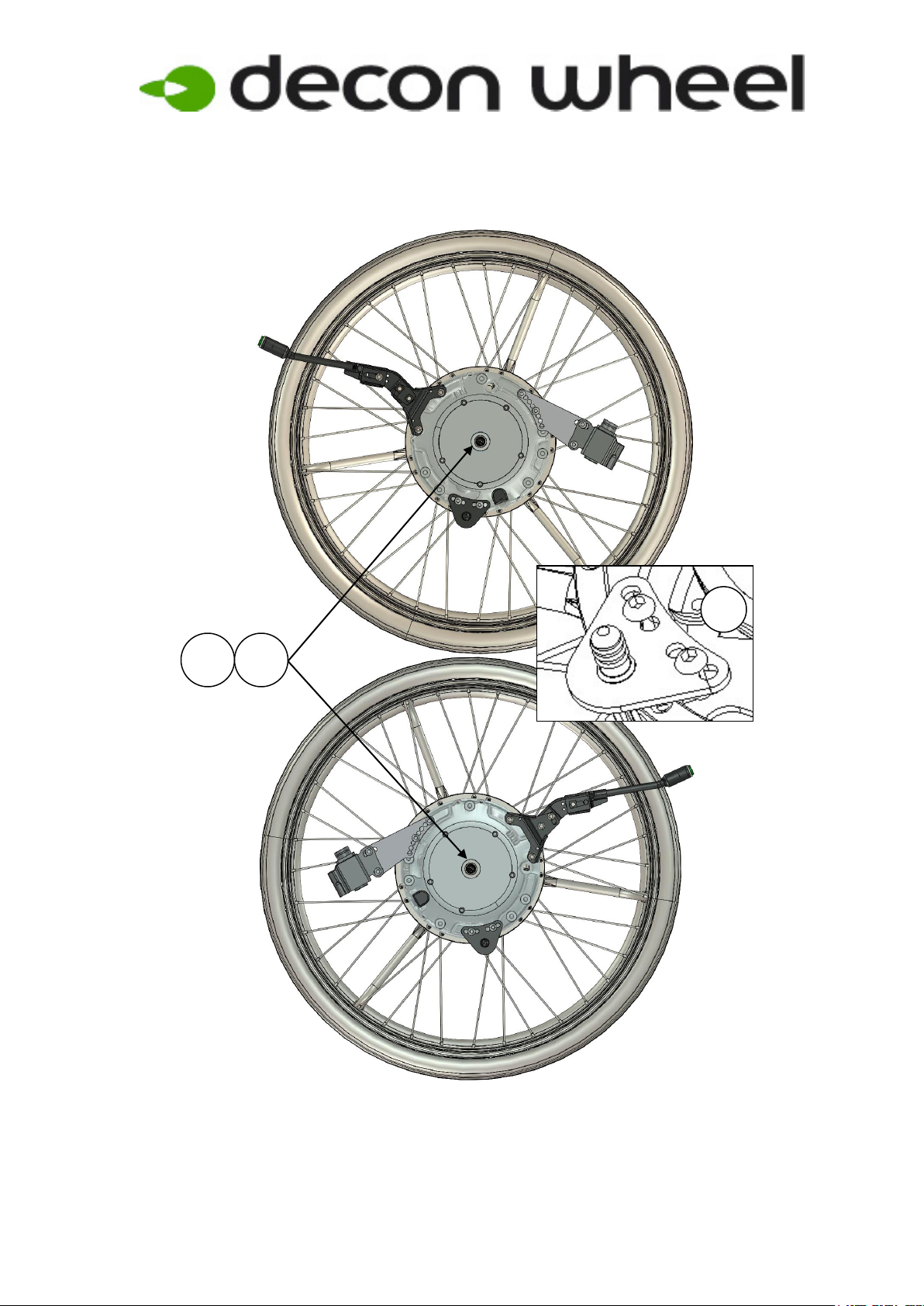

1. Remove wheels and sleeves with bracket.

2. Check the correct placement for the eMove, and that it is axle Ø12,0 x 51 with

Part Number: XOE-2530E-B0 and Spacer with Part Number: XOE-25383-00 and

Stop pins are assembled with Part Number: 320003.

6

7

8

2021-03-31

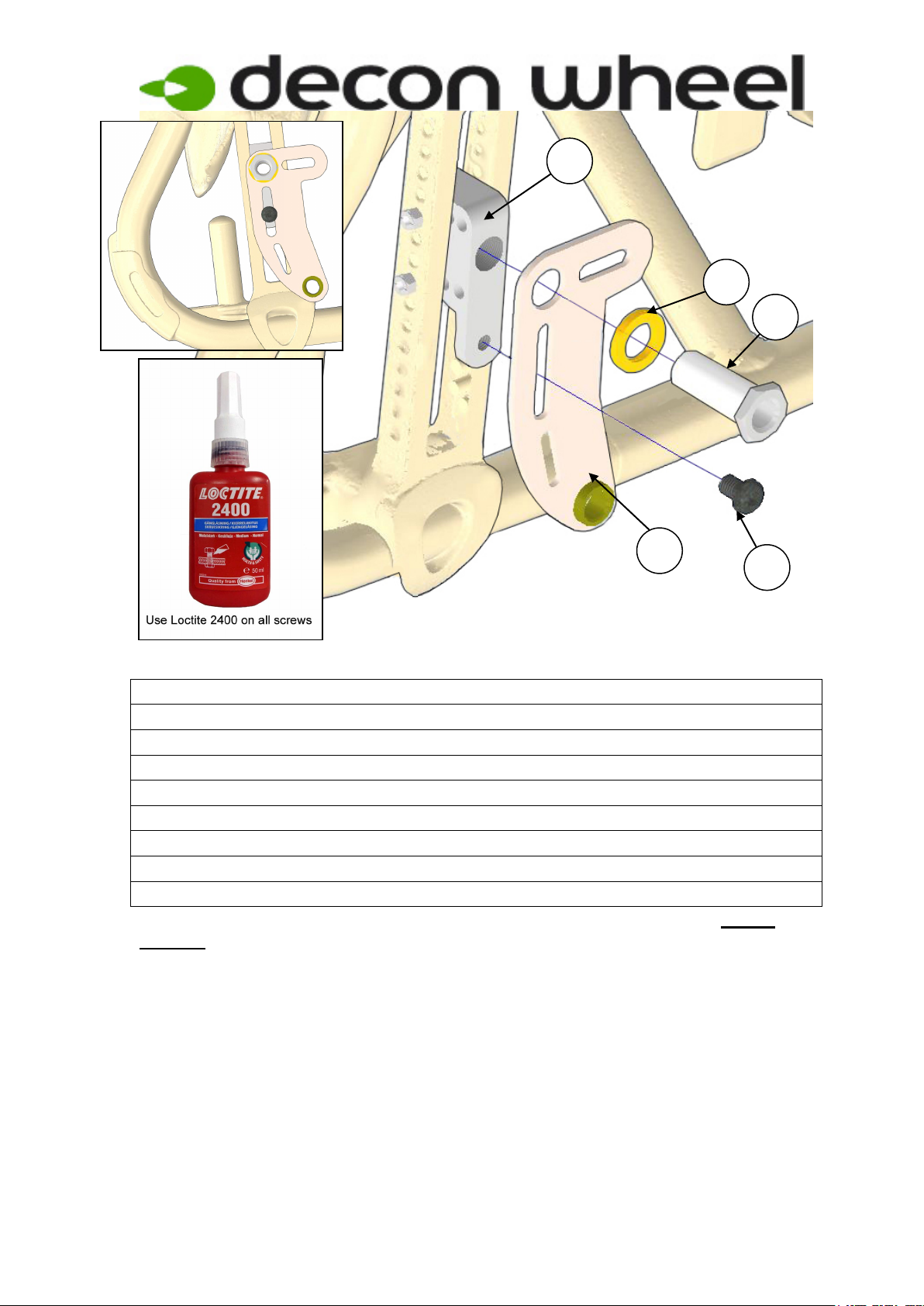

3. Assemble the plate (right side) according to picture.

Parts for right side mounting:

Item No. Part Number Qty Description

1 HW063 1 Sleeve

2 310061 1 Bracket Trigo T

3 XSM8X12 1 Screw Round - M8 x 12

4 310022 1 Bracket

5 405239 1 Nordlock Washer M16

6 320003 1 Stop pin

7 XOE-25383-00 1 Spacer 12,0

8 93440-120520 1 Circlip

Note! If you only order the mounting set, the axle, axle spacer and the circlip are not

included, for replacement see the service manual.

4. Assemble the back placed battery bag.

2

5

1

4

3

2021-03-31

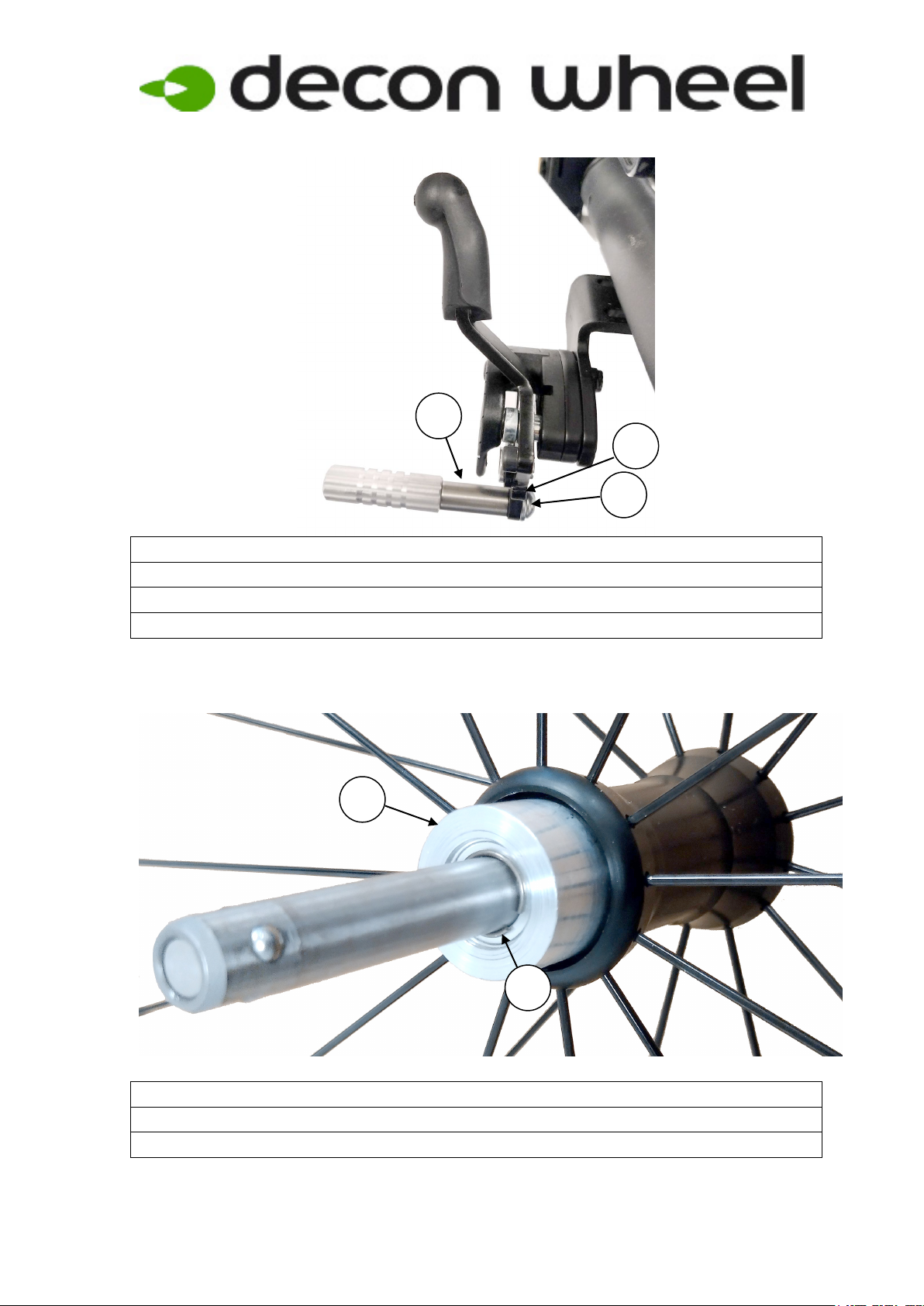

Brake adjustment

Item No. Part Number Qty Description

1 100 400 018 1 Spacer

2 XSM6FJ 1 Single coil Washer M6

3 XSM6X40 1 Screw Rounded M6 x 40

Standard Wheels assembly with eMove sleeves.

Item No. Part Number Qty Description

1 100 400 110 1 Spacer

2 93440-120520 1 Circlip

2

1

3

1

2

2021-03-31

Åtdragningsmoment / Tightening torque

Metriska grovgängor, stål.

Metric coarse threads, steel.

Gänga / Thread

Åtdragningsmoment / Tightening torque

M3

1,2 Nm

M4

3 Nm

M5

6 Nm

M6

10 Nm

M8

25 Nm

M10

50 Nm

M12

85 Nm

Navhylsor.

Sleeves.

Gänga / Thread

Åtdragningsmoment / Tightening torque

M16x1

30 Nm

M18x1

40 Nm

This manual suits for next models
