Decon wheel MEM6087P User manual

2022-09-22 1(3)

Assembly instructions for XLT 2008 Active, Dynamic, Swing

MEM6087P and MEM6088P

1. Remove wheel and hub sleeve on both sides.

2. Check the correct placement for the eMove, and that it is axle Ø12,0 x 51 with

Part Number: XOE-2530-BO and Spacer with Part Number: XOE-25383-00 and Stop

pins are assembled with Part Numbers: 320003.

9

10

8

2022-09-22 2(3)

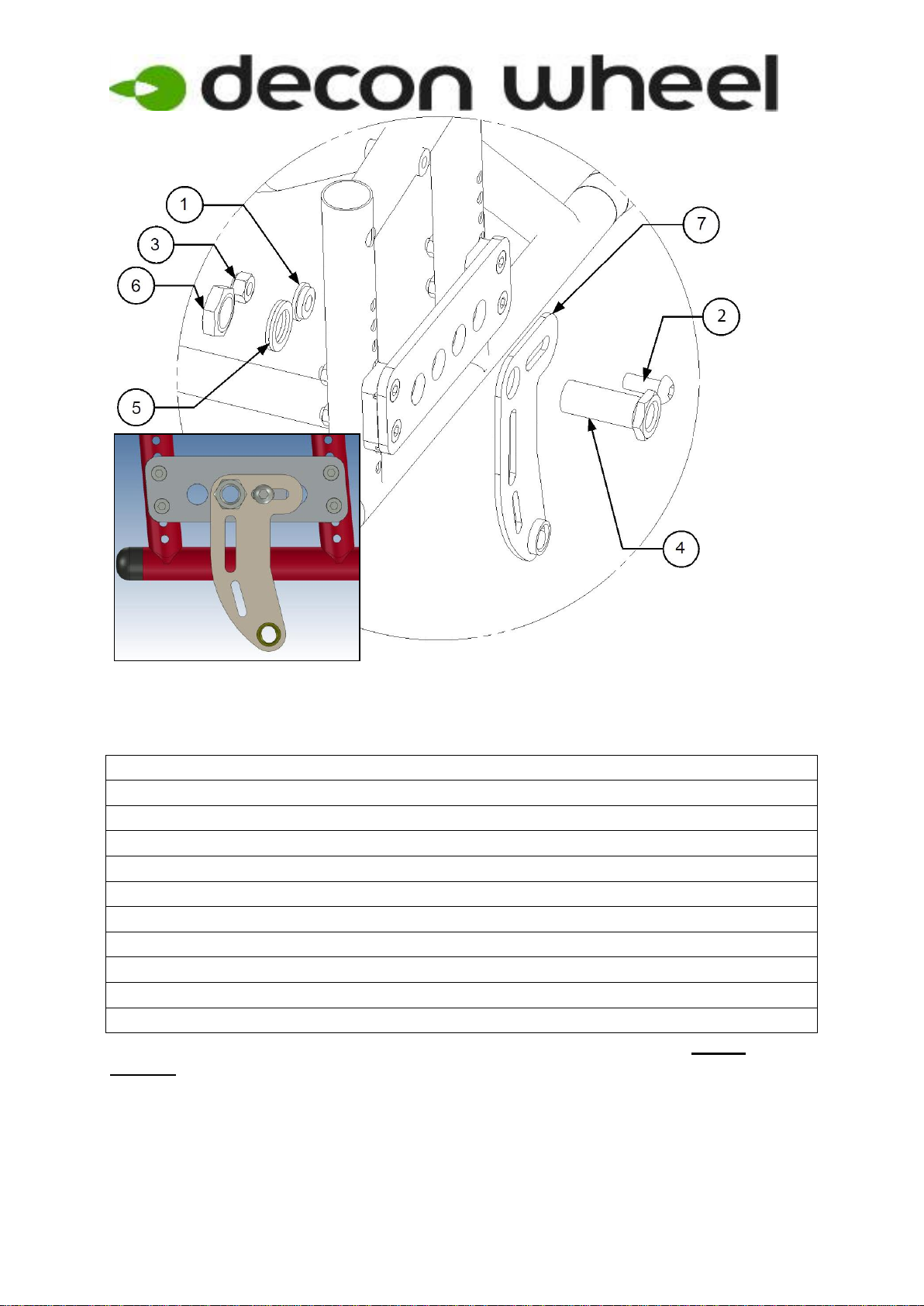

3. Note the placing of the adapter plate, see picture.

Note! The brackets have placement opportunities.

4. Assembly the new plates (right side) according to picture.

Parts for right side mounting:

Item No. Part Number Qty Description

1 100 400 007 1 Spacer

2 XSM8X20 1 Screw Round M8 x 20

3 XSM8ML 1 Nut Self-Locking M8

4 HW063 1 Sleeve

5 405239 1 Nordlock Washer M16

6 XSM16M 1 Nut M16 low

7 310022 1 Bracket

8 320003 1 Stop Pin

9 XOE-25383-00 1 Spacer

10 93440-120520 1 Circlip

Note! If you only order the mounting set, the axle, axle spacer and the circlip are not

included, for replacement see the service manual.

5. Assemble the under placed battery bag.

2022-09-22 3(3)

Åtdragningsmoment / Tightening torque

Metriska grovgängor, stål.

Metric coarse threads, steel.

Gänga / Thread

Åtdragningsmoment / Tightening

torque

M3

1,2 Nm

M4

3 Nm

M5

6 Nm

M6

10 Nm

M8

25 Nm

M10

50 Nm

M12

85 Nm

Navhylsor.

Sleeves.

Gänga / Thread

Åtdragningsmoment / Tightening

torque

M16x1

30 Nm

M18x1

40 Nm

This manual suits for next models

1
