Decon wheel MED3168 User manual

2020-03-06

Assembly instructions for Kudu with 16” eDrive

MED3168

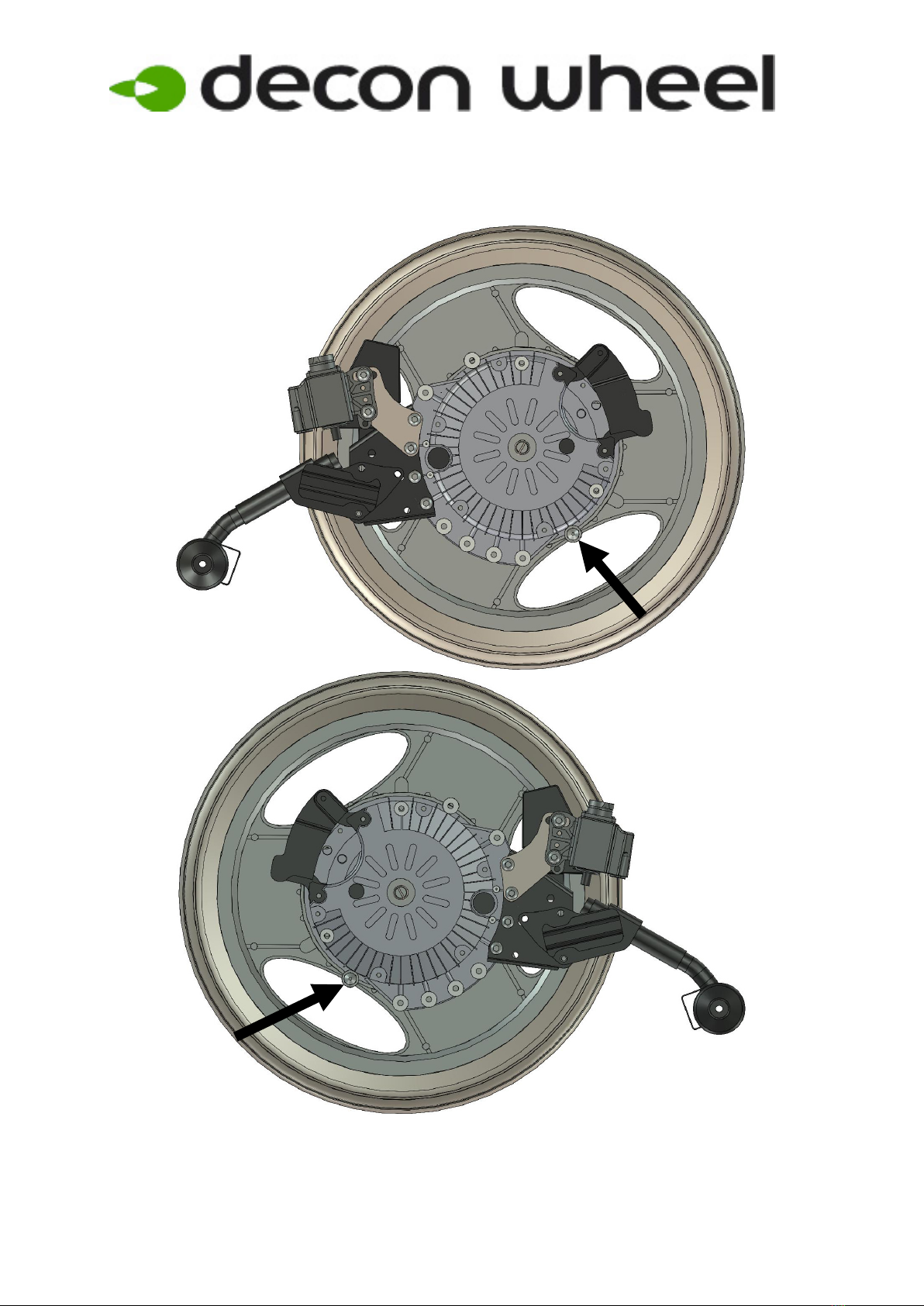

1. Remove wheels on both sides.

2. Remove adapter plates and anti-tip devices from the wheelchair.

3. Check the correct placement for the stop pin, anti-tip devices and that the battery box

is removed.

2020-03-06

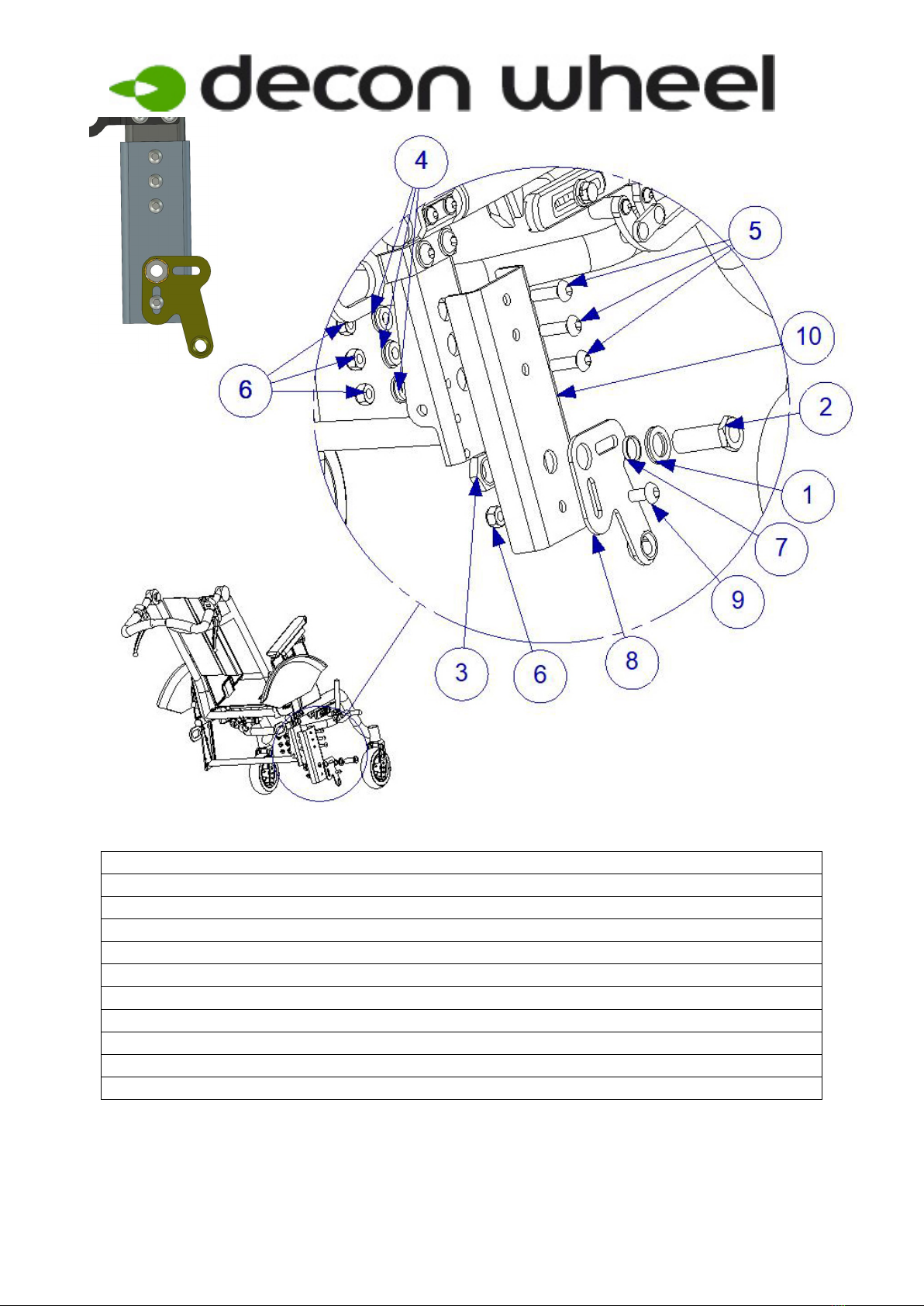

4. Assembly the bracket and brake spacer (right side) according to picture.

Parts pair mounting set for right side:

Item No. Part Number Qty Description

1 405239 1 Nordlock Washer M16

2 HW069 1 Sleeve M16x1/12,7

3 XSM16M 1 Nut M16X1 Low

4 100 400 007 3 Spacer

5 XSM8X25 3 Screw Round M8 x 25

6 XSM8ML 4 Nut Self-Locking M8

7 100 400 017 1 Spacer

8 MED2000 1 Bracket

9 XSM8X16 1 Screw Round M8 x 16

10 MED3168-01 1 Bracket Kudu_eDrive16"

5. Assemble the back rested battery bag on the wheelchair.

2020-03-06

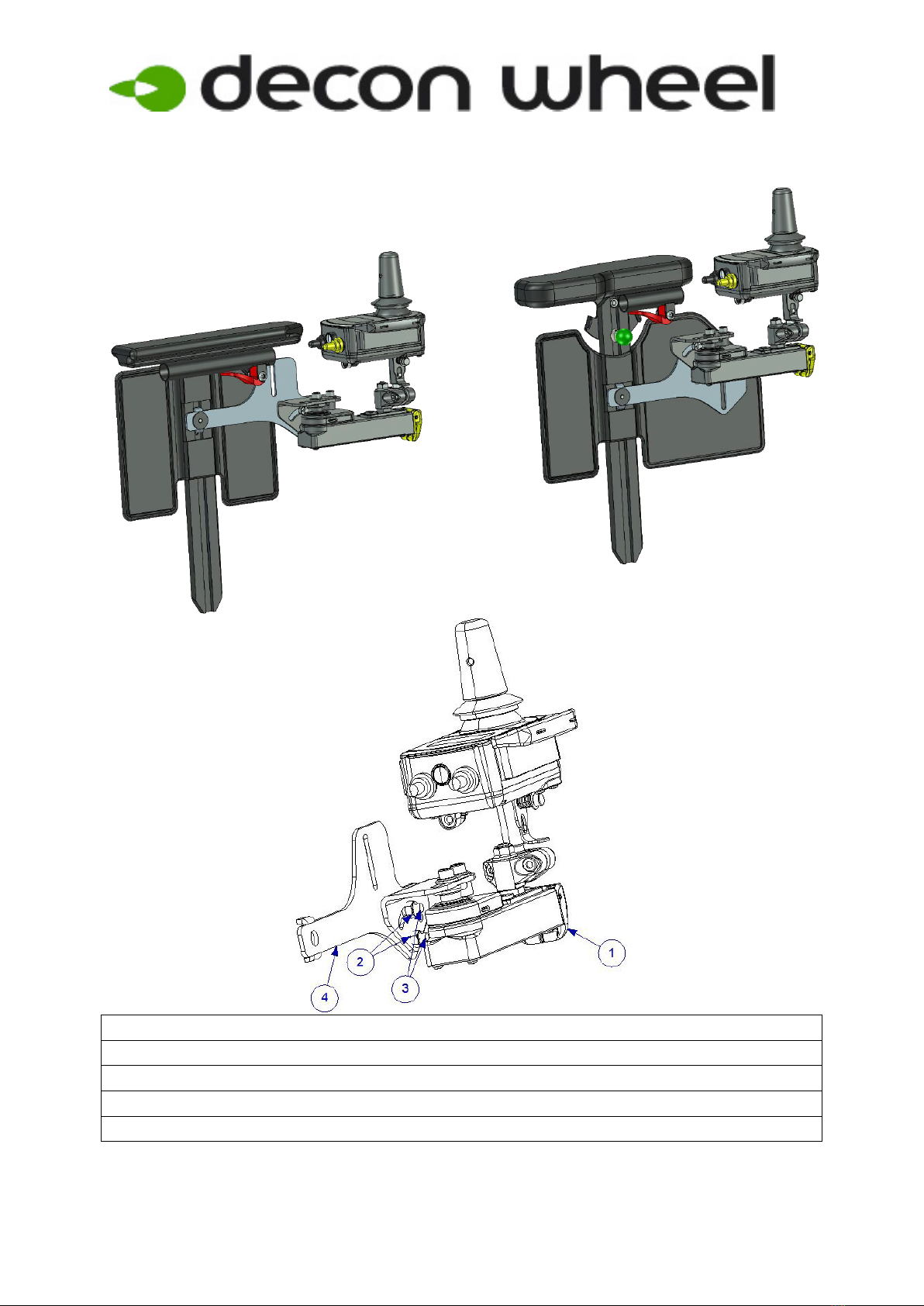

MED1542

Assembly Joystick with Parallel Bracket

Item No. Part Number Qty Description

1 X0F-48160-D00 1 Parallel Bracket

2 XSM6ML 2 Nut Self-Locking M6

3 XSM6X16 2 Screw Round M6 x 16

4 MED1541 1 Bracket Kudu

2020-03-06

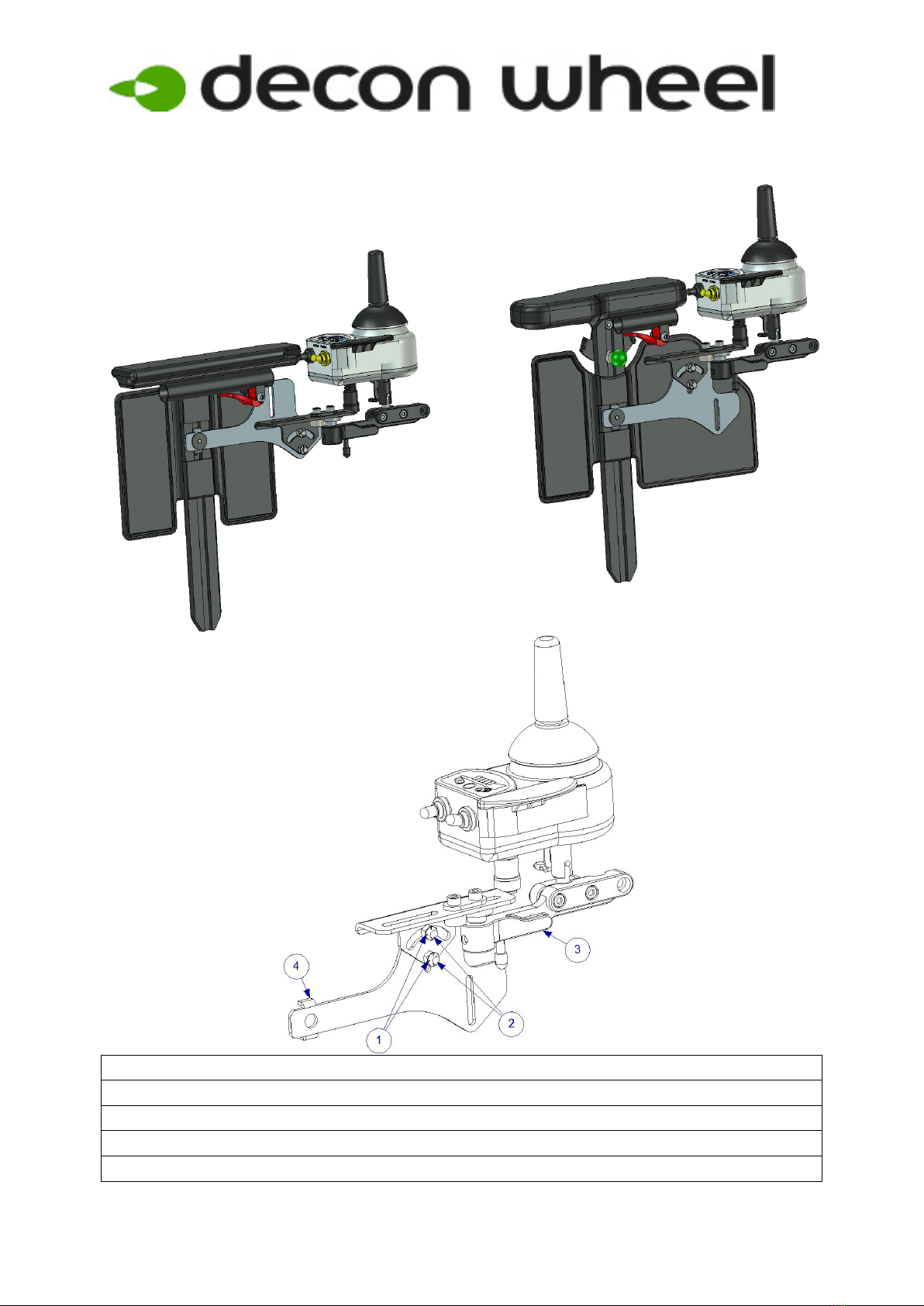

MED1543

Assembly Joystick Swing Away Bracket

Item No. Part Number Qty Description

1 XSM6ML 2 Nut Self-Locking M6

2 XSM6X16 2 Screw Round M6 x 16

3 XOC-48160-C0 1 Swing Away

4 MED1541 1 Bracket Kudu

2020-03-06

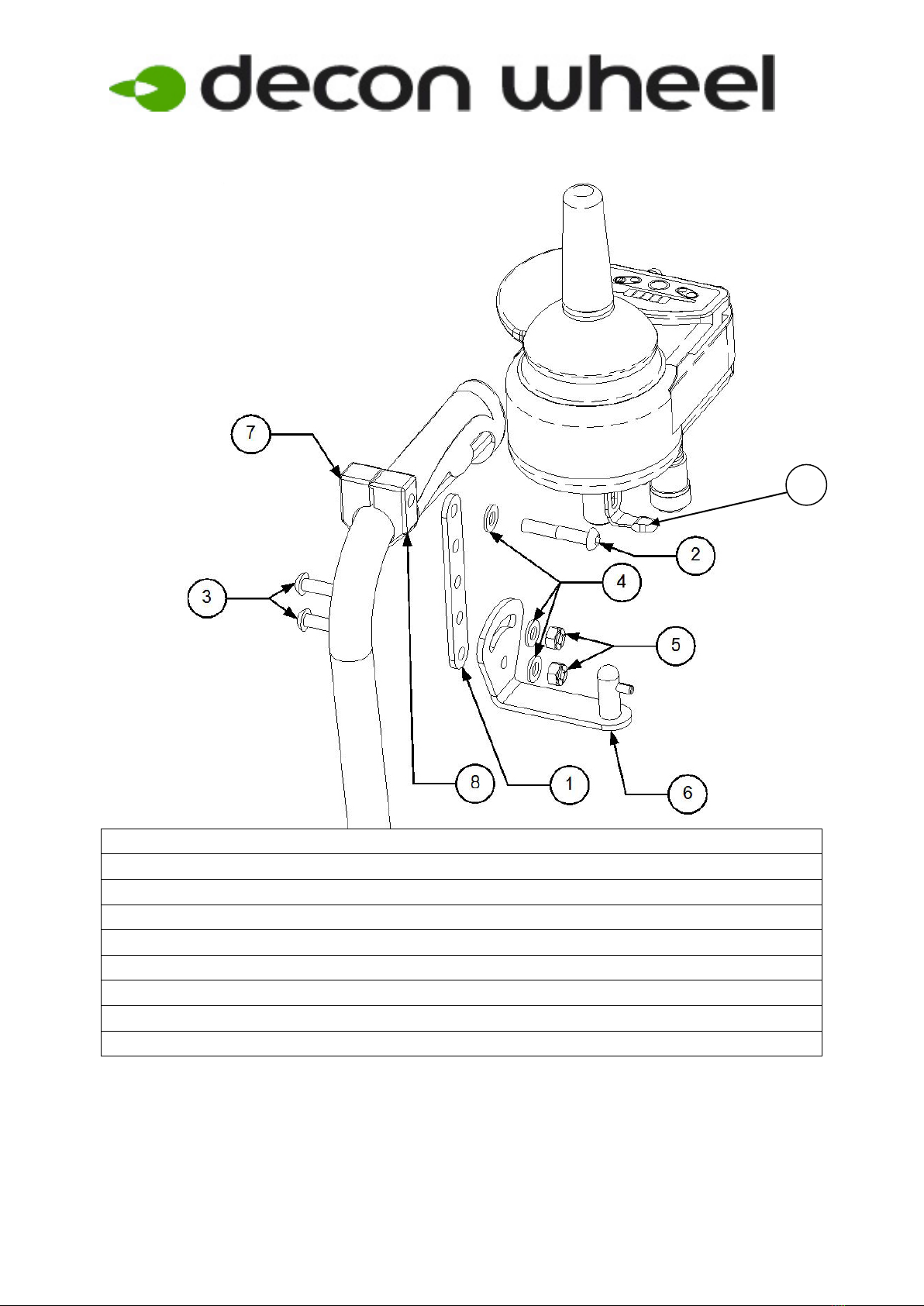

MED1356

Attendant control with Joystick controller

Item No. Part Number Qty Description

1 MED1317 1 Bracket

2 MC6SM6X35 1 Screw M6 x 35

3 XSM6X16 2 Screw M6 x 16

4 XSM6BR 3 Plain Washer M6

5 XSM6ML 2 Locknut M6

6 MED1316 1 Plate with pin

7 XA2-2612K-00 1 Clamp with thread

8 XA2-2612E-00 1 Clamp with hole

A

2020-03-06

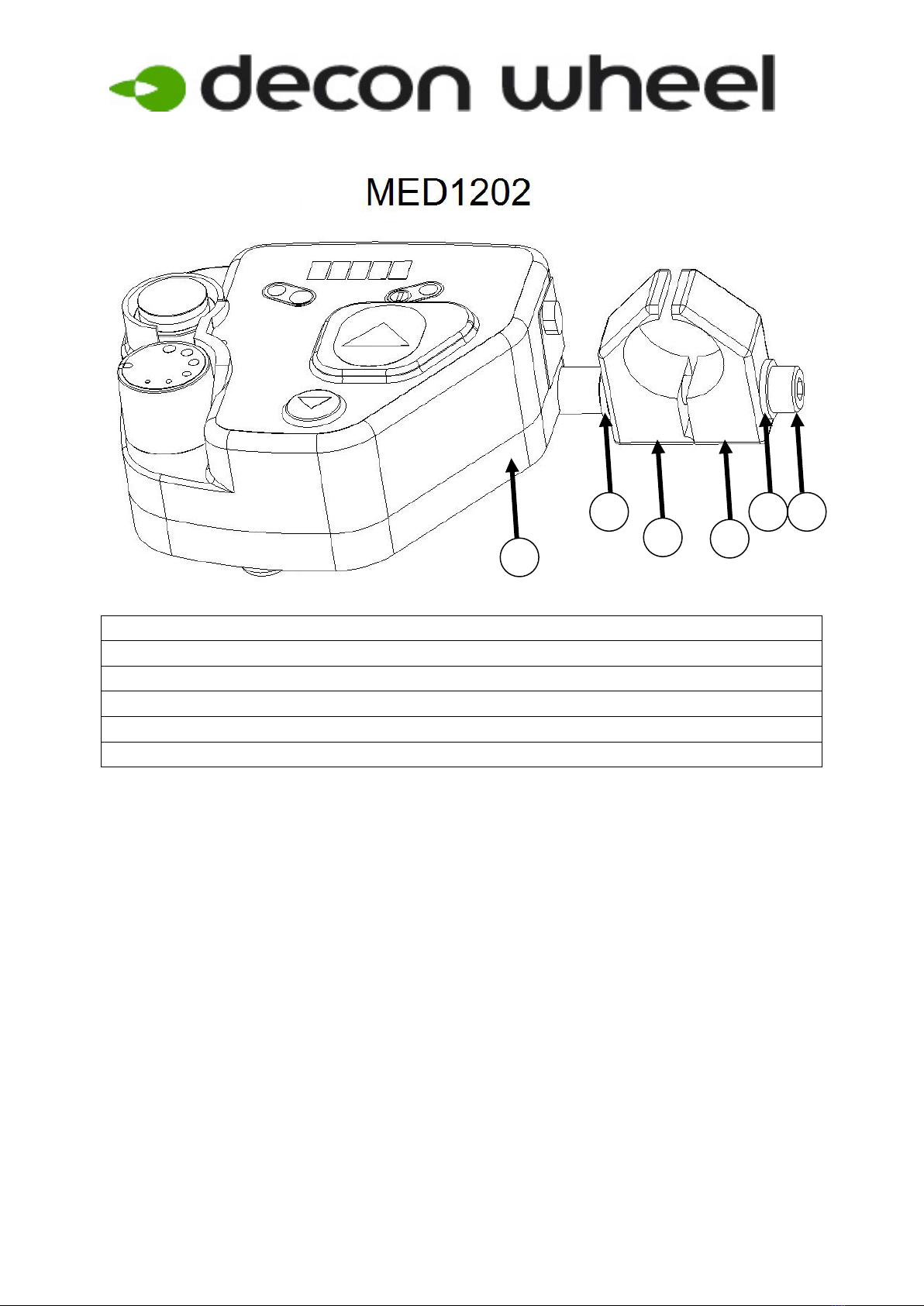

Assistant control Assembly

6. Assemble the assistant control on optional place.

Item No. Part Number Qty Description

1 MED1200 1 Assistant controller

2 91312-06050 1 Screw Socket M6 x 50

3 92902-06200 2 Washer Plain M6

4 XA2-2612E-00 1 Clamp

5 XOD-2612K-00 1 Clamp2

1

3

4

5

3

2
