Decon wheel Mobilex Dolphin User manual

2021-07-21

Page: 1

Assembly instructions for Mobilex Dolphin

MED3337

1. Remove wheels on both sides.

2. Check the correct placement for the stop pin and connector. Check that anti-tip devices

are removed and use original anti-tip on the wheelchair.

2021-07-21

Page: 2

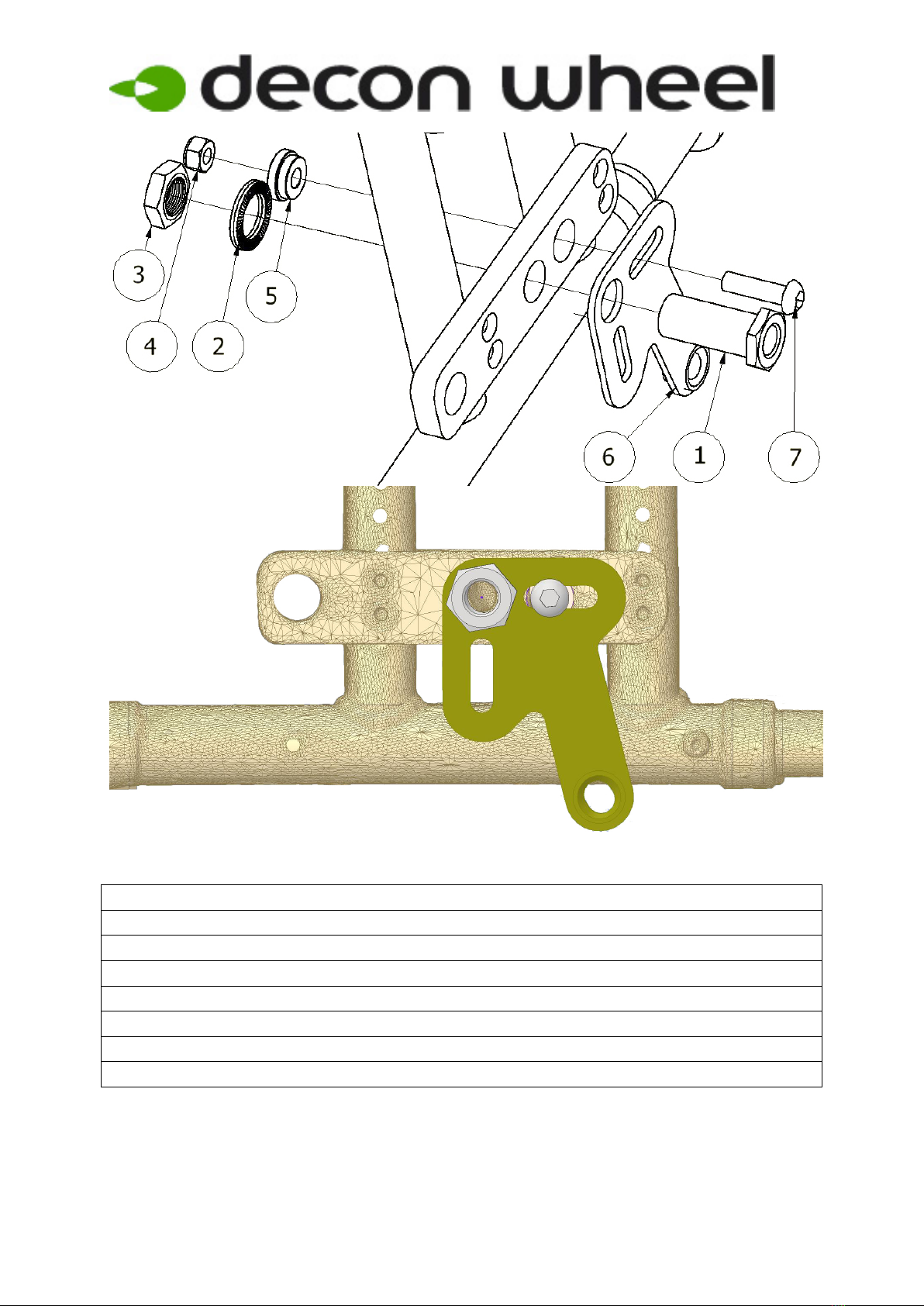

3. Assembly the plate (right side) according to picture.

Parts pair mountingset:

Item No. Part Number QTY Description

1 HW084 1 Sleeve

2 405241 1 Nordlock Washer

3 XSM18M 1 Nut M18 Low

4 XSM8ML 1 Lock Nut M8

5 100 400 008 1 Spacer

6 MED2000 1 Bracket

7 XSM8X30 1 Screw Rounded M8 x 30

4. Assemble the back placed battery bag.

2021-07-21

Page: 3

MED1490

Item No. Part Number QTY Description

1 XSM6X16 2 Screw Rounded M6 x 16

2 XSM6BR 2 Plain Washer M6

3 XSM6ML 2 Lock Nut M6

4 MED1488R 1 Joystick Bracket Right side

5 X0C-48160-D0 1 Swing Away Bracket

Note! For Left side use MED1488L.

2021-07-21

Page: 4

MED1497

Item No. Part Number QTY Description

1 MED1488R 1 Joystick Bracket Right side

2 XSM6X16 1 Screw Round M6 x 16

3 XSM6X12 1 Screw Round M6 x 12

4 XSM6BR 1 Plain Washer M6

5 XSM6ML 2 Locknut M6

6 MED1320 1 Bracket

7 X0F-48160-D00 1 Parallel Bracket

Note! For Left side use MED1488L.

2021-07-21

Page: 5

MED1226

Attendant control with attendant controller (only right side)

5. For the attendant control unit, you need these parts.

Item No. Part Number QTY Description

1 XSM6BRTG 1 Torn washer

2 Xklamma2 1 Clamp

3 XSM6X20 1 Screw M6 x 20

4 XSM6XBR 1 Plain Washer

5 MED1200 1 Attendant control

2021-07-21

Page: 6

Åtdragningsmoment / Tightening torque

Metriska grovgängor, stål.

Metric coarse threads, steel.

Gänga / Thread

Åtdragningsmoment / Tightening torque

1,2 Nm

3 Nm

6 Nm

10 Nm

25 Nm

M10

50 Nm

M12

85 Nm

Navhylsor.

Sleeves.

Gänga / Thread

Åtdragningsmoment / Tightening torque

M16x1

30 Nm

M18x1

40 Nm
