INSTRUCTION BOOK FOR

Tensioned Professional Electrol®

Important Safety Instructions

When using your video equipment, basic safety precautions

should always be followed, including the following:

1. Read and understand all instructions before using.

2. Position the cord so that it will not be tripped over, pulled, or

contact hot surfaces.

3. If an extension cord is necessary, a cord with a current rating

at least equal to that of the appliance should be used. Cords

rated for less amperage than the appliance may overheat.

4. To reduce the risk of electric shock, do not disassemble this

appliance. Contact an authorized service dealer when repair

work is required. Incorrect reassembly can cause electric

shock when the appliance is used subsequently.

5. The use of an accessory attachment not recommended by

the manufacturer may cause a risk of ire, electric shock, or

injury to persons.

Save These Instructions

Pre-Installation

1. Carefully unpack screen.

2. Make sure to recheck measurements of screen location

before installation.

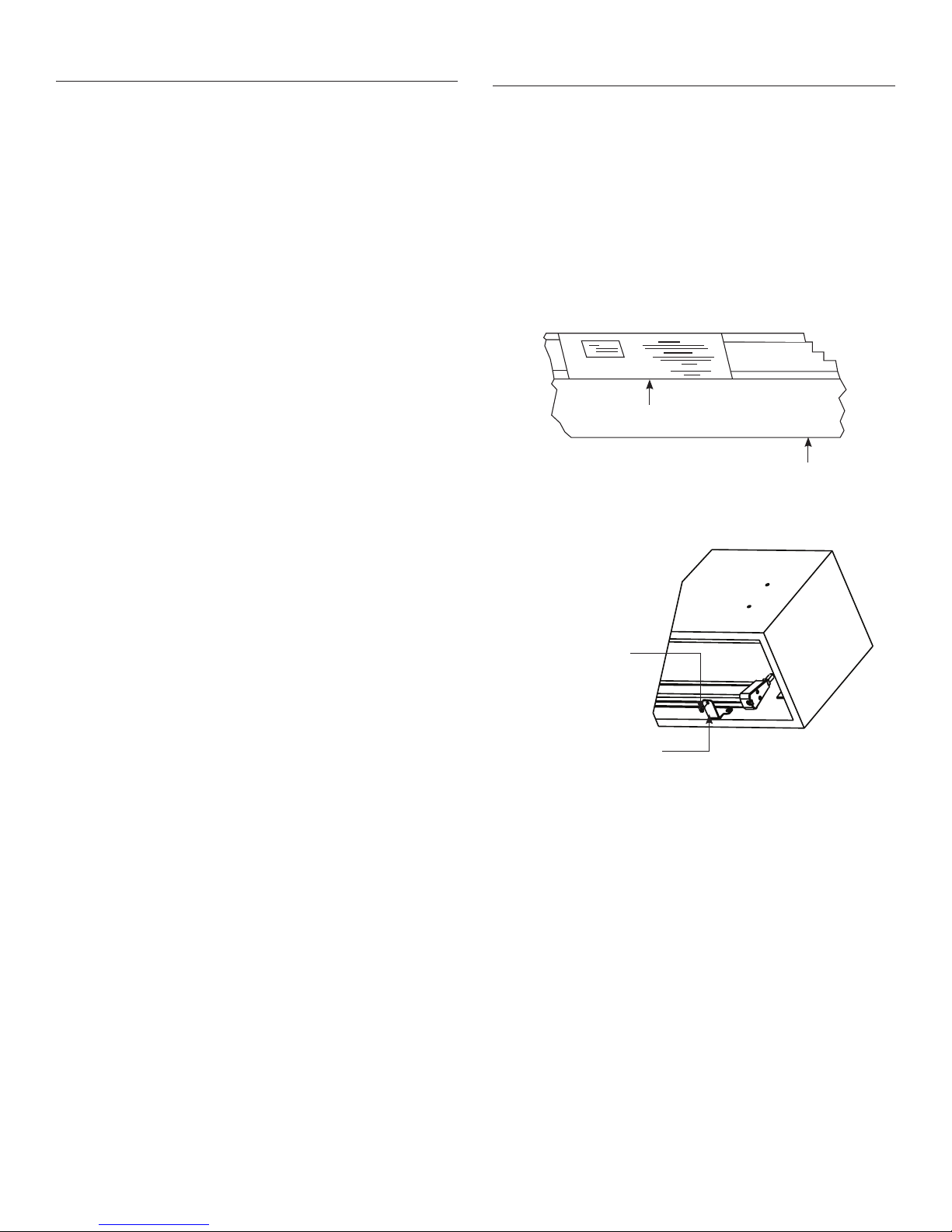

3. Remove instruction cover plate (Fig. 1). Do not remove

wrapping paper until screen is installed.

4. Remove the retainer screws from the slat bar before the

case has been installed (Fig. 2).

Figure 2

Slat Retainer Bracket

(3 Screws)

1 On Bottom of Slat

2 On Inside of Case

Figure 1

Instruction Cover

Case

Hangers (If required)

1. See Figure 3 for hanger placement.

2. Make sure hangers are placed to it into notches of

ironing board..

Installation

⁄

Screens Over 22' Wide

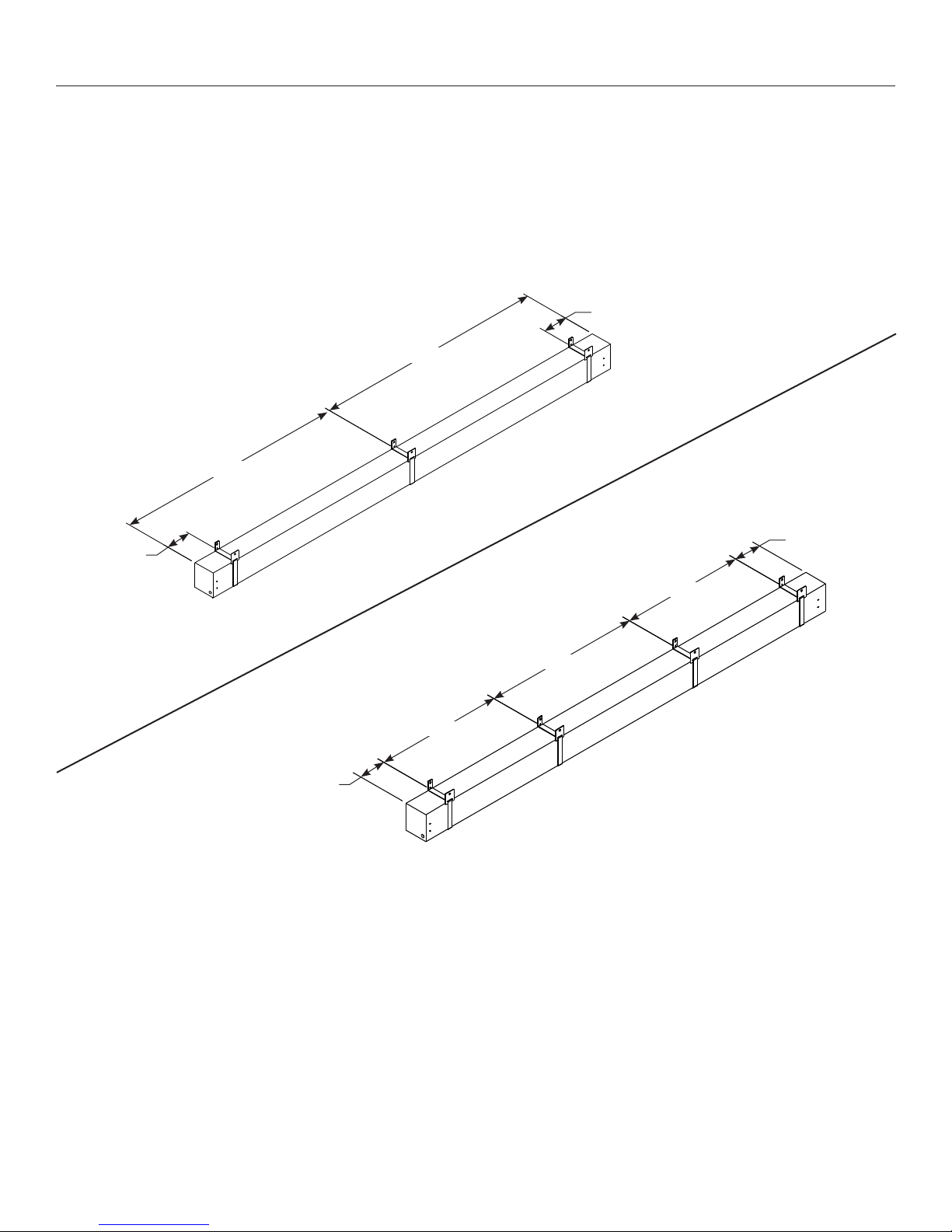

Figure 3

⁄

Screens 22' Wide And Under

Case Length ÷ 2

(Case Length – 23") ÷ 3

Installation

1. Level unit lengthwise with a carpenter

’

s plum level.

CAUTION! Do Not completely seal in unit. Access room

must be allowed for motor repair or fabric replacement.

ATTENTION! Ne ixez pas complètement l'unité. Un

espace doit être laissé pour pouvoir réparer le moteur

ou remplacer la toile.

2. Remove shipping brace by removing 2 hex head screws

(Figure 4).

3. Use supplied 1/8” nex key and a 5/16” wrench to remove

silver shipping brackets attached to slat and screen case.

4. Remove wrapping paper.

CAUTION! Do not cut wrapping paper with knive or any

sharp tool. Remove by hand.

ATTENTION! Ne coupez pas le papier d'emballage ou le

ruban adhésif avec un couteau ou un outil tranchant.

Retirez à la main.

5. Install electrical hook up that applies to your unit. Make sure

to review your Electrical Installation Checklists and wiring

diagrams (included) for either 110 volt switch, 220/240 volt

switch, or DRC low voltage control.

6. Test installation by carefully running surface up and down

several times. Be prepared to stop screen.

NOTE: The picture surface, when rolled down, should have

at least a full wrap and a half around the roller. Do not allow

any part of the roller to become exposed.

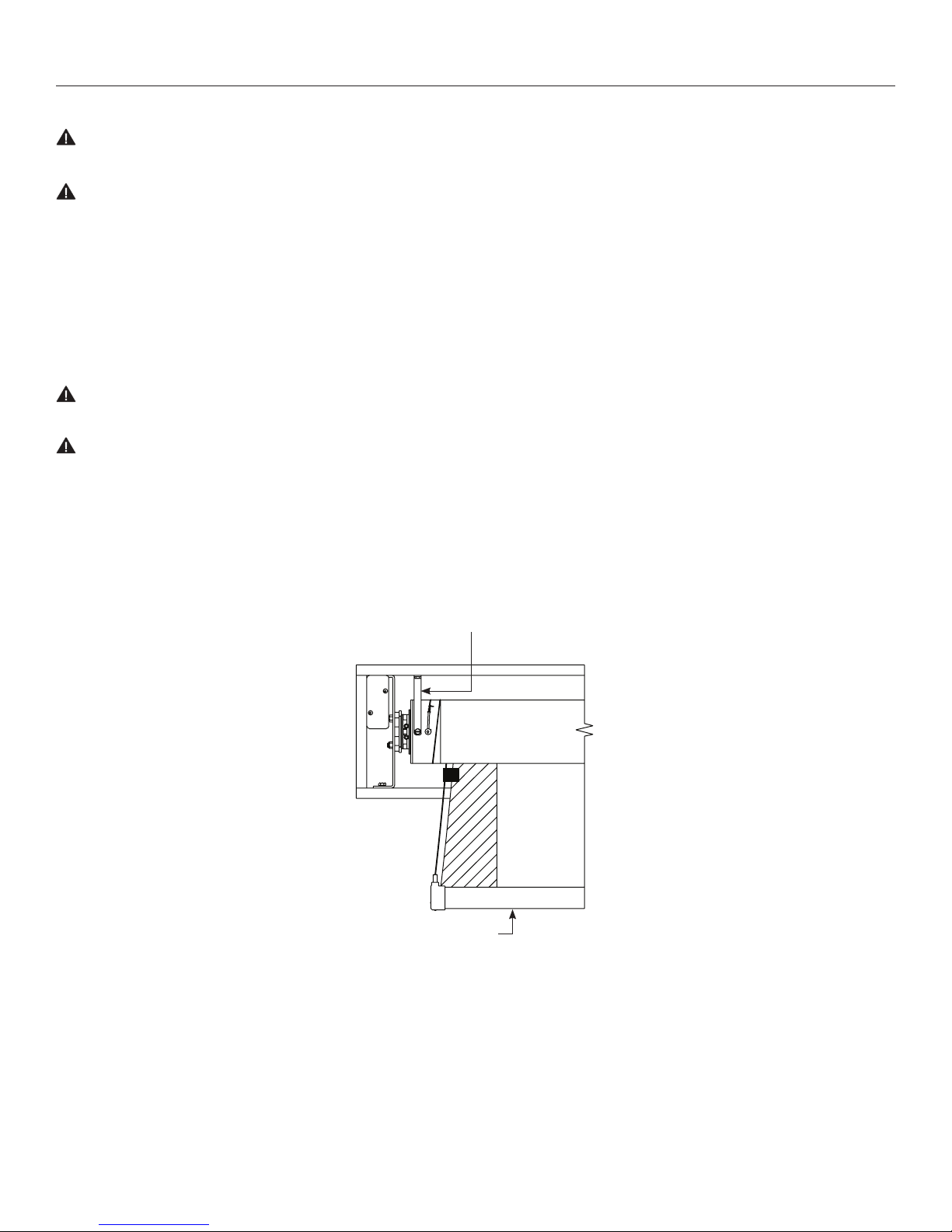

Shipping Brace

(Not on 4 ½" Roller)

Slat

Figure 4

Picture Surface

1" x 3" Cleat

2" Moulding

Tensioned Professional Electrol® Installation

Ceiling Mount

Without Hangers

Screen case is placed lush with

the wall and ceiling and held in

position by moulding securely

attached to the wall.

Recessed Above Ceiling

Other methods of installation

will suggest themselves in new

buildings where it would be an

easy matter to provide a recess

for the screen to conceal it when

not in use.

Do not seal in—allow access.

Wall or Ceiling Mount With Hangers

Wall type hangers and ceiling type hangers are

standard equipment. One set is supplied with

each screen. Useful for recessed installations.

Wall Type Hanger

For Exposed Installation

If the screen is to be mounted in an exposed

position, it may be covered with inished

plywood, veneer, paneling, plastic wall covering

or a valance.

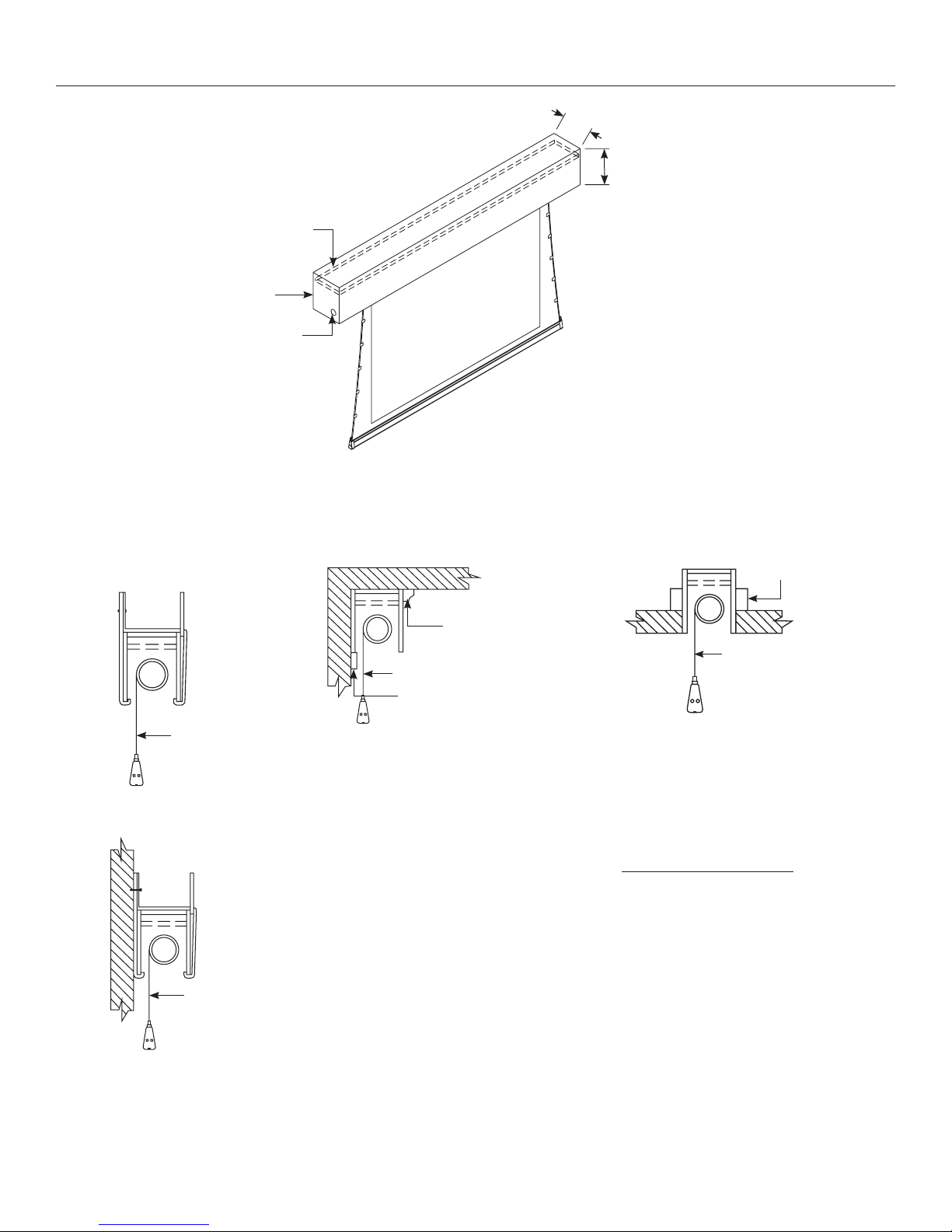

Suggested Methods of Installation

Electrical

Outlet Box

9 ½"

11 ⁄"

Reinforced

Top

Motor End


Surface


Surface

Ceiling Type Hanger


Surface

Rafters

Tensioned Professional Electrol® Installation

Screen Adjustment

240 VOLT WIRING DIAGRAM FOR STANDARD WALL SWITCH:

Da-Lite ofers two styles of 240 volt wall switches for

standard operation. Please see wiring diagram in wall switch

box included with screen.

Surface travel is stopped automatically in the fully opened and closed positions by limit switches that are properly adjusted at Da-Lite.

CAUTION: Contact Da-Lite at 8006223737 or 5742678101 if screen motor needs adjustment.

ATTENTION: Contactez Da-Lite au 8006223737 ou au 5742678101 au cas le moteur de l'écran a besoin d'être ajusté.

Black With

Yellow

To junction box mounted in screen

case, in which interal wiring terminates

in white, black, and red leads.

In multiple control

installations the switch is

replaced by the low

voltage control,

operated

from push

button

stations.

Operating switch,

switch box, and

plate furnished with

screen. (SPDT with

center of)

Down

Side View Of

Switch & Box

AC Common

Green

(Ground)

Red

(Up)

Green (Ground)

AC Hot

115V. AC 60HZ

1 AMP. MAX.

This switch cannot be used with L.V.C.

NOTE: A single switch cannot be used to operate more than one

screen. Contract the factory for further information.

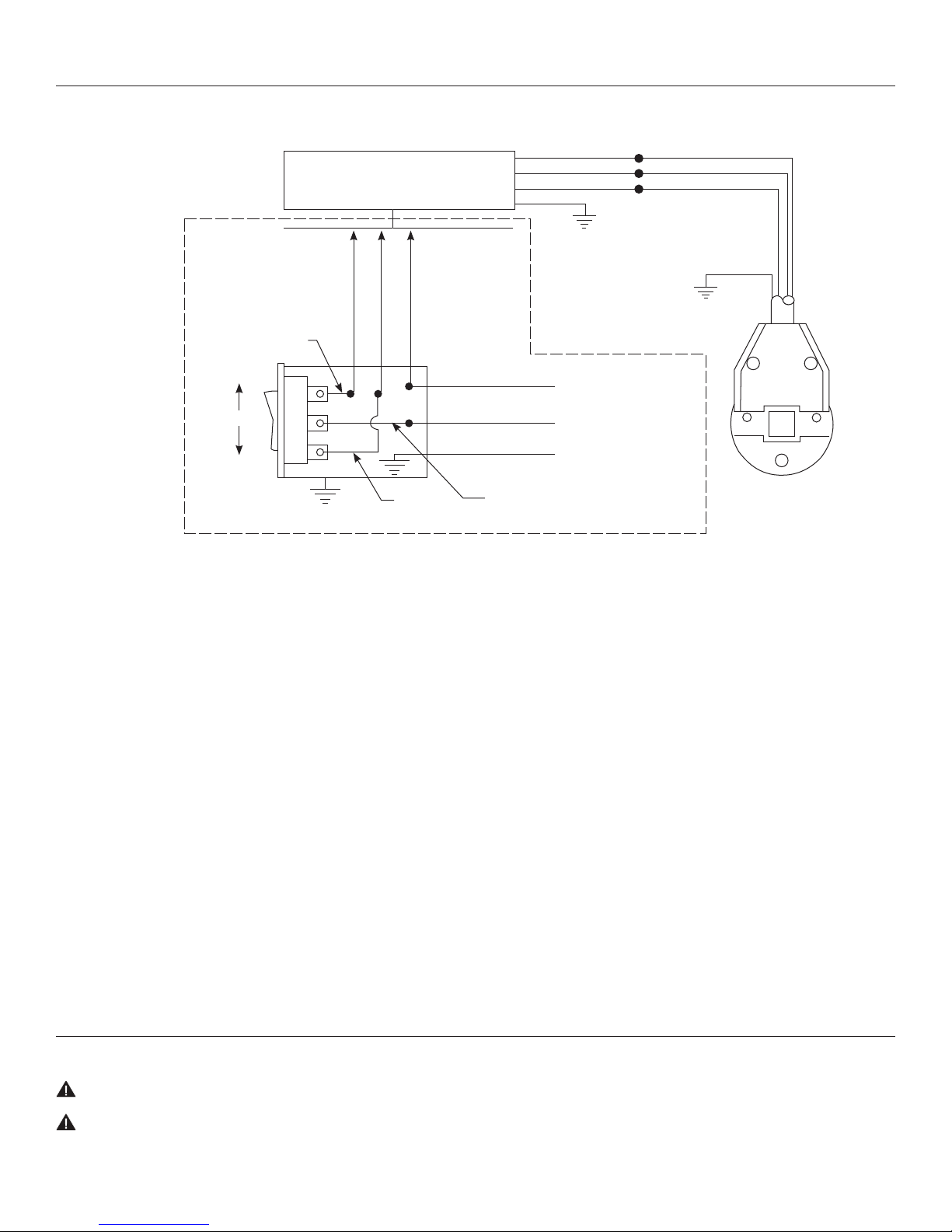

120V Wiring Diagram

Motor

Green (Ground)

Black (Down)

Black

(Down)

Red (Up)

White (Common)

Of

Troubleshooting

Visit www.da-lite.com to ind installation and troubleshooting

tutorials. You will also ind a link to Live Chat for interactive

support and you can contact us by email at info@da-lite.com or by

phone at (800) 6223737 or (574) 2678101 with any

troubleshooting questions.

Symptom Cause Solution

Screen will not operate

and motor does not hum.

Blown fuse. Replace fuse.

Tripped circuit breaker. Reset circuit breaker.

No power to operating switch

or junction.

Check above. Tighten all loose wire connections.

Correct any improper connections.

“Down” Position

Check for power across black and white leads.

“Up” Position

Check for power across red and white leads.

Power at junction box.

Thermal overload tripped. Let motor cool down for 15 minutes. Try again.

Broken wire in the “down” or “up” position. Check for continuity. Cut o old splice and reconnect.

Defective motor, limit switch or capacitor. Replace motor assembly. NOTE: Motor is a sealed assembly.

Capacitor burned out. Replace motor assembly.

Incorrect stopping position in

downward direction.

Lost roller wrap. See instructions below.

“Down” limit switch out of adjustment. Contact Da-Lite at 8006223737 or 5742678101.

Incorrect stopping position in

upward direction.

Lost roller wrap. See instructions below.

“Up” limit switch out of adjustment. Contact Da-Lite at 8006223737 or 5742678101.

Noise.

NOTE: Screen will operate with

a low pitched hum.

Gear Noise. Replace motor assembly.

Coasting. Defective brake. Replace motor assembly.

LIMITED ONE YEAR WARRANTY ON DALITE PRESENTATION PRODUCTS

Milestone AV Technologies LLC warrants certain Da-Lite branded products to the original purchaser only, to be free from defects in

materials and workmanship for a period of one (1) year from the date of purchase by the original purchaser; provided they are properly

operated according to Da-Lite’s instructions and are not damaged due to improper handling or treatment after shipment from the

factory.

This warranty does not apply to equipment showing evidence of misuse, abuse or accidental damage, or which has been tampered

with or repaired by a person other than authorized Da-Lite personnel.

Da-Lite’s sole obligation under this warranty shall be to repair or to replace (at Da-Lite’s option) the defective part of the merchandise.

Returns for service should be made to your Da-Lite dealer. If it is necessary for the dealer to return the screen or part to Da-Lite,

transportation expenses to and from Da-Lite are payable by the purchaser and Da-Lite is not responsible for damage in shipment.

To protect yourself against damage or loss in transit, insure the product and prepay all transportation expenses.

TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, THIS WARRANTY IS IN LIEU OF ALL OTHER WARRANTIES, EXPRESS

OR IMPLIED, INCLUDING WARRANTIES AS TO FITNESS FOR USE AND MERCHANTABILITY. Any implied warranties of itness for use,

or merchantability, that may be mandated by statute or rule of law are limited to the one (1) year warranty period. This warranty gives

you speciic legal rights, and you may also have other rights, which vary from state-to-state. TO THE MAXIMUM EXTENT PERMITTED

BY APPLICABLE LAW, NO LIABILITY IS ASSUMED FOR EXPENSES OR DAMAGES RESULTING FROM INTERRUPTION IN OPERATION

OF EQUIPMENT, OR FOR INCIDENTAL, DIRECT, OR CONSEQUENTIAL DAMAGES OF ANY NATURE.

In the event that there is a defect in materials or workmanship of a Da-Lite product, you may contact our Sales Partners at PO Box 137,

Warsaw, IN 465810137, (574) 2678101, (800) 6223737.

IMPORTANT: THIS WARRANTY SHALL NOT BE VALID AND DALITE BRANDED PRODUCTS SHALL NOT BE BOUND BY THIS

WARRANTY IF THE PRODUCT IS NOT OPERATED IN ACCORDANCE WITH THE DALITE WRITTEN INSTRUCTIONS.

Keep your sales receipt to prove the date of purchase and your original ownership.

33871

A Milestone AV Technologies Brand

3100 North Detroit Street

Warsaw, Indiana 46582

P: 574.267.8101 or 800.622.3737

F: 574.267.7804 or 877.325.4832

E: info@da-lite.com

www.da-lite.com

DL–0170 (Rev. 2) 10.14
